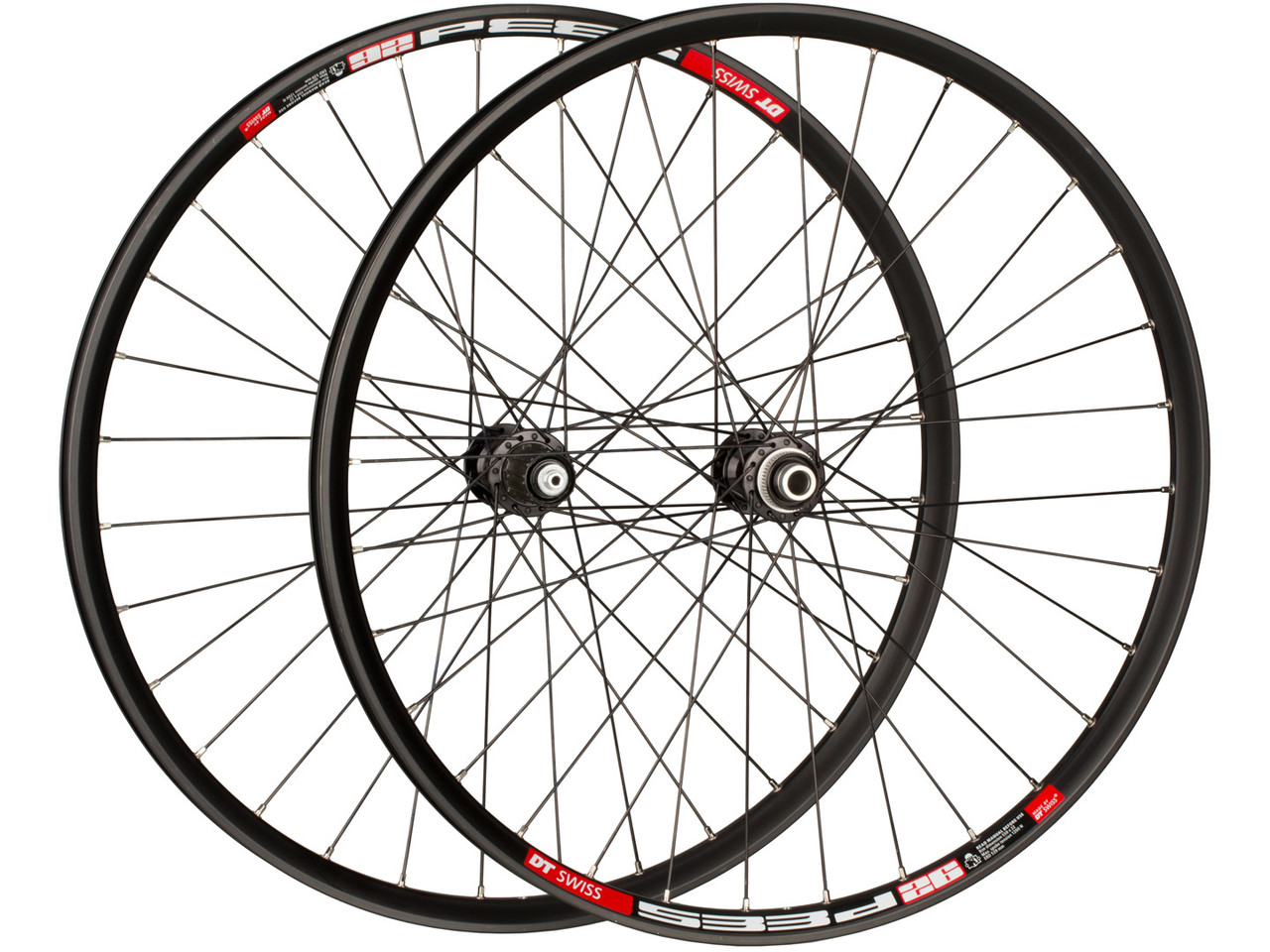

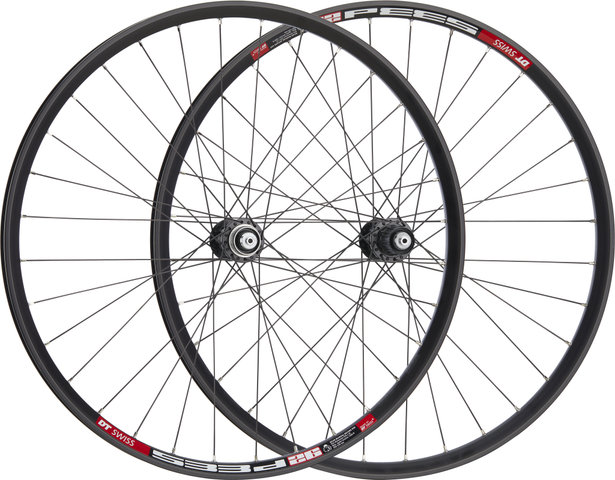

bc basic Trail XT 26" Disc wheelset with DT Swiss 533db rim, Shimano M8000 hubs and DT Swiss Competition spokes.

Specifications:

Application:

All Mountain

Wheel Size:

26"

Tyre Type:

clincher tyre

Number of Spokes:

32

Brake Type:

Center Lock Disc

Tubeless System:

Tubeless Ready

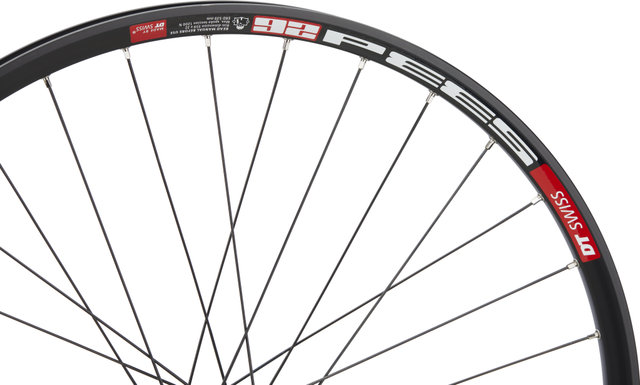

Technical Information - Rim:

Type:

DT Swiss 533db

Rim Flange:

with hook

Dimensions (ETRTO):

22-559

Inner Width:

22 mm

Outer Width:

27.7 mm

Depth:

20.3 mm

ERD:

539 mm (nipple slot)

Valve Hole Diameter:

SV/Presta (6.5 mm)

Rim Material:

aluminium

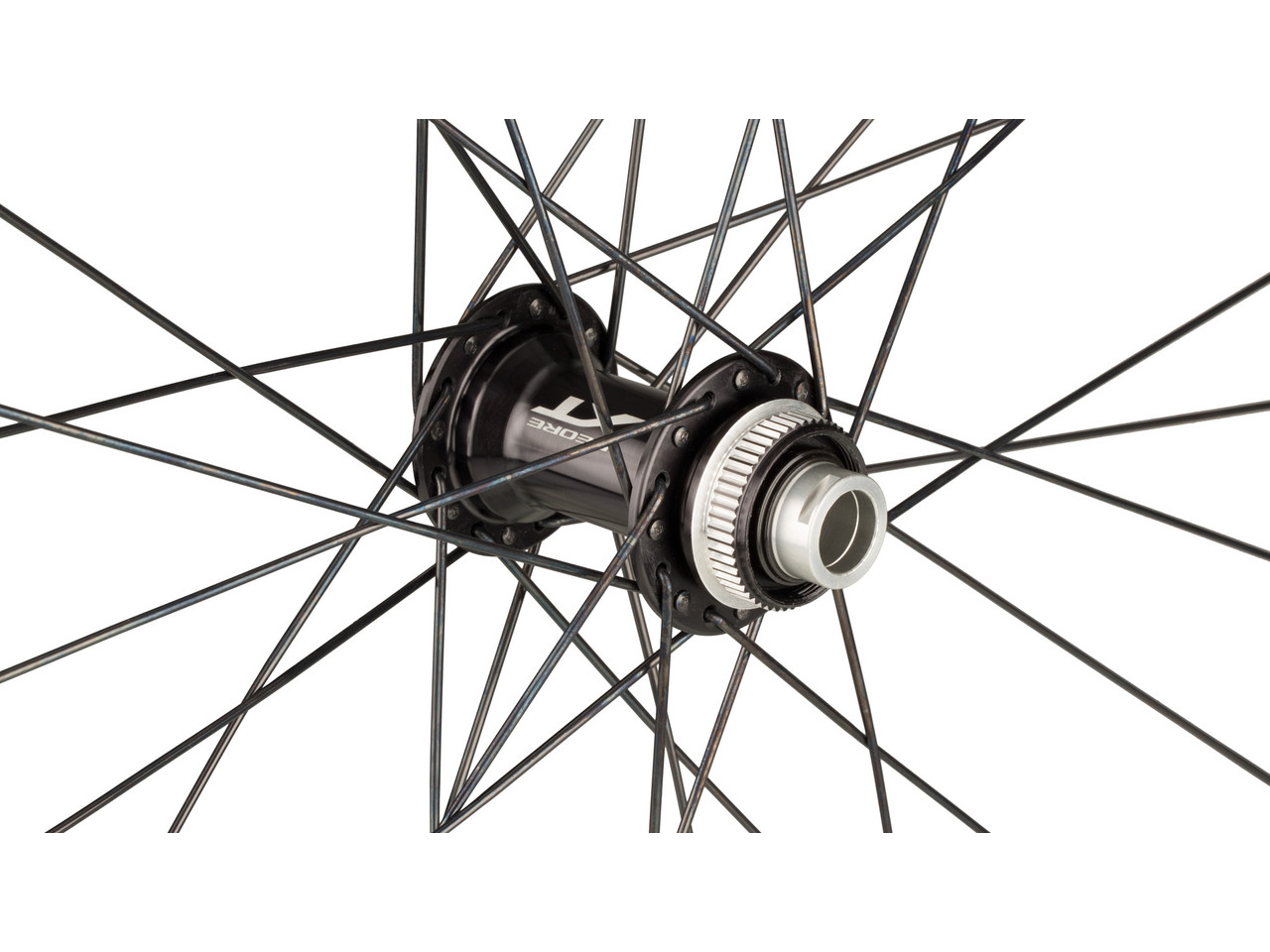

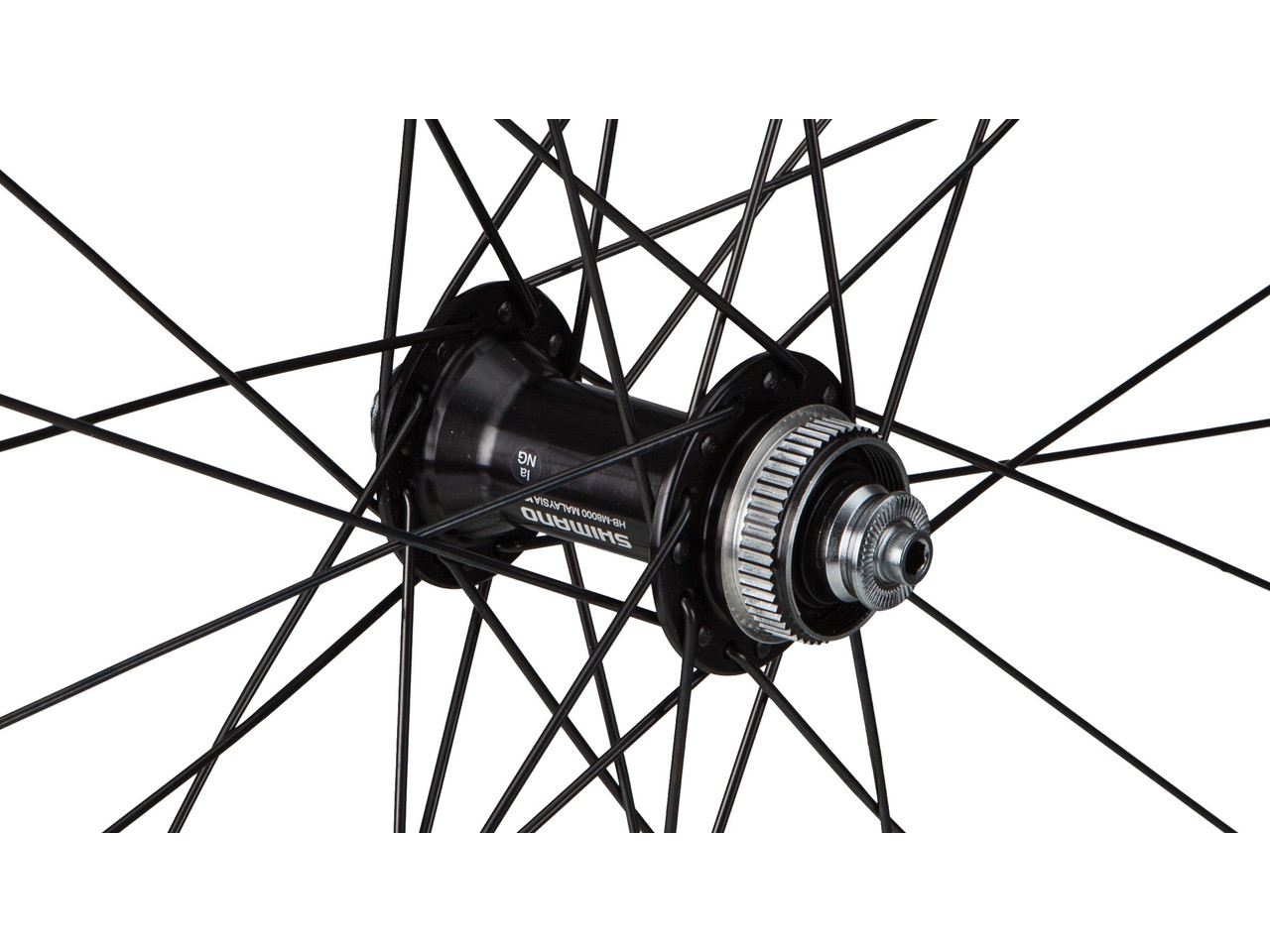

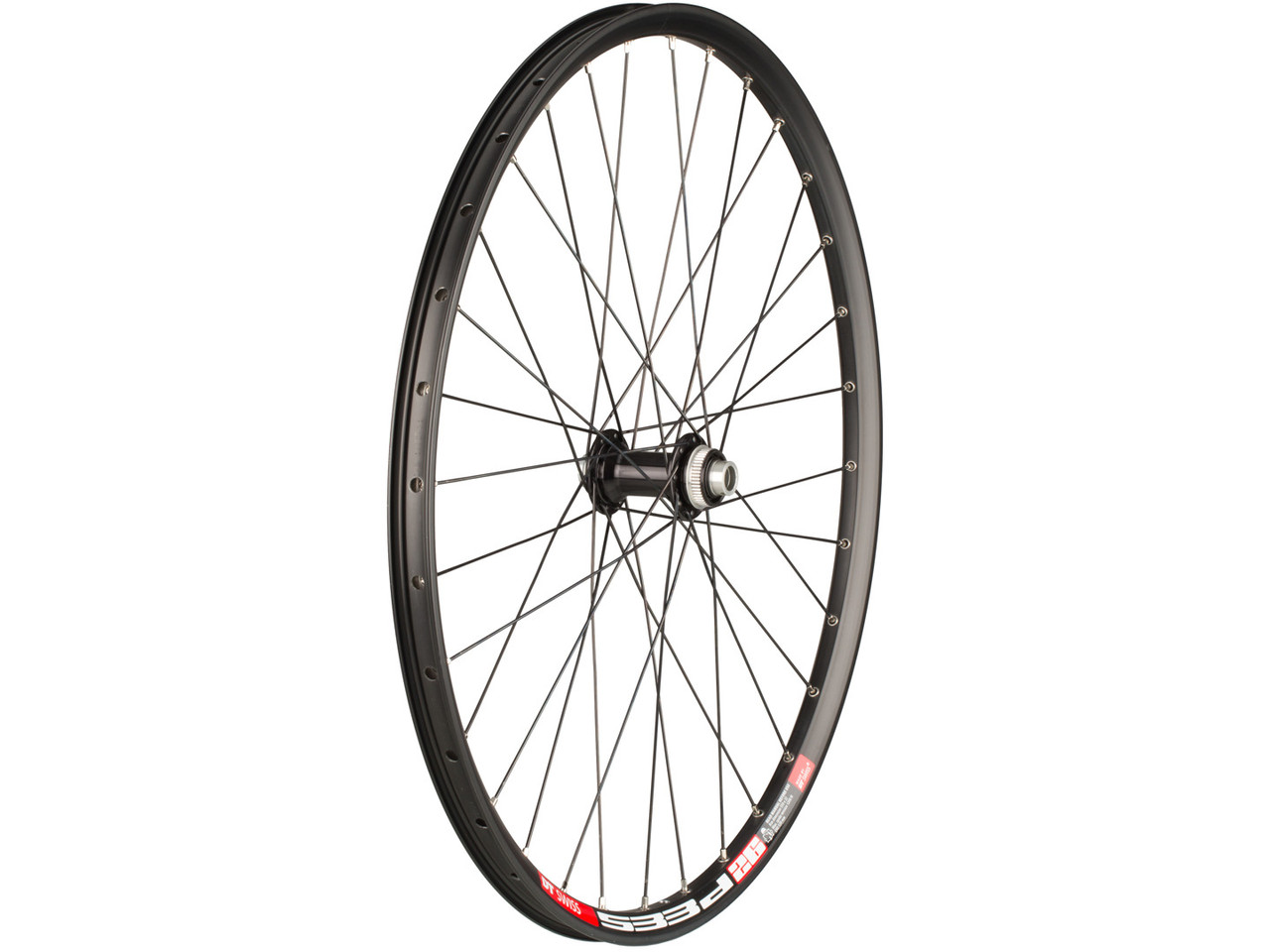

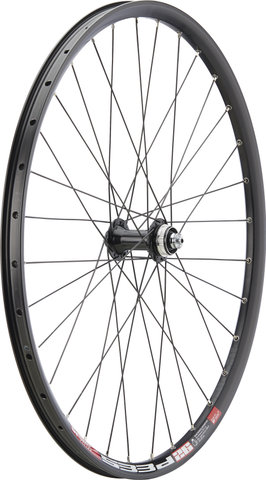

Technical Information - Front Hub:

Type:

Shimano Deore XT HB-M8000

Over Locknut Dimension:

9 x 100 mm quick release

Bearings:

cup & cone

Body Material:

aluminium

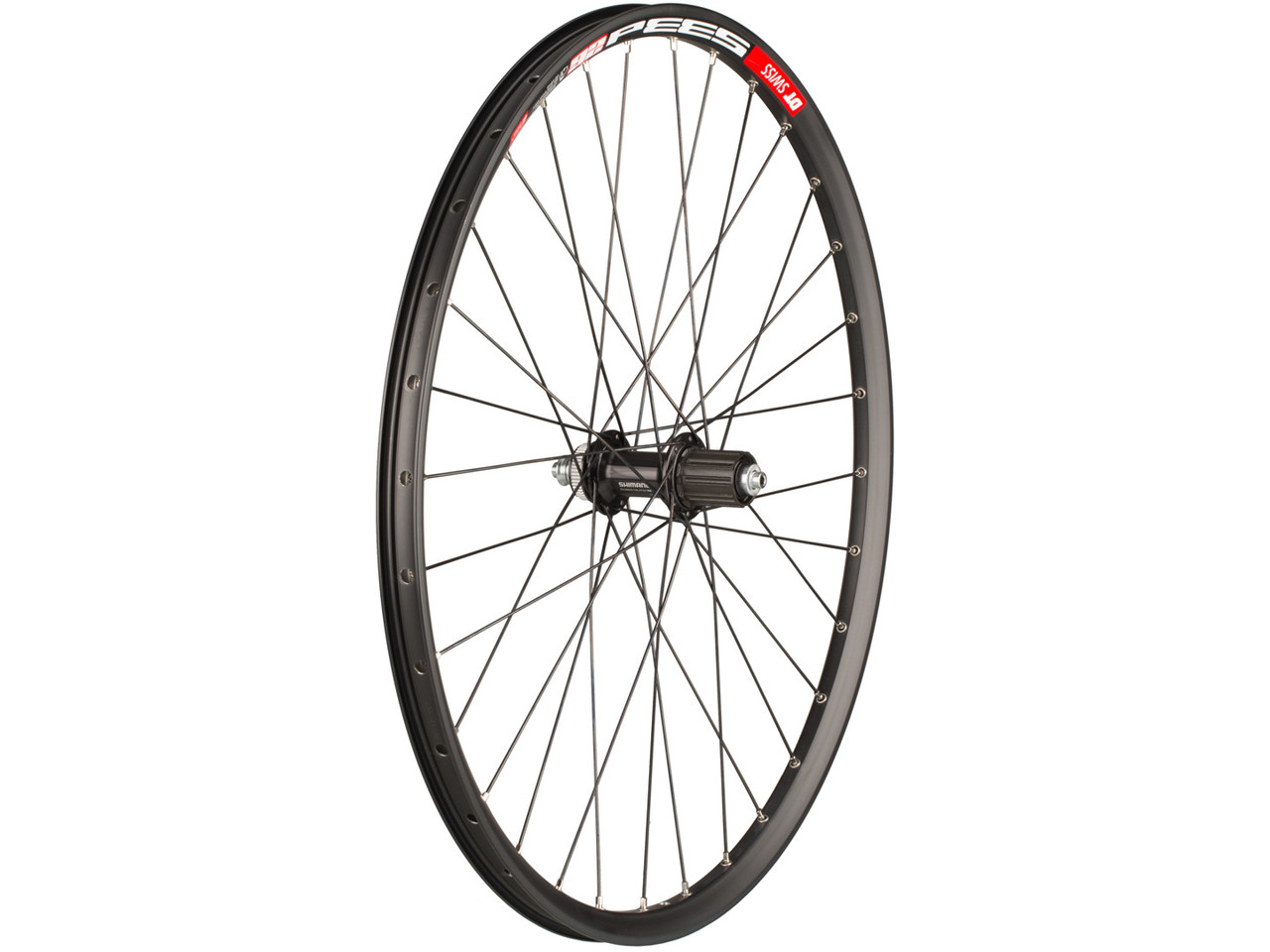

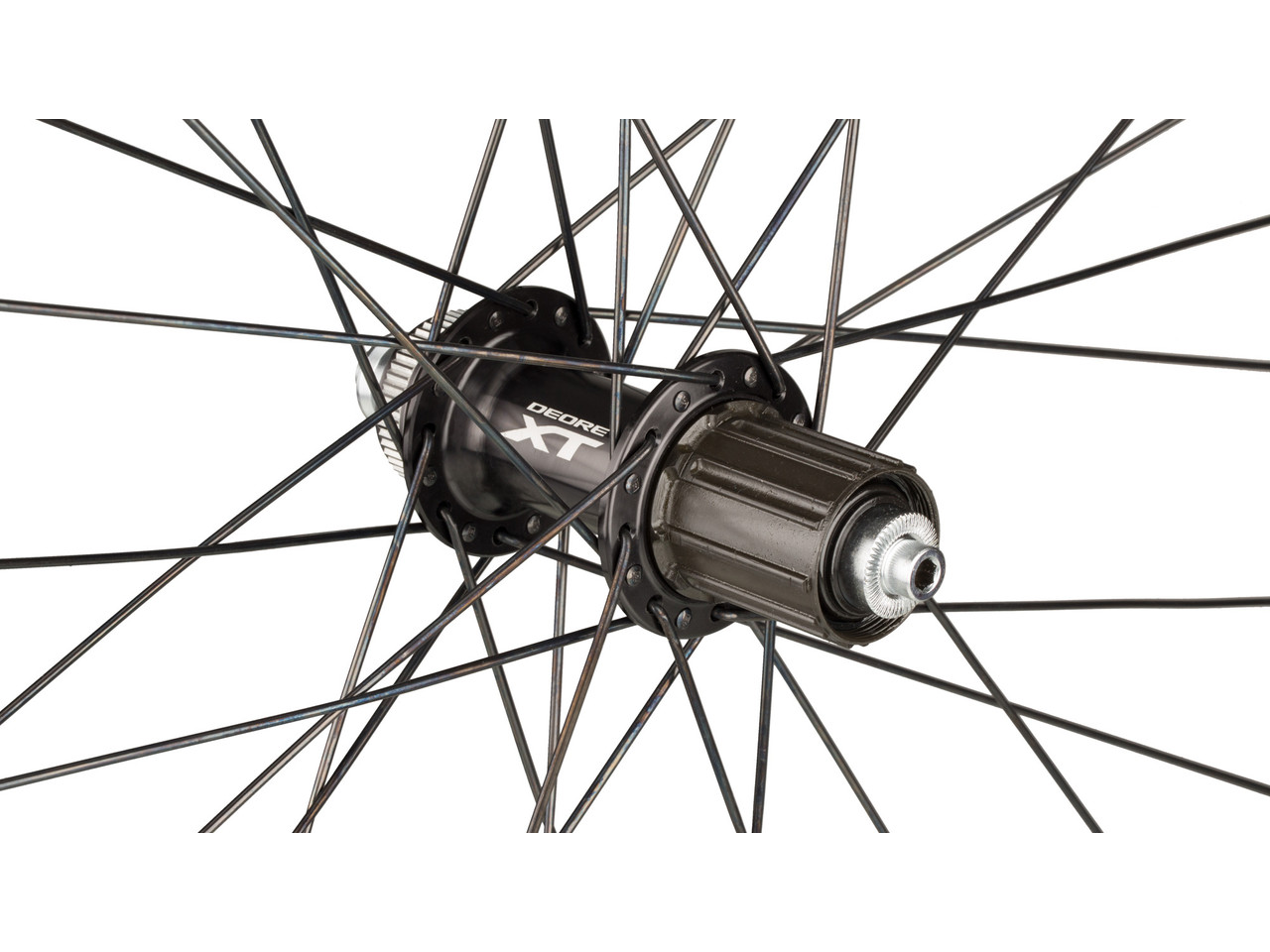

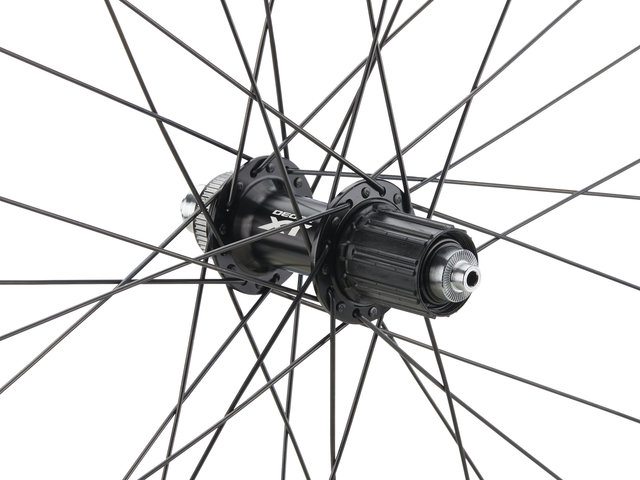

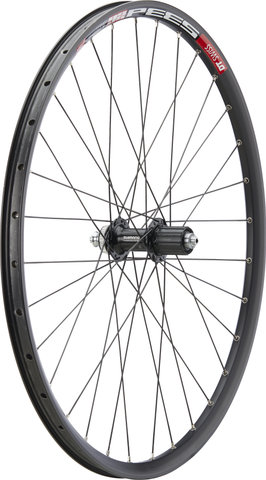

Technical Information - Rear Hub:

Type:

Shimano Deore XT FH-M8000

Over Locknut Dimension:

10 x 135 mm quick release

Bearings:

cup & cone

Body Material:

aluminium

Freehub Body Material:

steel

Freehub Body:

Quick Engagement (36 points/360°)

Technical Information - Lacing:

Front Lacing Pattern:

3-cross

Rear Lacing Pattern:

3-cross

Spoke Type:

DT Swiss Competition / double butted (2.0-1.8-2.0)

Spoke Size:

260 mm/262 mm (front l/r), 262 mm/260 mm (rear l/r)

Spoke Material:

stainless steel

Nipple Type:

DT Swiss

Nipple Size:

12 mm (length)

Nipple Material:

brass

Approved For:

Weight Limit (Rim):

130 kg system weight (rider + bike + gear)

Features:

• Pin Joint
• single eyelets
• maximum spoke tension 1200 N
• anodised hubs
• labyrinth and contact seals
• aluminium axles
• internal grease sleeve
• double butted technology

Colour Index:

black:

• Rim: black
• Hub: black
• Spokes: black
• Nipples: silver

Models:

26" set (front+rear):

Freehub:

Shimano MTB

Gearing:

8-/9-/10-/11-speed

Manufacturer Number:

46681-2-2462

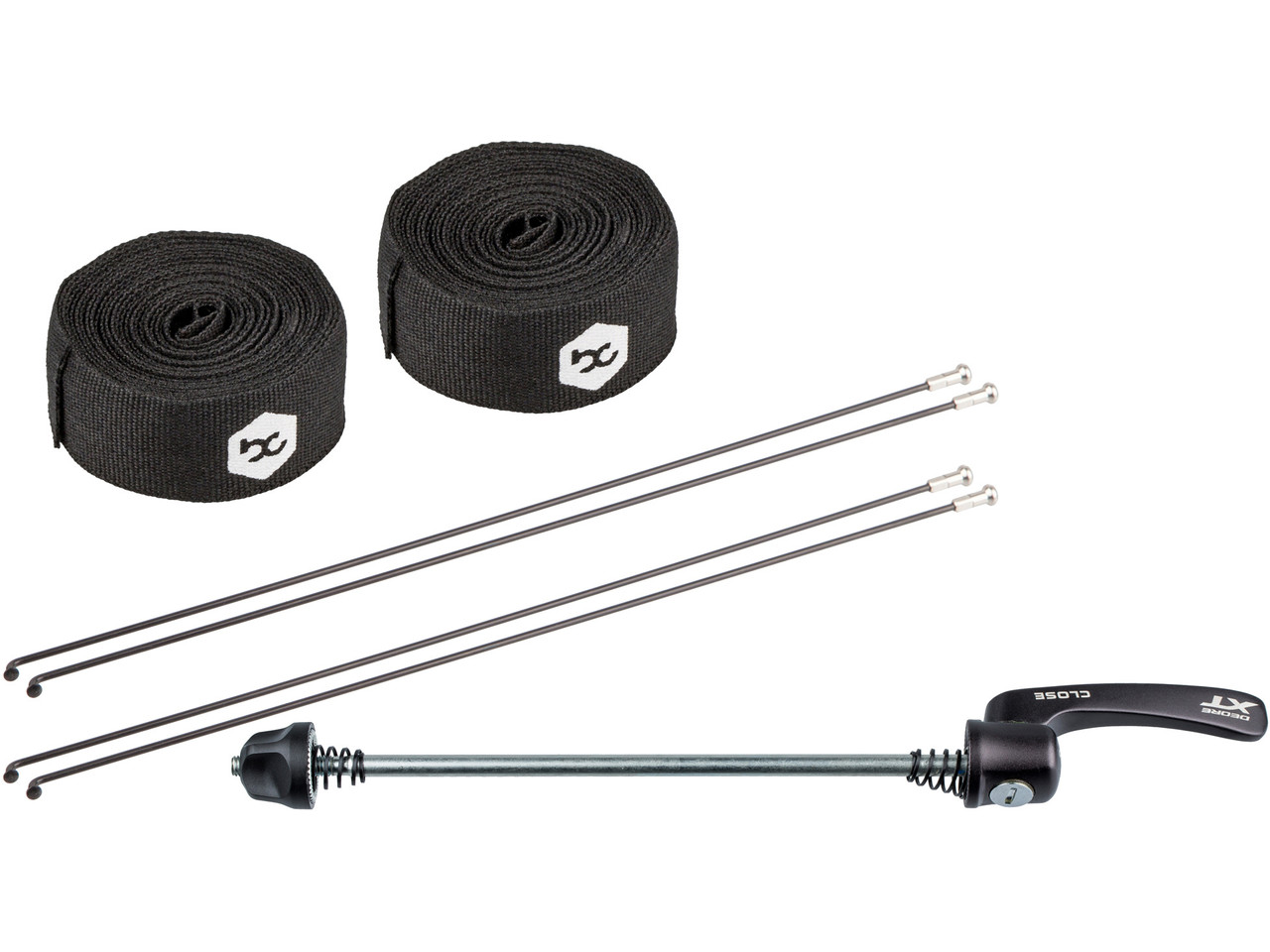

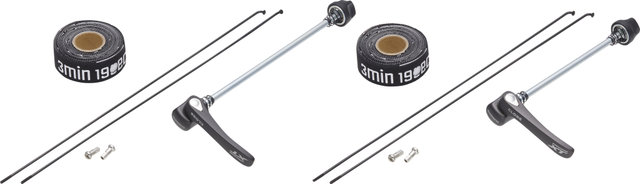

Contents:

• 1 x bc basic Trail XT Disc wheelset (front and rear, laced and trued)
• 2 x Shimano quick releases
• 2 x rolls bc textile rim tape
• 4 x spare spokes with nipples

Order Together:

To build tubeless wheels:

• bc basic Tubeless Pro rim tape
• bc basic tubeless valves
• MONKEYS SAUCE Sealant
