bc basic Trail XT Center Lock Disc 29" Wheel - black/29" front 9x100

bc basic Trail XT Center Lock Disc 29" Wheel

Item number: 56234
6
6

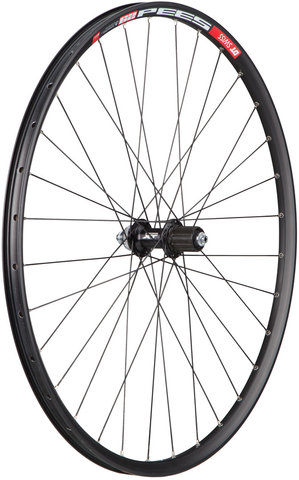

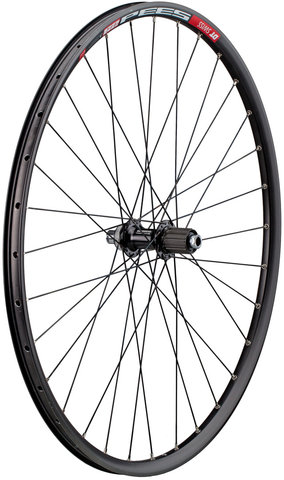

bc basic Trail XT 29" Disc wheel with DT Swiss 533db rim, Shimano M8000 hubs and DT Swiss Competition spokes.

Specifications:

Application:
All Mountain, Enduro
Wheel Size:
29"
Tyre Type:
clincher tyre
Number of Spokes:
32
Brake Type:
Center Lock Disc
Tubeless System:
Tubeless Ready

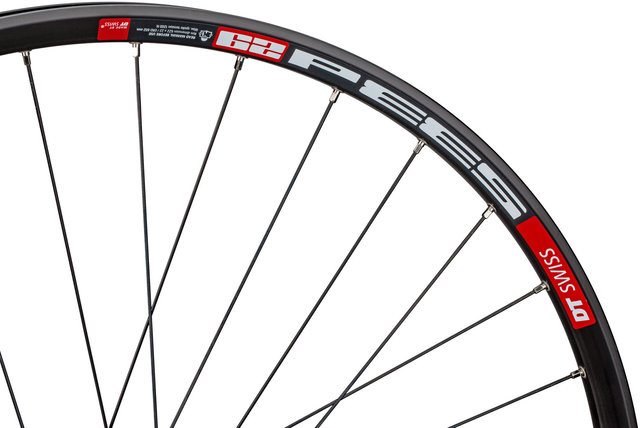

Technical Information - Rim:

Type:
DT Swiss 533db
Rim Flange:
with hook
Dimensions (ETRTO):
22-622
Inner Width:
22 mm
Outer Width:
27.7 mm
Depth:
20.3 mm
ERD:
602 mm (nipple slot)
Valve Hole Diameter:
SV/Presta (6.5 mm)
Rim Material:
aluminium

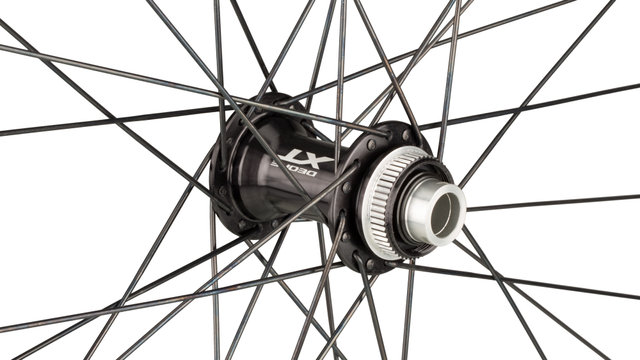

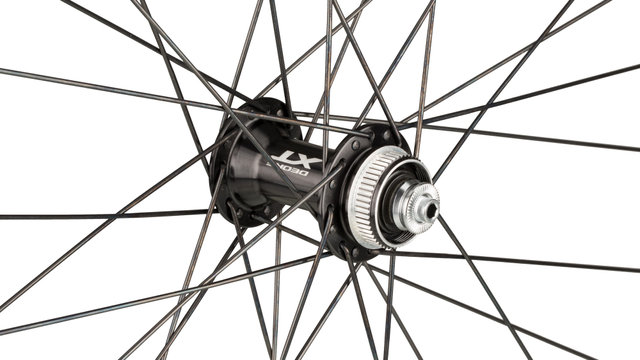

Technical Information - Front Hub:

Type:
Shimano Deore XT HB-M8000 or HB-M8010
Over Locknut Dimension:
9 x 100 mm quick release or 15 x 100 mm thru-axle
Bearings:
cup & cone
Body Material:
aluminium

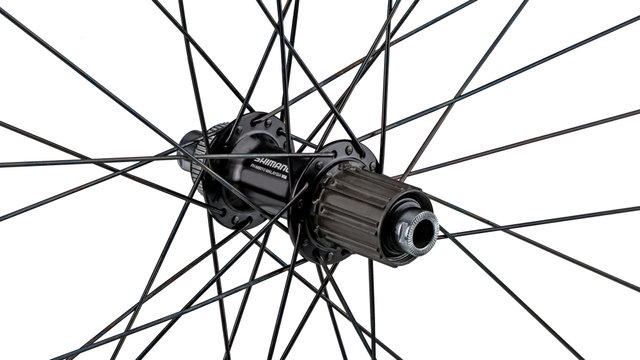

Technical Information - Rear Hub:

Type:
Shimano Deore XT FH-M8000
Over Locknut Dimension:
10 x 135 mm quick release
Bearings:
cup & cone
Body Material:
aluminium
Freehub Body Material:
steel
Freehub Body:
Quick Engagement (36 points/360°)

Technical Information - Lacing:

Front Lacing Pattern:
3-cross
Rear Lacing Pattern:
3-cross
Spoke Type:
DT Swiss Competition / double butted (2.0-1.8-2.0)
Spoke Size:
292 mm/294 mm (front l/r), 294 mm/292 mm (rear l/r)
Spoke Material:
stainless steel
Nipple Type:
DT Swiss
Nipple Size:
12 mm (length)
Nipple Material:
brass

Approved For:

Weight Limit (Rim):
130 kg system weight (rider + bike + gear)

Features:

  • Pin Joint
  • single eyelets
  • maximum spoke tension 1200 N
  • anodised hubs
  • high quality seals
  • aluminium axles
  • double butted technology

Colour Index:

black:
  • Rim: black
  • Hub: black
  • Spokes: black
  • Nipples: silver

Models:

29" front 9x100:
Manufacturer Number:
56234-2-10025

29" front 15x100:
Manufacturer Number:
56234-2-8851

29" rear 10x135 Shimano:
Freehub:
Shimano MTB
Gearing:
8-/9-/10-/11-speed
Manufacturer Number:
56234-2-9155

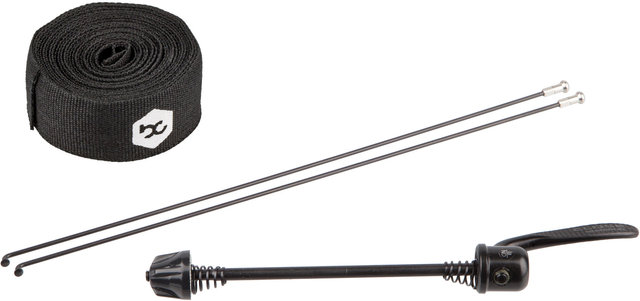

Contents:

  • 1 x bc basic Trail XT Disc wheel (front or rear, laced and trued)
  • 1 x Shimano quick release (not for front 15 mm thru-axle)
  • 1 x roll bc textile rim tape
  • 2 x spare spokes with nipples

Order Together:

To build tubeless wheels:


Weight:

  • black/29" front 9x100: 971 g
  • black/29" front 15x100: 956 g
  • 100 day return period
  • Online since 1998
  • Trusted Shop 4.89 / 5.00

Models:

  • black/29" front 9x100, in stock
    94.34€
  • black/29" front 15x100, in stock
    99.53€

Customer Reviews (6)

3.8

Customer Reviews (6)

3.8/5.0
5
3
4
1
3
0
2
2
1
0

Give us your opinion on this product.

by Dominik H. on 17.07.2022
1 of 1 customers found this review helpful.

Am Hinterrad haben sich nach nicht mal 100km die Konuslager von selbst angezogen bis das Laufrad blockiert hat.
Der Freilauf hat sich bis dahin auch komplett gelockert. Kann mir nicht vorstellen dass der bei Lieferung korrekt mit 45-50 Nm angezogen war.
Wenn man sich das notwendige Spezialwerkzeug zulegt/besitzt um das Konuslager zu zerlegen und alles einmal korrekt anzieht ist das vielleicht ein brauchbares Laufrad.
Wenn ich die anderen Rezessionen so lese sollte das Laufrad vielleicht einfach als Bausatz verkauft werden, dann ist wenigstens klar was man selbst noch machen muss.
