Trail XT Center Lock Disc 29" Wheelset - black/29" set (front 9x100 + rear 10x135) Shimano
Item number: 56236
6
6

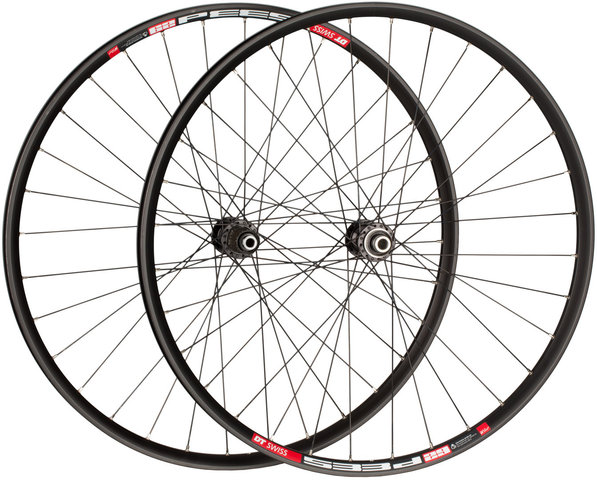

bc basic Trail XT 29" Disc wheelset with DT Swiss 533db rim, Shimano M8000 hubs and DT Swiss Competition spokes.

Specifications:

Application:
All Mountain, Enduro
Wheel Size:
29"
Tyre Type:
clincher tyre
Number of Spokes:
32
Brake Type:
Center Lock Disc
Tubeless System:
Tubeless Ready

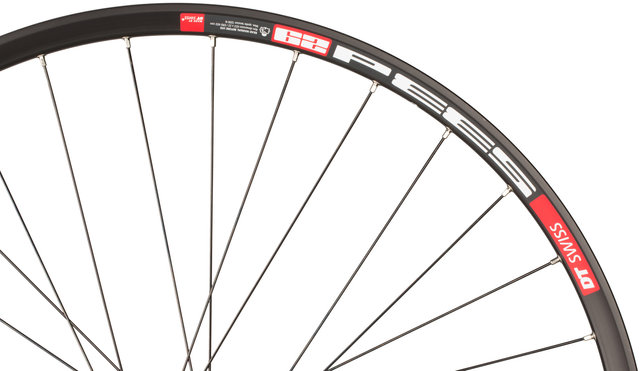

Technical Information - Rim:

Type:
DT Swiss 533db
Rim Flange:
with hook
Dimensions (ETRTO):
22-622
Inner Width:
22 mm
Outer Width:
27.7 mm
Depth:
20.3 mm
ERD:
602 mm (nipple slot)
Valve Hole Diameter:
SV/Presta (6.5 mm)
Rim Material:
aluminium

Technical Information - Front Hub:

Type:
Shimano Deore XT HB-M8000 or HB-M8010
Over Locknut Dimension:
9 x 100 mm quick release or 15 x 100 mm thru-axle
Bearings:
cup & cone
Body Material:
aluminium

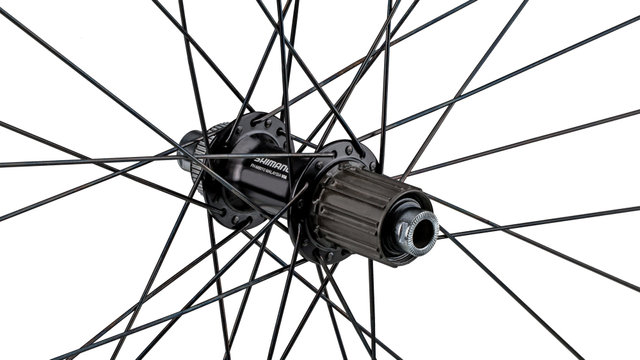

Technical Information - Rear Hub:

Type:
Shimano Deore XT FH-M8000
Over Locknut Dimension:
10 x 135 mm quick release
Bearings:
cup & cone
Body Material:
aluminium
Freehub Body Material:
steel
Freehub Body:
Quick Engagement (36 points/360°)

Technical Information - Lacing:

Front Lacing Pattern:
3-cross
Rear Lacing Pattern:
3-cross
Spoke Type:
DT Swiss Competition / double butted (2.0-1.8-2.0)
Spoke Size:
292 mm/294 mm (front l/r), 294 mm/292 mm (rear l/r)
Spoke Material:
stainless steel
Nipple Type:
DT Swiss
Nipple Size:
12 mm (length)
Nipple Material:
brass

Approved For:

Weight Limit (Rim):
130 kg system weight (rider + bike + gear)

Features:

  • Pin Joint
  • single eyelets
  • maximum spoke tension 1200 N
  • anodised hubs
  • high quality seals
  • aluminium axles
  • double butted technology

Colour Index:

black:
  • Rim: black
  • Hub: black
  • Spokes: black
  • Nipples: silver

Models:

29" set (front 9x100 + rear 10x135) Shimano:
Freehub:
Shimano MTB
Gearing:
8-/9-/10-/11-speed
Manufacturer Number:
56236-2-9108

29" set (front 15x100 + rear 10x135) Shimano:
Freehub:
Shimano MTB
Gearing:
8-/9-/10-/11-speed
Manufacturer Number:
56236-2-8824

Contents:

  • 1 x bc basic Trail XT Disc wheelset (front and rear, laced and trued)
  • 2 x Shimano quick releases (only 1 for front 15 mm version)

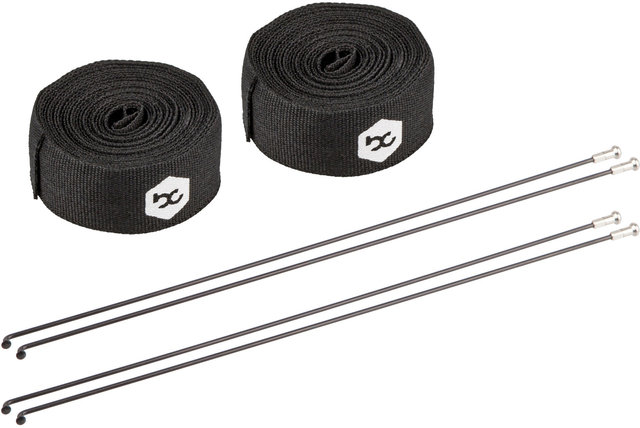

  • 2 x rolls bc textile rim tape
  • 4 x spare spokes with nipples

Order Together:

To build tubeless wheels:


Weight:

  • black/29" set (front 9x100 + rear 10x135) Shimano: 2107 g (Satz)
  • black/29" set (front 15x100 + rear 10x135) Shimano: 2092 g (Satz)
