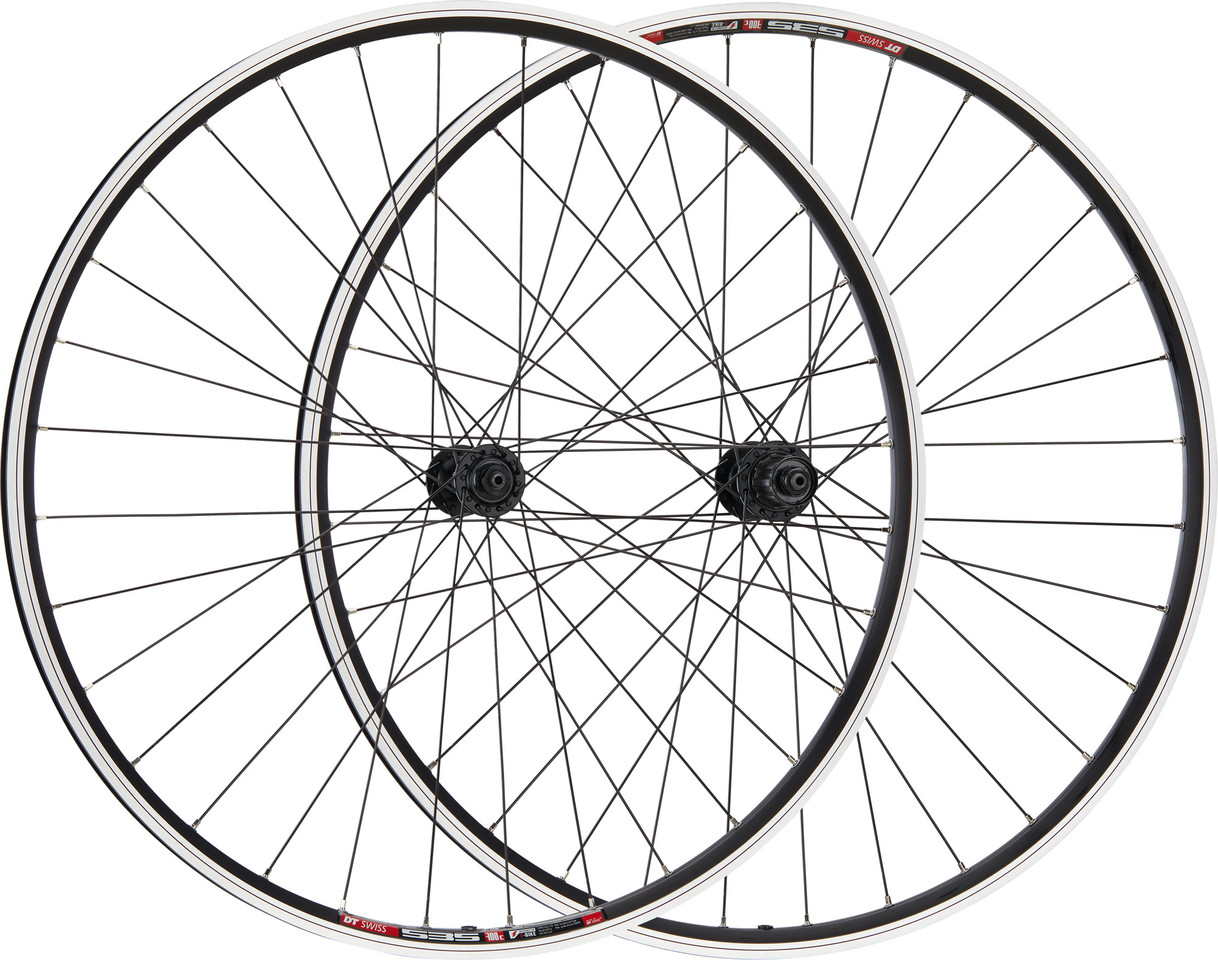

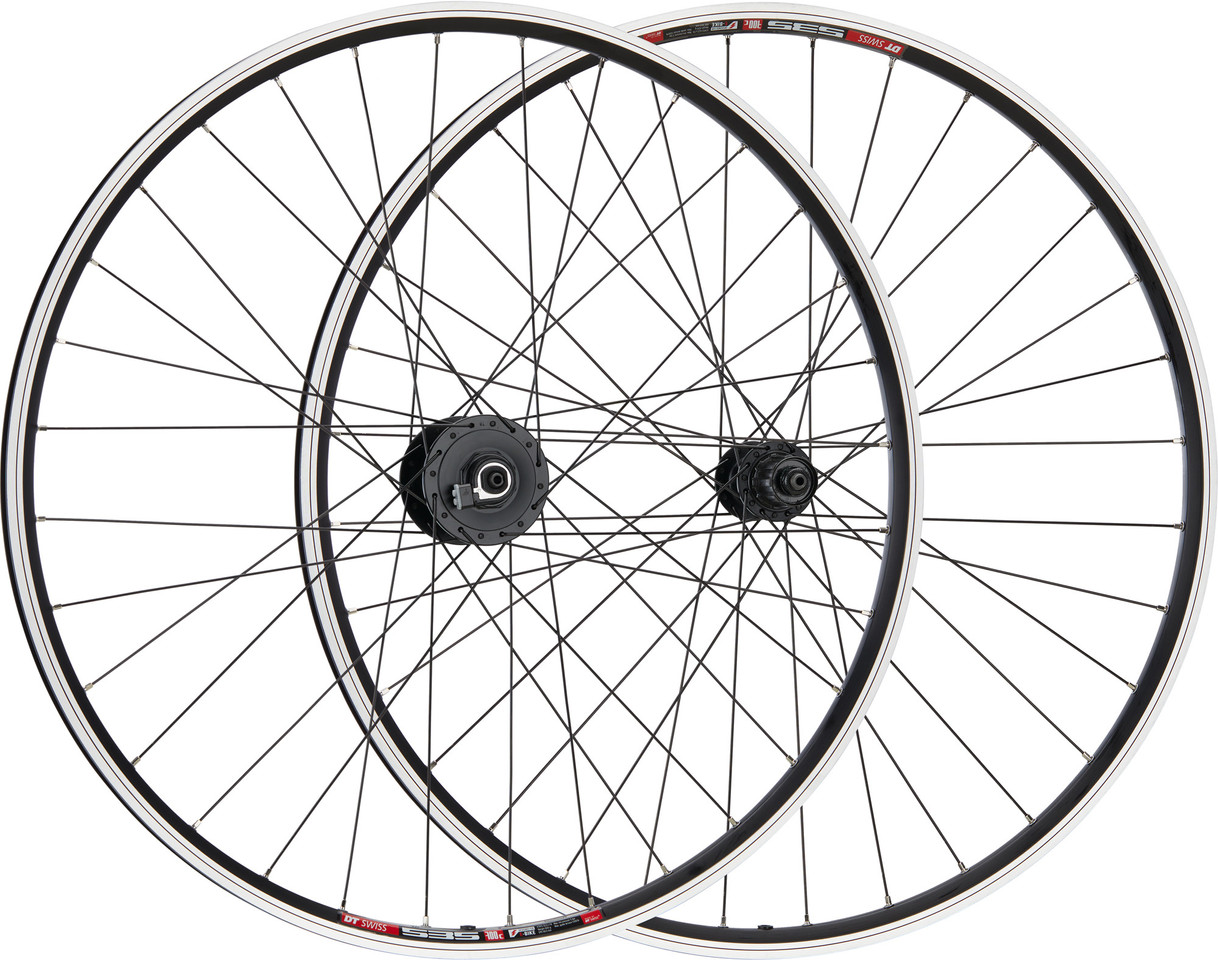

bc basic Urban Acera V-Brake DT Swiss 535 28" Wheelset

The Urban V-Brake Wheelset by bc basic with DT 535 Rims and Shimano Acera Hubs

These bc basic 28" wheels for city, touring and trekking bikes with rim brakes come with Shimano HB-T3000 and FH-T3000 quick-release hubs that ensure reliable Acera-level function. The front wheel is also available with the Nexus DH-C3000 hub dynamo from Shimano, so that you can fit a lighting system that complies with road traffic regulations. The aluminium rim is the 535 model from DT Swiss, which has a 19 mm jaw width and is characterised by its particular stability thanks to a reinforced profile. The wheelset is laced with round DT Factory spokes.

Information regarding the return of batteries and electrical equipment:

Information on the return and disposal of used batteries and electrical equipment can be found here.

Specifications:

Application:

City & Touring

Wheel Size:

28"

Tyre Type:

clincher tyre

Number of Spokes:

32

Brake Type:

V-brake

Tubeless System:

none

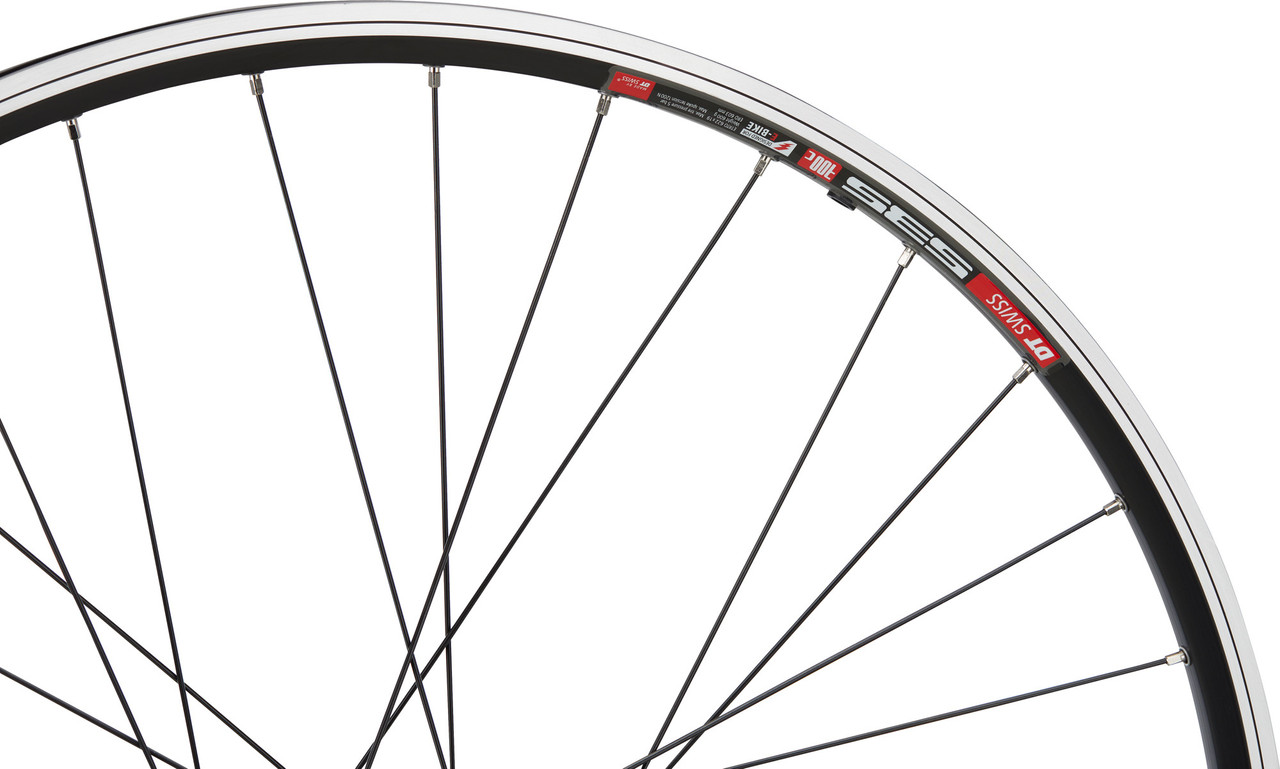

Technical Information - Rim:

Type:

DT Swiss 535

Rim Flange:

with hook

Dimensions (ETRTO):

19-622

Inner Width:

19 mm

Outer Width:

24 mm

Depth:

20 mm

ERD:

603 mm (nipple slot)

Valve Hole Diameter:

Schrader/Dunlop (8.5 mm), incl. Presta reducer

Rim Material:

aluminium

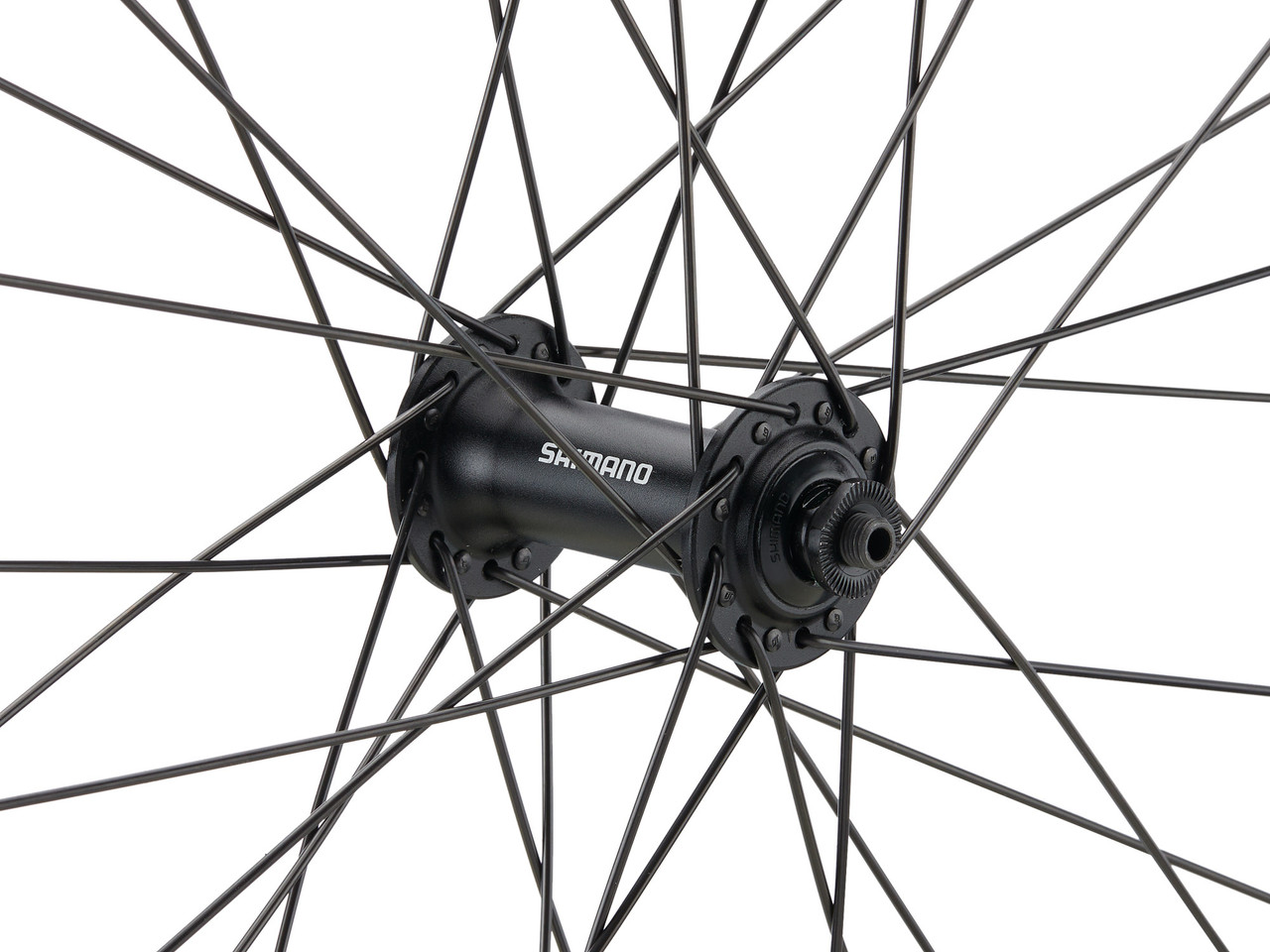

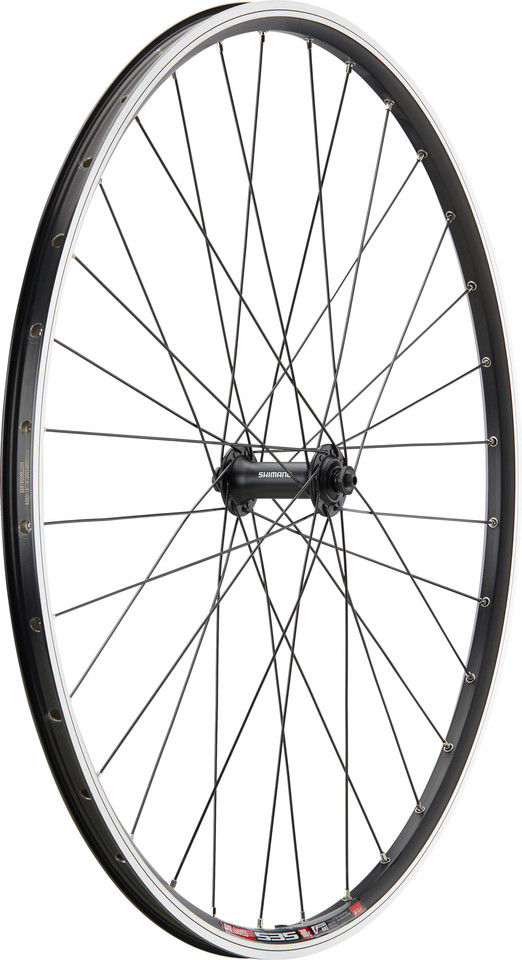

Technical Information - Front Hub:

Type:

Shimano HB-T3000

Over Locknut Dimension:

9 x 100 mm quick release

Body Material:

aluminium

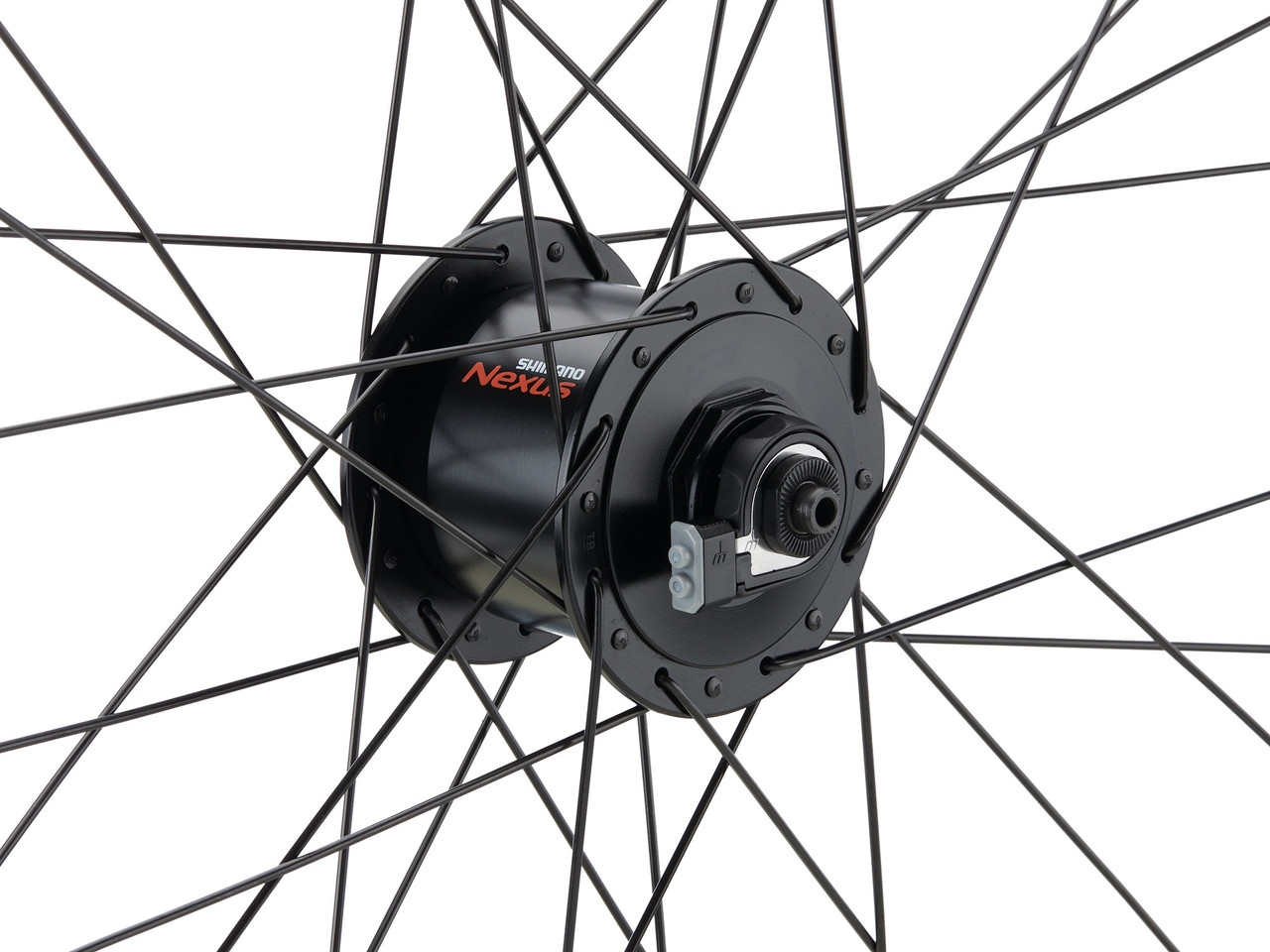

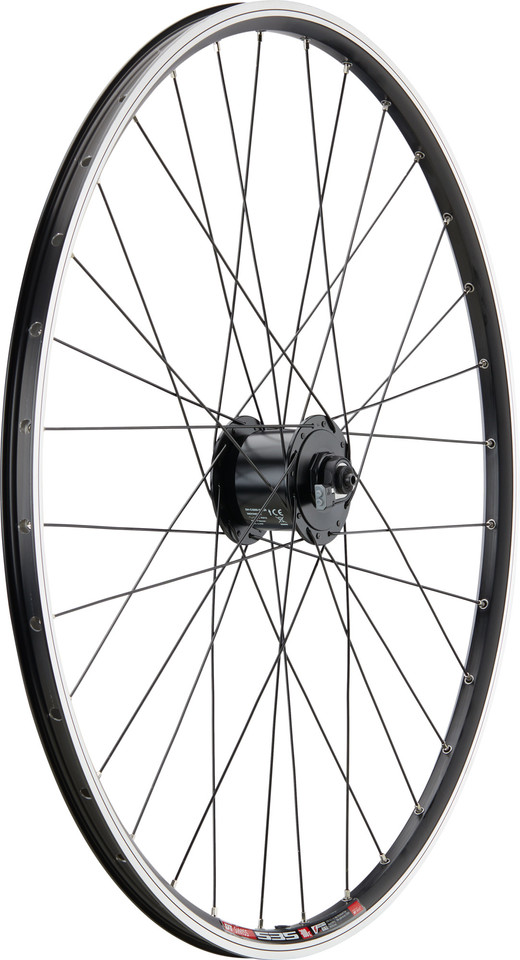

Technical Information - Front Dynamo Hub:

Type:

Shimano Nexus DH-C3000-3N-QR

Over Locknut Dimension:

9 x 100 mm quick release

Output:

6V/3W (according to StVZO)

Efficiency:

min. 30%

Body Material:

aluminium

Seals:

contact

Wire Connector:

E2-TYP (= meets current European standards for two lights)

Street Use in Germany:

yes

Check Number:

K~~912

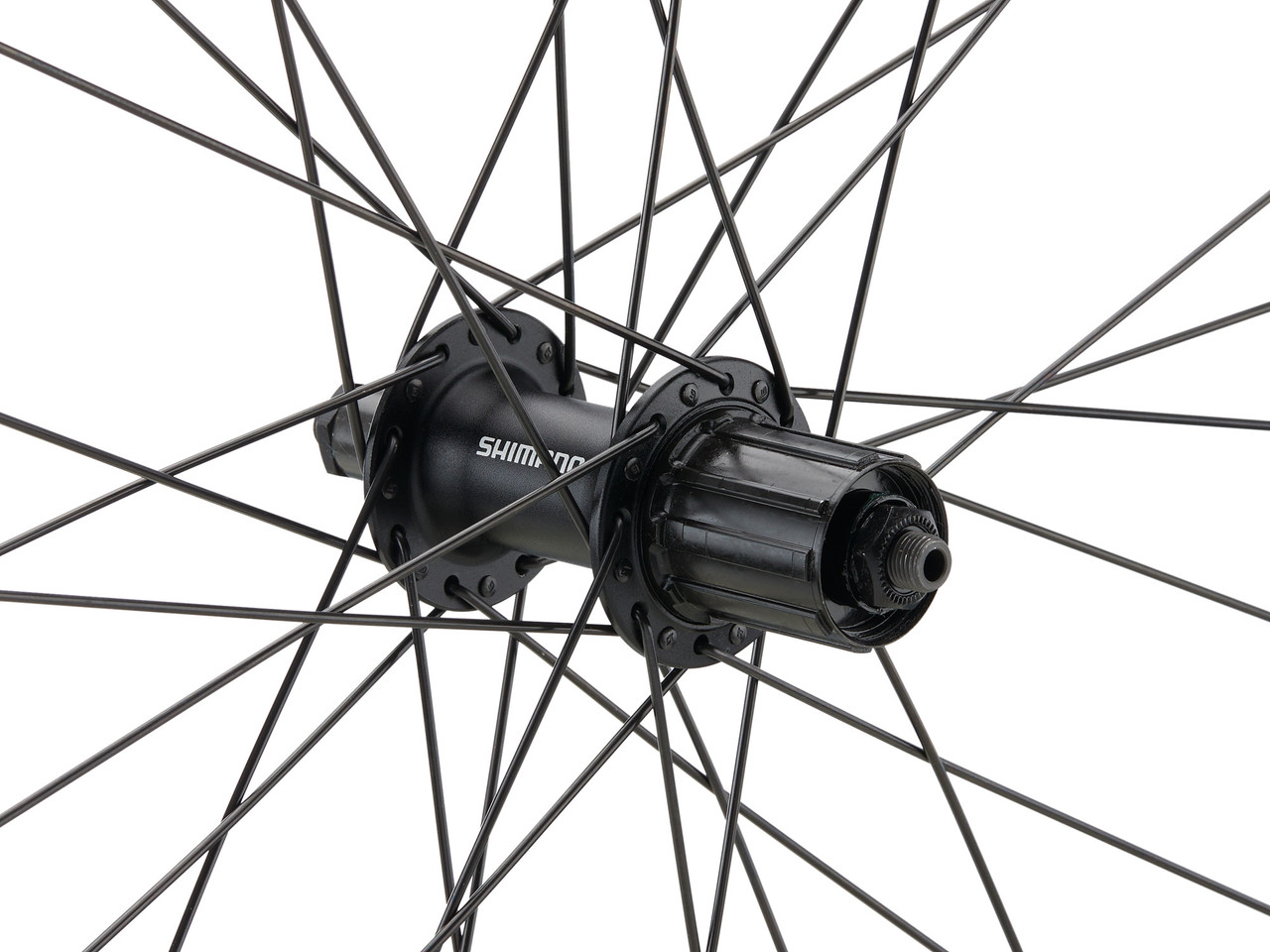

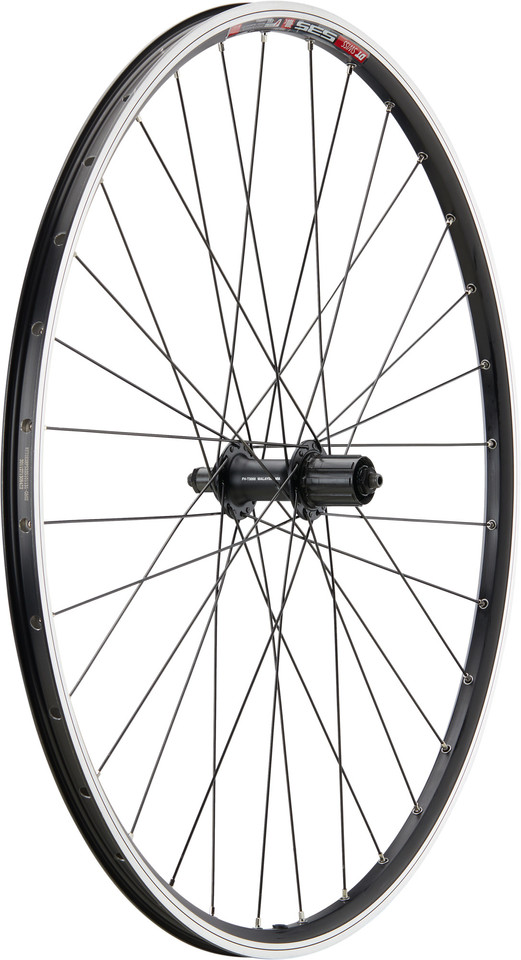

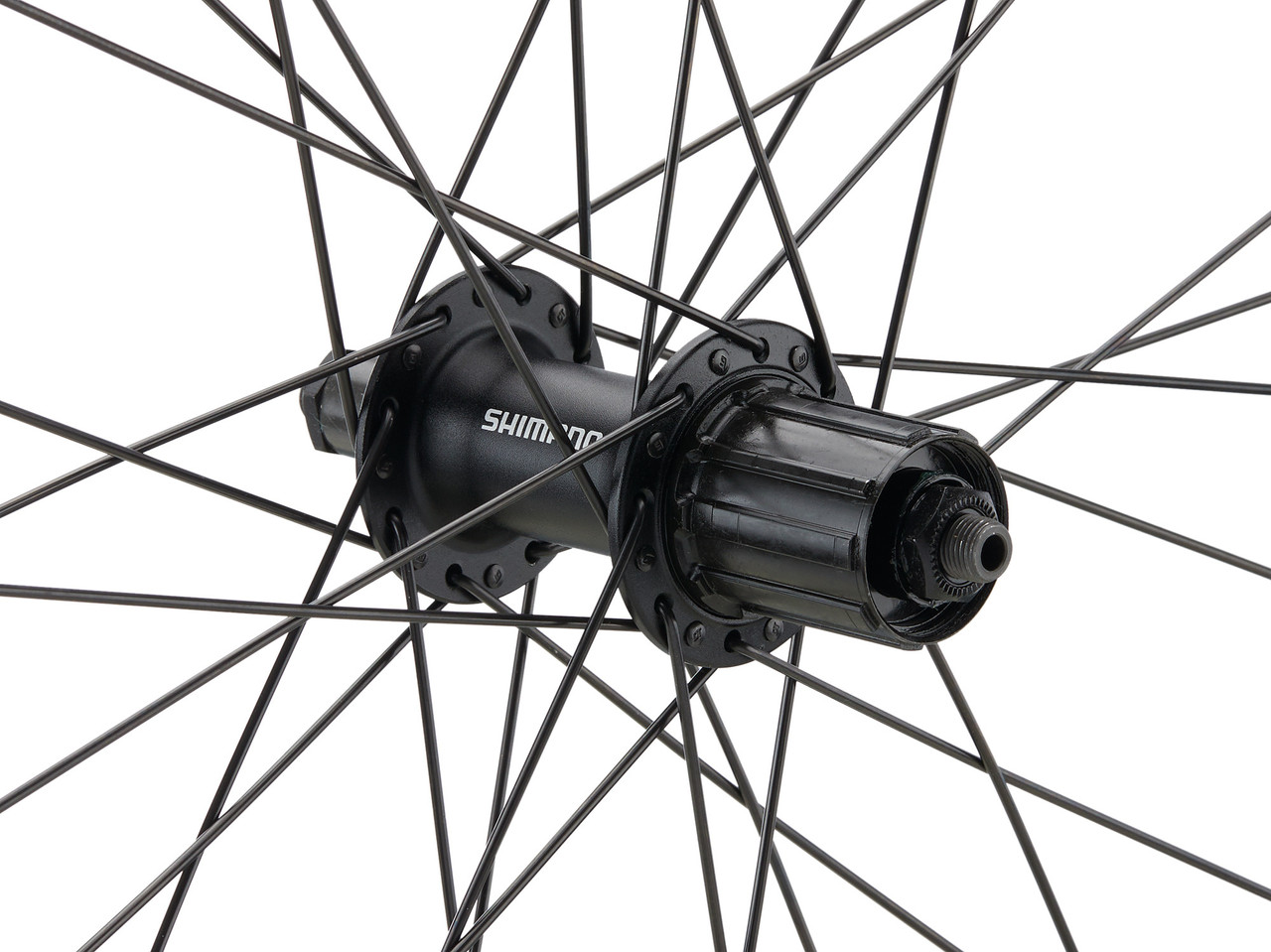

Technical Information - Rear Hub:

Type:

Shimano FH-T3000

Over Locknut Dimension:

10 x 135 mm quick release

Body Material:

aluminium

Freehub Body Material:

steel

Technical Information - Lacing:

Front Lacing Pattern:

3-cross

Rear Lacing Pattern:

3-cross

Spoke Type:

DT Factory / round (2.0 mm)

Spoke Size:

294 mm (front), 288 mm (front hub dynamo), 294 mm/292 mm (rear l/r)

Spoke Material:

stainless steel

Nipple Size:

12 mm (length)

Nipple Material:

brass

Approved For:

Weight Limit (Rim):

140 kg system weight (rider + bike + gear)

Features:

• extra-stable, durable rims with reinforced profile
• pin joint rim joint
• rim holes with silver steel eyelets
• anodised hub shell
• steel axles

Colour Info:

black:

• Rim: black
• Hubs: black
• Spokes: black
• Nipples: silver

Models:

28" set (front 9x100 + rear 10x135) Shimano:

Freehub:

Shimano MTB

Gearing:

8-/9-/10-/11-speed

Manufacturer Number:

83681-2-9818

28" set (front 9x100 dynamo + rear 10x135) Shimano:

Freehub:

Shimano MTB

Gearing:

8-/9-/10-/11-speed

Manufacturer Number:

83681-2-10759

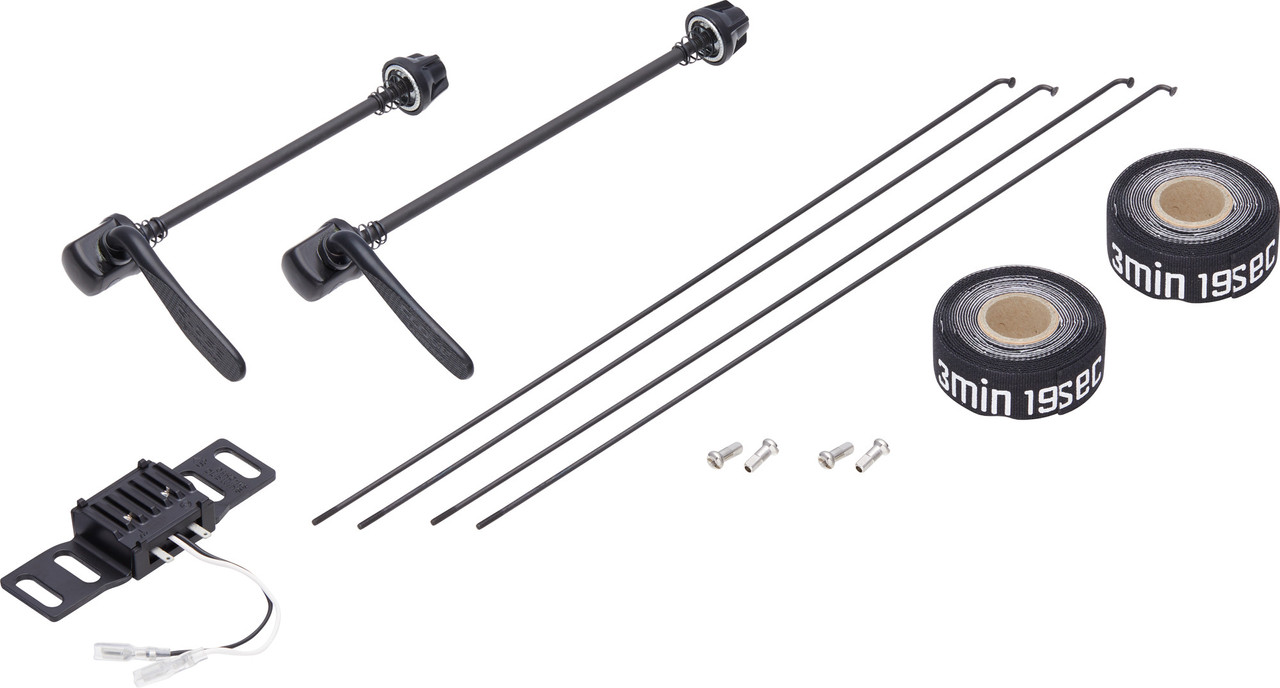

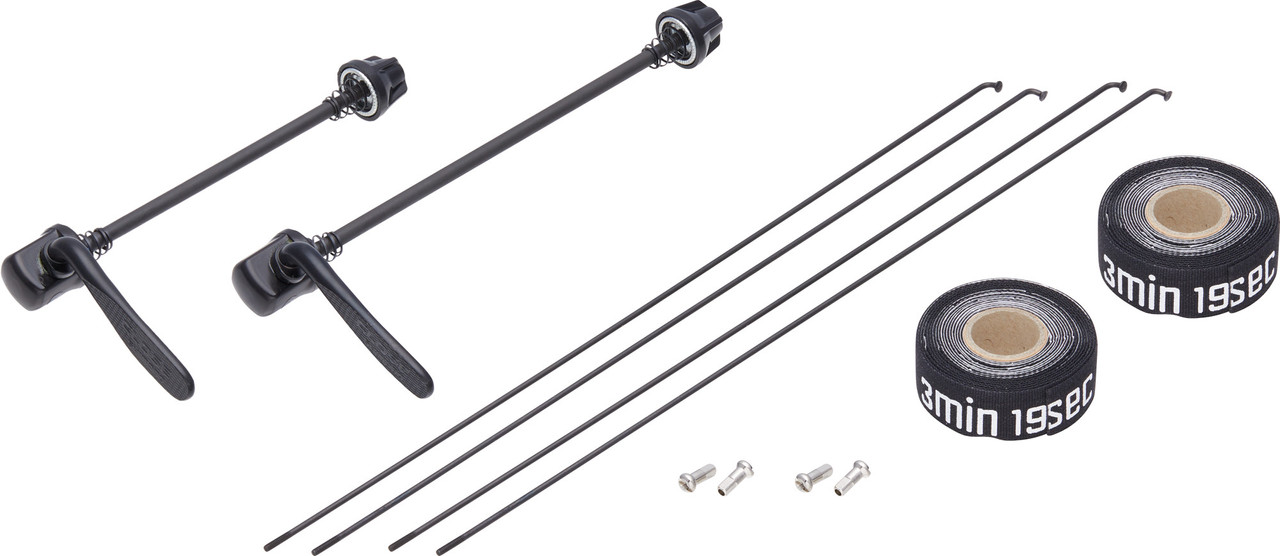

Contents:

• 1 x bc basic Urban Acera V-Brake DT Swiss 535 wheelset (front wheel or front dynamo hub and rear, laced and trued)
• 2 x quick releases
• 2 x rolls of rim tape
• 4 x spare spokes with nipples
• 1 x connector (front dynamo hub only)
• 1 x overvoltage protector (front dynamo hub only)
• 1 x valve reducing sleeve SV (mounted on the rim)

• black | 28" set (front 9x100 + rear 10x135): 2690 g
• black | 28" set (front 9x100 dynamo + rear 10x135) Shimano: 3280 g
