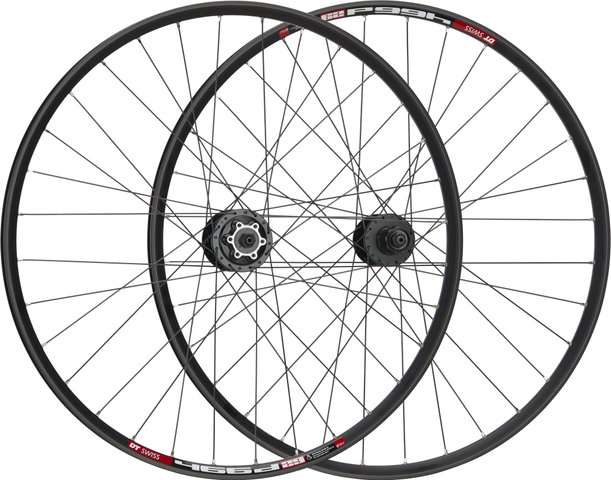

bc basic Urban Alivio 6-Bolt Disc DT Swiss 466d 28" Wheelset

The bc basic City & Touring Wheelset with DT 466 Disc Rims and Shimano Alivio Hubs

These bc basic 28" wheels for city or touring are based on the 466d aluminium rim from DT Swiss. They are 19 mm wide on the inside, and are characterised by their stability and resilience. At the centre are the Shimano HB-M475 and FH-M475 6-bolt disc hubs for quick-release mounting, which provide reliable Alivio-level function. The front wheel is also available with the DH-3D32 hub dynamo from Shimano, so that you can fit a lighting system that conforms to road traffic regulations. The wheelset is laced with round DT Factory spokes.

Information regarding the return of batteries and electrical equipment:

Information on the return and disposal of used batteries and electrical equipment can be found here.

Specifications:

Application:

City, City & Touring

Wheel Size:

28"

Tyre Type:

clincher tyre

Number of Spokes:

32

Brake Type:

6-bolt disc

Tubeless System:

none

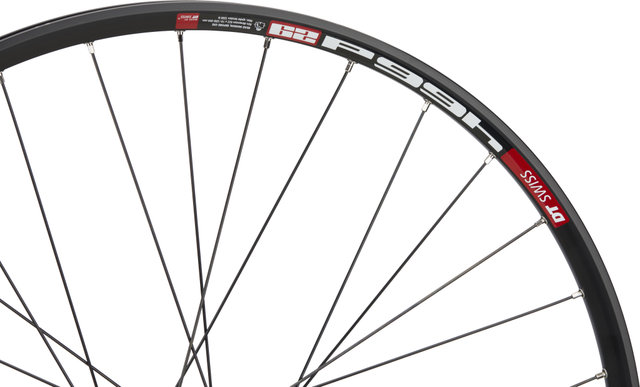

Technical Information - Rim:

Type:

DT Swiss 466d

Rim Flange:

with hook

Dimensions (ETRTO):

19-622

Inner Width:

19 mm

Outer Width:

24.5 mm

Depth:

19 mm

Valve Hole Diameter:

SV/Presta (6.5 mm)

Rim Material:

aluminium

Technical Information - Front Hub:

Type:

Shimano HB-M475

Over Locknut Dimension:

9 x 100 mm quick release

Body Material:

aluminium

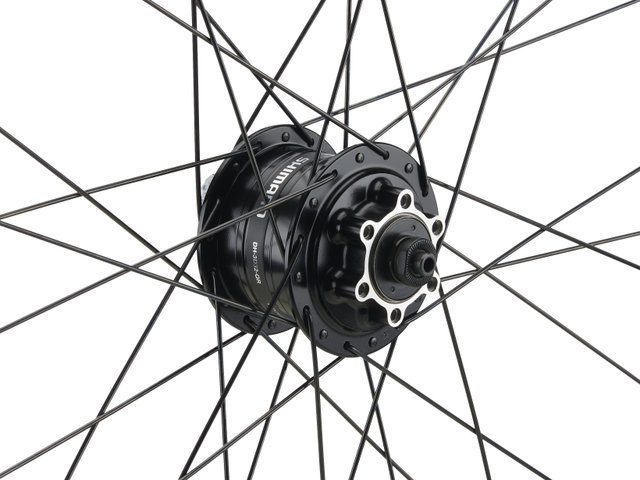

Technical Information - Front Dynamo Hub:

Type:

Shimano DH-3D32-QR

Over Locknut Dimension:

9 x 100 mm quick release

Output:

6V/3W (according to StVZO)

Efficiency:

min. 30%

Body Material:

aluminium

Seals:

contact

Wire Connector:

E2-TYP (= meets current European standards for two lights)

Street Use in Germany:

yes

Check Number:

K~~912

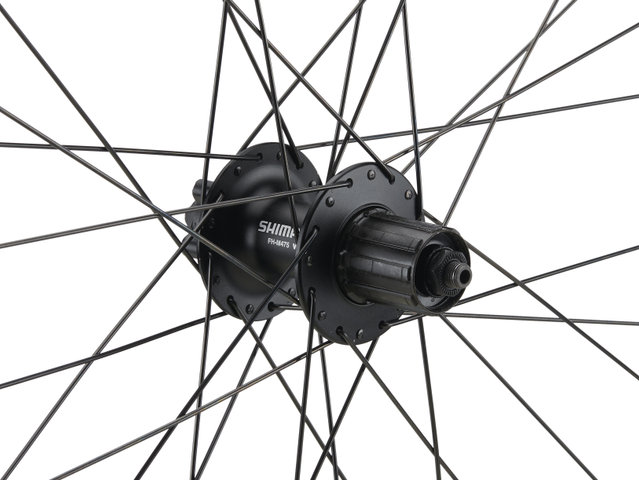

Technical Information - Rear Hub:

Type:

Shimano FH-M475

Over Locknut Dimension:

10 x 135 mm quick release

Body Material:

aluminium

Freehub Body Material:

steel

Freehub Body:

pawls

Technical Information - Lacing:

Front Lacing Pattern:

3-cross

Rear Lacing Pattern:

3-cross

Spoke Type:

DT Factory / round (2.0 mm)

Spoke Size:

290 mm/292 mm (front l/r), 288 mm/290 mm (front dynamo hub l/r), 290 mm/292 mm (rear l/r)

Spoke Material:

stainless steel

Nipple Size:

12 mm (length)

Nipple Material:

brass

Approved For:

Weight Limit (Rim):

110 kg system weight (rider + bike + gear)

Features:

• sturdy, durable rims for everyday use
• anodised rims and hub bodies
• steel axles

Colour Info:

black:

• Rim: black
• Hubs: black
• Spokes: black
• Nipples: silver

Models:

28" set (front 9x100 + rear 10x135) Shimano:

Freehub:

Shimano MTB

Gearing:

8-/9-/10-/11-speed

Manufacturer Number:

83999-2-9818

28" set (front 9x100 dynamo + rear 10x135) Shimano:

Freehub:

Shimano MTB

Gearing:

8-/9-/10-/11-speed

Manufacturer Number:

83999-2-10759

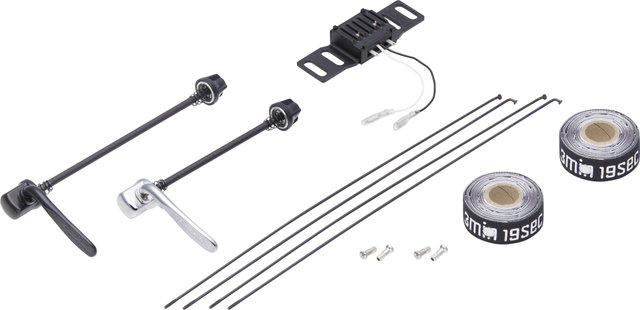

Contents:

• 1 x bc basic Urban Alivio 6-Bolt Disc DT Swiss 466d Wheelset (front or front with dynamo hub and rear, laced and trued)
• 2 x quick releases
• 2 x rolls of rim tape
• 4 x spare spokes with nipples
• 1 x connector (front dynamo hub only)
• 1 x overvoltage protector (front dynamo hub only)

• black | 28" set (front 9x100 + rear 10x135): 2300 g
• black | 28" set (front 9x100 dynamo + rear 10x135) Shimano: 2750 g
