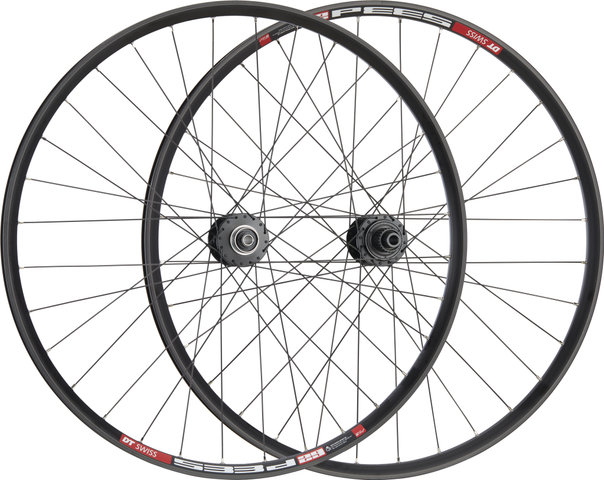

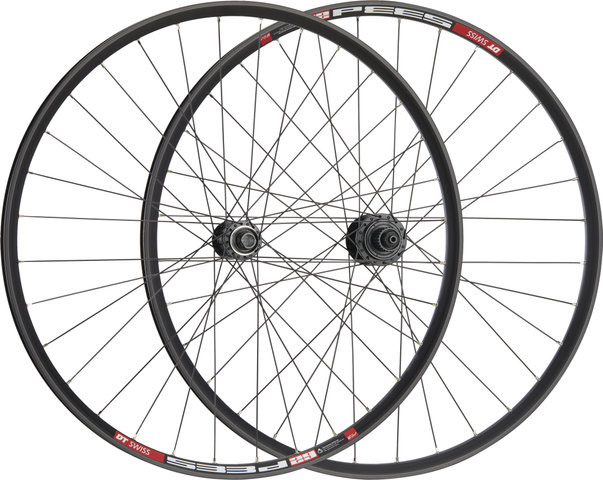

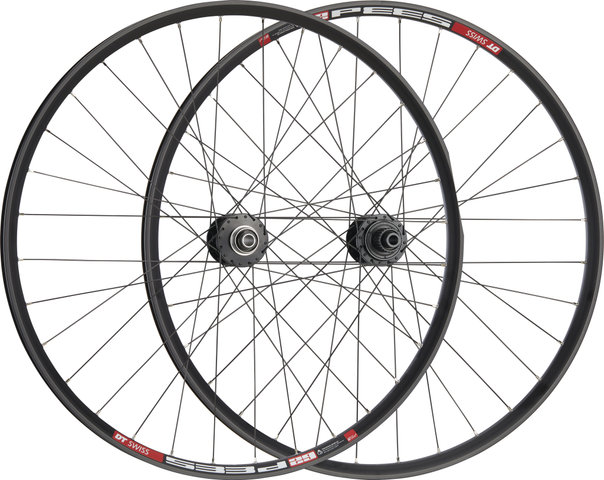

bc basic Urban Deore Center Lock Disc DT Swiss 533D 28" Wheelset

The Urban Wheelset by bc basic with DT 533 Disc Rims and Shimano Deore Hubs

The bc basic 28" wheels for city, touring or trekking use are based on the 533D aluminium rims from DT Swiss. These are 22 mm wide and are characterised by their resilience and robust suitability for everyday use. Tubeless installation is possible. In the centre are Shimano Center Lock Disc hubs for quick release or thru-axle, ensuring reliable function at the Deore level. The front wheel is also available with Shimano hub dynamos in various over locknut dimensions so that you can fit a lighting system that conforms to road traffic regulations. For the rear wheel, you have the choice between a Micro-Spline freehub for MTB 12-speed cassettes or a conventional Shimano freehub. The wheelset is laced with round DT Factory spokes.

Information regarding the return of batteries and electrical equipment:

Information on the return and disposal of used batteries and electrical equipment can be found here.

Specifications:

Application:

City, City & Touring

Wheel Size:

28"

Tyre Type:

clincher tyre

Number of Spokes:

Brake Type:

Center Lock Disc

Tubeless System:

Tubeless Ready

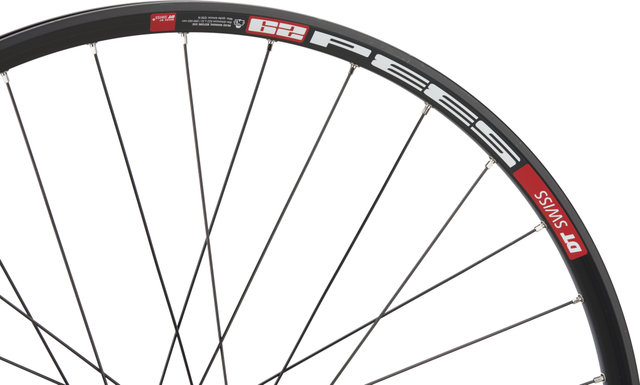

Technical Information - Rim:

Type:

DT Swiss 533D

Rim Flange:

with hook

Dimensions (ETRTO):

22-622

Inner Width:

22 mm

Outer Width:

28 mm

Depth:

20.5 mm

ERD:

602 mm (nipple slot)

Valve Hole Diameter:

SV/Presta (6.5 mm)

Rim Material:

aluminium

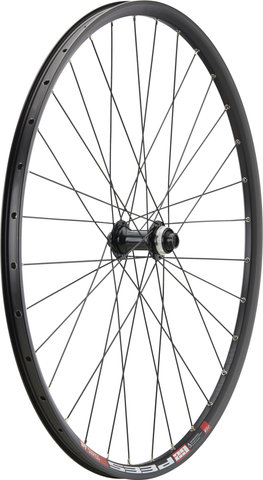

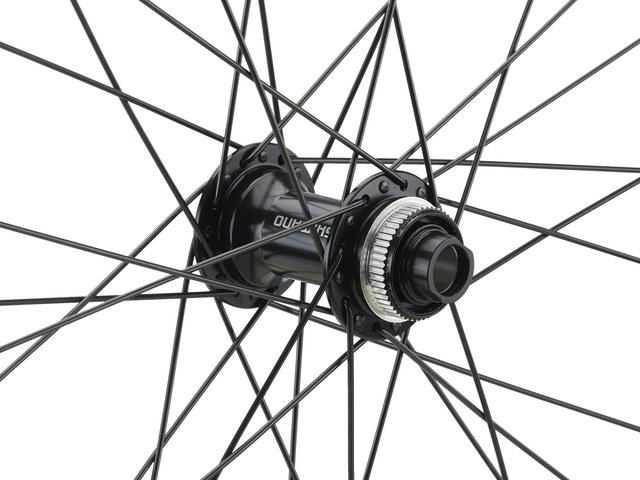

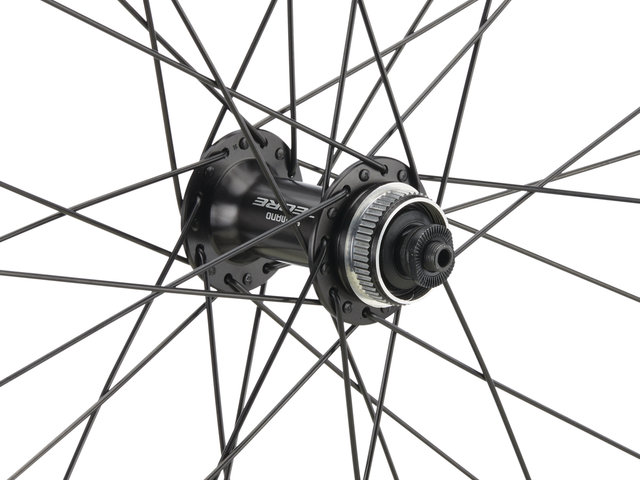

Technical Information - Front Hub:

Type:

Shimano Deore HB-M6000 or HB-MT400

Over Locknut Dimension:

9 x 100 mm quick release or 15 x 100 mm thru-axle

Bearings:

cup & cone bearing (HB-M6000 only)

Body Material:

aluminium

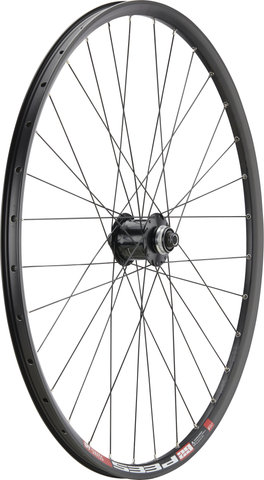

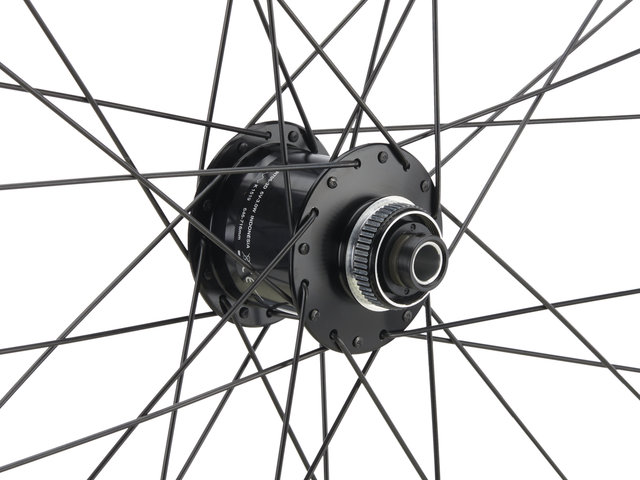

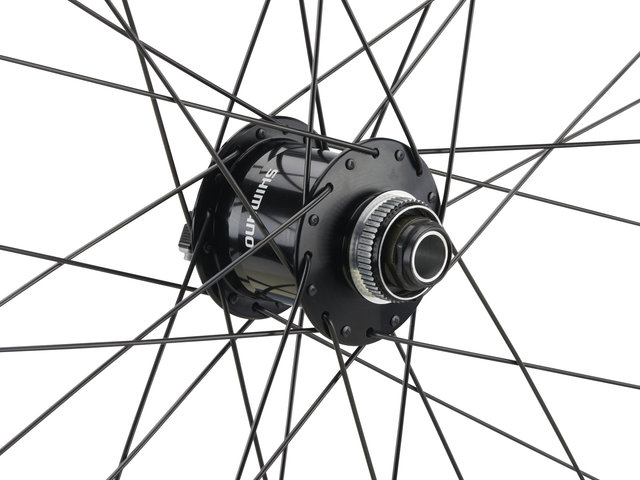

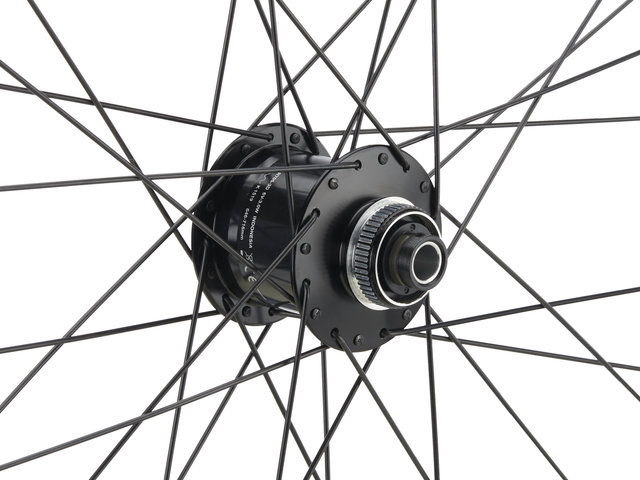

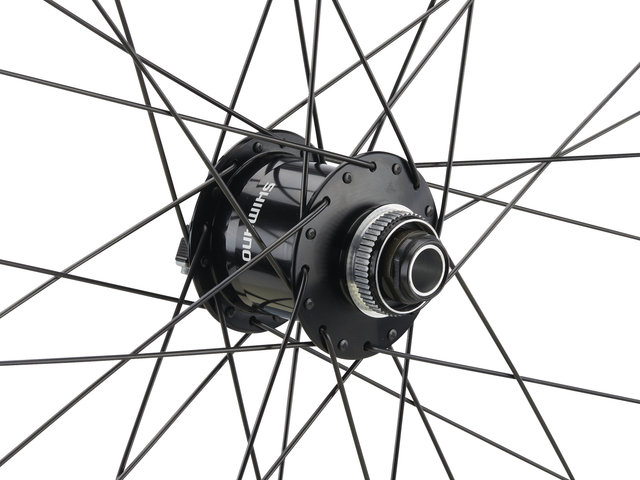

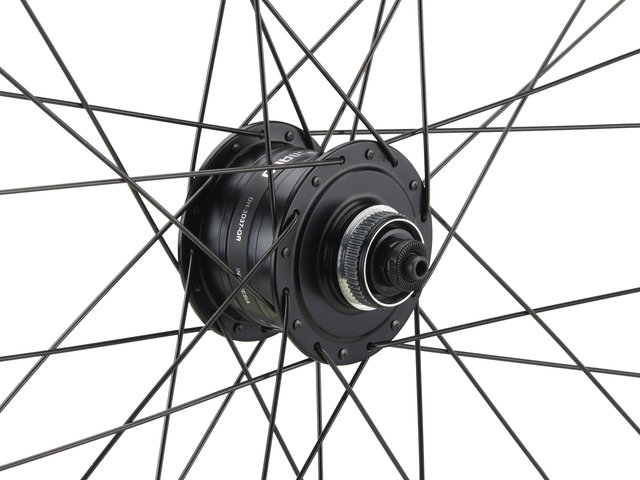

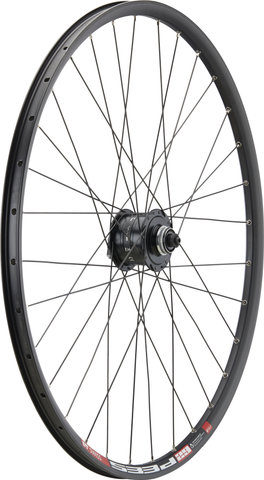

Technical Information - Front Dynamo Hub:

Type:

Shimano DH-3D37-QR or DH-UR708-3D or DH-UR705-3D

Over Locknut Dimension:

9 x 100 mm quick release or 15 x 100 mm thru-axle or 12 x 100 mm thru-axle

Output:

6V/3W (according to StVZO)

Efficiency:

min. 30%

Body Material:

aluminium

Seals:

contact

Wire Connector:

E2-TYP (= meets current European standards for two lights)

Street Use in Germany:

yes

Check Number:

K~~912 (DH-3D37), K~~1684 (DH-UR708), K~~1519 (DH-UR705)

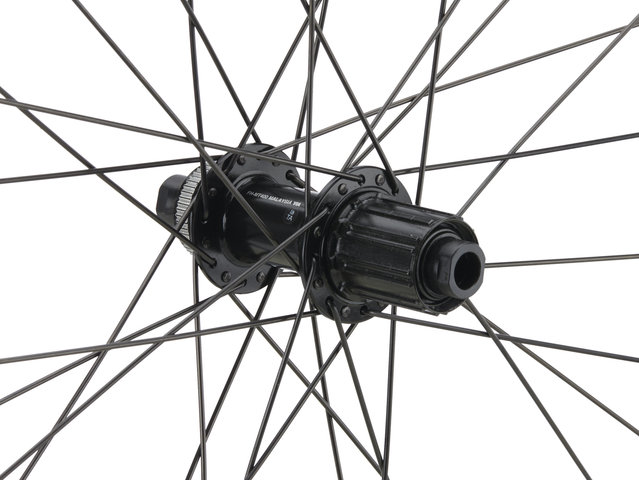

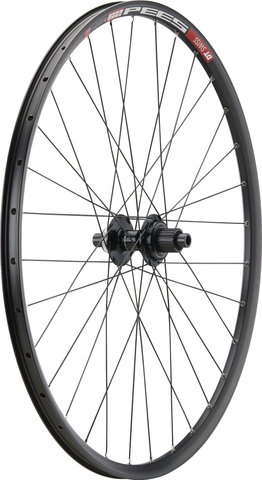

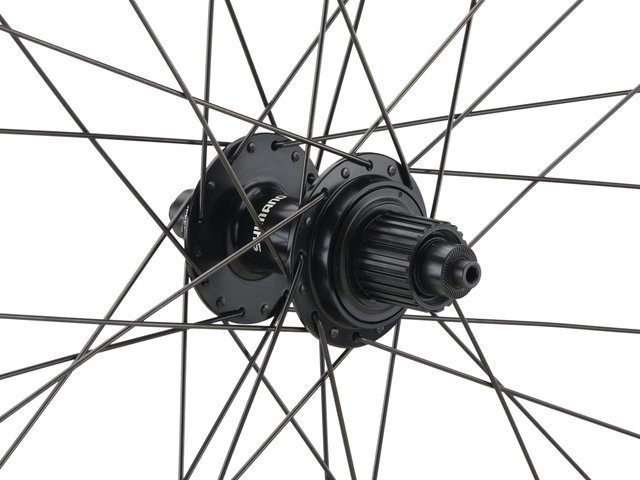

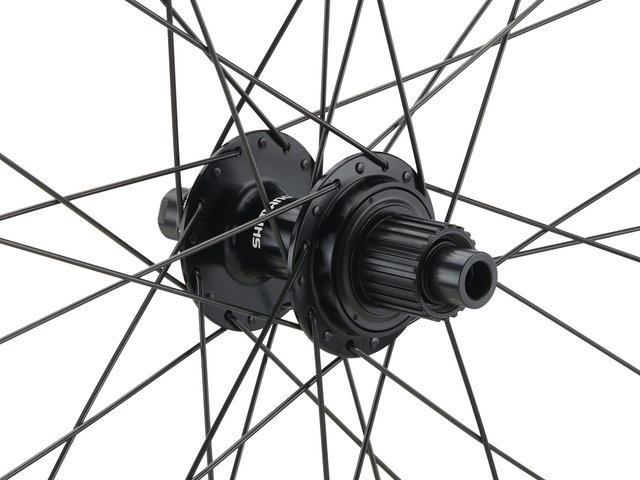

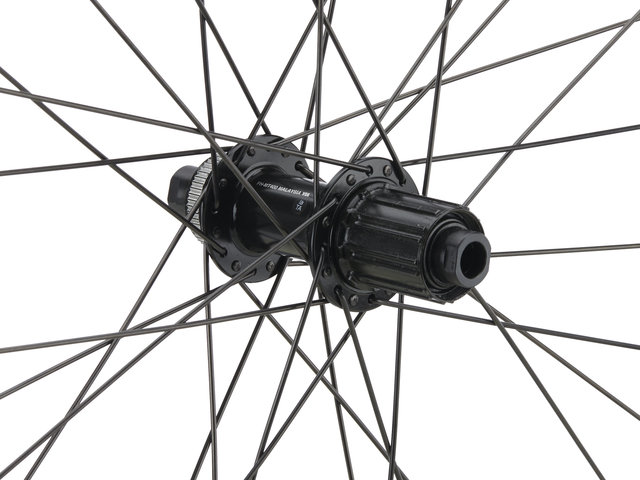

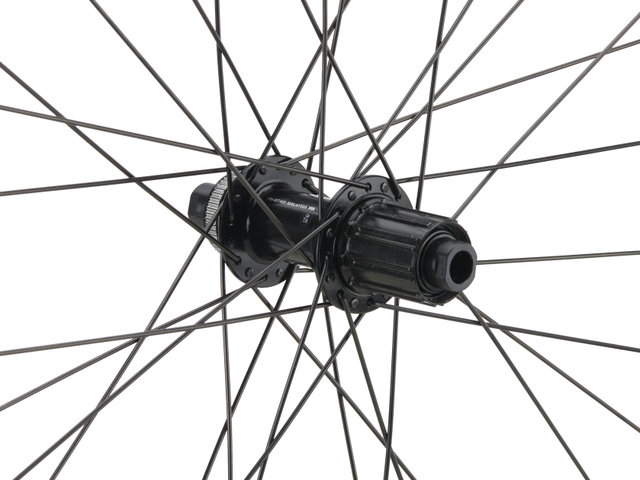

Technical Information - Rear Hub:

Type:

Shimano FH-MT401 or FH-MT400 or FH-MT410

Over Locknut Dimension:

10 x 135 mm quick release or 12 x 142 mm thru-axle

Bearings:

cartridge bearing (FH-MT401/MT410), cup-and-cone bearing (FH-MT400)

Body Material:

aluminium

Freehub Body Material:

steel

Freehub Body:

Pawls (Quick Engagement: 36 engagement points / 360°)

Technical Information - Lacing:

Front Lacing Pattern:

3-cross

Rear Lacing Pattern:

3-cross

Spoke Type:

DT Factory / round (2.0 mm)

Spoke Size:

• front 9 mm: 292 mm
• front 15 mm: 292 mm/294 mm (l/r)
• front 9 mm ND: 288 mm
• front 15 mm ND: 290 mm
• front 12 mm ND: 288 mm/290 mm (l/r)
• rear 142 mm Shimano: 294 mm/292 mm (l/r)
• rear 142 mm Shimano MS: 292 mm/290 mm (l/r)
• rear 135 mm Shimano MS: 290 mm/288 mm (l/r)

Spoke Material:

stainless steel

Nipple Size:

12 mm (length)

Nipple Material:

brass

Approved For:

Weight Limit (Rim):

130 kg system weight (rider + bike + gear)

Features:

• durable rims for tough everyday use
• pin joint rim joint
• rim holes silver eyeleted
• lacquered hub shell (HB-M6000: anodised)
• steel axles (HB-MT400: aluminium)

Colour Info:

black:

• Rim: black
• Hubs: black
• Spokes: black
• Nipples: silver

Models:

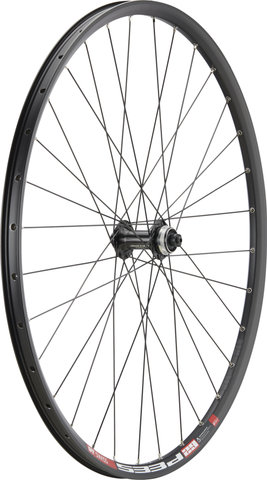

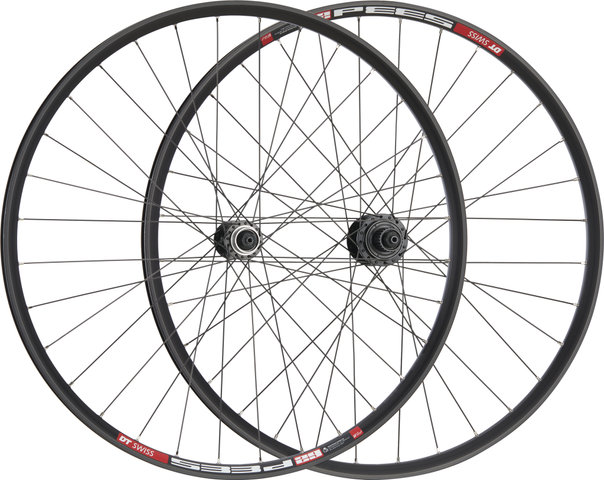

28" set (front 9x100 + rear 10x135) Shimano Micro Spline:

Over Locknut Dimension (Front):

9 x 100 mm quick release (HB-M6000)

Over Locknut Dimension (Rear):

10 x 135 mm quick release (FH-MT401)

Freehub:

Shimano Micro Spline

Gearing:

12-speed

Manufacturer Number:

83679-2-14069

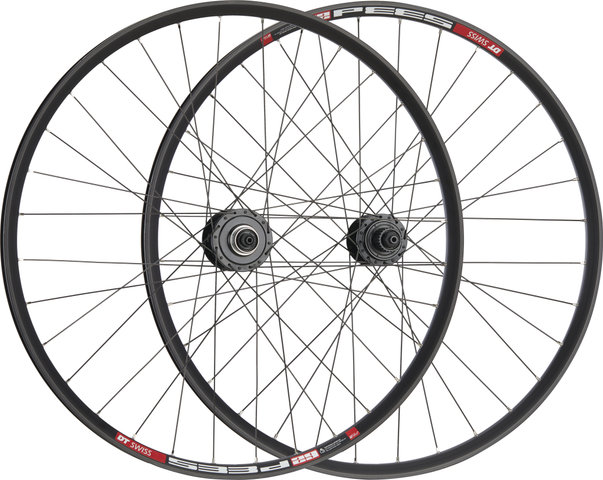

28" set (front 9x100 dynamo + rear 10x135) Shimano Micro Spline:

Over Locknut Dimension (Front):

9 x 100 mm quick release (DH-3D37-QR)

Over Locknut Dimension (Rear):

10 x 135 mm quick release (FH-MT401)

Freehub:

Shimano Micro Spline

Gearing:

12-speed

Manufacturer Number:

83679-2-14072

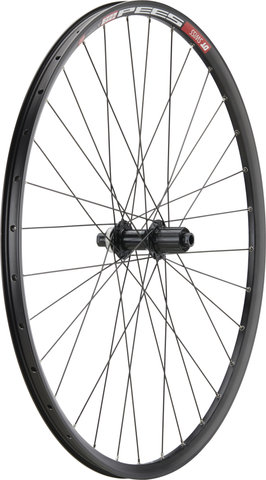

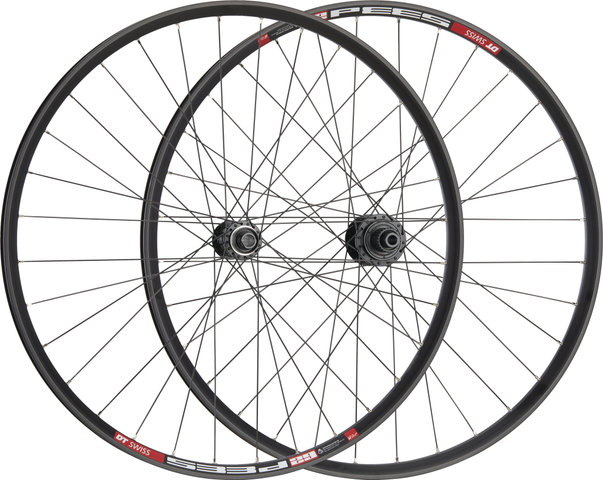

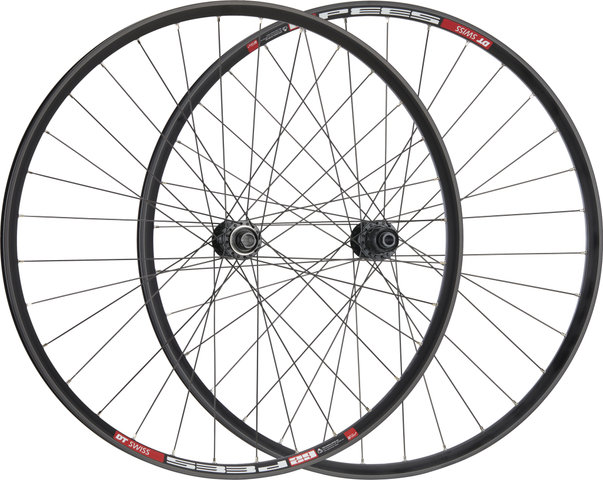

28" set (front 15x100 + rear 12x142) Shimano:

Over Locknut Dimension (Front):

15 x 100 mm thru-axle (HB-MT400)

Over Locknut Dimension (Rear):

12 x 142 mm thru-axle (FH-MT400)

Freehub:

Shimano MTB

Gearing:

8-/9-/10-/11-speed

Manufacturer Number:

83679-2-10440

28" set (front 15x100 + rear 10x135) Shimano Micro Spline:

Over Locknut Dimension (Front):

15 x 100 mm thru-axle (HB-MT400)

Over Locknut Dimension (Rear):

10 x 135 mm quick release (FH-MT401)

Freehub:

Shimano Micro Spline

Gearing:

12-speed

Manufacturer Number:

83679-2-14070

28" set (front 15x100 + rear 12x142) Shimano Micro Spline:

Over Locknut Dimension (Front):

15 x 100 mm thru-axle (HB-MT400)

Over Locknut Dimension (Rear):

12 x 142 mm thru-axle (FH-MT410)

Freehub:

Shimano Micro Spline

Gearing:

12-speed

Manufacturer Number:

83679-2-14075

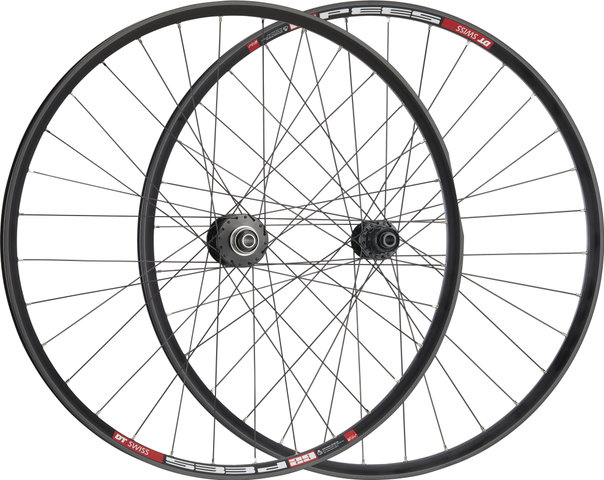

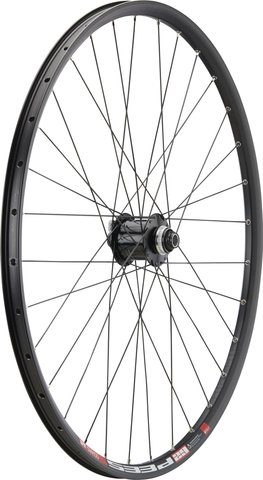

28" set (front 15x100 dynamo + rear 12x142) Shimano:

Over Locknut Dimension (Front):

15 x 100 mm thru-axle (DH-UR708-3D)

Over Locknut Dimension (Rear):

12 x 142 mm thru-axle (FH-MT400)

Freehub:

Shimano MTB

Gearing:

8-/9-/10-/11-speed

Manufacturer Number:

83679-2-14076

28" set (front 15x100 dynamo + rear 12x142) Shimano Micro Spline:

Over Locknut Dimension (Front):

15 x 100 mm thru-axle (DH-UR708-3D)

Over Locknut Dimension (Rear):

12 x 142 mm thru-axle (FH-MT410)

Freehub:

Shimano Micro Spline

Gearing:

12-speed

Manufacturer Number:

83679-2-14074

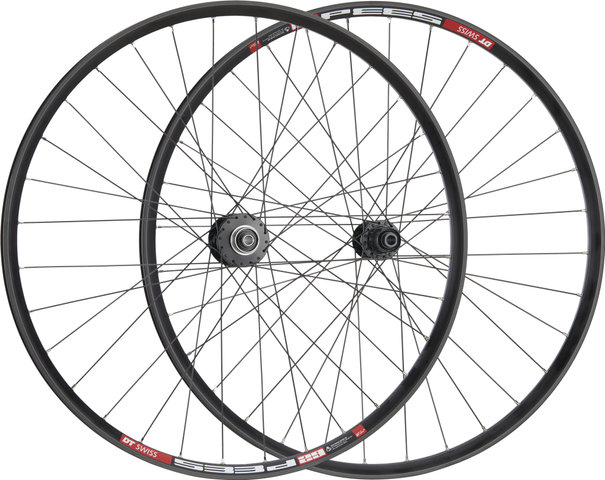

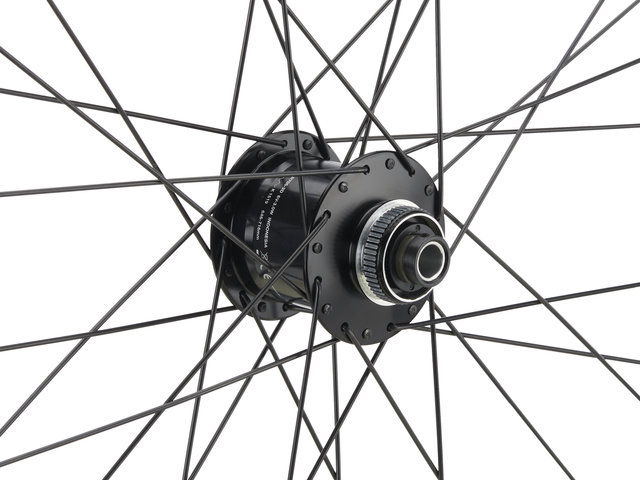

28" set (front 12x100 dynamo + rear 12x142) Shimano:

Over Locknut Dimension (Front):

12 x 100 mm thru-axle (DH-UR705-3D)

Over Locknut Dimension (Rear):

12 x 142 mm thru-axle (FH-MT400)

Freehub:

Shimano MTB

Gearing:

8-/9-/10-/11-speed

Manufacturer Number:

83679-2-11218

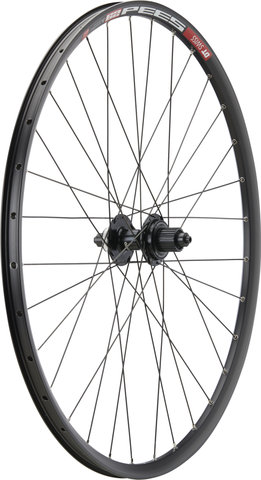

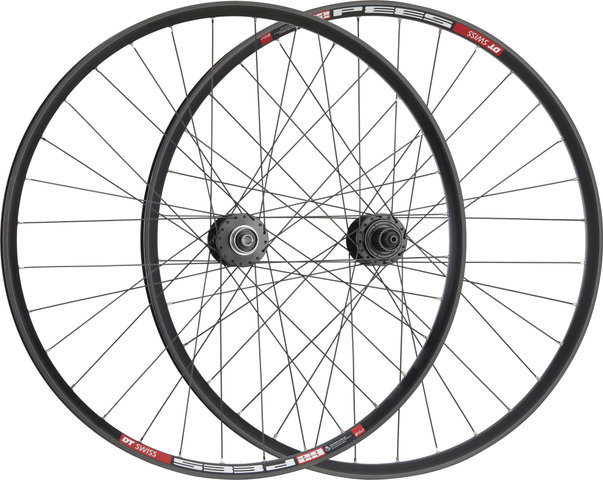

28" set (front 12x100 dynamo + rear 10x135) Shimano Micro Spline:

Over Locknut Dimension (Front):

12 x 100 mm thru-axle (DH-UR705-3D)

Over Locknut Dimension (Rear):

10 x 135 mm quick release (FH-MT401)

Freehub:

Shimano Micro Spline

Gearing:

12-speed

Manufacturer Number:

83679-2-14071

28" set (front 12x100 dynamo + rear 12x142) Shimano Micro Spline:

Over Locknut Dimension (Front):

12 x 100 mm thru-axle (DH-UR705-3D)

Over Locknut Dimension (Rear):

12 x 142 mm thru-axle (FH-MT410)

Freehub:

Shimano Micro Spline

Gearing:

12-speed

Manufacturer Number:

83679-2-14073

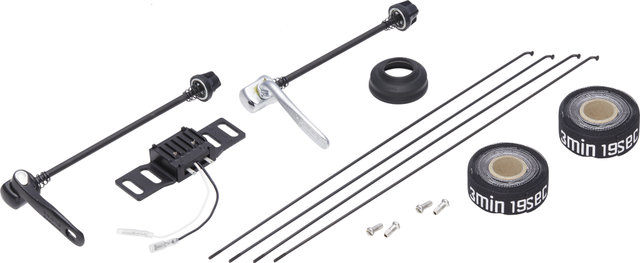

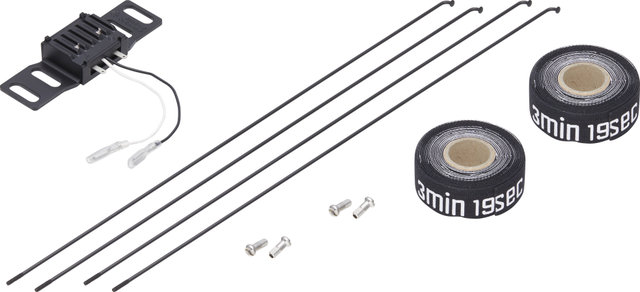

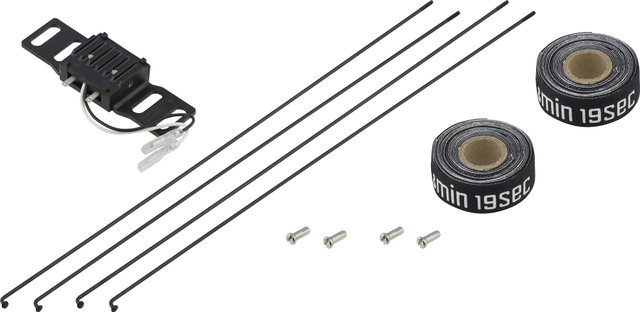

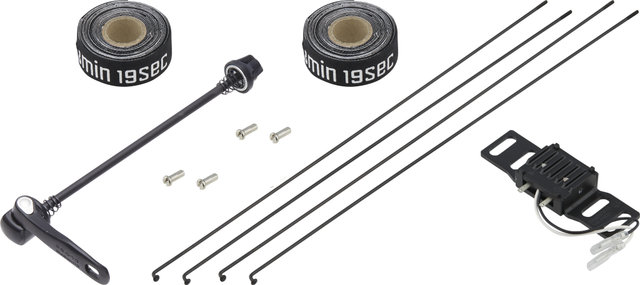

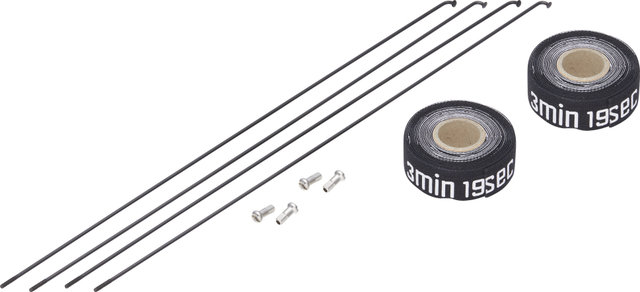

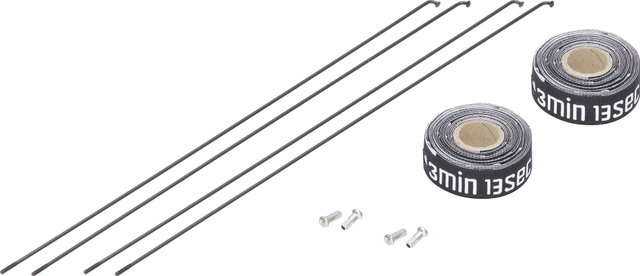

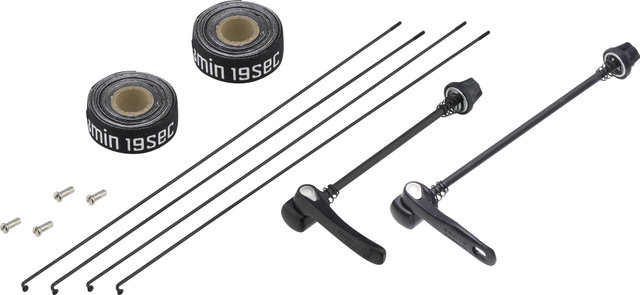

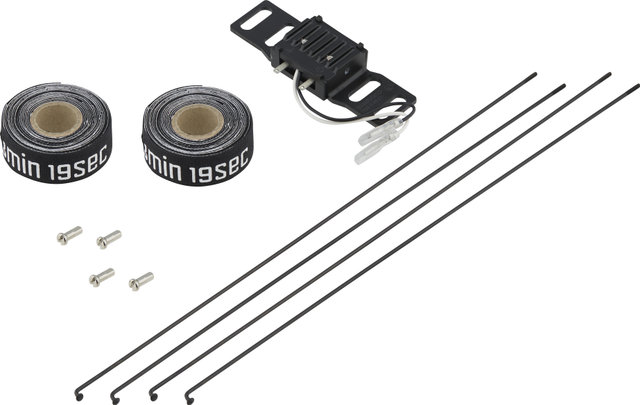

Contents:

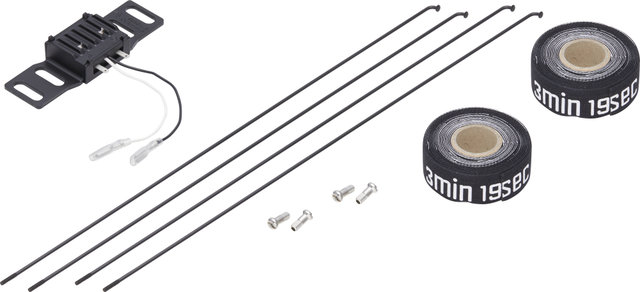

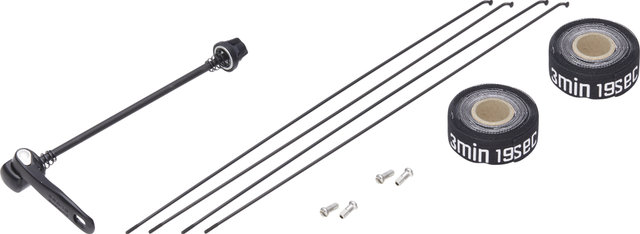

• 1 x bc basic Urban Deore Center Lock Disc DT Swiss 533D wheelset (front wheel or front with dynamo hub and rear, laced and trued)
• 2 x quick releases (only with front 9x100 + rear 10x135)
• 1 x quick release rear (only with front 15x100 + rear 10x135)
• 2 x rolls of rim tape
• 4 x spare spokes with nipples
• 1 x connector (front dynamo hub only)
• 1 x overvoltage protector (front dynamo hub only)
