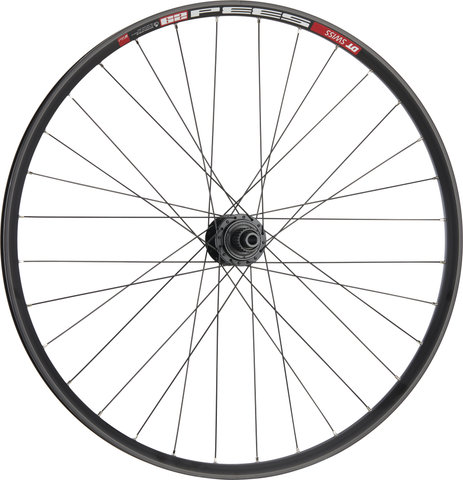

bc basic Urban Deore Disc Centre Lock DT Swiss 533D 28" wheel
Item number: 83680
Product Description
Urban Deore Disc Centre Lock DT Swiss 533D 28" Wheel – Reliable Performance for City & Touring by bc basic
The Urban Deore Disc Centre Lock DT Swiss 533D 28" Wheel is designed by bc basic for your city and touring adventures, offering a perfect balance of durability and efficiency. With a 32-spoke count arranged in a 3-cross pattern front and rear, this wheel ensures stable and reliable support on urban roads. The aluminum rim, featuring a 20.50 mm height and a hooked flange, is tubeless ready and compatible with clincher or folding tires, giving you flexibility in your tire choices. Its steel freehub body with a 3-pawl mechanism and 36 engagement points provides smooth and responsive power transfer. The hub shell is made from lightweight aluminum and includes a dynamo hub with an E2-TYPE power output connection, ideal for powering your lights efficiently. The rear nipple material is brass, measuring 12 mm in length and 2 mm in diameter, ensuring strong spoke retention. Designed for thru-axle front axles and equipped with a Center Lock disc brake system, this wheel meets the demands of urban cycling with confidence. The effective rim diameter (ERD) of 602 mm supports optimal spoke tension and wheel strength. This wheel combines practical features and robust construction to keep you rolling smoothly through the city or on your next touring trip.
The Urban Deore Disc Centre Lock DT Swiss 533D 28" Wheel is designed by bc basic for your city and touring adventures, offering a perfect balance of durability and efficiency. With a 32-spoke count arranged in a 3-cross pattern front and rear, this wheel ensures stable and reliable support on urban roads. The aluminum rim, featuring a 20.50 mm height and a hooked flange, is tubeless ready and compatible with clincher or folding tires, giving you flexibility in your tire choices. Its steel freehub body with a 3-pawl mechanism and 36 engagement points provides smooth and responsive power transfer. The hub shell is made from lightweight aluminum and includes a dynamo hub with an E2-TYPE power output connection, ideal for powering your lights efficiently. The rear nipple material is brass, measuring 12 mm in length and 2 mm in diameter, ensuring strong spoke retention. Designed for thru-axle front axles and equipped with a Center Lock disc brake system, this wheel meets the demands of urban cycling with confidence. The effective rim diameter (ERD) of 602 mm supports optimal spoke tension and wheel strength. This wheel combines practical features and robust construction to keep you rolling smoothly through the city or on your next touring trip.
Information regarding the return of batteries and electrical equipment:
Information on the return and disposal of used batteries and electrical equipment can be found here. For information regarding the return of used e-bike batteries, please contact our customer service.
Product Specifications:
- Freehub type:
- 3 pawls, 36 engagement points
- Number of spokes:
- 32
- ERD (Effective Rim Diameter):
- 602 (nipple slot)
- Power output connection:
- E2-TYPE (= corresponds to the current European standard Shimano connector for two lights)
- Freehub body material:
- Steel
- Rim material:
- Aluminum
- Tubeless system:
- Tubeless Ready
- Rim flange:
- With hook
- Brake system:
- Disc Center Lock
- Tubeless system:
- Tubeless Ready
- Tire type:
- Clincher tire/folding tire
- Hub Dynamo Present:
- Yes
- Rim height rear:
- 20.5 mm
- Rim height front:
- 20.5 mm
- Application:
- City, City & Touring
black | 28" Rear 12x142 Shimano Micro Spline:
- Installation width RW:
- 142 mm
- Wheel size:
- 28"
- Rim height:
- 20.5 mm
- Dimension (ETRTO):
- 22-622
- Front Wheel Standard:
- rear wheel only
- Rear Wheel Standard:
- Non Boost
Technical Information:
- Rear spoke pattern:
- 3-cross
- Hub shell material:
- Aluminum
- Efficiency:
- at least 30%
- Front spoke pattern:
- 3-cross
- Nipple size:
- 12 mm (length) / 2 mm (diameter)
- Nipple material:
- Brass
- Axle type front:
- Thru-axle
- Diameter mm:
- 622 mm
black | 28" Rear 12x142 Shimano Micro Spline:
- Freehub:
- Shimano Micro Spline
- Rear installation width:
- 142 mm
- Freehub:
- Shimano Micro Spline
- Axle diameter rear:
- 12 mm
- Front installation width:
- rear wheel only
- Axle diameter front:
- rear wheel only
- Gear steps:
- 12-speed
Approved For:
- Test number:
- K~~912 (DH-3D37), K~~1684 (DH-UR708), K~~1519 (DH-UR705)
Product Features:
- Durable 28" Urban Deore Disc Wheel designed for city and touring rides with reliable performance
- Strong 3-cross spoke pattern front and rear with 32 brass nipples for enhanced wheel stability
- Lightweight aluminum rim with 20.5 mm height and tubeless-ready clincher compatibility for smooth rides
- Robust steel freehub body with 3-pawl mechanism offering 36 engagement points for quick power transfer
- Center Lock disc brake system and thru-axle front for secure braking and easy wheel installation
Contents:
- 1 x bc basic Urban Deore Center Lock Disc DT Swiss 533D wheel (front wheel or front wheel with dynamo hub or rear wheel, laced and trued)
- 1 x quick releases (only for front 9x100 and rear 10x135)
- 1 x roll of rim tape
- 2 x spare spokes with nipples
- 1 x connector (front dynamo hub only)
- 1 x overvoltage protector (front dynamo hub only)
Weight:
- black | 28" Rear 12x142 Shimano Micro Spline: 1350 g
Manufacturer:
bc GmbH
Carlo-Schmid-Straße 12
52146 Würselen
Germany
info@bike-components.de
Carlo-Schmid-Straße 12
52146 Würselen
Germany
info@bike-components.de
