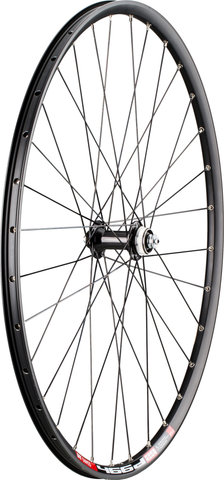

bc basic Urban 28" wheel with DT Swiss 466d rim, Shimano M8000 dynamo hub and DT Swiss Competition spokes.

Information regarding the return of batteries and electrical equipment:

Information on the return and disposal of used batteries and electrical equipment can be found here.

Specifications:

Application:

City & Touring

Wheel Size:

28"

Tyre Type:

clincher tyre

Number of Spokes:

32

Brake Type:

Center Lock Disc

Tubeless System:

none

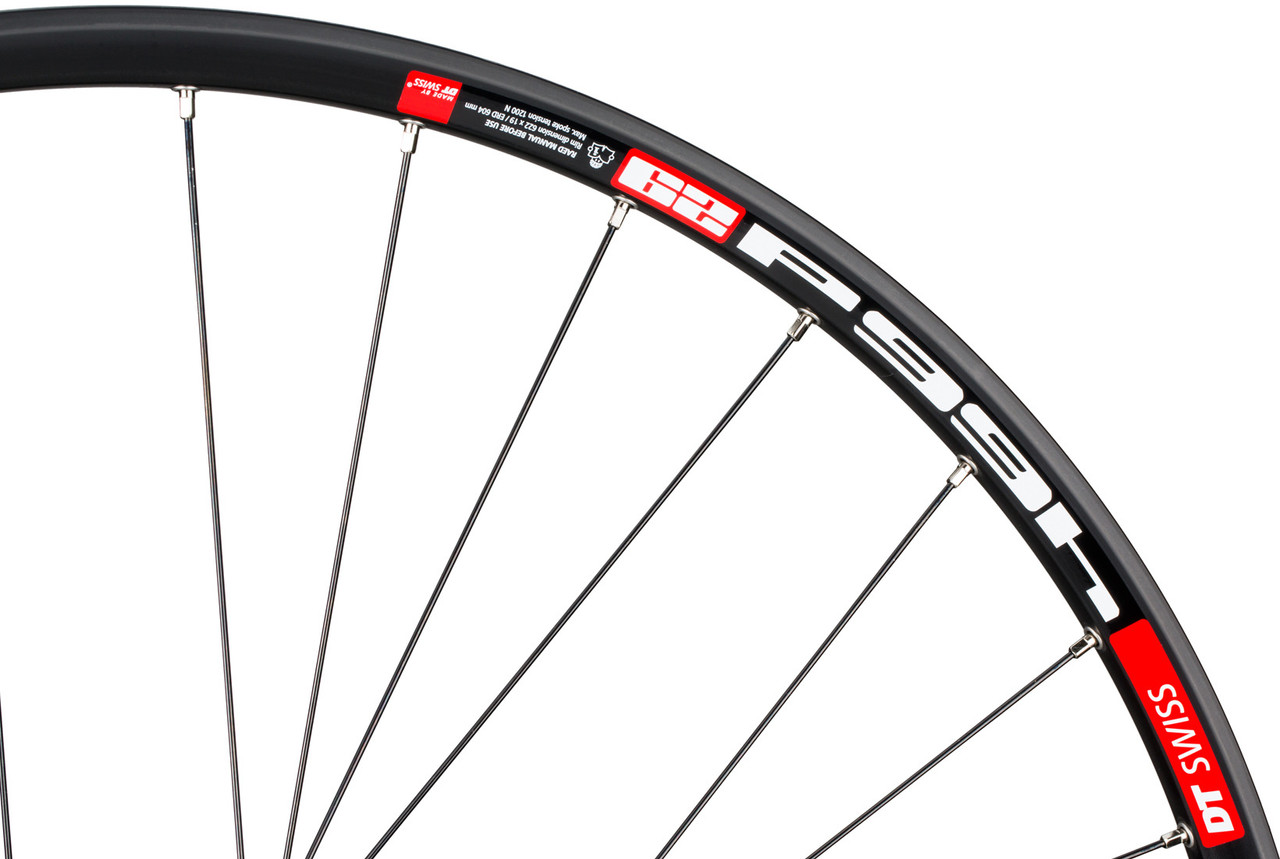

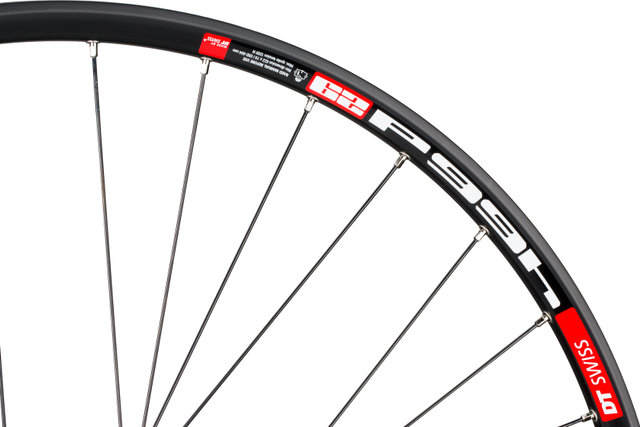

Technical Information - Rim:

Type:

DT Swiss 466d

Rim Flange:

with hook

Dimensions (ETRTO):

19-622

Inner Width:

19 mm

Outer Width:

24.5 mm

Depth:

19 mm

Valve Hole Diameter:

SV/Presta (6.5 mm)

Rim Material:

aluminium

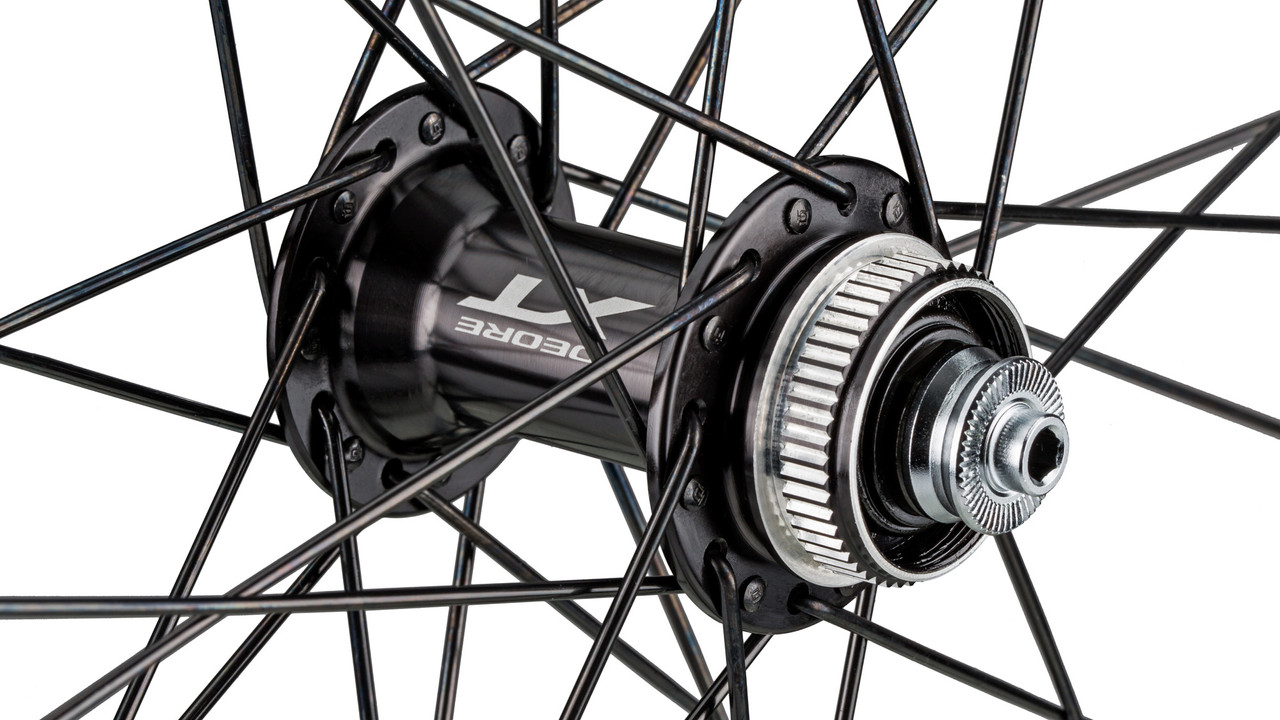

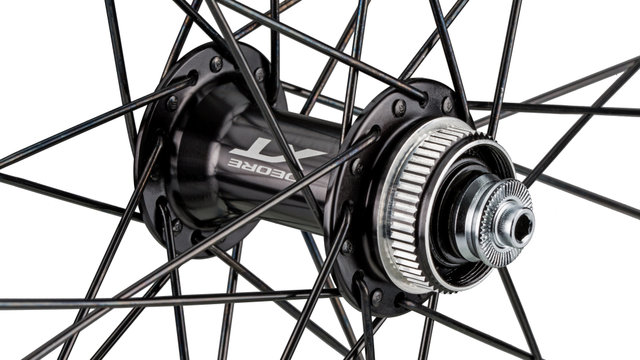

Technical Information - Front Hub:

Type:

Shimano Deore XT HB-M8000

Over Locknut Dimension:

9 x 100 mm quick release

Bearings:

cup & cone

Body Material:

aluminium

Technical Information - Front Dynamo Hub:

Type:

Shimano DH-UR700-3D

Over Locknut Dimension:

9 x 100 mm quick release

Output:

6V/3W (according to StVZO)

Efficiency:

min. 30% according to ISO 6742

Body Material:

aluminium

Seals:

contact

Wire Connector:

E2-TYP (= meets current European standards for two lights)

Street Use in Germany:

yes

Check Number:

K~~1519

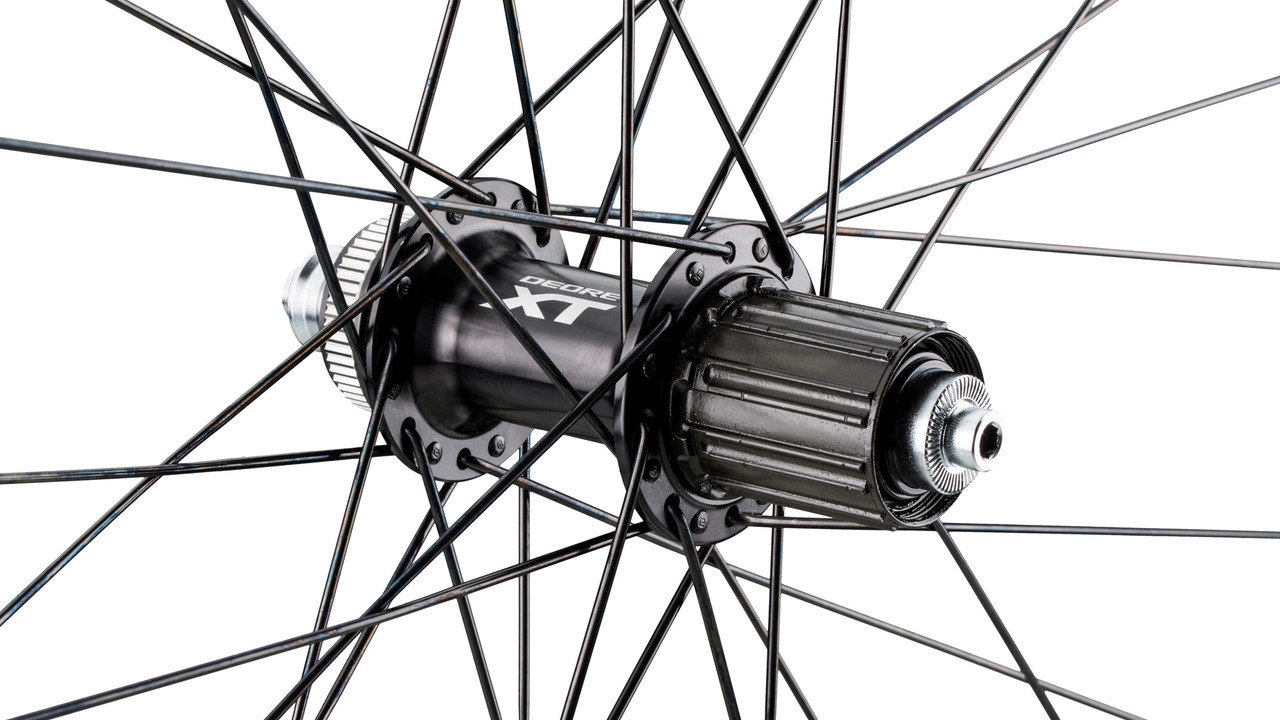

Technical Information - Rear Hub:

Type:

Shimano Deore XT FH-M8000

Over Locknut Dimension:

10 x 135 mm quick release

Bearings:

cup & cone

Body Material:

aluminium

Freehub Body Material:

steel

Freehub Body:

Quick Engagement (36 points/360°)

Technical Information - Lacing:

Front Lacing Pattern:

3-cross

Rear Lacing Pattern:

3-cross

Spoke Type:

DT Swiss Competition / double butted (2.0-1.8-2.0)

Spoke Size:

292 mm/294 mm (front l/r), 288 mm/290 mm (front hub dynamo l/r), 294 mm/292 mm (rear l/r)

Spoke Material:

stainless steel

Nipple Type:

DT Swiss

Nipple Size:

12 mm (length)

Nipple Material:

brass

Approved For:

Weight Limit (Rim):

110 kg system weight (rider + bike + gear)

Features:

• anodised aluminium rim
• aluminium axles
• high-quality bearings
• double butted spoke technology

Colour Index:

black:

• Rim: black
• Hub: black
• Spokes: black
• Nipples: silver

Models:

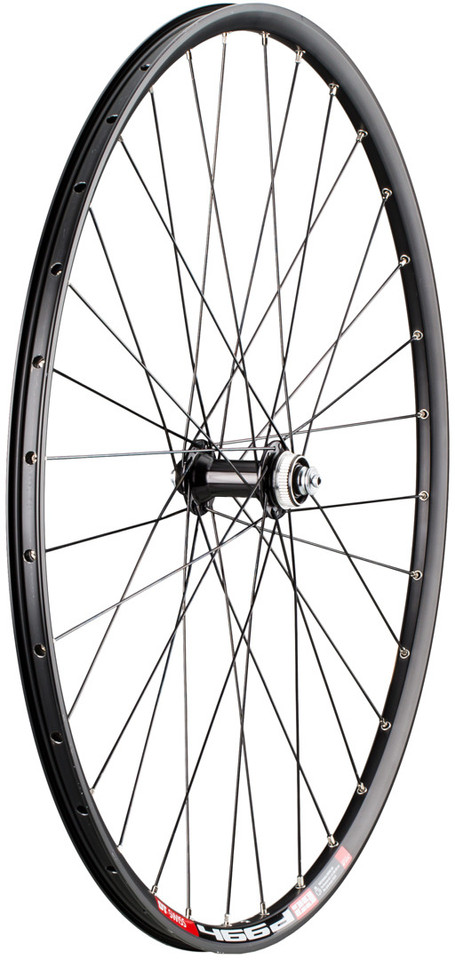

28" front 9x100:

Manufacturer Number:

71920-2-10027

28" front 9x100 dynamo:

Manufacturer Number:

71920-2-10471

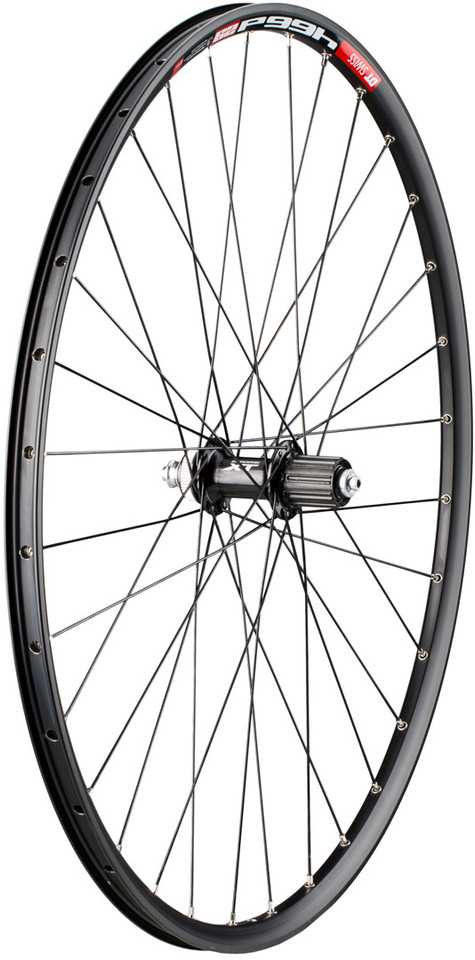

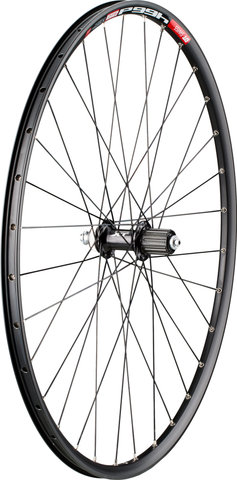

28" rear 10x135 Shimano:

Freehub:

Shimano MTB

Gearing:

8-/9-/10-/11-speed

Manufacturer Number:

71920-2-10651

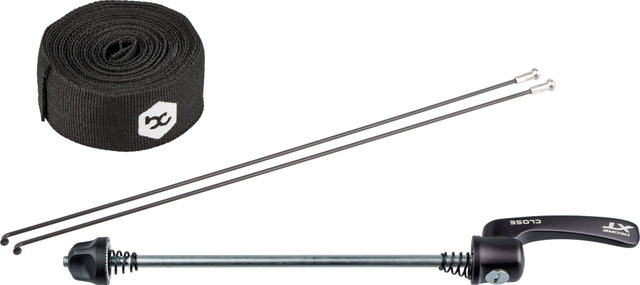

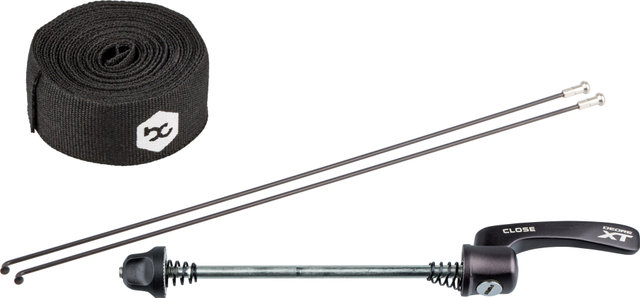

Contents:

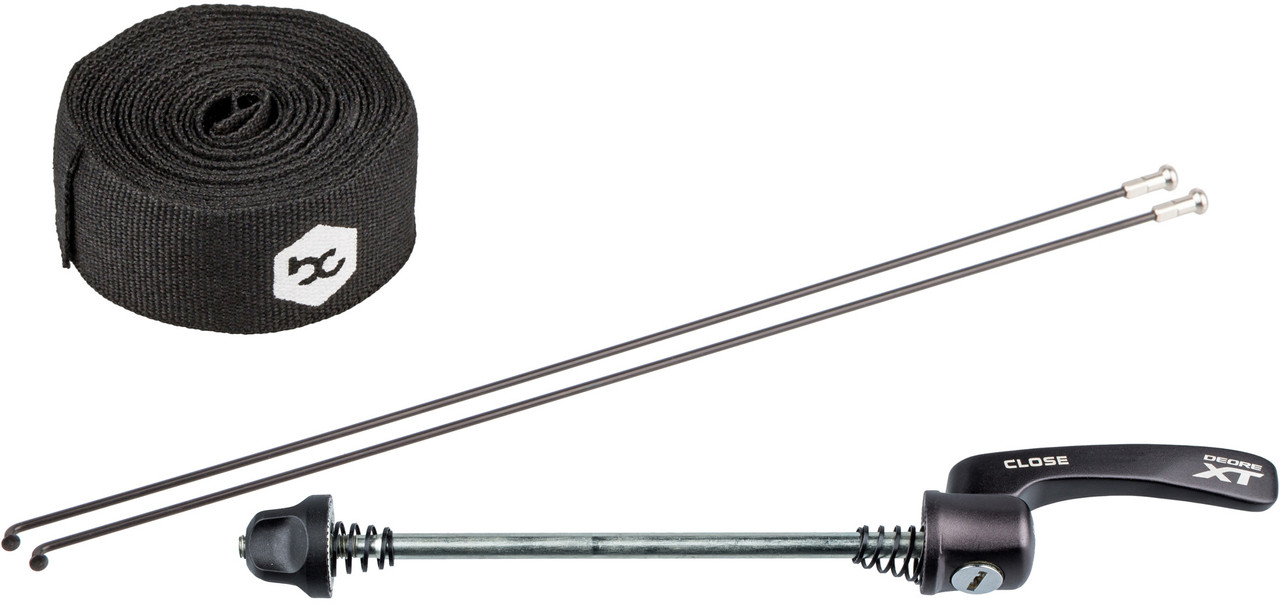

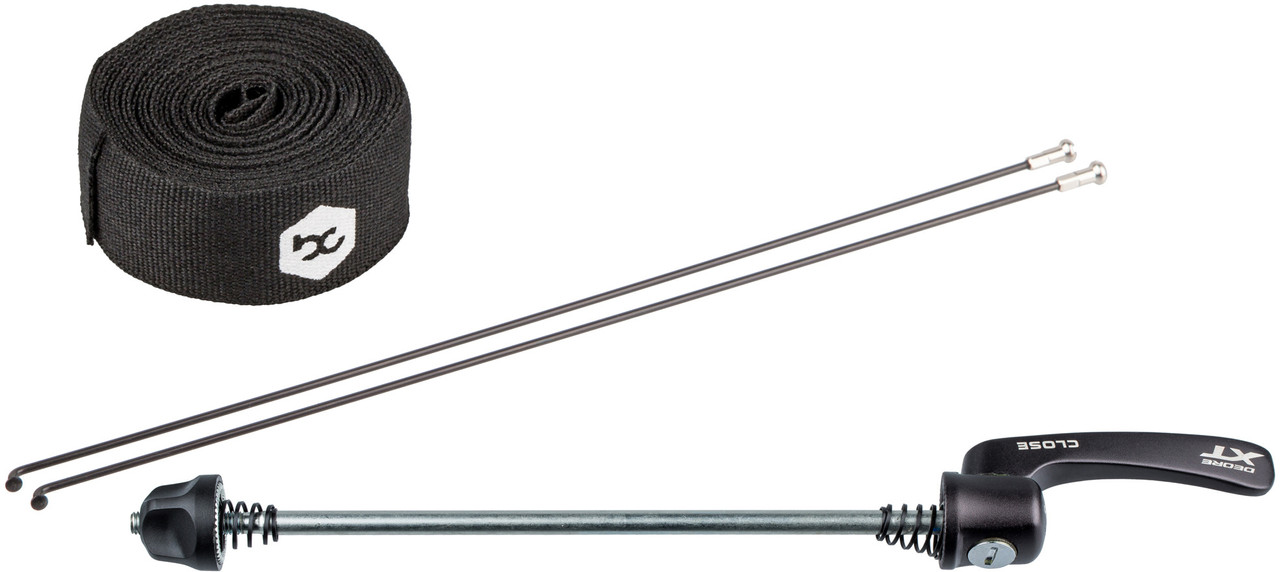

• 1 x bc Urban XT Disc wheels (front or front dynamo hub or rear, laced and trued)
• 1 x Shimano quick release
• 1 x roll of rim tape
• 2 x spare spokes with nipples
• 1 x connector (front dynamo hub only)
• 1 x overvoltage protector (front dynamo hub only)
