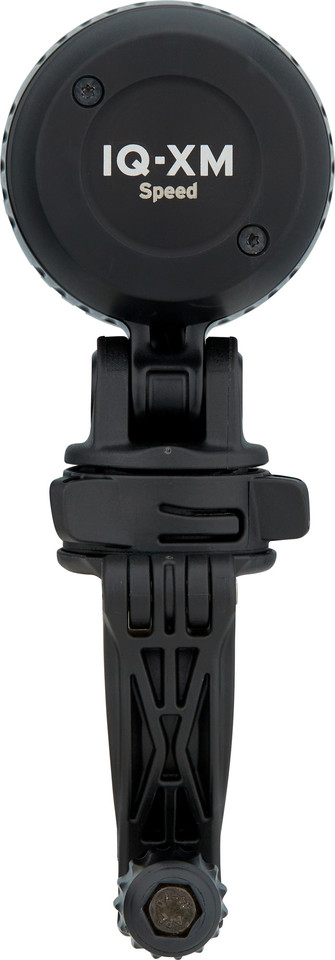

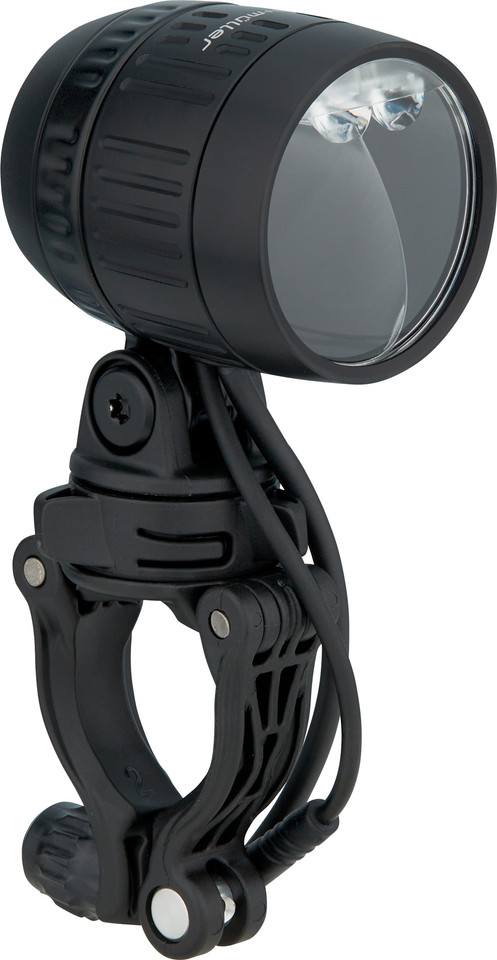

busch+müller IQ-XM Speed LED Front Light - StVZO approved

Information regarding the return of batteries and electrical equipment:

Information on the return and disposal of used batteries and electrical equipment can be found here.

Specifications:

Type:

front light (white)

Mount:

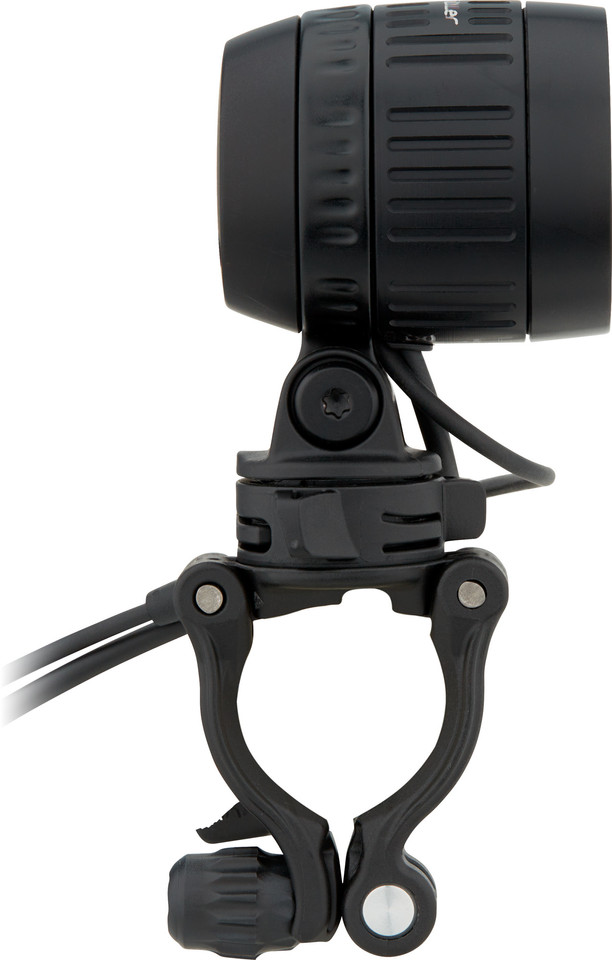

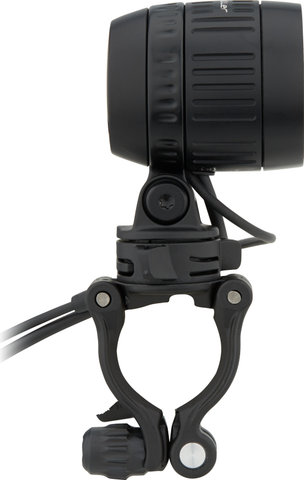

Handlebar clamp

Light Source:

LED (6)

Brightness:

170 lux (high beam), 120 lux (high-power), 70 lux (mid-power), 20 lux (low-power)

Burn Time:

1:30 (high beam) - 20:00 (low power) hours

Power Source:

battery (Li-ion), external

Technical Information:

Illumination Modes:

high-power, mid-power, low-power, high beam, flashing light

Voltage:

7.4V

Power Indicator:

yes

Charge Time:

approx. 5 hours (original mains adapter), up to 12 hours (external mains adapter / computer USB)

Dimensions (H x W x D):

64 x 46 x 51 mm (front light), 40 x 65 x 97 mm (battery pack)

Material:

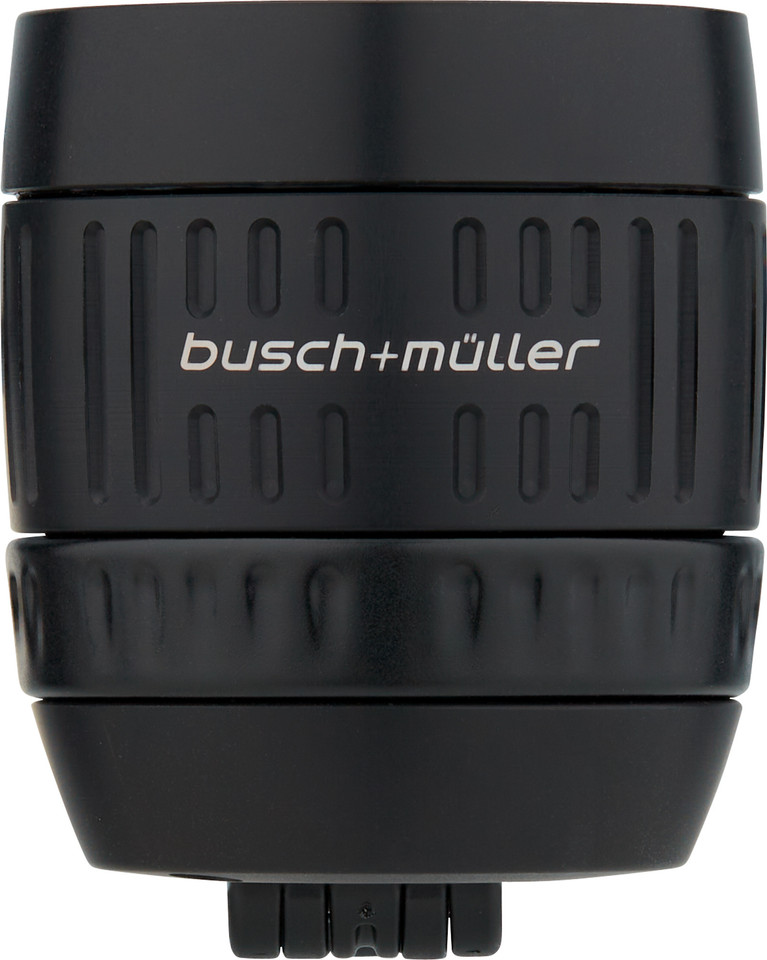

aluminium

Switch:

On / Off / Mode change / High beam / Flashing light

Approved For:

Street Use in Germany:

yes, for bicycles (according to §67 StVZO)

Check Number:

K~~1506

Features:

• powerful LED front light with 170 lux high beam and external battery with power bank function
• 120 lux luminance in low beam mode
• uniform illumination, wide light field
• 4600 mAh battery capacity for lighting or 4200 mAh as power bank for mobile phone or bike computer
• splash- and rainwater-proof light housing
• Safe Way Home function: light automatically dims when battery charge is still sufficient for 60 minutes of illumination
• handlebar push-button with coloured illumination for switching between modes
• charge level display in 20% increments via push-button or in 10% increments directly on the battery
• mount for handlebars with 22 - 32 mm diameter

Technology:

IQ Technology

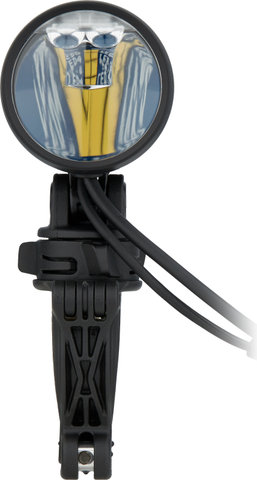

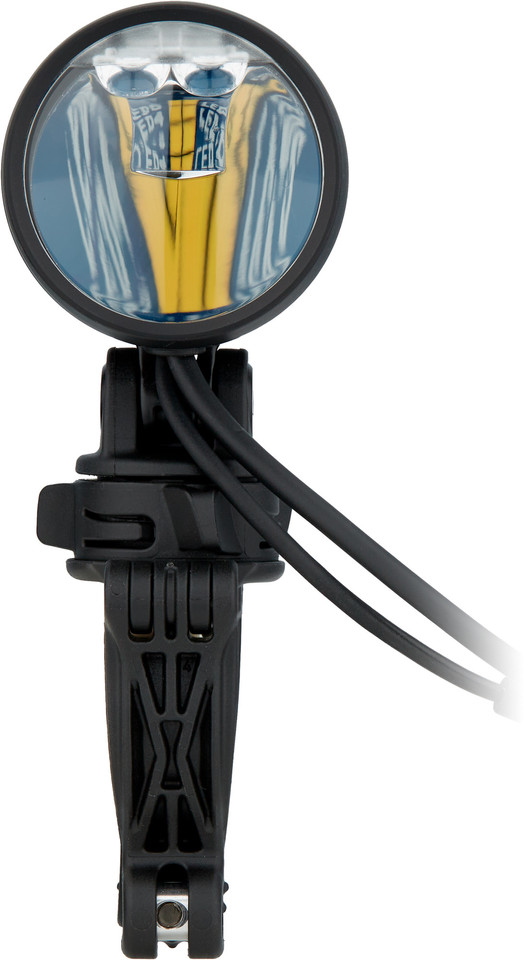

The light revolution from busch+müller: a special reflector with an optimised cooling system uses a high-performance LED as an indirect light source. The LED is not visible any longer in the middle of the reflector. This creates a light field that is extremely evenly illuminated and can be twice as wide as conventional technology. Light effects can be positioned more precisely - for example, the near field in front of the front wheel can be additionally brightened.

Manufacturer Number:

168/35LA-01

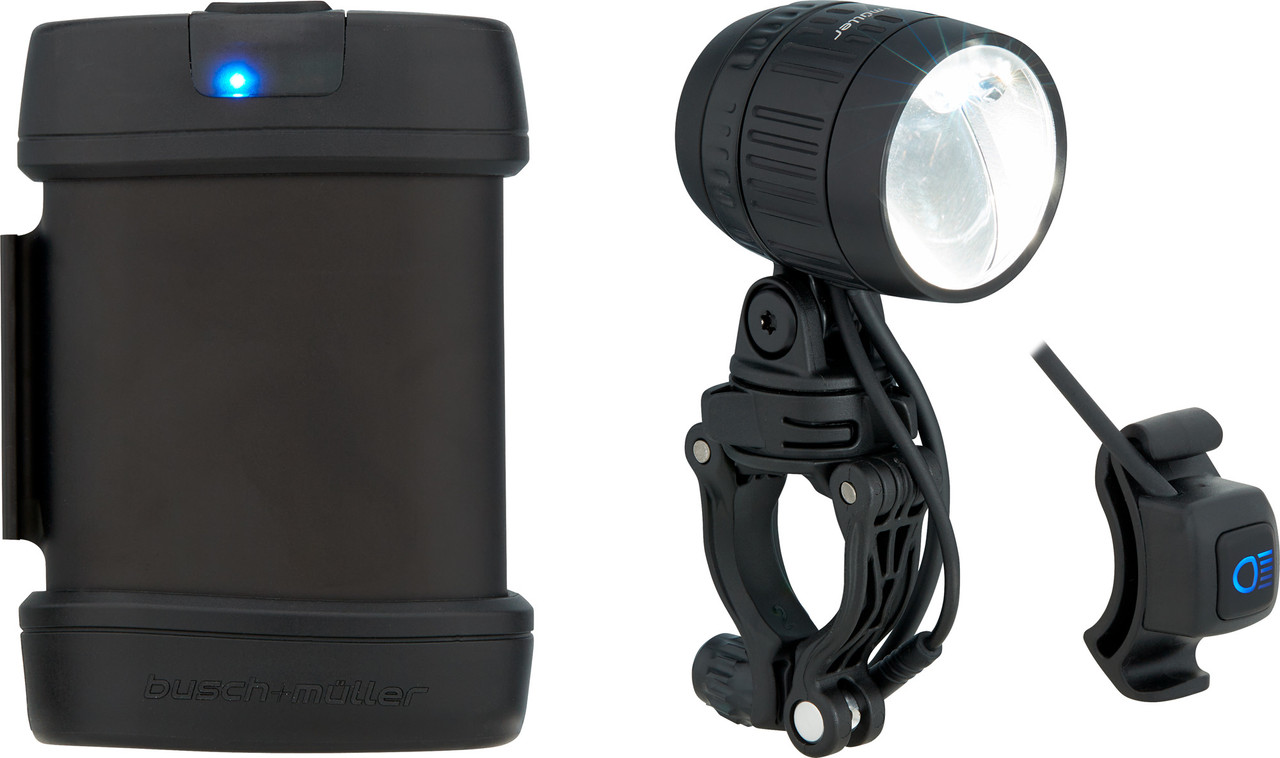

Contents:

• 1 x busch+müller IQ-XM Speed front light
• 1 x 468A 4600 mAh battery pack
• 1 x handlebar button
• 1 x handlebar clamp
• 1 x locking screw 30 mm
• 1 x locking screw 55 mm
• 1 x locking knob
• 1 x rubber rings
• 1 x rubber bands
• 1 x hook & loop fastening strap
• 1 x USB charger
• 1 x USB to Micro USB cable
• 1 x USB socket to micro USB cable
