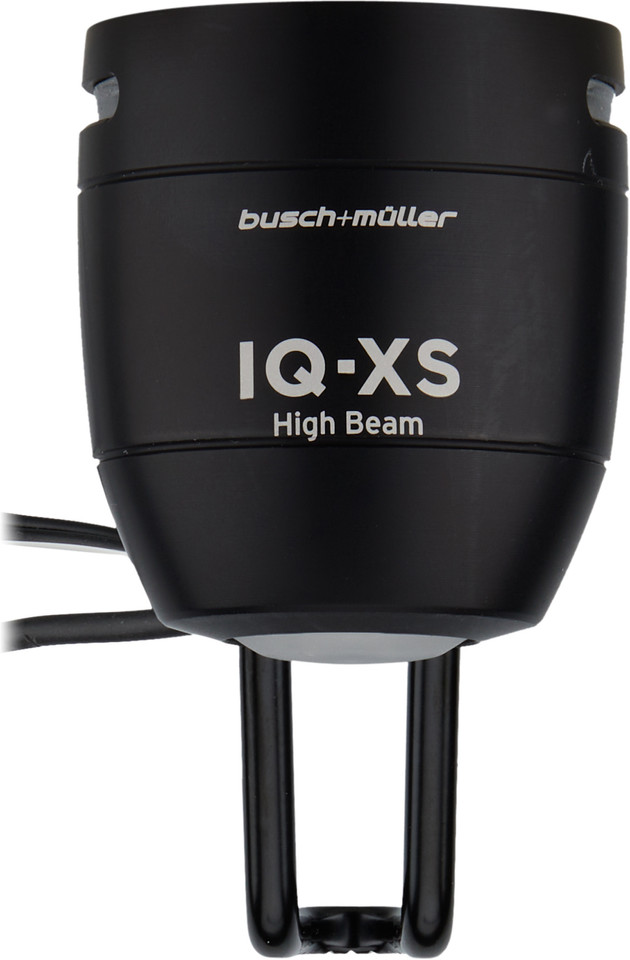

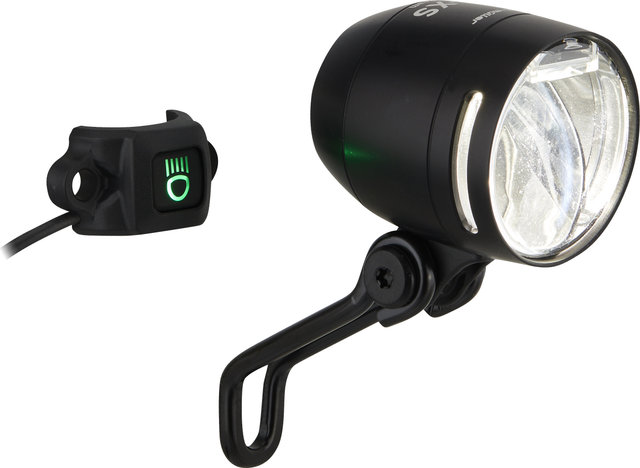

busch+müller IQ-XS E High Beam LED Front Light for E-bikes - StVZO approved

Information regarding the return of batteries and electrical equipment:

Information on the return and disposal of used batteries and electrical equipment can be found here.

Guidelines for Replacing E-bike Components:

Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.

Specifications:

Type:

front light (white)

Mount:

fork crown

Light Source:

LED (4)

Brightness:

150 lux (high beam), 100 lux (low beam)

Power Source:

E-bike battery

Technical Information:

Illumination Modes:

Low beam, high beam, flashing light

Voltage:

9 - 48 V

Material:

aluminium

Switch:

On / Off / High beam / Flashing light

Approved For:

Street Use in Germany:

yes, for bicycles (according to §67 StVZO)

Check Number:

K~~1800

Features:

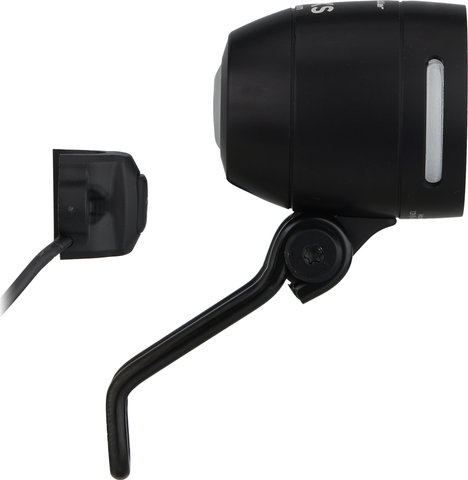

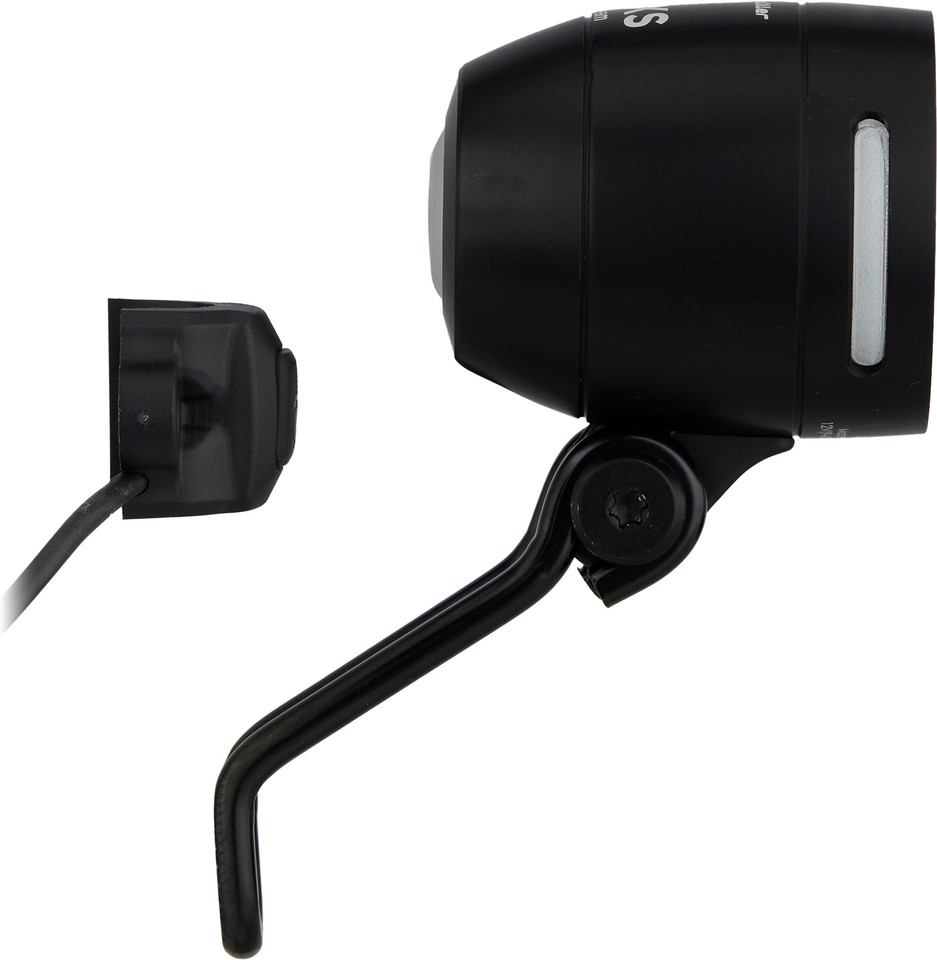

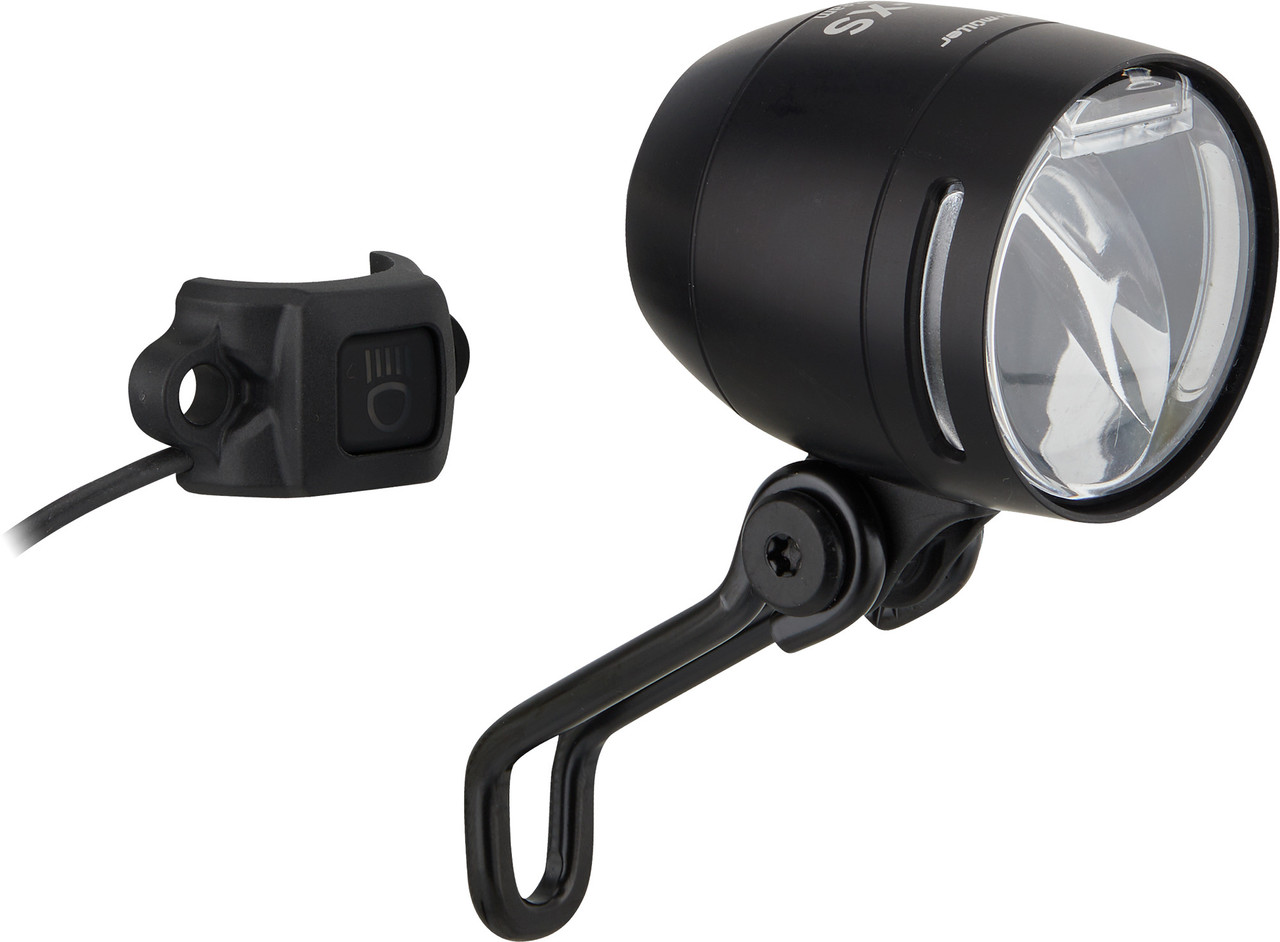

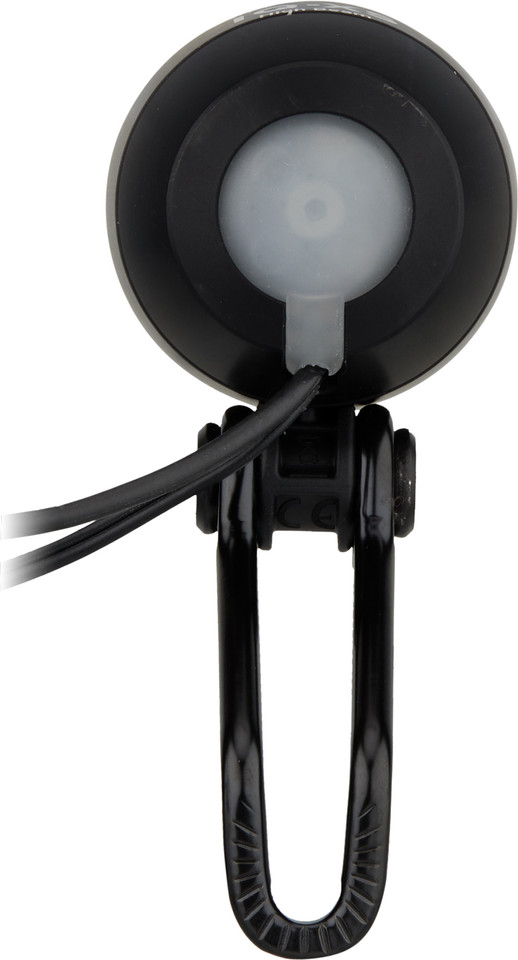

• compact aluminium e-bike front light with 150 lux high beam for fixed mounting on the fork crown
• 100 lux luminance in low beam mode
• uniform illumination, wide light field
• side light openings on the housing for more visibility

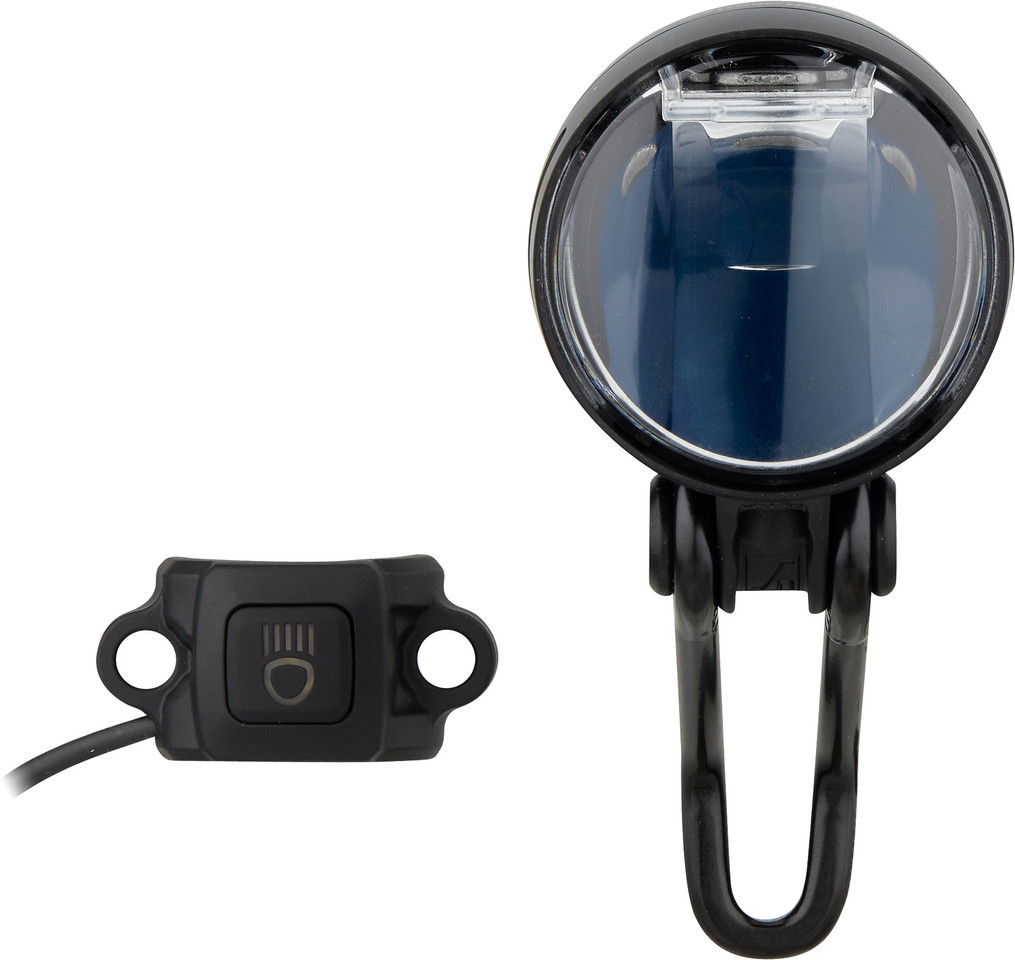

• coloured illuminated handlebar button for changing between low beam, high beam and flashing light
• push-button mounting clamp for handlebars with 22 mm diameter or for directly mounting on Magura and Tektro brake levers
• optional front reflector can be mounted on the light housing
• rated battery power: high beam 11 W, low beam 7 W

Technology:

IQ Technology
The light revolution from busch+müller: a special reflector with an optimised cooling system uses a high-performance LED as an indirect light source. The LED is not visible any longer in the middle of the reflector. This creates a light field that is extremely evenly illuminated and can be twice as wide as conventional technology. Light effects can be positioned more precisely - for example, the near field in front of the front wheel can be additionally brightened.

Manufacturer Number:

167HRU65-01

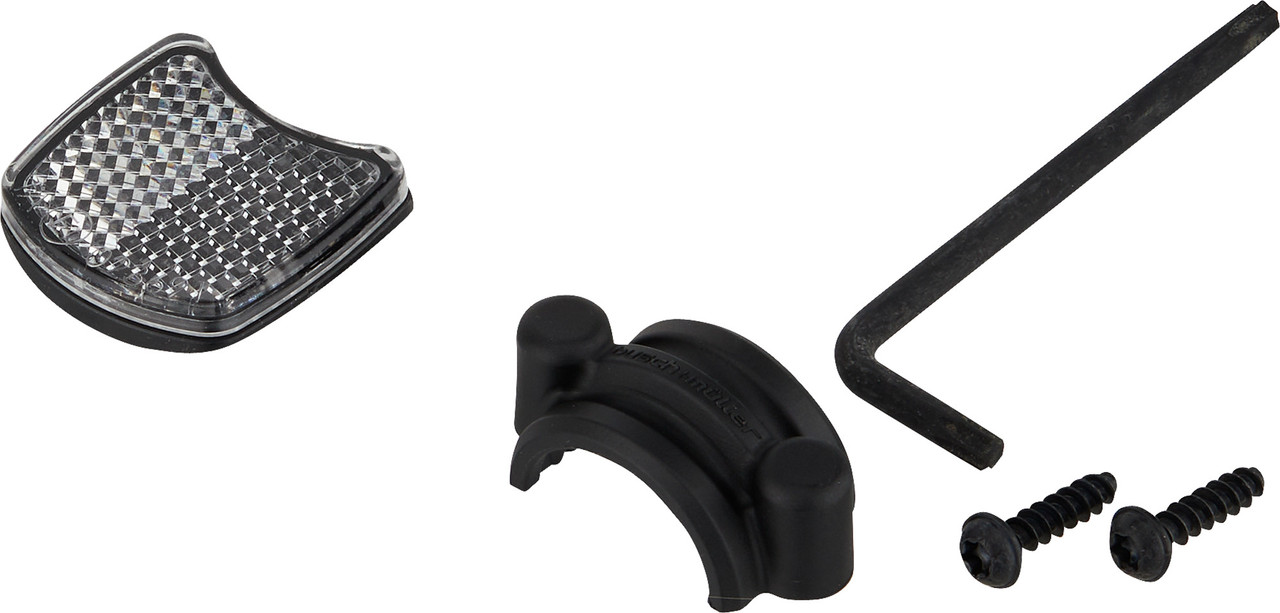

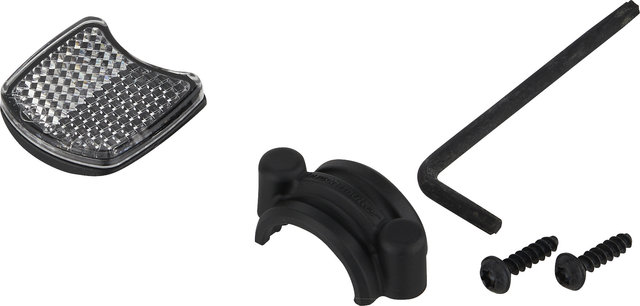

Contents:

• 1 x busch+müller IQ-XS E High Beam front light
• 1 x high beam button with cable
• 1 x main beam push-button, lower part
• 1 x connection cable
• 1 x Torx key
• 2 x bolts
• 1 x front reflector
