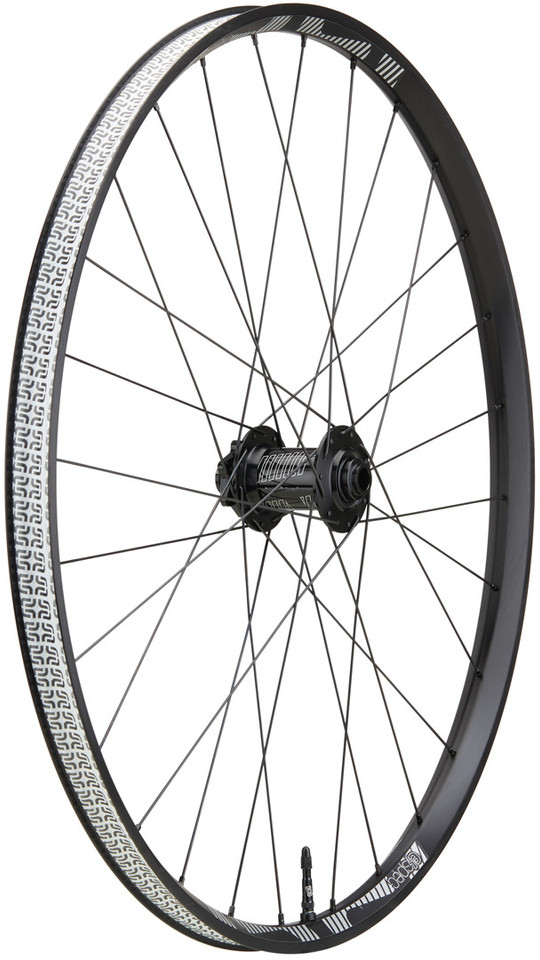

e*thirteen espec Plus Enduro Boost 29" Wheelset

The e*thirteen espec Plus wheelset for 29" enduro bikes was designed to be stable enough to withstand the high forces that take effect on e-bikes.

Guidelines for Replacing E-bike Components:

Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.

Specifications:

Application:

Enduro

Wheel Size:

29"

Tyre Type:

clincher tyre

Number of Spokes:

28 (front), 32 (rear)

Brake Type:

6-bolt disc

Wheel Standard:

Boost

Tubeless System:

Tubeless Ready

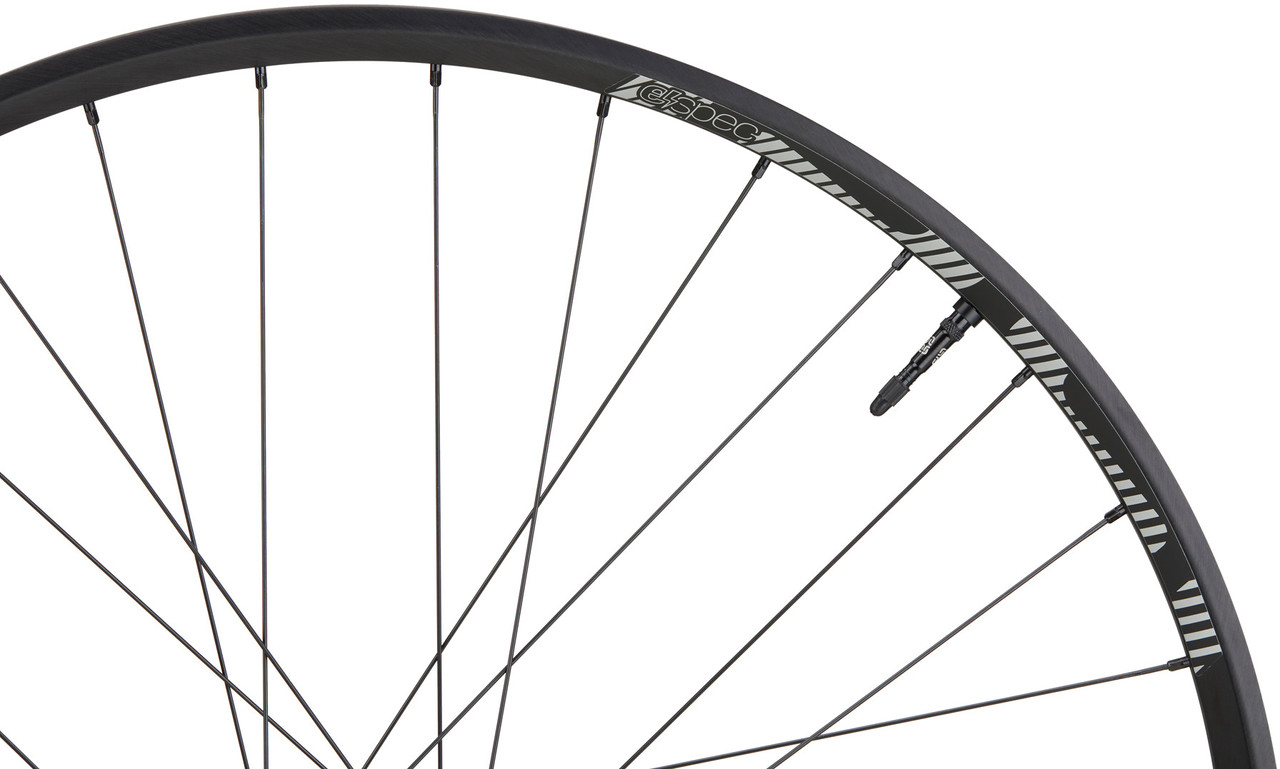

Technical Information - Rim:

Type:

espec Plus

Rim Flange:

hookless

Dimensions (ETRTO):

30-622

Inner Width:

30 mm

Outer Width:

33.5 mm

Depth:

18.7 mm

ERD:

599 mm

Valve Hole Diameter:

SV/Presta (6.5 mm)

Rim Material:

aluminium (6069)

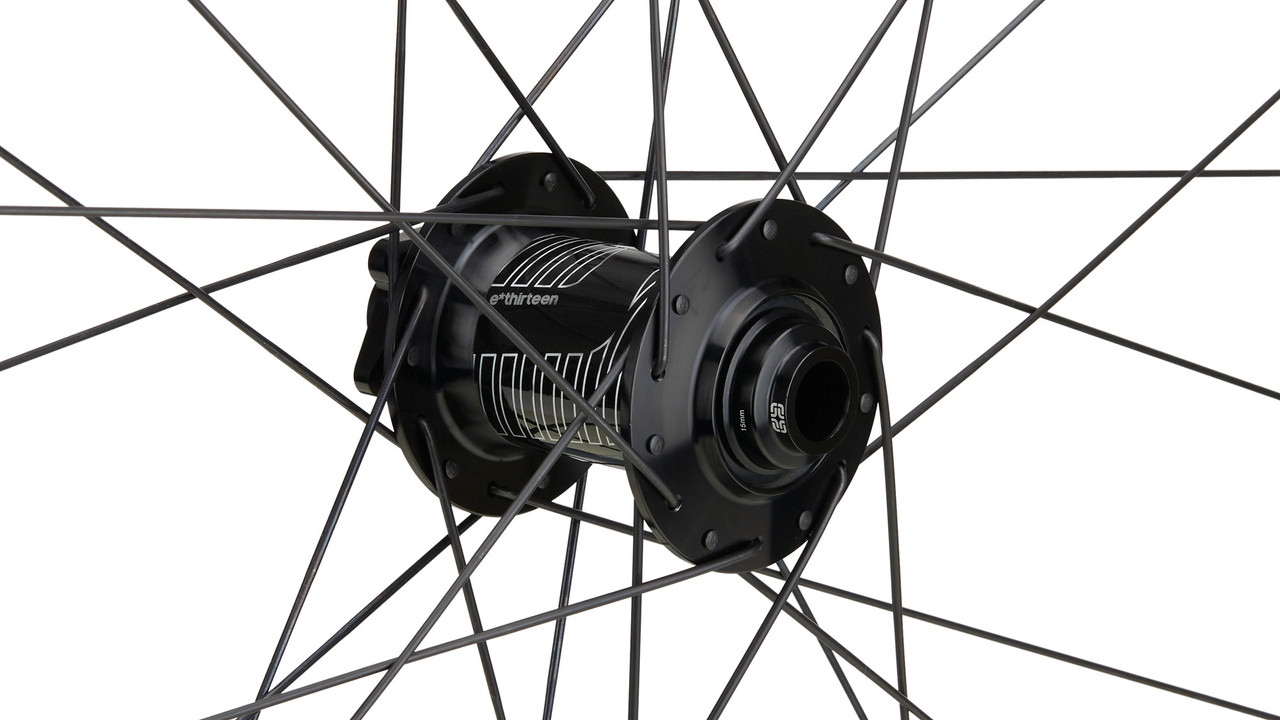

Technical Information - Front Hub:

Over Locknut Dimension:

15 x 110 mm thru-axle

Body Material:

aluminium

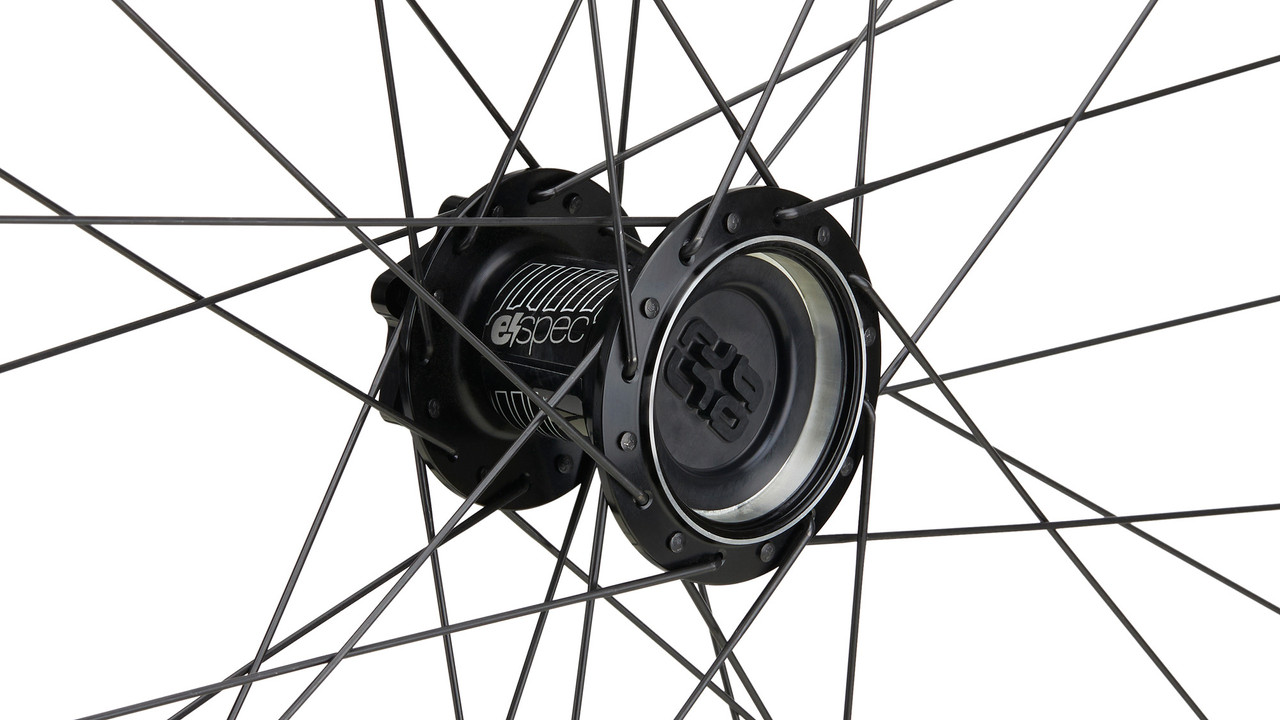

Technical Information - Rear Hub:

Over Locknut Dimension:

12 x 148 mm thru-axle

Body Material:

aluminium

Freehub Body:

pawls

Technical Information - Lacing:

Front Lacing Pattern:

3-cross

Rear Lacing Pattern:

3-cross

Spoke Type:

J-Bend, triple-butted

Spoke Size:

295 mm/297 mm (front l/r), 291 mm/289 mm (rear l/r)

Spoke Material:

steel

Nipple Material:

aluminium

Colour Info:

black-silver:

• Rims: black with silver decals
• Hubs: black with silver decals
• Spokes: black
• Nipples: black

Models:

29" set (front 15x110 Boost + rear 12x148 Boost) SRAM XD:

Freehub:

SRAM XD

Gearing:

11-/12-speed

Manufacturer Numbers:

WH4LPA-113 + WH4LPA-114

29" set (front 15x110 Boost + rear 12x148 Boost) Shimano Micro Spline:

Freehub:

Shimano Micro Spline

Gearing:

12-speed

Manufacturer Numbers:

WH4LPA-113 + WH4LPA-116

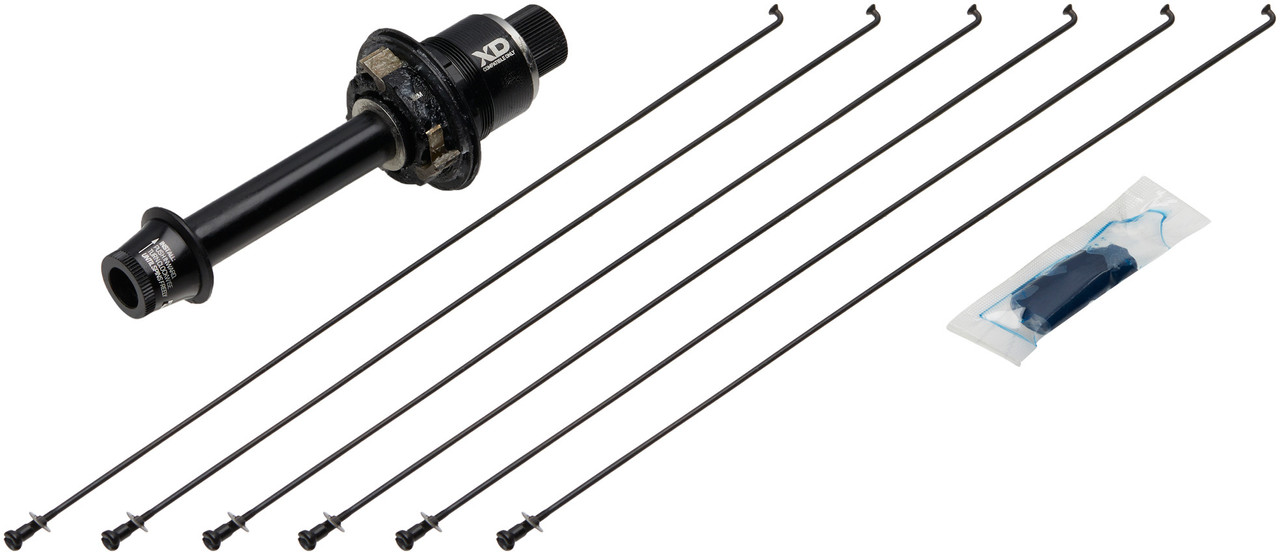

Contents:

• 1 x e*thirteen espec Plus Enduro Boost wheelset (front and rear wheel)
• 6 x spokes
• 6 x nipples
• 6 x nipple washers
