time Speciale 10 Small Clipless Pedals

Specifications:

Application:

All Mountain, Enduro

Type:

clipless pedals with platform

Pedal System:

time ATAC

Cleat Mount:

2-bolt

Technical Information:

Body Material:

aluminium

Axle Material:

steel

Bearings:

steel

Height:

19 mm

Dimensions (L x W):

64 x 80 mm

Float:

5°

Release Angle:

10° (ATAC Easy Cleats), 13°/17° (ATAC 13/17° Cleats)

Recommended Cleats:

ATAC 13/17°, ATAC Easy 10°

Number of Pins:

4 (per pedal side)

Pin Height:

adjustable, max. 3 mm

Pedal Centre to Crank Arm Distance:

54 mm

Features:

• clipless pedals for enduro and trail bikes
• oversized hollow steel axles
• stabilising platform made of robust 6106 T6 aluminium
• optimal grip thanks to 4 height-adjustable pins on each side of the pedal
• infinite Micro-Adjust system for adjusting the release tension
• self-cleaning clip-in mechanism

Technology:

Self Cleaning Concept
The front binding system ensures that all deposits such as mud, sand, etc. are removed every time you step on the pedal and guarantees perfect performance even in the worst conditions.

Manufacturer Numbers:

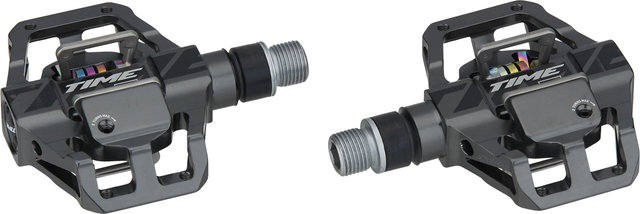

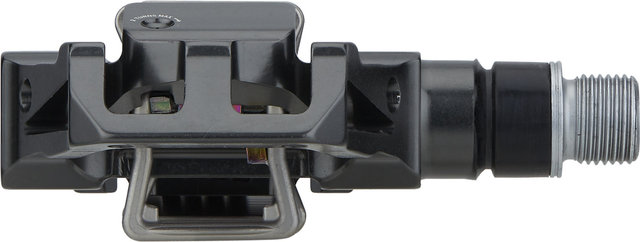

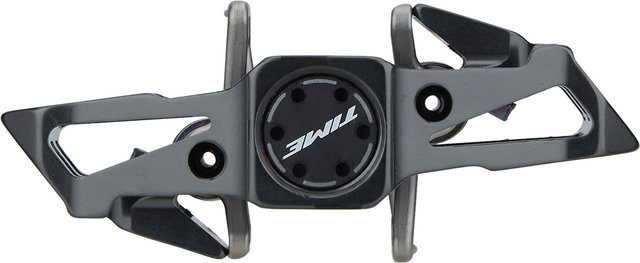

dark grey:

00.6718.028.004

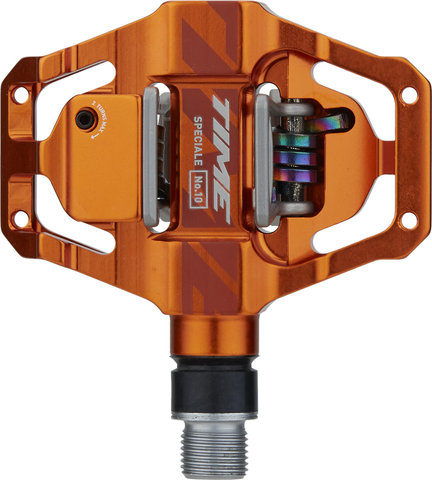

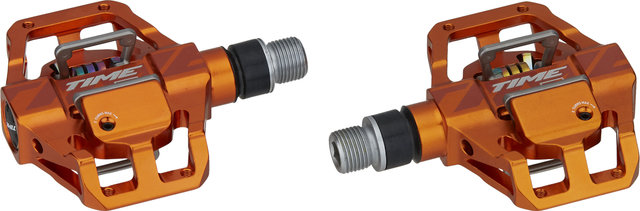

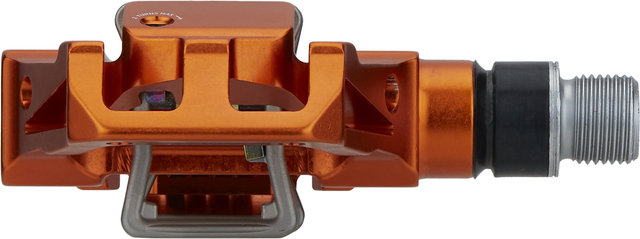

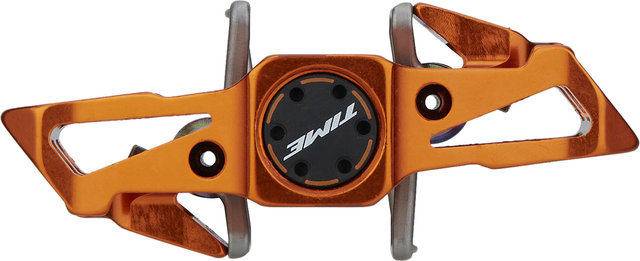

orange:

00.6718.028.007

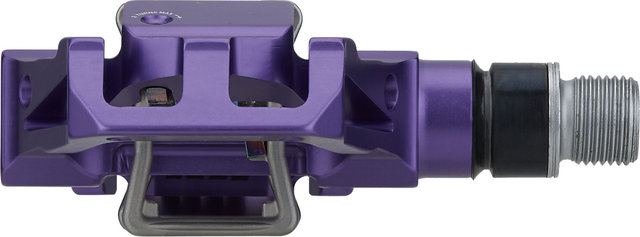

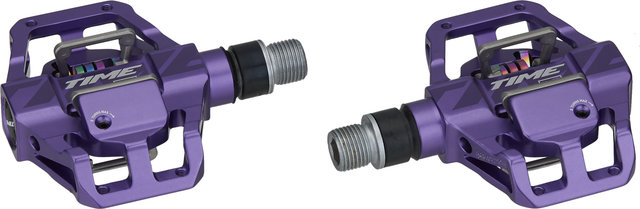

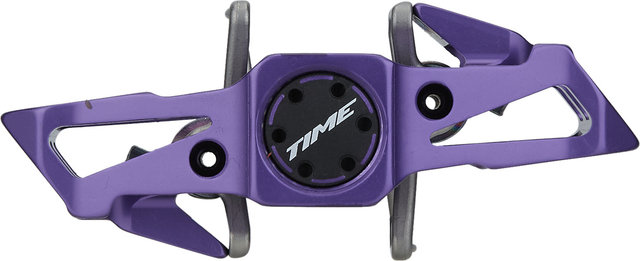

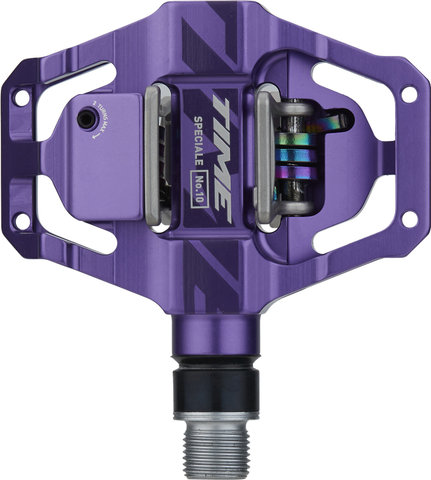

purple:

00.6718.028.005

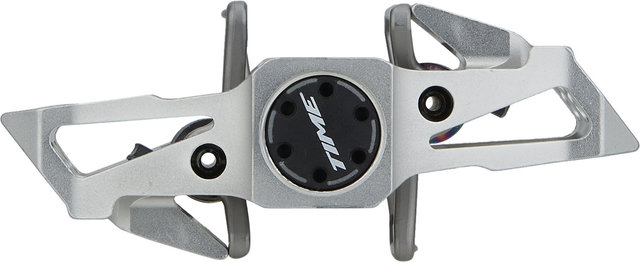

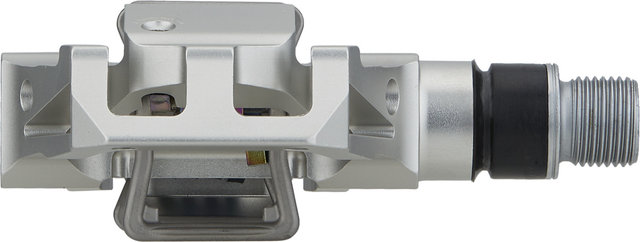

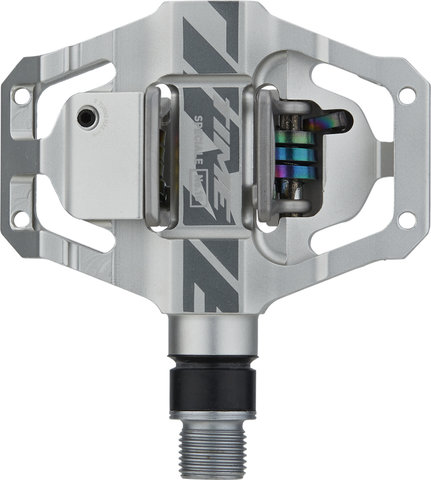

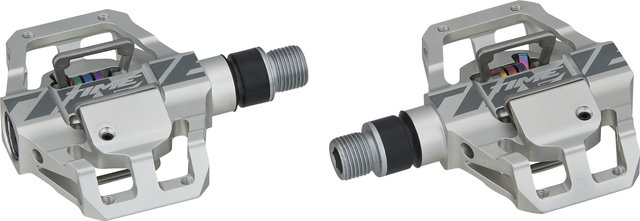

raw aluminium:

00.6718.028.006

Contents:

• 1 x pair time Speciale 10 Small Clipless Pedals

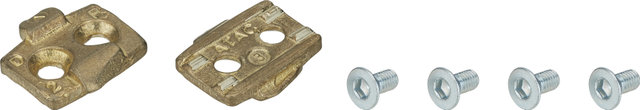

• 1 x pair time ATAC 13/17° Cleats
• 4 x bolts
• 10 x pin
