tune Prince Boost CL Center Lock Disc Rear Hub - black/12 x 148 mm / 28 hole / Shimano

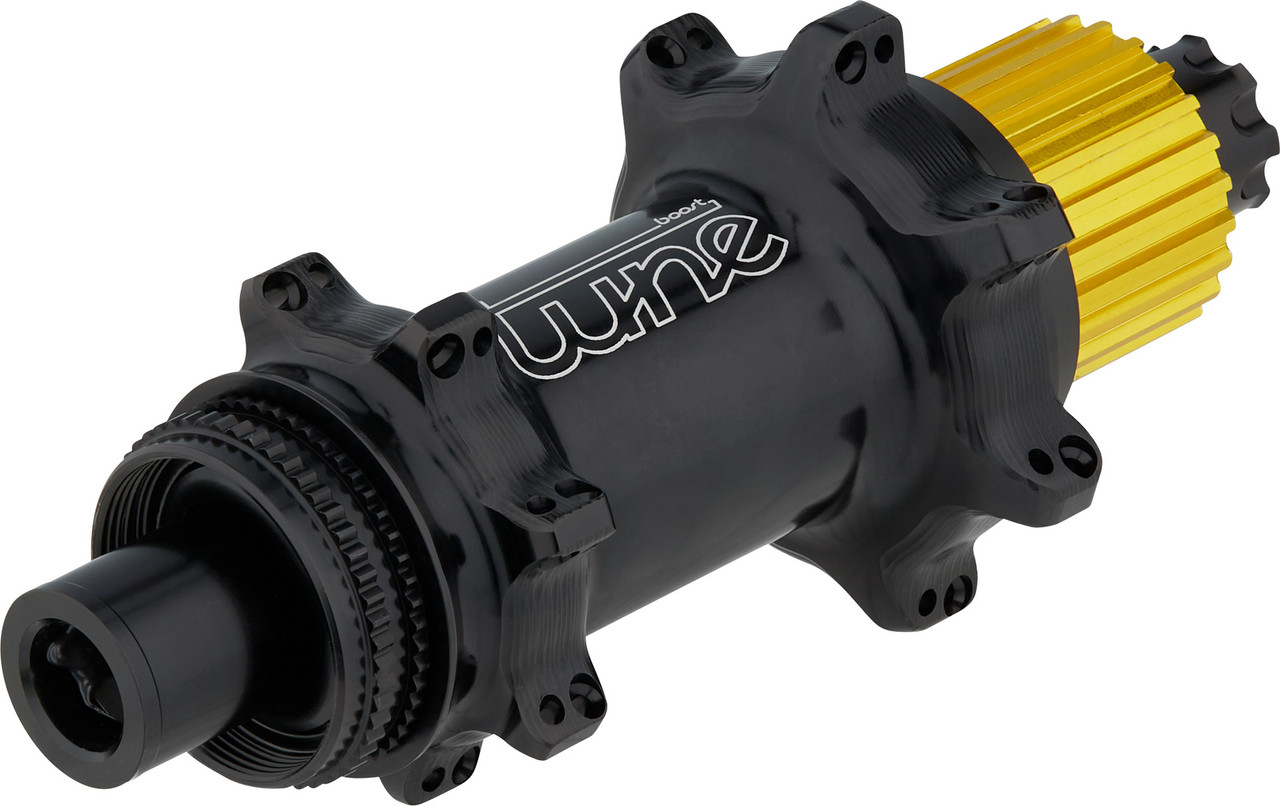

tune Prince Boost CL Center Lock Disc Rear Hub

Item number: 86539

Specifications:

Application:
Cross Country
Brake Type:
Center Lock Disc
Wheel Standard:
Boost
Freehub Body Type:
3T Endur with 3 titanium pawls and reinforced freehub body

Technical Information:

Body Material:
aluminium
Bearings:
Endurance ball bearings, double-sealed
Spoke Hole Diameter:
2.4 mm

Approved For:

Weight Limit:
90 kg rider weight, 105 kg system weight
Spoke Tension (max.):
1100 Nm

Features:

  • stable and at the same time lightweight Boost rear hub for cross-country MTBs
  • mount for centre-lock brake rotors
  • CNC-milled hub body made of anodised aluminium
  • reinforced Endurance freehub with 3 titanium pawls for more stiffness
  • double-sealed Endurance ball bearings are low-maintenance and less susceptible to dirt and dust
  • for triple-crossed lacing
  • recommended spokes: Sapim CX-Ray, Sapim D-Light

Models:

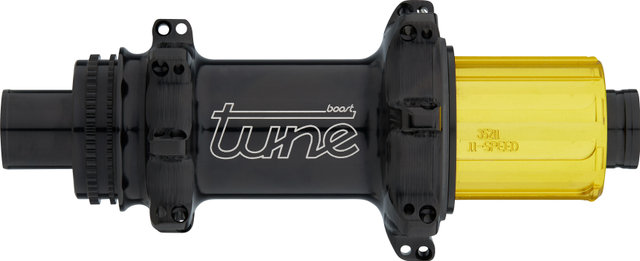

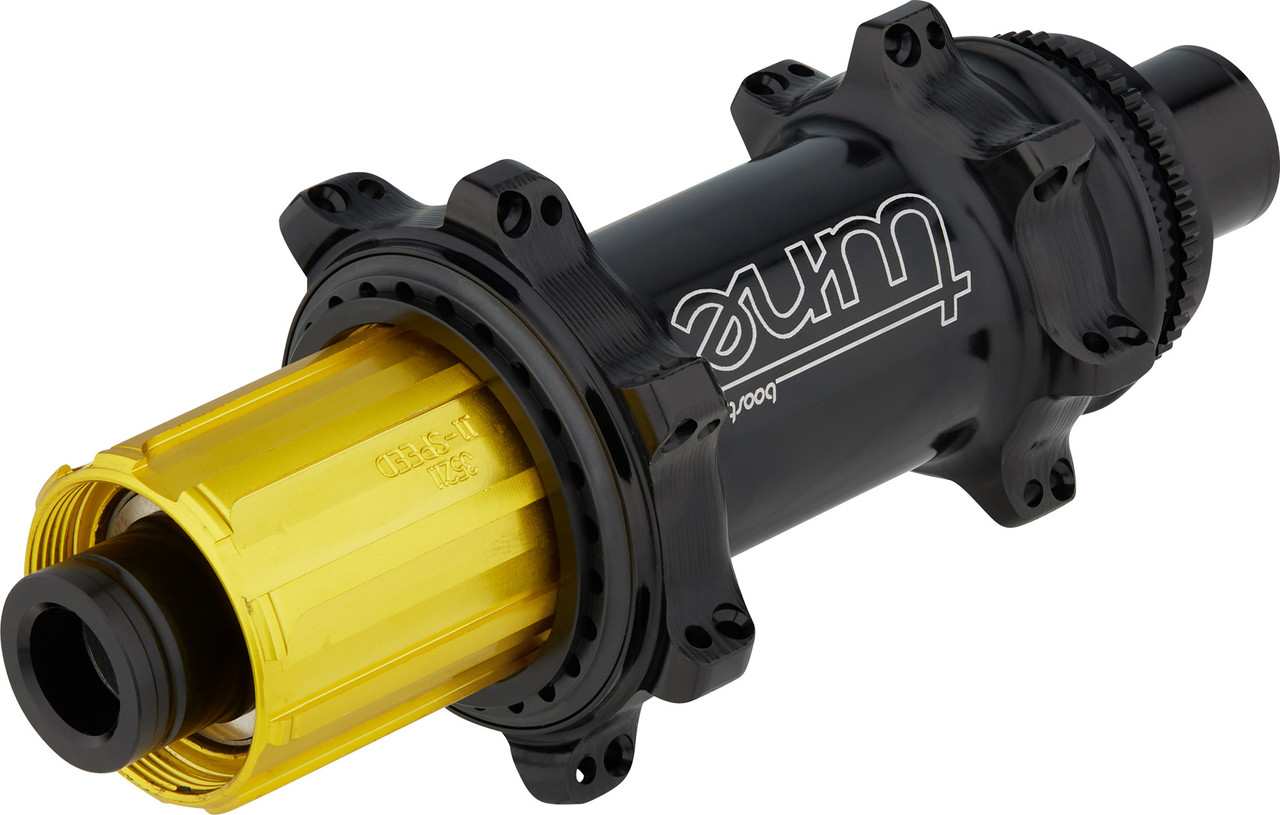

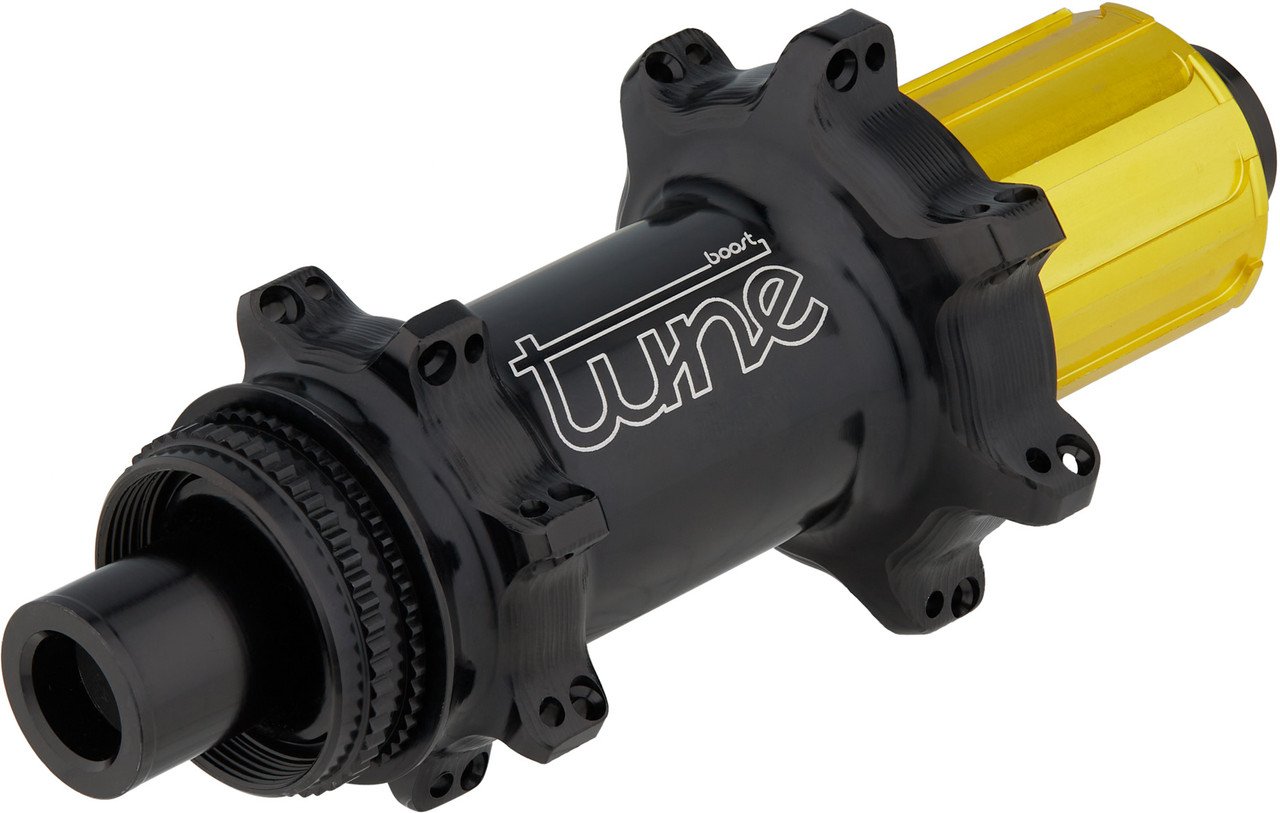

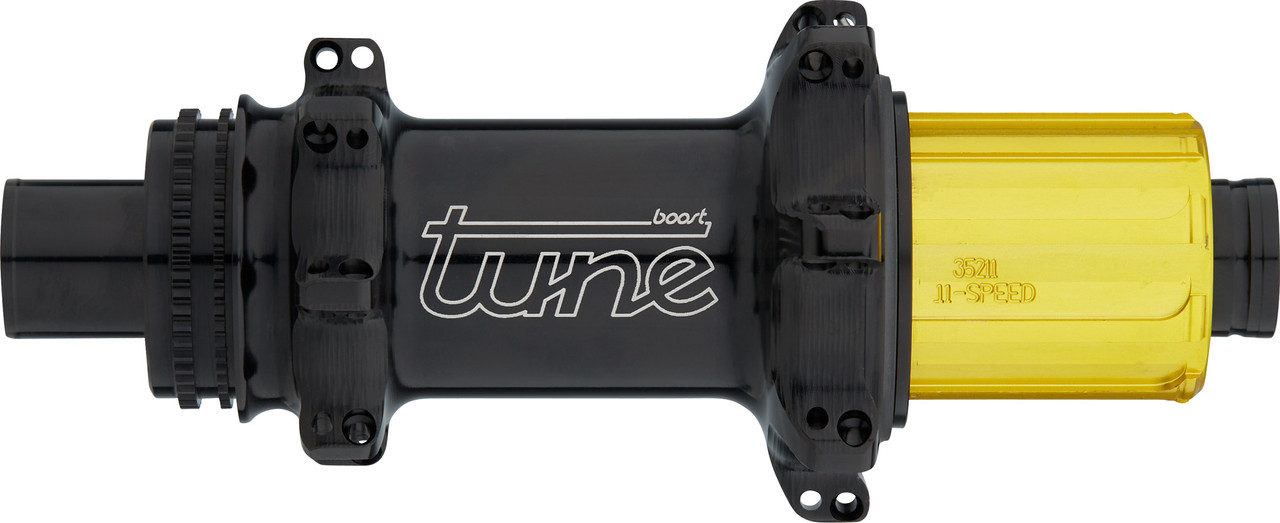

12 x 148 mm / 28 hole / Shimano:
Over Locknut Dimension:
12 x 148 mm thru-axle
Spoke Hole Count:
28 hole
Freehub:
Shimano Road
Gearing:
8-/9-/10-/11-/12-speed
Note:
To mount 8-/9-/10-speed road cassettes or 11-speed MTB cassettes on a Shimano road rotor, a 1.85 mm spacer is required.
Flange Distance (L/R):
57.4 mm (35.2 mm/22.2 mm)
Partial Bolt Circle Diameter (L/R):
47.0 mm/57.0 mm
Manufacturer Number:
BHNPceBooCl28BeaEnd12mmAluHg10113tEndbck

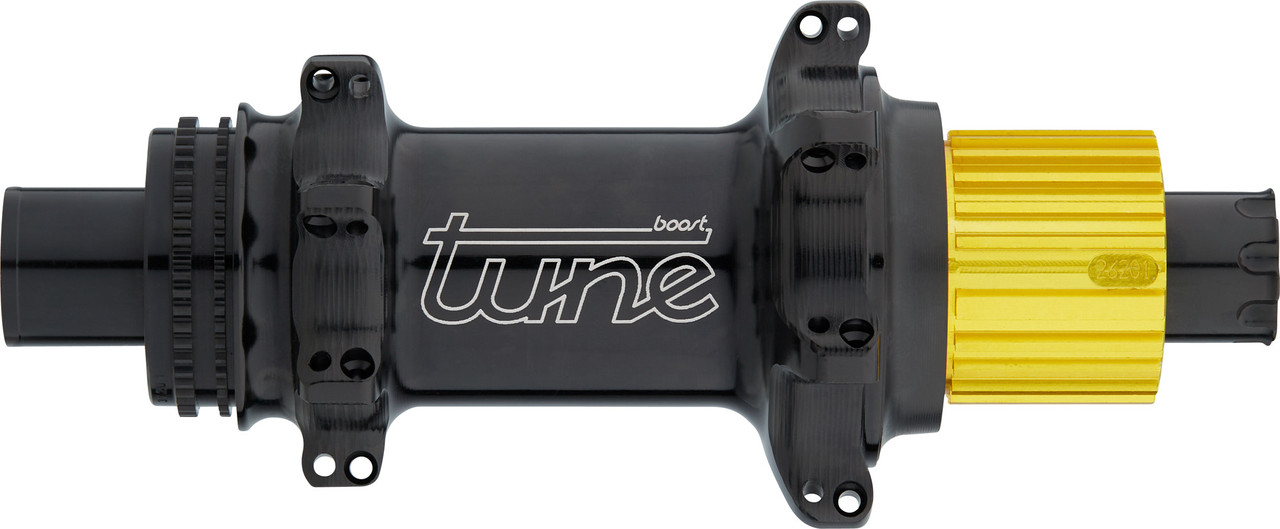

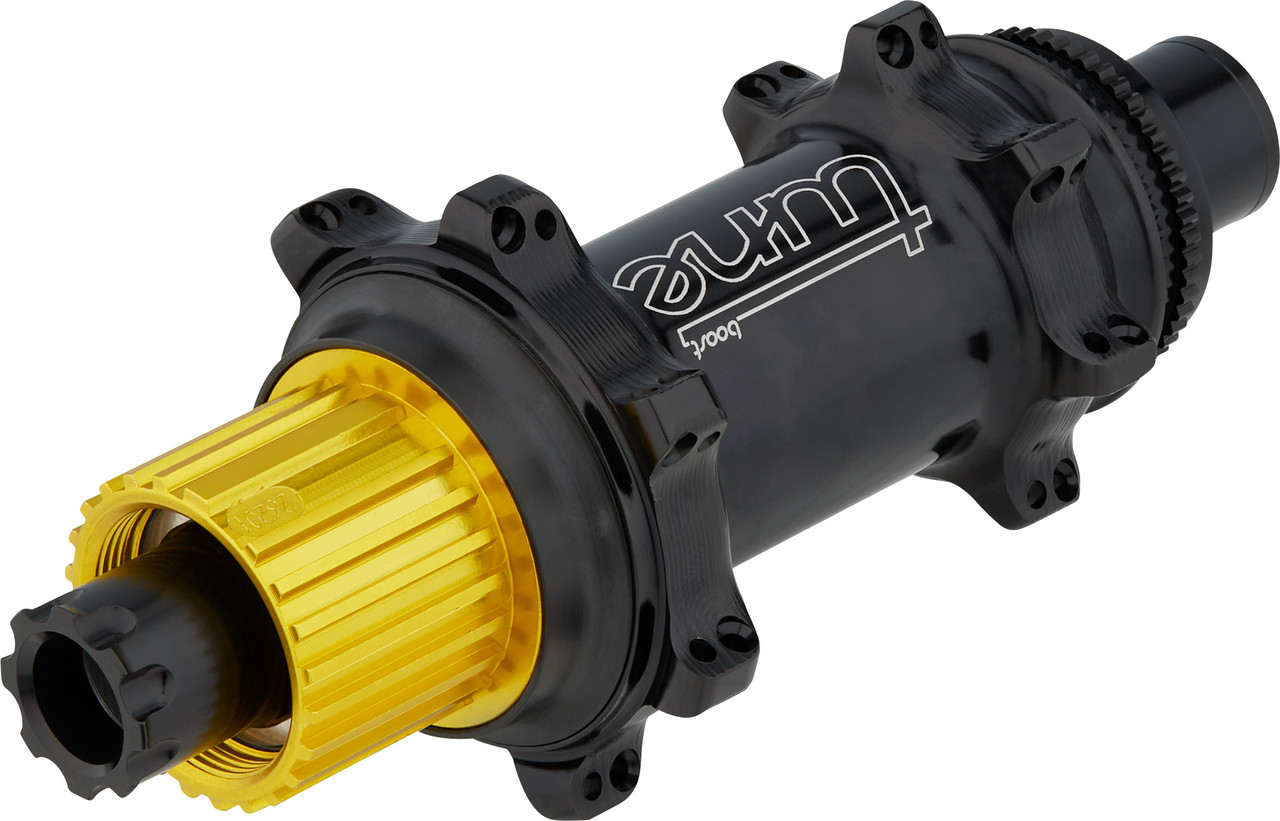

12 x 148 mm / 28 hole / Shimano Micro Spline:
Over Locknut Dimension:
12 x 148 mm thru-axle
Spoke Hole Count:
28 hole
Freehub:
Shimano Micro Spline
Gearing:
12-speed
Flange Distance (L/R):
57.4 mm (35.2 mm/22.2 mm)
Partial Bolt Circle Diameter (L/R):
47.0 mm/57.0 mm
Manufacturer Number:
BHNPceBooCl28BeaEnd12mmAluMS3tEndbck

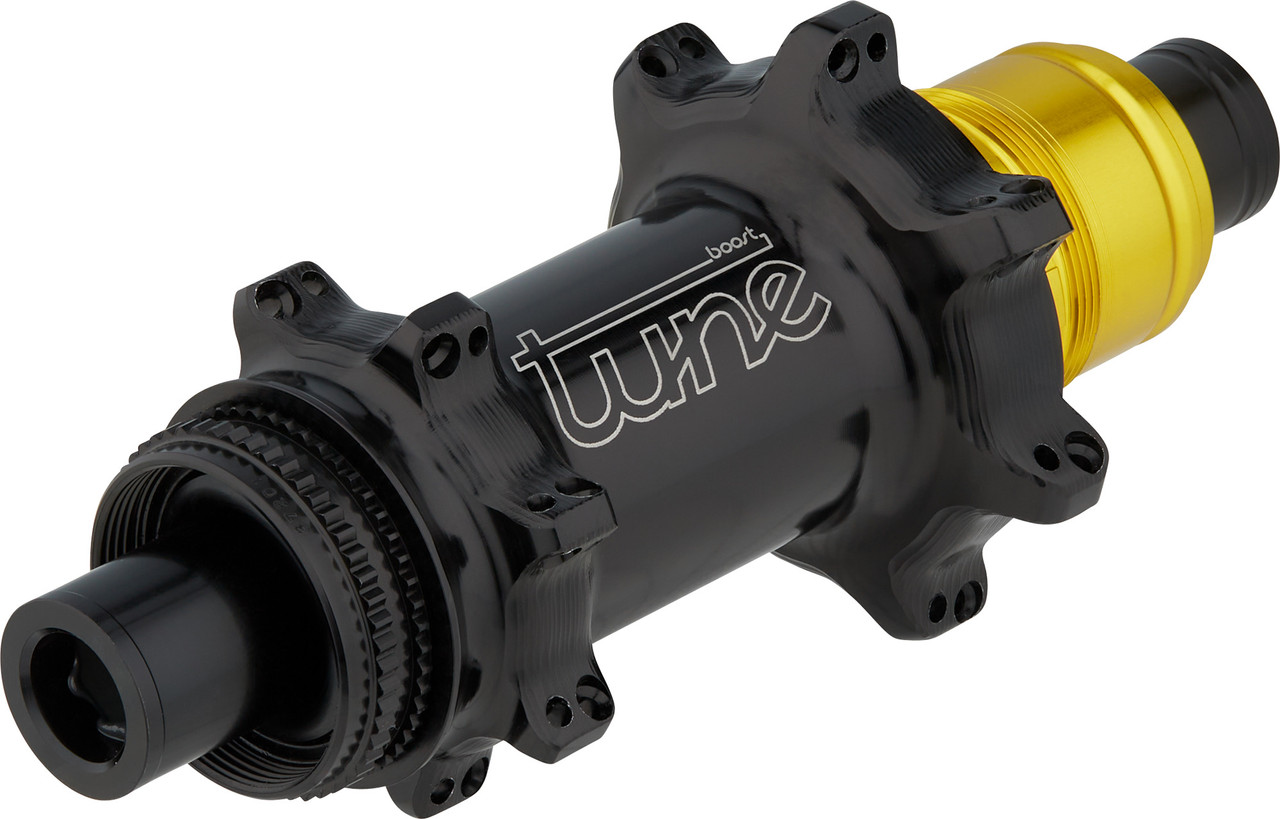

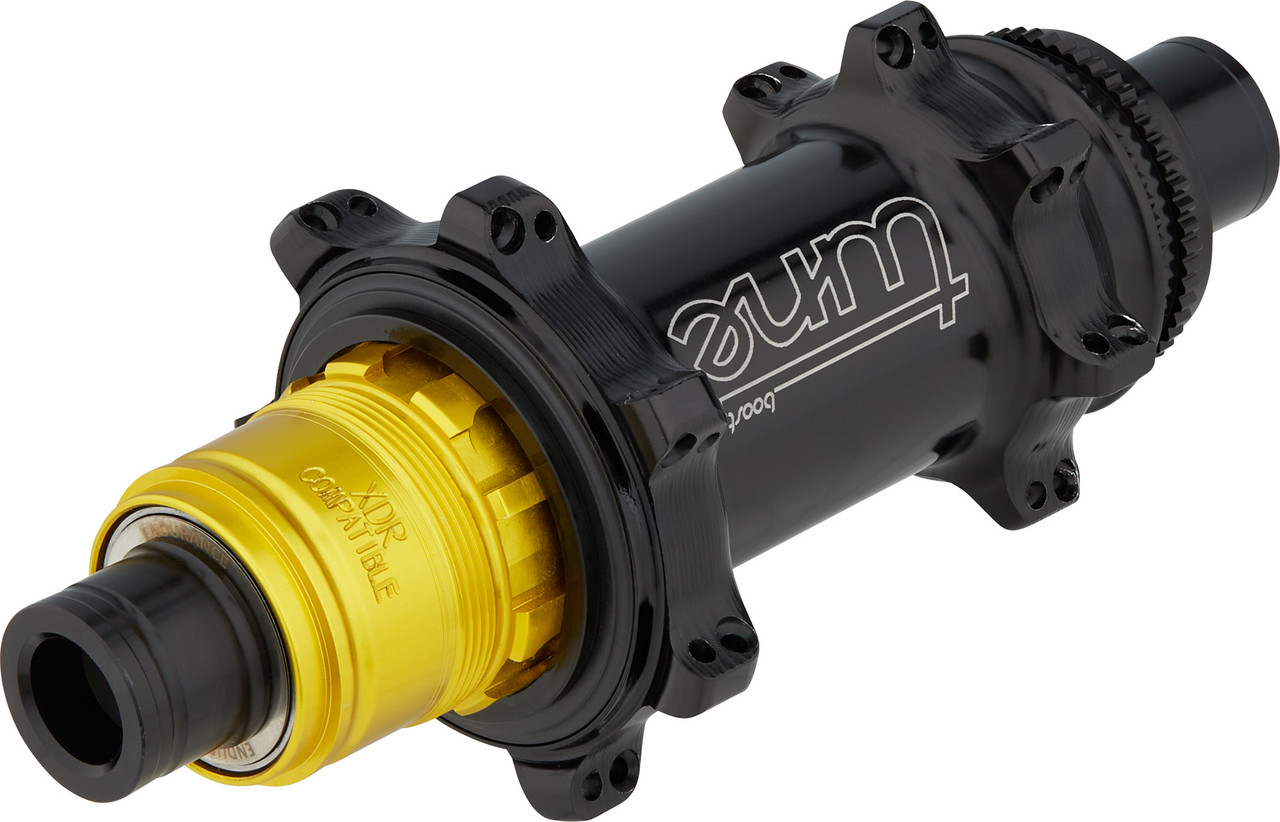

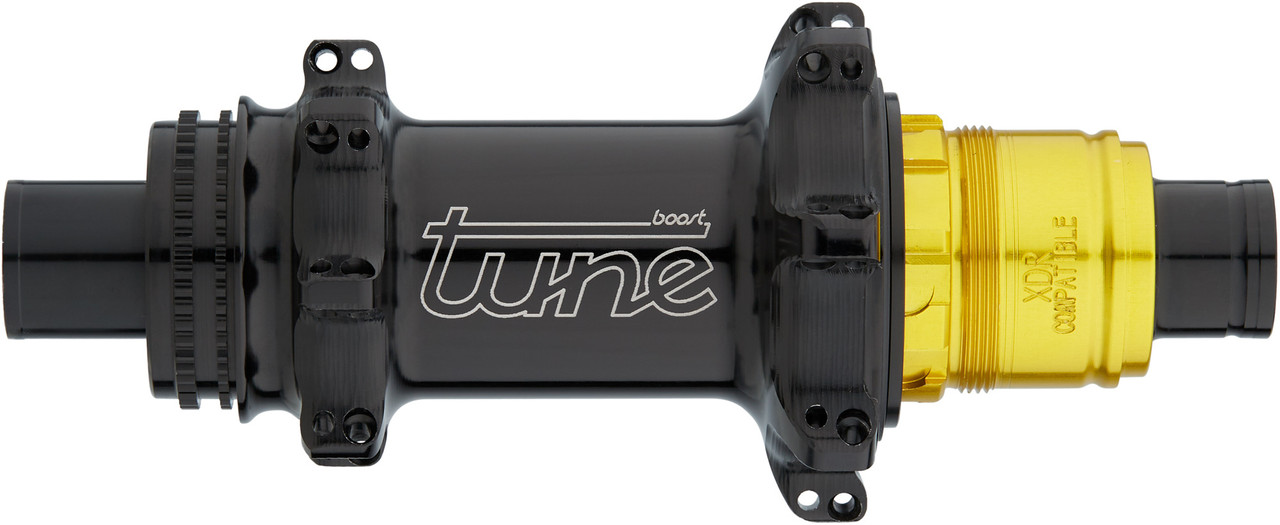

12 x 148 mm / 28 hole / SRAM XDR:
Over Locknut Dimension:
12 x 148 mm thru-axle
Spoke Hole Count:
28 hole
Freehub:
SRAM XDR
Gearing:
11-/12-speed
Note:
A 1.8 mm spacer is required to mount XD cassettes on an XDR freehub body.
Flange Distance (L/R):
57.4 mm (35.2 mm/22.2 mm)
Partial Bolt Circle Diameter (L/R):
47.0 mm/57.0 mm
Manufacturer Number:
BHNPceBooCl28BeaEnd12mmAluXDXDR3tEndbck

Contents:

  • 1 x tune Prince Boost CL Center Lock Disc hub
  • 1 x spacer (only for version with Shimano or SRAM XDR freehub)

  • 100 day return period
  • Online since 1998
  • Trusted Shop 4.89 / 5.00

Models:

  • black/12 x 148 mm / 28 hole / Shimano, in stock
    258.80€
  • black/12 x 148 mm / 28 hole / Shimano Micro Spline, in stock
    345.35€
  • black/12 x 148 mm / 28 hole / SRAM XDR, in stock
    258.80€
