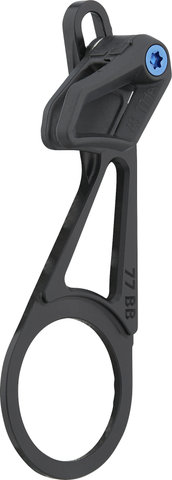

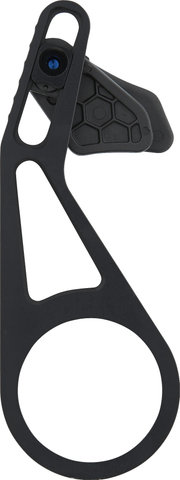

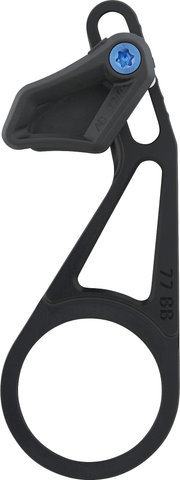

77designz Oval Guide BB Chain Guide

Specifications:

Application:

All Mountain, Downhill, Enduro

Material:

Aluminium (Backplate), PA66 GF10 (Slider)

Attachment:

bottom bracket

Bash Guard Capacity:

26 - 38 teeth (round chainrings), 26 - 36 teeth (oval chainrings)

Compatibility:

• 11-speed, 12-speed
• 10-speed drivetrains in combination with friction-damped rear derailleur and N/W chainring

The chain guide is not compatible with Bionicon and Garbaruk Non Boost Direct Mount chainrings in the sizes 26-tooth, 28-tooth or 30-tooth because the chain line is too narrow.

Features:

• only one Torx 25 is required for assembly
• mount without disassembling the crank
• light and stable
• Boost compatible
• made in Germany

Manufacturer Numbers:

1000100 (Backplate), 1000125 (Top Slider)

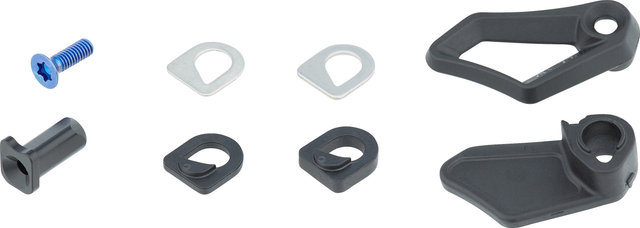

Contents:

• 1 x 77designz Backplate BB 38
• 1 x 77designz outer slider
• 1 x 77designz inner slider
• 1 x 77designz adjuster
• 1 x 77designz M4x12 bolt
• 4 x 77designz chain line spacers
