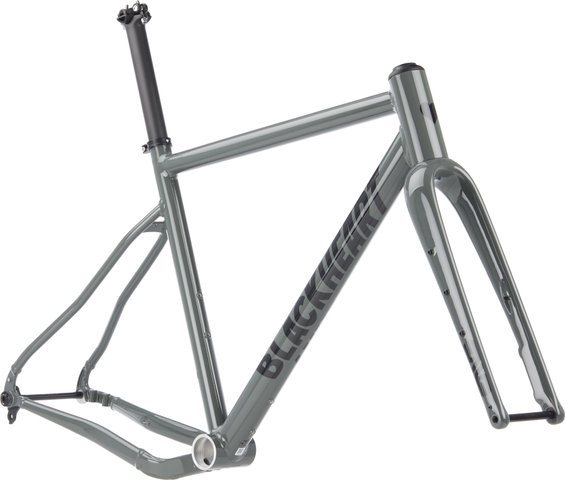

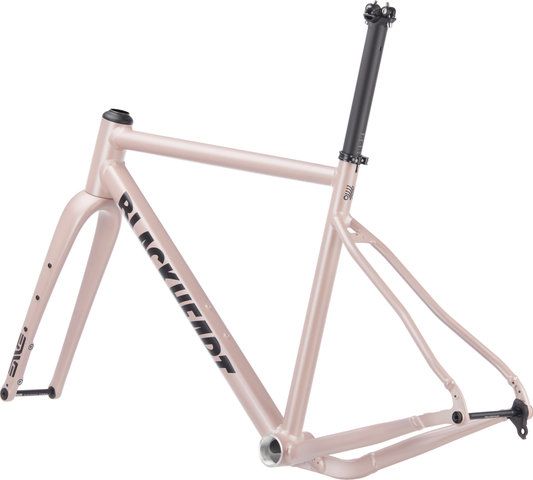

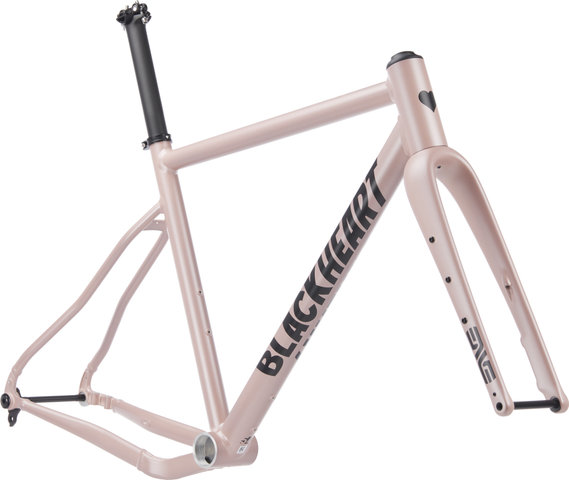

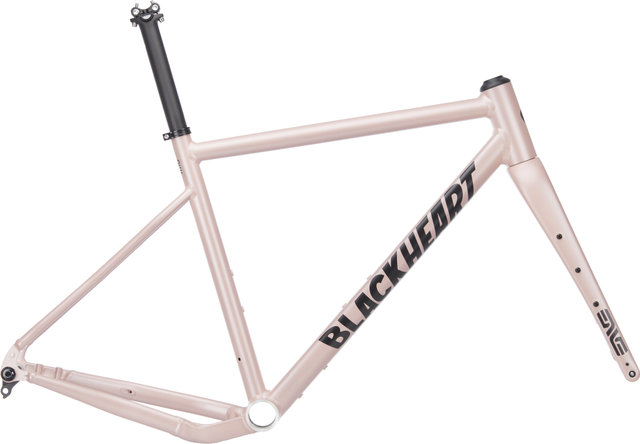

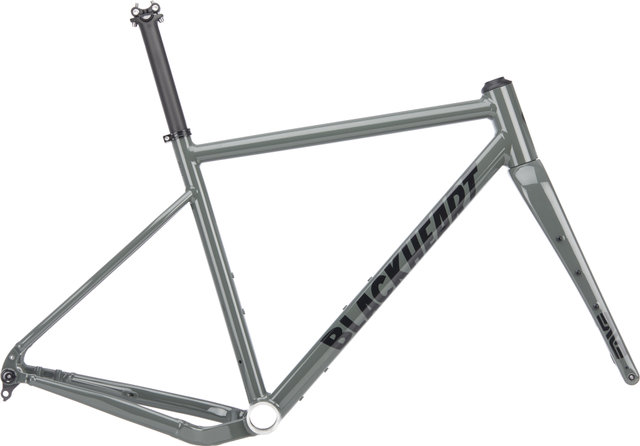

Blackheart Gravel AL Frame Kit

Discover the ultimate Gravel AL frameset by Blackheart designed for both men and women who demand versatility and performance on every ride. This frame is engineered with a lightweight aluminum body and a cutting-edge carbon fork, offering the perfect balance of strength and agility for gravel grinding adventures. The seatpost diameter is a robust 31.6 mm, secured with a bolt design for a reliable fit. Compatible with disc brakes up to 160 mm both front and rear, it ensures exceptional stopping power in all conditions. The T47 bottom bracket standard and a housing width of 85.5 mm provide a sturdy and noise-free drivetrain foundation. With maximum chainring sizes accommodating up to 1x 48 T and 2x configurations for both Shimano and SRAM, this frame is versatile enough to tackle steep climbs and fast flats. The wheel standard supports 12 x 100 mm front and 12 x 142 mm rear hubs, making it compatible with a wide range of wheelsets. Designed for 28" wheels and featuring a flat mount brake system, this gravel bike frame is ready to conquer both the road less traveled and your next race. Whether you're setting up for a single chainring or a double, this frame adapts to your riding style, making it the ideal choice for gravel enthusiasts seeking a high-performance, adaptable bike frame.

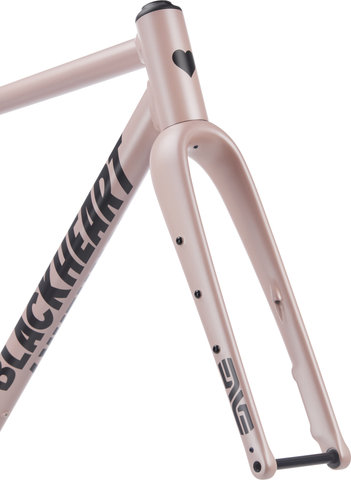

• Versatile gravel bike frame designed for both men and women, featuring a robust aluminum frame and a lightweight carbon fork for a blend of durability and performance.

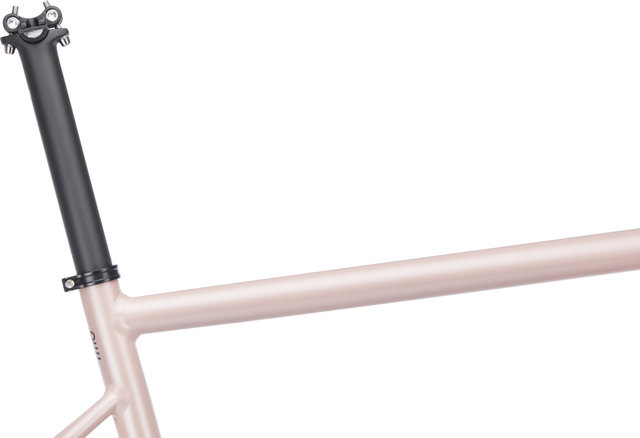

• Accommodates a wide range of seatpost diameters with a 31.6 mm specification, ensuring compatibility with various seatpost options.

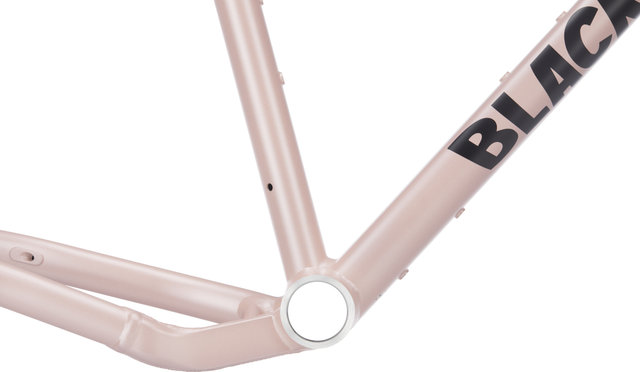

• Utilizes a T47 bottom bracket standard, offering a reliable and sturdy foundation for both 1x (electronic, mechanical) and 2x (electronic only) chainring setups.
• Supports maximum disc brake sizes of 160 mm at both the front and rear, providing ample stopping power for gravel riding adventures.
• Compatible with wheel sizes of 28" and wheel standards of 12 x 100 mm (front) and 12 x 142 mm (rear), allowing for a variety of wheel and tire setups to match any terrain.
• Designed with a bolt-on seatpost design and flat mount brake system, ensuring a secure fit and sleek integration for disc brakes.

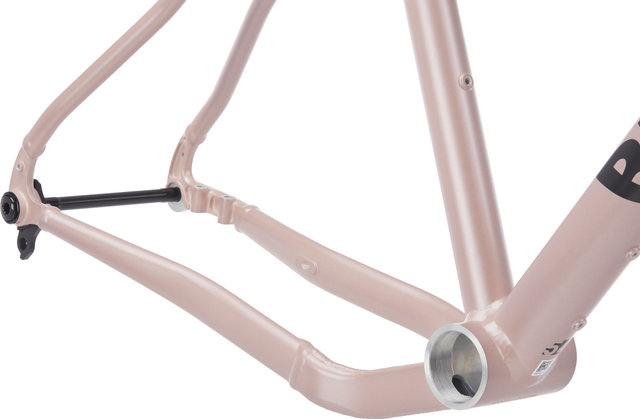

• UDH rear derailleur hanger

Head Tube Angle:

71.25

Stack:

570 mm

Standover Height:

785 mm

Wheelbase:

1052 mm

Reach:

407 mm

Seat Tube Angle:

74

BB Drop:

73 mm

Top Tube Length:

570 mm

Recommended Rider Height:

178 - 183 cm

Seat Tube Length:

515 mm

Head Tube Length:

150 mm

Head Tube Angle:

71.25

Stack:

570 mm

Standover Height:

785 mm

Wheelbase:

1052 mm

Reach:

407 mm

Seat Tube Angle:

74

BB Drop:

73 mm

Top Tube Length:

570 mm

Recommended Rider Height:

178 - 183 cm

Seat Tube Length:

515 mm

Head Tube Length:

150 mm

Head Tube Angle:

71.5

Stack:

585 mm

Standover Height:

800 mm

Wheelbase:

1060 mm

Reach:

412 mm

Seat Tube Angle:

74

BB Drop:

73 mm

Head Tube Length:

165 mm

Top Tube Length:

580 mm

Recommended Rider Height:

183 - 188 cm

Seat Tube Length:

530 mm

Head Tube Angle:

71.5

Stack:

585 mm

Standover Height:

800 mm

Wheelbase:

1060 mm

Reach:

412 mm

Seat Tube Angle:

74

BB Drop:

73 mm

Top Tube Length:

580 mm

Recommended Rider Height:

183 - 188 cm

Seat Tube Length:

530 mm

Head Tube Length:

165 mm

Head Tube Angle:

71.5

Stack:

599 mm

Standover Height:

815 mm

Wheelbase:

1076 mm

Reach:

422 mm

Seat Tube Angle:

73.5

BB Drop:

72 mm

Top Tube Length:

600 mm

Recommended Rider Height:

188 - 193 cm

Seat Tube Length:

545 mm

Head Tube Length:

180 mm

Head Tube Angle:

71.5

Stack:

599 mm

Standover Height:

815 mm

Wheelbase:

1076 mm

Reach:

422 mm

Seat Tube Angle:

73.5

BB Drop:

72 mm

Top Tube Length:

600 mm

Recommended Rider Height:

188 - 193 cm

Seat Tube Length:

545 mm

Head Tube Length:

180 mm

Head Tube Angle:

71.5

Stack:

617 mm

Standover Height:

830 mm

Wheelbase:

1091 mm

Reach:

433 mm

Seat Tube Angle:

73.5

BB Drop:

72 mm

Top Tube Length:

615 mm

Recommended Rider Height:

193 - 200 cm

Seat Tube Length:

565 mm

Head Tube Length:

200 mm

Head Tube Angle:

71.5

Stack:

617 mm

Standover Height:

830 mm

Wheelbase:

1091 mm

Reach:

433 mm

Seat Tube Angle:

73.5

BB Drop:

72 mm

Top Tube Length:

615 mm

Seat Tube Length:

565 mm

Head Tube Length:

200 mm

Recommended Rider Height:

193 - 200 cm

Head Tube Angle:

71

Stack:

517 mm

Standover Height:

725 mm

Wheelbase:

1023 mm

Reach:

392 mm

Seat Tube Angle:

74.5

BB Drop:

74 mm

Top Tube Length:

535 mm

Recommended Rider Height:

152 - 160 cm

Seat Tube Length:

440 mm

Head Tube Length:

95 mm

Head Tube Angle:

71

Stack:

517 mm

Standover Height:

725 mm

Wheelbase:

1023 mm

Reach:

392 mm

Seat Tube Angle:

74.5

BB Drop:

74 mm

Top Tube Length:

535 mm

Recommended Rider Height:

152 - 160 cm

Seat Tube Length:

440 mm

Head Tube Length:

95 mm

Head Tube Angle:

71

Stack:

527 mm

Standover Height:

740 mm

Wheelbase:

1029 mm

Reach:

394 mm

Seat Tube Angle:

74.5

BB Drop:

74 mm

Top Tube Length:

540 mm

Recommended Rider Height:

160 - 168 cm

Seat Tube Length:

460 mm

Head Tube Length:

105 mm

Head Tube Angle:

71

Stack:

527 mm

Standover Height:

740 mm

Wheelbase:

1029 mm

Reach:

394 mm

Seat Tube Angle:

74.5

BB Drop:

74 mm

Top Tube Length:

540 mm

Recommended Rider Height:

160 - 168 cm

Seat Tube Length:

460 mm

Head Tube Length:

105 mm

Head Tube Angle:

71

Stack:

541 mm

Standover Height:

755 mm

Wheelbase:

1034 mm

Reach:

395 mm

Seat Tube Angle:

74.5

BB Drop:

74 mm

Seat Tube Length:

480 mm

Head Tube Length:

120 mm

Top Tube Length:

545 mm

Recommended Rider Height:

168 - 173 cm

Head Tube Angle:

71

Stack:

541 mm

Standover Height:

755 mm

Wheelbase:

1034 mm

Reach:

395 mm

Seat Tube Angle:

74.5

BB Drop:

74 mm

Top Tube Length:

545 mm

Recommended Rider Height:

168 - 173 cm

Seat Tube Length:

480 mm

Head Tube Length:

120 mm

Head Tube Angle:

71.25

Stack:

555 mm

Standover Height:

770 mm

Wheelbase:

1043 mm

Reach:

401 mm

Seat Tube Angle:

74

BB Drop:

73 mm

Top Tube Length:

560 mm

Recommended Rider Height:

173 - 178 cm

Seat Tube Length:

500 mm

Head Tube Length:

135 mm

Head Tube Angle:

71.25

Stack:

555 mm

Standover Height:

770 mm

Wheelbase:

1043 mm

Reach:

401 mm

Seat Tube Angle:

74

BB Drop:

73 mm

Top Tube Length:

560 mm

Recommended Rider Height:

173 - 178 cm

Seat Tube Length:

500 mm

Head Tube Length:

135 mm

• frozen berry/172,5 mm/53 mm/L/28": 25BHGAFB56
• desert sage/172,5 mm/53 mm/L/28": 25BHGADS56
• frozen berry/172,5 mm/53 mm/XL/28": 25BHGAFB58
• desert sage/172,5 mm/53 mm/XL/28": 25BHGADS58
• frozen berry/175,0 mm/53 mm/XXL/28": 25BHGAFB60
• desert sage/175,0 mm/53 mm/XXL/28": 25BHGADS60
• frozen berry/175,0 mm/53 mm/XXXL/28": 25BHGAFB62
• desert sage/175,0 mm/53 mm/XXXL/28": 25BHGADS62
• desert sage/165,0 mm/55 mm/XXS/28": 25BHGADS46
• frozen berry/165,0 mm/55 mm/XXS/28"/1 1/8" - 1,5" tapered: 25BHGAFB46
• frozen berry/170,0 mm/55 mm/XS/28": 25BHGAFB49
• desert sage/170,0 mm/55 mm/XS/28": 25BHGADS49
• frozen berry/170,0 mm/55 mm/S/28": 25BHGAFB52
• desert sage/170,0 mm/55 mm/S/28": 25BHGADS52
• frozen berry/172,5 mm/55 mm/M/28": 25BHGAFB54
• desert sage/172,5 mm/55 mm/M/28": 25BHGADS54

•


  1 x Blackheart Gravel AL frame





•


  1 x Fork





•


  1 x Headset





•


  1 x Seatpost





•


  1 x Seatpost clamp





•


  2 x Thru-axle





•


  1 x Spare derailleur hanger
