ER 1600 SPLINE 23 Center Lock Disc 28" Wheelset

DT Swiss ER 1600 SPLINE 23 Center Lock Disc 28" Wheelset

Item number: 90523

The DT Swiss ER 1600 SPLINE 23 Center Lock Disc 28" wheelset for long days in the saddle

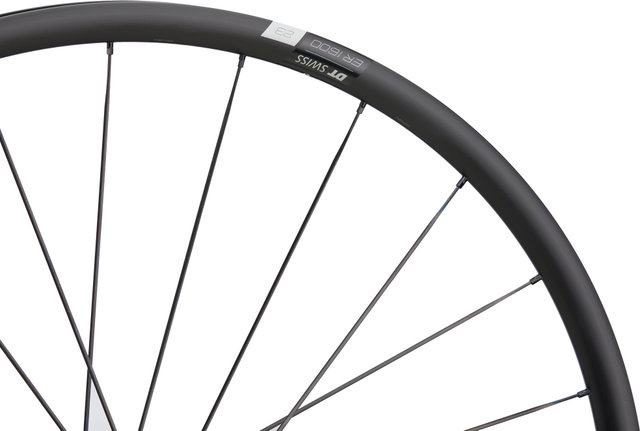

The ER 1600 SPLINE 23 Center Lock Disc 28" wheelset by DT Swiss is suitable for your road bike. With the 23 mm deep R 500 rim you are fast in the hills and on the flat. The SPLINE construction with straight-pull spokes, Pro Lock nipples and a robust rim also easily copes with minor bumps such as cobblestone sectors. The 350 hub with Aero Comp Wide spokes has a precise ratchet freehub with 36 engagement points on the rear wheel. This means that you immediately gain propulsion when you push the pedals hard. In addition, maintenance of the ratchet system is particularly easy, as you can disassemble the freehub without tools.

Specifications:

Application:
Road
Wheel Size:
28"
Tyre Type:
clincher tyre
Number of Spokes:
24
Brake Type:
Center Lock Disc
Tubeless System:
Tubeless Ready

Technical Information - Rim:

Type:
R 500
Rim Flange:
with hook
Dimensions (ETRTO):
22-622
Inner Width:
22 mm
Depth:
23 mm
Valve Hole Diameter:
SV/Presta (6.5 mm)
Rim Material:
aluminium

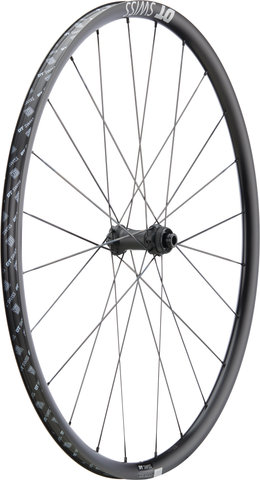

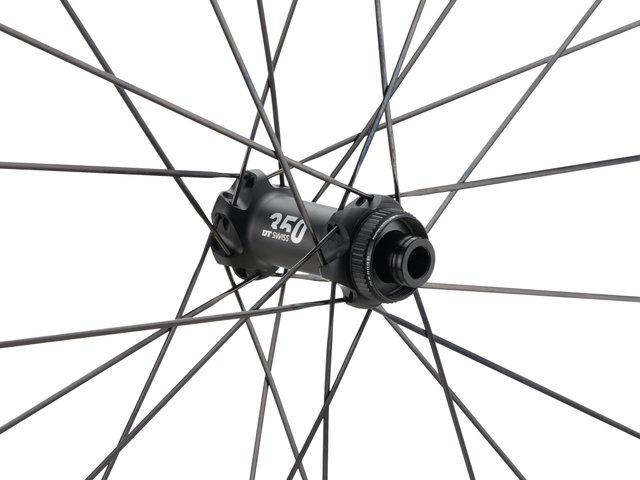

Technical Information - Front Hub:

Type:
350 straight pull
Over Locknut Dimension:
12 x 100 mm thru-axle
Bearings:
steel bearings
Body Material:
aluminium

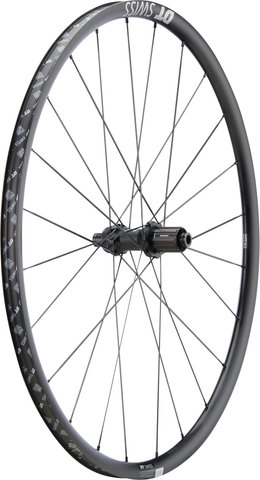

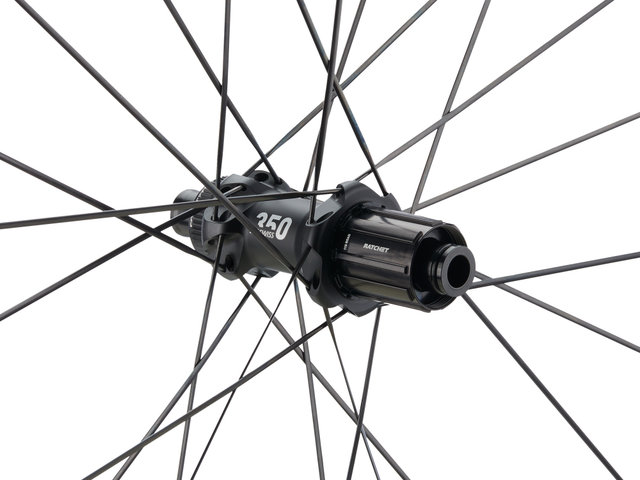

Technical Information - Rear Hub:

Type:
350 straight pull
Over Locknut Dimension:
12 x 142 mm thru-axle
Bearings:
steel bearings
Body Material:
aluminium
Freehub Body Material:
aluminium
Freehub Body:
Ratchet System 36

Technical Information - Lacing:

Front Lacing Pattern:
2-cross
Rear Lacing Pattern:
2-cross
Spoke Type:
DT Aero Comp Wide/ straight pull
Spoke Material:
stainless steel
Nipple Type:
DT Pro Lock Squorx ProHead
Nipple Material:
aluminium

Approved For:

Weight Limit:
120 kg (system weight)
Air Pressure (max.):
see user manual (Tire Pressure and Dimension)
Recommended Tyre Width:
see user manual (Tire Pressure and Dimension)

Technology:

Intended use: Category 2
Suitable for use on predominantly paved and partially unpaved ground with a slight slope and a temporary loss of ground contact as well as drops of up to 15 cm.

Pro Lock
The nipple thread is coated with two-component adhesive to increase the durability of the wheels. It can still be re-trued several times without any problems, but the adhesive strength decreases slightly. The connection between the spoke and nipple cannot loosen by itself.

Ratchet System
The robust and reliable star ratchets freehub system can be maintained easily and quickly. A no-tool concept further contributes to this, as it allows disassembly without tools. The freehub has two ratchets which engage simultaneously. This means that the contact surface is large and the point load is kept small, which relieves the material and allows the freehub to work particularly reliably and precisely.

SPLINE
Straight pull hubs, straight spokes and strong rims result in a durable wheel. It can therefore be reliably used in training and competition.

Models:

28" set (front 12x100 + rear 12x142) Shimano:
Freehub:
Shimano Road
Gearing:
8-/9-/10-/11-/12-speed
Note:
The assembly of 8-/9-/10-speed cassettes on a Shimano road rotor requires a 1.85 mm spacer.
Manufacturer Numbers:
WER1600AIDXSA21177 + WER1600NIDISA21178

28" set (front 12x100 + rear 12x142) SRAM XDR:
Freehub:
SRAM XDR
Gearing:
11-/12-speed
Manufacturer Numbers:
WER1600AIDXSA21177 + WER1600NID1SA21179

Contents:

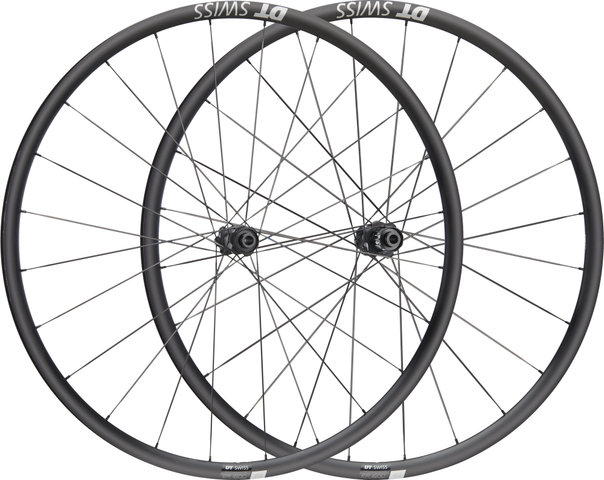

  • 1 x DT Swiss ER 1600 SPLINE 23 Center Lock Disc 28" wheelset (front and rear wheel)
  • 2 x rolls DT Swiss rim tape (applied)

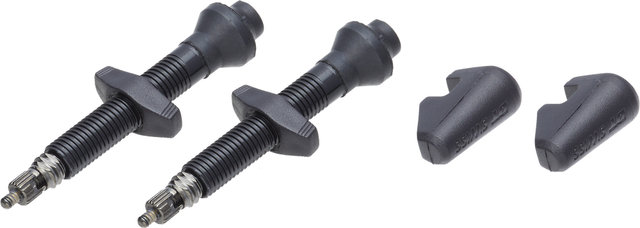

  • 2 x DT Swiss tubeless valves

Weight:

  • black/28" set (front 12x100 + rear 12x142) Shimano: 1667 g (pro Satz)
