DT Swiss EX 1700 Spline 30 Disc 6-Bolt 29" Wheel
Product Description
EX 1700 Spline 30 Disc 6-Bolt 29" Wheel by DT Swiss for All Mountain and Enduro Riding
The EX 1700 Spline 30 Disc 6-Bolt 29" Wheel from DT Swiss is designed for all mountain and enduro applications, offering reliable performance on challenging trails. This wheelset features a durable aluminum rim with a 21 mm front and 22 mm rear rim height, providing a solid platform for clincher and folding tires. With a 3-cross spoke pattern and 28 spokes on the front and 32 on the rear, it ensures strength and stability during aggressive rides. The DT Swiss 350 hubs and Ratchet DEG 72 freehub system deliver smooth and consistent engagement. The rim is tubeless ready, allowing you to run lower tire pressures for better traction and comfort. Compatible with disc brakes using a 6-bolt mounting system, this wheelset is also e-bike ready for speeds up to 25 km/h. The rim flange features a hook design, and the nipples are made from aluminum with DT Pro Lock construction for secure spoke tension. If you want a wheel that balances durability and performance for your mountain biking adventures, this DT Swiss wheelset is a solid choice.
Guidelines for Replacing E-bike Components:
Product Specifications:
- Rim material:
- Aluminum
- Inner rim width:
- 30 - 30 mm
- Rim height rear:
- 22 mm
- Number of spokes:
- 28 (front), 32 (rear)
- Tire type:
- Clincher tire/folding tire
- Brake system:
- Disc 6-bolt
- Tubeless system:
- Tubeless Ready
- Rim height front:
- 21 mm
- Rim flange:
- With hook
- Application:
- All Mountain, Enduro, MTB
black | front wheel only | front wheel only | 29" | front wheel only | Boost | 110 mm:
- Dimension (ETRTO):
- 30-622
- Wheel size:
- 29"
- Rear Wheel Standard:
- front wheel only
- Front Wheel Standard:
- Boost
black | front wheel only | front wheel only | 29" | front wheel only | Boost | 110 mm:
- Dimension (ETRTO):
- 30-622
- Wheel size:
- 29"
- Rear Wheel Standard:
- front wheel only
- Front Wheel Standard:
- Boost
black | 148 mm | Boost | 29" | SRAM XD | rear wheel only | rear wheel only:
- Dimension (ETRTO):
- 30-622
- Wheel size:
- 29"
- Rear Wheel Standard:
- Boost
- Front Wheel Standard:
- rear wheel only
black | 148 mm | Boost | 29" | Shimano Micro Spline | rear wheel only | rear wheel only:
- Rear Wheel Standard:
- Boost
- Dimension (ETRTO):
- 30-622
- Wheel size:
- 29"
- Front Wheel Standard:
- rear wheel only
Technical Information:
- Freehub type:
- Ratchet DEG 72
- Rear hub type:
- DT Swiss 350
- Front hub type:
- DT Swiss 350
- Nipple material:
- Aluminum
- Front spoke pattern:
- 3-cross
- Rear spoke pattern:
- 3-cross
- Nipple type/construction:
- DT Pro Lock
- Spoke material:
- Steel
black | front wheel only | front wheel only | 29" | front wheel only | Boost | 110 mm:
- Axle diameter rear:
- front wheel only
- Rear installation width:
- front wheel only
- Axle diameter front:
- 20 mm
- Freehub:
- front wheel only
- Gear steps:
- front wheel only
- Front installation width:
- 110 mm
black | front wheel only | front wheel only | 29" | front wheel only | Boost | 110 mm:
- Axle diameter rear:
- front wheel only
- Rear installation width:
- front wheel only
- Axle diameter front:
- 15 mm
- Freehub:
- front wheel only
- Gear steps:
- front wheel only
- Front installation width:
- 110 mm
black | 148 mm | Boost | 29" | SRAM XD | rear wheel only | rear wheel only:
- Axle diameter rear:
- 12 mm
- Rear installation width:
- 148 mm
- Axle diameter front:
- rear wheel only
- Freehub:
- SRAM XD
- Gear steps:
- 11-/12-speed
- Front installation width:
- rear wheel only
black | 148 mm | Boost | 29" | Shimano Micro Spline | rear wheel only | rear wheel only:
- Axle diameter rear:
- 12 mm
- Rear installation width:
- 148 mm
- Axle diameter front:
- rear wheel only
- Freehub:
- Shimano Micro Spline
- Gear steps:
- 12-speed
- Front installation width:
- rear wheel only
Approved For:
- Weight Limit:
- 130 kg
- System
Product Features:
- High-performance 29" mountain bike wheelset designed for All Mountain and Enduro riding, offering durability and precision for demanding trails

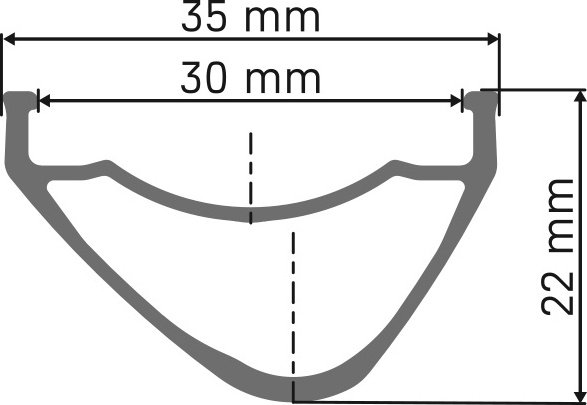

- Tubeless Ready rim with 30 mm inner width and 21-22 mm rim height for optimal tire fit and improved traction
- Robust DT Swiss 350 hubs with Ratchet DEG 72 freehub system ensure reliable engagement and smooth rolling
- 28 front and 32 rear spokes in a 3-cross pattern with aluminum DT Pro Lock nipples provide strength and stability under load
- Compatible with disc brakes (6-bolt) and e-bikes/pedelecs up to 25 km/h for versatile performance on modern MTB setups
Manufacturer Number:
- black | front wheel only | front wheel only | 29" | front wheel only | Boost | 110 mm: WEX1700BFEXSA28894
- black | front wheel only | front wheel only | 29" | front wheel only | Boost | 110 mm: WEX1700BFIXSA27971
- black | 148 mm | Boost | 29" | SRAM XD | rear wheel only | rear wheel only: WEX1700TFDRSA27972
- black | 148 mm | Boost | 29" | Shimano Micro Spline | rear wheel only | rear wheel only: WEX1700TFD2SA27973
Contents:
- 1 x DT Swiss EX 1700 Spline 30 Disc 6-Loch 29" wheel (front or rear wheel)
- 1 x DT Swiss tubeless tape 32mm
- 1 x DT Swiss tubeless valve asymmetrical aluminum black 18-25mm
Weight:
- black | front wheel only | front wheel only | 29" | front wheel only | Boost | 110 mm: 983 g
- black | front wheel only | front wheel only | 29" | front wheel only | Boost | 110 mm: 948 kg
- black | 148 mm | Boost | 29" | SRAM XD | rear wheel only | rear wheel only: 1037 g
- black | 148 mm | Boost | 29" | Shimano Micro Spline | rear wheel only | rear wheel only: 1045 g
