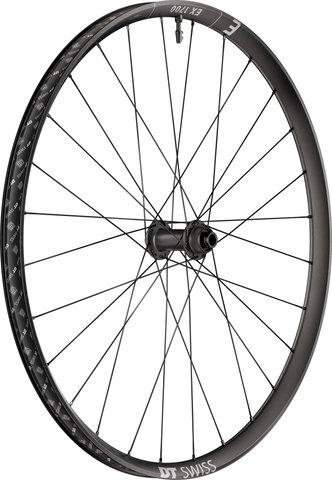

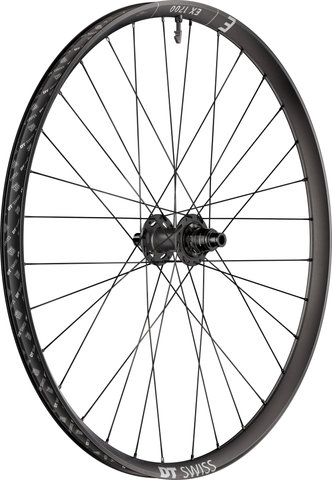

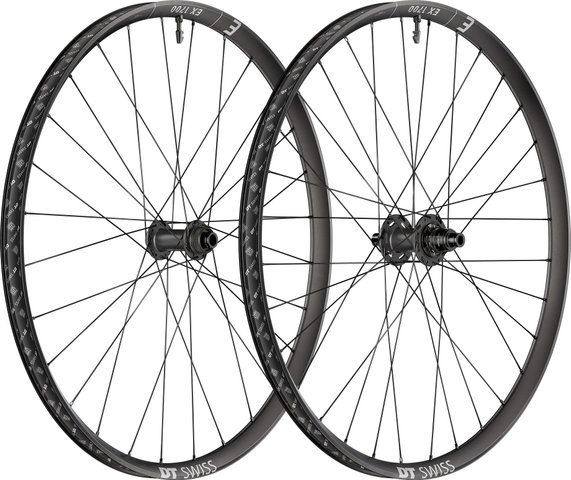

DT Swiss EX 1700 Spline 30 Disc Center Lock 29" wheelset
Product Description
DT Swiss EX 1700 CLASSIC 29" wheelset – robust enduro wheelset with 30 mm internal width
The DT Swiss EX 1700 CLASSIC 29" wheelset is made for riders who do not want to compromise on demanding trails. Robust aluminium rims, proven DT Swiss 350 hubs and DT competition race® spokes deliver the stability you need for fast descents, rough lines and hard enduro riding.
With a 30 mm internal width, the wheelset provides a strong platform for modern enduro and trail tyres. The hooked tubeless rims are ready for tubeless setups and designed for high off-road loads. The wheelset uses a 15 x 110 mm Boost thru axle at the front and a 12 x 148 mm Boost thru axle at the rear. The Ratchet DEG 72 freehub system with DF technology helps reduce pedal kickback and keeps the ride controlled when the trail gets fast, steep and technical.
Guidelines for Replacing E-bike Components:
Product Specifications:
- Application:
- All Mountain, Enduro, MTB
- Rim height front:
- 22 mm
- Rim height rear:
- 22 mm
- Inner rim width:
- 30 - 30 mm
- Rim material:
- Aluminum
- Rim flange:
- With hook
- Valve hole (diameter):
- SV (6.5 mm)
- Outer rim width:
- 35 - 35 mm
- Tubeless system:
- Tubeless Ready
- Tire type:
- Clincher tire/folding tire
- Number of spokes:
- 28 (front), 32 (rear)
- Brake system:
- Disc Center Lock
black | 110 mm | Boost | 148 mm | Boost | 29" | Shimano Micro Spline:
- Wheel size:
- 29"
- Dimension (ETRTO):
- 30-622
- Rear Wheel Standard:
- Boost
- Front Wheel Standard:
- Boost
Technical Information:
- Rear hub shell material:
- Aluminum
- Front hub shell material:
- Aluminum
- Spoke material:
- Stainless steel
- Nipple material:
- Aluminum
- Nipple type/construction:
- DT Pro Lock
- Rear spoke pattern:
- 3-cross
- Front spoke pattern:
- 3-cross
- Spoke type/construction:
- J-Bend / straight
- Freehub type:
- Ratchet DEG 72
- Front hub type:
- DT Swiss 350
- Rear hub type:
- DT Swiss 350
black | 110 mm | Boost | 148 mm | Boost | 29" | Shimano Micro Spline:
- Freehub:
- Shimano Micro Spline
- Gear steps:
- 12-speed
- Front installation width:
- 110 mm
- Axle diameter front:
- 15 mm
- Rear installation width:
- 148 mm
- Axle diameter rear:
- 12 mm
Product Features:
- Robust 29" aluminium enduro wheelset
- Built for hard descents, fast lines and demanding trails
- 30 mm internal width for modern MTB tyres
- Ratchet DEG 72 freehub system with DF technology on the rear wheel
- DT competition race spokes in a three-cross pattern
- ASTM classification 5 for demanding enduro use
Contents:
- 1 x DT Swiss EX 1700 Spline 30 Disc Center Lock 29" wheelset
