DT Swiss EX 471 Disc 26" Rim
Item number: 45341
- 100 day return period
- Online since 1998
- Trusted Shop 4.89 / 5.00
Uphill with muscle power while chatting with the buddies, downhill attack mode. That's exactly what DT Swiss Enduro rims are designed for. Manufactured with the highest precision and from extremely resistant aluminium alloys, the EX 471 can handle even the most demanding trails.
Application: Enduro
Wheel Size: 26"
Tyre Type: clincher tyre
Number of Spokes: 28, 32
Brake Type: disc
Tubeless System: tubeless ready
Dimensions (ETRTO): 25-559
Inner Width: 25.0 mm
Outer Width: 30.0 mm
Depth: 21.0 mm
ERD: 537 mm
Valve Hole Diameter: SV / Presta (6.5 mm)
Material: aluminium
Weight Limit: 130 kg (system weight)
Air Pressure (max.): 5.5 bar
Recommended Tyre Width: 1.5 - 3.0" / 40 - 76 mm
- no eyelets
- 1200 N max. spoke tension
- rim tape: 559x27 mm
- Spokes: DT Competition®, DT Aerolite®, DT Aero Comp®
SBWT®:
In the SBWT® (Strength Boost Welding Technology) process, a block is pressed into both profile ends for stabilisation during welding. After welding, the seam is CNC processed.
26" / 28 hole:
- Wheel Size: 29"
- Number of Spokes: 28
- Manufacturer Number: RTEX47DPN28S021227
26" / 32 hole:
- Wheel Size: 29"
- Number of Spokes: 32
- Manufacturer Number: RTEX47DPN32S021254
- 1 x DT Swiss EX 471 rim

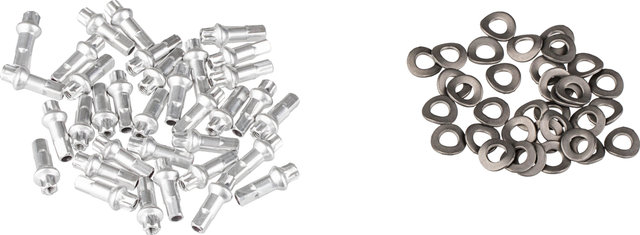

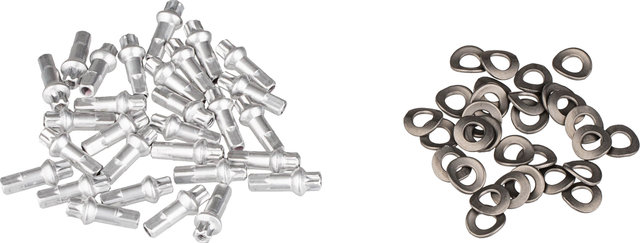

- incl. DT Swiss Pro Lock Squorx Pro Head aluminium 2.0 mm nipples (silver)
- incl. DT Swiss PHR washers
Specifications:
Application: Enduro
Wheel Size: 26"
Tyre Type: clincher tyre
Number of Spokes: 28, 32
Brake Type: disc
Tubeless System: tubeless ready
Technical Information:
Dimensions (ETRTO): 25-559
Inner Width: 25.0 mm
Outer Width: 30.0 mm
Depth: 21.0 mm
ERD: 537 mm
Valve Hole Diameter: SV / Presta (6.5 mm)
Material: aluminium
Approved For:
Weight Limit: 130 kg (system weight)
Air Pressure (max.): 5.5 bar
Recommended Tyre Width: 1.5 - 3.0" / 40 - 76 mm
Features:
- no eyelets
- 1200 N max. spoke tension
- rim tape: 559x27 mm
- Spokes: DT Competition®, DT Aerolite®, DT Aero Comp®
Technology:
SBWT®:
In the SBWT® (Strength Boost Welding Technology) process, a block is pressed into both profile ends for stabilisation during welding. After welding, the seam is CNC processed.
Models:
26" / 28 hole:
- Wheel Size: 29"
- Number of Spokes: 28
- Manufacturer Number: RTEX47DPN28S021227
26" / 32 hole:
- Wheel Size: 29"
- Number of Spokes: 32
- Manufacturer Number: RTEX47DPN32S021254
Contents:
- 1 x DT Swiss EX 471 rim
- incl. DT Swiss Pro Lock Squorx Pro Head aluminium 2.0 mm nipples (silver)
- incl. DT Swiss PHR washers
Gewicht:
- black/26" / 28 hole: 500 g
