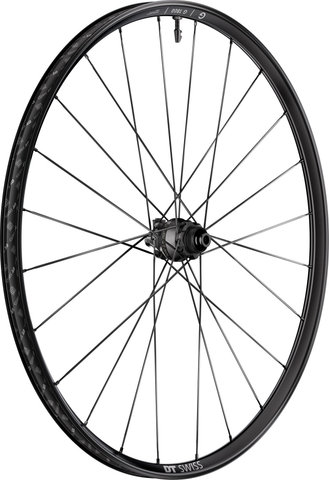

DT Swiss G 1800 Spline Dynamo 28'' Front Wheel
Product Description
DT Swiss G 1800 SPLINE DYN 20 mm wheel – gravel front wheel with hub dynamo for road, gravel and bikepacking
The DT Swiss G 1800 SPLINE DYN 20 mm wheel is a versatile aluminium front wheel for long road rides, winding gravel tracks and multi-day bikepacking adventures. With a 26 mm internal width, 30 mm external width and Hooked / Crotchet Tubeless TC rim bed, it provides a modern platform for wider tyres and increased comfort on rough surfaces.
The 350 PL-7 hub with integrated dynamo was developed by DT Swiss in cooperation with Shutter Precision. It is compliant with German StVZO regulations and delivers 6 volts / 3 watts of power. This makes it compatible with common dynamo lights and USB converters. The integrated cable connection including connector supports a reliable lighting or charging setup for long rides and bikepacking use.
The SPLINE build with DT aero comp wide straightpull spokes, two-cross spoke pattern, 24 spokes and DT Pro Lock Squorx ProHead aluminium nipples is designed for low weight, reliable function and high efficiency. With a 12 x 100 mm axle system, Disc Center Lock brake interface and a weight of 1021 g, the G 1800 SPLINE DYN is a strong front wheel for modern gravel and all-road bikes. According to the manufacturer, it is approved for a maximum system weight of 130 kg and for e-bikes up to max. 32 km/h or max. 250 W.
Information regarding the return of batteries and electrical equipment:
Product Specifications:
- Rim material:
- Aluminum
- Rim height front:
- 20 mm
- Inner rim width:
- 26 - 26 mm
- Rim flange:
- With hook
- Application:
- Gravel, Road, City & Touring
- Number of spokes:
- 24
- Outer rim width:
- 30 - 30 mm
black | front wheel only | front wheel only | 28" | 100 mm:
- Wheel size:
- 28"
Technical Information:
- Rear freehub body material:
- Steel
- Front hub type:
- DT Swiss 350
- Spoke type/construction:
- DT Aero Comp / Straightpull / Blade spoke
- Front spoke pattern:
- 2-cross
- Spoke material:
- Steel
- Front hub shell material:
- Aluminum
black | front wheel only | front wheel only | 28" | 100 mm:
- Gear steps:
- front wheel only
- Freehub:
- front wheel only
- Axle diameter front:
- 12 mm
- Rear installation width:
- front wheel only
- Front installation width:
- 100 mm
- Axle diameter rear:
- front wheel only
Approved For:
- Weight Limit:
- 130 kg
- System
Product Features:
• Integrated hub dynamo for lighting and charging systems
• 622 mm wheel diameter, suitable for 29" / 700C
• 20 mm rim height for controlled handling
• 26 mm internal width and 30 mm external width
• Hooked / Crotchet Tubeless TC rim bed
• DT Swiss 350 PL-7 hub with dynamo technology by Shutter Precision
• German StVZO-compliant with 6 volts / 3 watts output
• Compatible with common dynamo lights and USB converters
• Integrated cable connection including connector
• Axle system: 12 x 100 mm
• Disc Center Lock brake interface
• DT aero comp wide straightpull spokes
• Two-cross spoke pattern with 24 spokes
• DT Pro Lock Squorx ProHead aluminium nipples
• Weight: 1021 g according to the manufacturer
• Maximum system weight according to the manufacturer: 130 kg
• ASTM classification: 2
• Approved for e-bikes up to max. 32 km/h or max. 250 W
Manufacturer Number:
- black | front wheel only | front wheel only | 28" | 100 mm: W0G1800AIDXSA29141
Contents:
• 1 x DT Swiss G 1800 SPLINE DYN 20 mm front wheel
• Tubeless tape 29 mm
• Black aluminium tubeless valve 18–25 mm
Weight:
- black | front wheel only | front wheel only | 28" | 100 mm: 1030 g
