DT Swiss GR 1600 SPLINE DB 25 Disc Center Lock 28" Wheelset - 2024 Model - black/28" set (front 12x100 + rear 12x142) Shimano

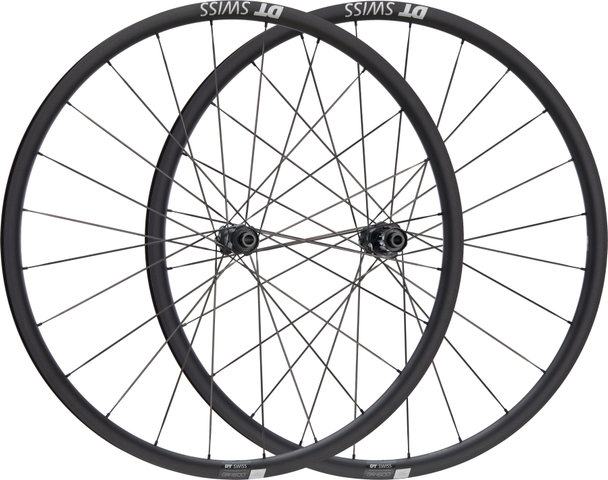

DT Swiss GR 1600 SPLINE DB 25 Disc Center Lock 28" Wheelset - 2024 Model

Item number: 93264

DT Swiss GR 1600 SPLINE DB 25 - gravel wheelset in 28" for more efficiency and manoeuvrability


The GR 1600 SPLINE DB 25 from DT Swiss is an agile 28" wheelset for bikepacking and sporty tours off the beaten tracks. It has 25 mm high and 24 mm wide aluminium rims that can be combined with tyres up to 53 mm wide. Compared to the previous model, the rear wheel has been equipped with a faster meshing 36-tooth freewheel. You will be more efficient and confident on technical terrain. Of course, you can also ride the wheels without a tube, thanks to the tubeless compatibility of the rims. These were joined together in a particularly precise, elaborate welding process and fitted with a hook on the rim flange, which stabilises the tyre bead. The 350 SPLINE hubs are designed for center-lock brake rotors and straightpull spokes. They were spoked with two sets of 24 DT Aero Comp Wide spokes and self-locking aluminium Pro-Lock Squorx nipples. With their cold-forged centre section and blade-like profile, the spokes contribute to both the aerodynamics and the strength of the GR 1600 SPLINE wheelset.

Specifications:

Application:
Gravel
Wheel Size:
28"
Tyre Type:
clincher tyre
Number of Spokes:
24
Brake Type:
Center Lock Disc
Tubeless System:
Tubeless Ready

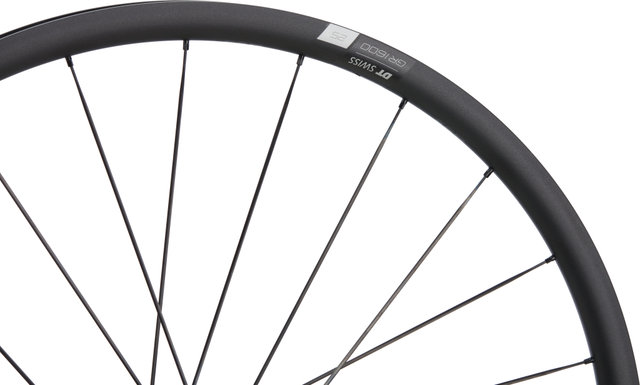

Technical Information - Rim:

Rim Flange:
with hook
Dimensions (ETRTO):
24-622
Inner Width:
24 mm
Outer Width:
28 mm
Depth:
25 mm
Valve Hole Diameter:
SV/Presta (6.5 mm)
Rim Material:
aluminium

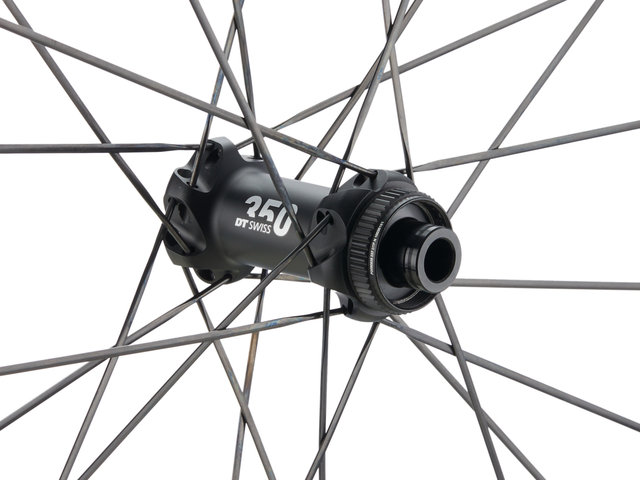

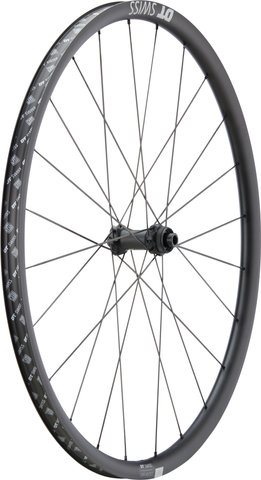

Technical Information - Front Hub:

Type:
DT Swiss 350 SPLINE
Over Locknut Dimension:
12 x 100 mm thru-axle
Bearings:
standard ball bearing 6902
Body Material:
aluminium

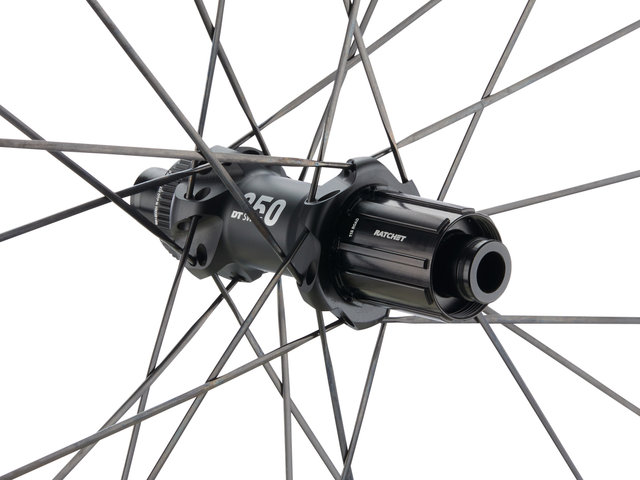

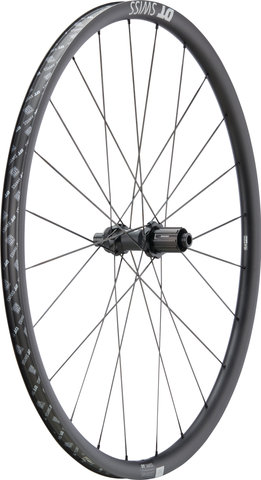

Technical Information - Rear Hub:

Type:
DT Swiss 350 SPLINE
Over Locknut Dimension:
12 x 142 mm thru-axle
Bearings:
standard ball bearing 6902
Body Material:
aluminium
Freehub Body Material:
aluminium
Freehub Body:
Ratchet 36 SL

Technical Information - Lacing:

Front Lacing Pattern:
2-cross (1:1)
Rear Lacing Pattern:
2-cross (1:1)
Spoke Type:
DT Swiss Aero Comp Wide / Straightpull / double-butted
Spoke Size:
295 mm/297 mm (front l/r), 296 mm/293 mm (rear l/r)
Spoke Material:
stainless steel
Nipple Type:
DT Pro Lock Squorx Pro Head (2.3 mm FG thread)
Nipple Size:
15 mm (length), 2.0 mm (diameter)
Nipple Material:
aluminium

Approved For:

Weight Limit:
130 kg (system weight)
Air Pressure (max.):
see user manual (Tire Pressure and Dimension)
Recommended Tyre Width:
see user manual (Tire Pressure and Dimension)

Features:

  • fast, agile gravel wheelset in 28" for bikepacking and sporty off-road tours
  • welded, robust yet lightweight aluminium rims with hooks, 25 mm high
  • 24 mm rim width for tyre clearance up to 53 mm, tubeless use possible
  • DT Swiss 350 centre-lock hubs allow quick, tool-free servicing
  • ratchet freehub system with 36-tooth SL discs for reliable power transmission even off-road
  • Straightpull spokes with cold-forged centre section for more strength, blade-like profile for better aerodynamics
  • nipple with thread lock for even more safety and durability

Technology:

Intended use: Category 2
Suitable for use on predominantly paved and partially unpaved ground with a slight slope and a temporary loss of ground contact as well as drops of up to 15 cm.

Ratchet System
The robust and reliable star ratchets freehub system can be maintained easily and quickly. The no-tool concept contributes to this, because it allows disassembly without any tools. The freehub has two ratchets which engage simultaneously. This means that the contact surface is large and the point load is kept small, which relieves the material and allows the freehub to work particularly reliably and precisely. The ratchet system has 36-tooth discs as standard, but can also be fitted with more or fewer teeth. If it also bears the designation " SL" (" Superlight" ), this means that the toothed discs are specially machined to save weight.

SPLINE
Straight pull hubs, straight spokes and strong rims result in a durable wheel. It can therefore be reliably used in training and competition.

Pro Lock
The nipple thread is coated with two-component adhesive to increase the durability of the wheels. It can still be re-trued several times without any problems, but the adhesive strength decreases slightly. The connection between the spoke and nipple cannot loosen by itself.

Colour Info:

black:
  • Rims: black with grey decals
  • Hubs: black
  • Spokes: black
  • Nipples: black

Models:

28" set (front 12x100 + rear 12x142) Shimano:
Freehub:
Shimano Road
Gearing:
8-/9-/10-/11-/12-speed
Note:
The assembly of 8-/9-/10-speed cassettes on a Shimano road rotor requires a 1.85 mm spacer.
Manufacturer Numbers:
WGR1600AIDXSA21280 (front) + WGR1600NIDISA21281 (rear)

28" set (front 12x100 + rear 12x142) SRAM XDR:
Freehub:
SRAM XDR
Gearing:
11-/12-speed
Note:
To mount XD cassettes on an XDR rotor, a 1.8 mm spacer is required.
Manufacturer Numbers:
WGR1600AIDXSA21280 (front) + WGR1600NID1SA21282 (rear)

Contents:

  • 1 x DT Swiss GR 1600 SPLINE DB 25 Disc Center Lock 28" wheelset (front and rear wheel)
  • 2 x DT Swiss 27 mm tubeless rim tape

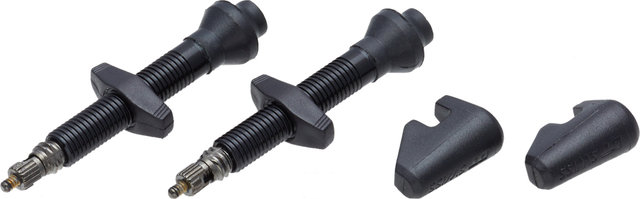

  • 2 x DT Swiss aluminium tubeless valves, 18 - 25 mm


Weight:

  • black/28" set (front 12x100 + rear 12x142) Shimano: 1757 g (Satz)
  • black/28" set (front 12x100 + rear 12x142) SRAM XDR: 1748 g (Satz)
