DT Swiss P 1800 SPLINE 32 Center Lock Disc 28" Wheelset

DT Swiss P 1800 SPLINE DB 32 Road Center Lock Disc Wheelset - Performance for every day

With the P 1800 SPLINE wheelset from DT Swiss, you can equip your road bike with durable aluminium wheels that can withstand daily use. Its material offers the best solution for a good ratio between rigidity and weight. The 32 mm height of the tubeless ready rim tolerates a higher total weight, so heavier riders don't have to worry about durability. The 370 system hub with ratchet freehub and straight pull spokes further underscore the durability of your SPLINE substructure. With Center Lock disc brakes, which can be converted to 6-hole disc at any time, you always maintain control on the road.

Specifications:

Application:

Road

Wheel Size:

28"

Tyre Type:

clincher tyre

Number of Spokes:

24

Brake Type:

Center Lock Disc (6-bolt conversion w/ adapter)

Tubeless System:

Tubeless Ready

Technical Information - Rim:

Type:

P 1800 SPLINE

Rim Flange:

with hook

Dimensions (ETRTO):

18-622

Inner Width:

18.0 mm

Outer Width:

21.0 mm

Depth:

32.0 mm

Valve Hole Diameter:

SV / Presta (6.5 mm)

Rim Material:

aluminium

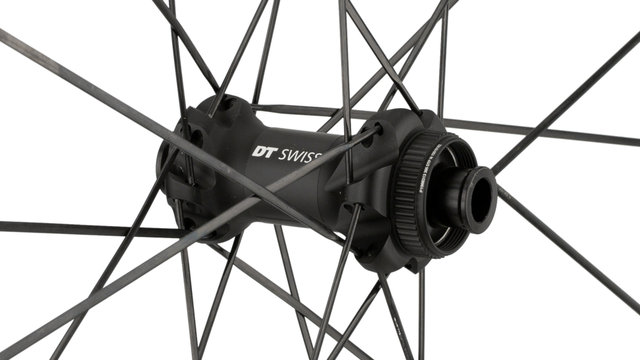

Technical Information - Front Hub:

Type:

370

Over Locknut Dimension:

12 x 100 mm thru-axle

Body Material:

aluminium

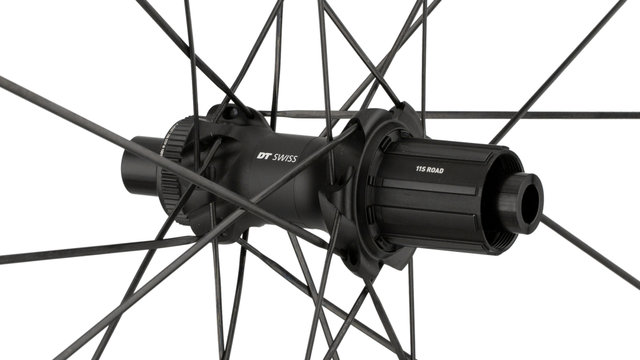

Technical Information - Rear Hub:

Type:

370

Over Locknut Dimension:

12 x 142 mm thru-axle

Body Material:

aluminium

Freehub Body Material:

aluminium / steel

Freehub Body:

DT Swiss Pawl System (3 pawls)

Technical Information - Lacing:

Front Lacing Pattern:

2-cross

Rear Lacing Pattern:

2-cross

Spoke Type:

DT Aero Comp / DT New Aero / straight pull

Spoke Size:

289 mm/290 mm (front l/r), 289 mm/290 mm (rear l/r)

Spoke Material:

stainless steel (18/10)

Nipple Type:

DT Pro Lock / Squorx Pro Head

Nipple Size:

15 mm (length) / 2 mm (diameter)

Nipple Material:

aluminium

Approved For:

Weight Limit:

130 kg (system weight)

Air Pressure (max.):

8.5 bars

Recommended Tyre Width:

25 - 30 mm (1.0 - 1.20" )

Technology:

Intended use: Category 1
Suitable for predominantly paved surfaces.

SPLINE®
Straight pull hubs, straight spokes and strong rims result in a durable wheel. It can therefore be reliably used in training and competition.

Pro Lock
The nipple thread is coated with two-component adhesive to increase the durability of the wheels. It can still be re-trued several times without any problems, but the adhesive strength decreases slightly. The connection between the spoke and nipple cannot loosen by itself.

Ratchet System
The robust and reliable star ratchets freehub system can be maintained easily and quickly. A no-tool concept further contributes to this, as it allows disassembly without tools. The freehub has two ratchets which engage simultaneously. This means that the contact surface is large and the point load is kept small, which relieves the material and allows the freehub to work particularly reliably and precisely.

Colour Info:

black:

• Rims: black w/ white accents
• Hubs: black
• Spokes: black
• Nipples: black

Models:

28" set (front 12x100 + rear 12x142) Shimano:

Freehub:

Shimano Road

Gearing:

8-/9-/10-/11-/12-speed

Manufacturer Number:

W0P1800AIDXSA10609 (front) + W0P1800NIDUSA10610 (rear)

Conversion Options:

To convert to SRAM XDR, an XDR freehub body is required.

Contents:

• 1 x DT Swiss P 1800 SPLINE DB 32 wheelset (front and rear wheel)
• 2 x DT Swiss 21 mm tubeless tape
• 2 x DT Swiss 40 mm tubeless valves
