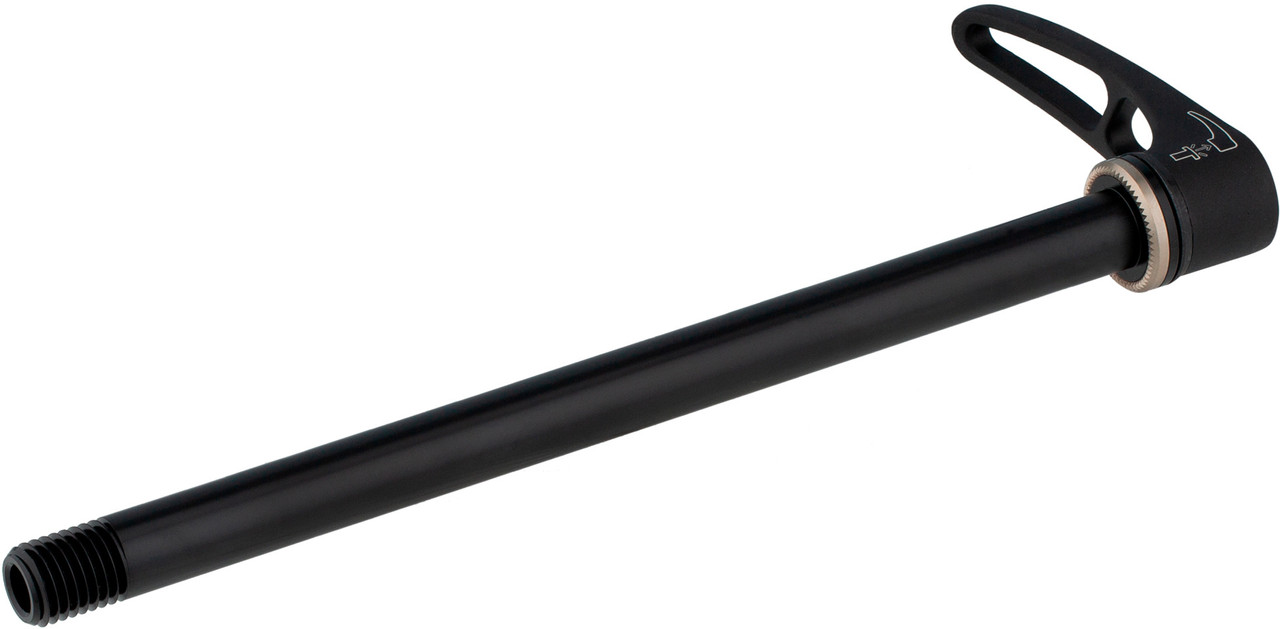

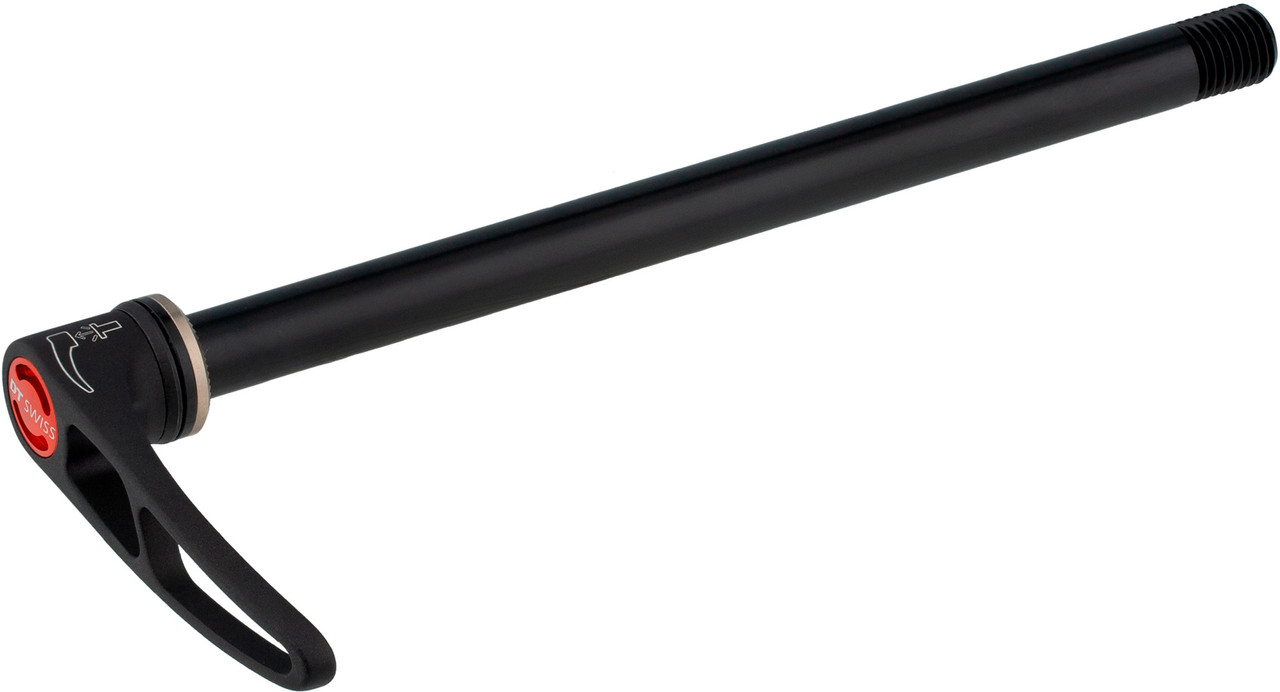

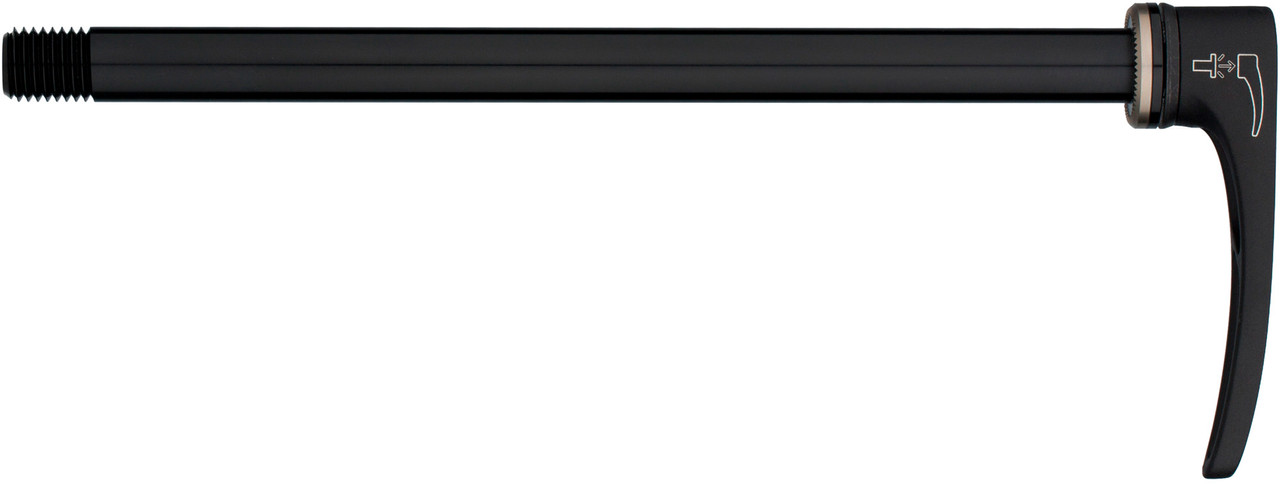

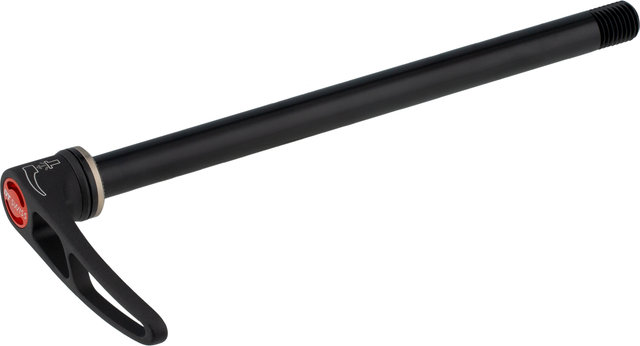

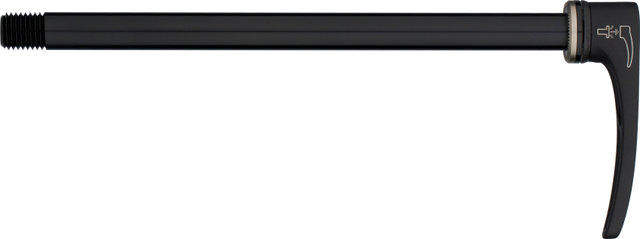

DT Swiss RWS Plug-In Boost MTB Thru Axle with Quick-Release Lever

DT Swiss RWS Plug-In MTB Thru Axle in Boost Standard with Removable Quick-Release Lever

The RWS thru axle from DT Swiss is suited for boost hubs on mountain bikes and is very easy to mount using the plug-in quick-release lever. The lever can be removed so as to not interfere with riding. If it is necessary to remove the wheel, the lever is simply placed on the axle. This enables tool-free mounting and dismounting.

Specifications:

Over Locknut Dimension:

110 mm, 148 mm

Axle Diameter:

12 mm, 15 mm

Technical Information:

Use:

15 x 110 mm, 12 x 148 mm

Type:

Thru axle with quick-release skewer

Axle Material:

aluminium

Lever Material:

aluminium

Axle Length:

157 mm, 177 mm

Nominal Diameter:

M15

Thread Pitch:

1.5 mm

Thread Length:

13 mm, 15 mm

Features:

• Boost Standard
• removable quick-release lever
• tool-free installation
• made of full metal

Technology:

RWS:
The Ratchet Wheelmounting System is a system for tool-free wheel mounting for all disciplines of cycling. In the style of quick-release levers, wheels with RWS axles can be quickly attached. However, they can withstand stronger forces caused by higher speeds and increased track requirements. The axles are as stable as thru axles, And thanks to the lever, the axle can be released or clamped as easily as a quick-release axle. The lever is lifted for this reason, and is operated by turning it.

RWS Plug-In:
The RWS Plug-In System combines the advantages of tool-free wheel attachment in the RWS system with the advantages of a thru axle. The quick-release lever can be connected to the axle via a hexagon socket, which is then released or tightened by turning. Afterwards the lever is removed again, so it does not disturb riding and the bike maintains the look of a classic thru axle.

Models:

15 x 110 mm:

Over Locknut Dimensions:

15 x 110 mm

Axle Length:

143.1 mm

Nominal Diameter:

M15

Thread Pitch:

1.5 mm

Thread Length:

15 mm

Manufacturer Number:

HWQASM00S5988S

12 x 148 mm:

Over Locknut Dimensions:

12 x 148 mm

Axle Length:

157 mm

Nominal Diameter:

M12

Thread Pitch:

1.5 mm

Thread Length:

13 mm

Manufacturer Number:

HWQASM00S2035S

Contents:

• 1 x DT Swiss RWS Plug-In Boost MTB Thru Axle with Quick-Release Lever
