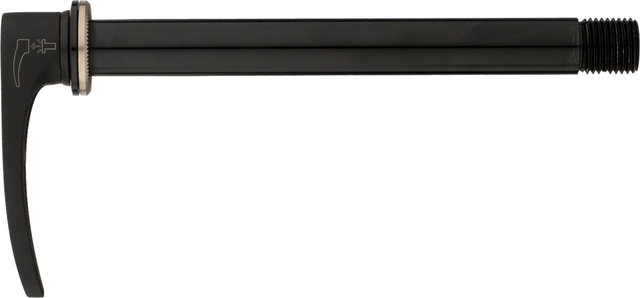

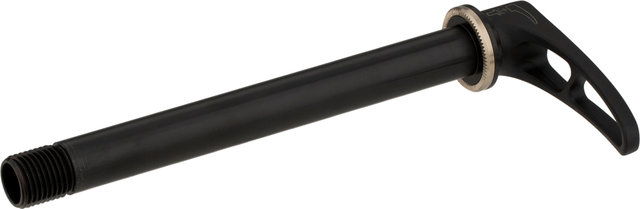

DT Swiss RWS Plug-In Thru Axle with Quick-Release Lever for F 232 and F 535

DT Swiss RWS Plug-In MTB Thru Axle for F 232 and F 535 suspension forks

The RWS thru axle from DT Swiss is compatible with F232 and F535 suspension forks from DT Swiss. It has a removable quick-release lever. This allows for an uncomplicated, tool-free assembly of the front wheel.

Specifications:

Over Locknut Dimension:

100 mm

Axle Diameter:

15 mm

Technical Information:

Use:

15 x 100 mm

Type:

thru-axle

Axle Material:

aluminium

Lever Material:

aluminium

Axle Length:

143 mm

Nominal Diameter:

M15

Thread Pitch:

1.5 mm

Thread Length:

15 mm

Compatibility:

DT Swiss 232
DT Swiss 535

Features:

• removable quick-release lever
• tool-free assembly
• made of full metal

Technology:

RWS:
The Ratchet Wheelmounting System is a system for tool-free wheel mounting for all disciplines of cycling. In the style of quick-release levers, wheels with RWS axles can be quickly attached. However, they can withstand stronger forces caused by higher speeds and increased track requirements. The axles are as stable as thru axles, And thanks to the lever, the axle can be released or clamped as easily as a quick-release axle. The lever is lifted for this reason, and is operated by turning it.

RWS Plug-In:
The RWS Plug-In System combines the advantages of tool-free wheel attachment in the RWS system with the advantages of a thru axle. The quick-release lever can be connected to the axle via a hexagon socket, which is then released or tightened by turning. Afterwards the lever is removed again, so it does not disturb riding and the bike maintains the look of a classic thru axle.

Manufacturer Number:

HWQASM00S9884S

Contents:

• 1 x DT Swiss RWS Plug-In Thru Axle for F 232 and F 535
• 1 x DT Swiss quick-release lever
