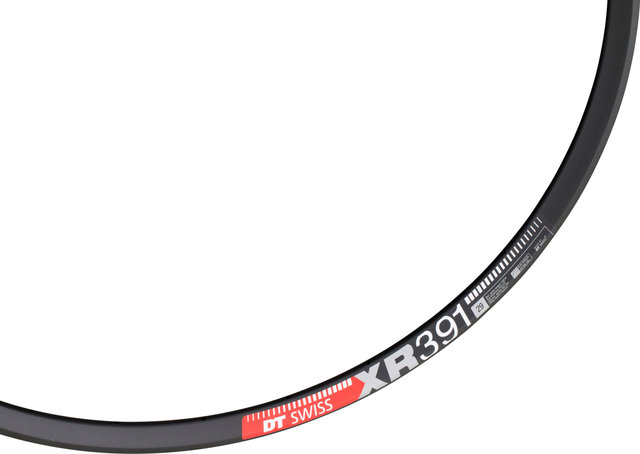

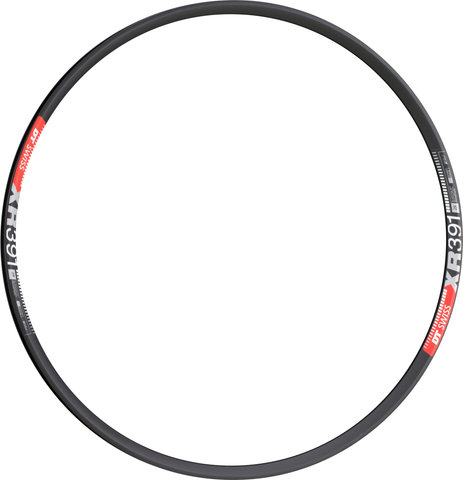

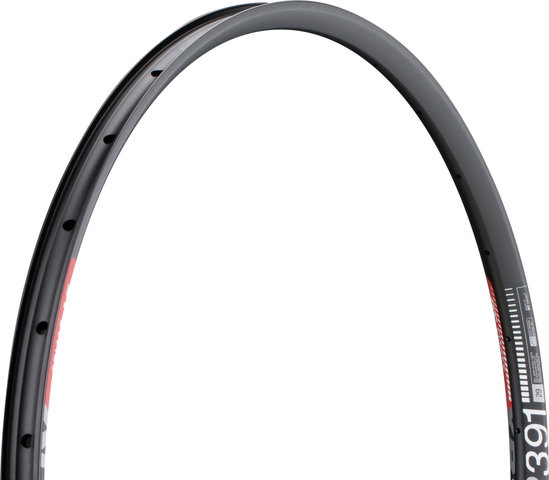

DT Swiss XR 391 Disc 29" Rim

The XR 391 is a modern XC rim. It has the right width for the tyres you need to compete on the modern and demanding cross-country courses. The XR 391's welded construction and glass bead-blasted anodised finish are in the same league as your premium cross country bike. The terrain-specific profile, the Swiss alloy and the use of the PHR nipple joint enable the seemingly impossible combination of width, strength and lightness.

Specifications:

Application:

Cross Country

Wheel Size:

29"

Tyre Type:

clincher tyre

Number of Spokes:

28, 32

Brake Type:

disc

Tubeless System:

tubeless ready

Technical Information:

Dimensions (ETRTO):

25-622

Inner Width:

25 mm

Outer Width:

29 mm

Depth:

18 mm

ERD:

607 mm

Valve Hole Diameter:

SV/Presta (6.5 mm)

Rim Material:

aluminium

Approved For:

Weight Limit:

110 kg (system weight)

Air Pressure (max.):

5.5 bars

Recommended Tyre Width:

1.5 - 3.0"

Features:

• no eyelets
• 1200 N max. spoke tension
• rim tape: 622x27 mm

Models:

29" / 28 hole:

• Wheel Size: 29"
• Number of Spokes: 28
• Manufacturer Number: RDXR39BDPW28SA5742

29" / 32 hole:

• Wheel Size: 29"
• Number of Spokes: 32
• Manufacturer Number: RDXR39BDPW32SA5743

Contents:

• 1 x DT Swiss XR 391 rim
• incl. DT Swiss nipples
• incl. DT Swiss PHR washers

• black/28/29": 440 g
