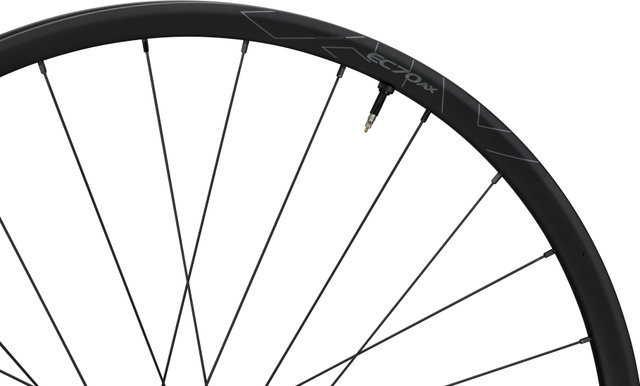

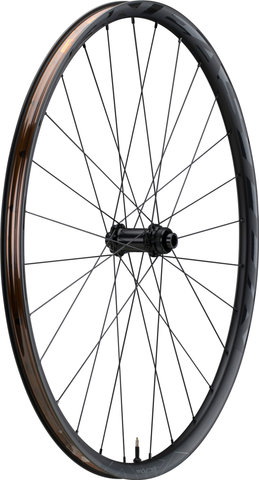

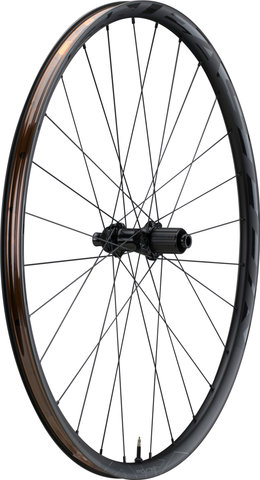

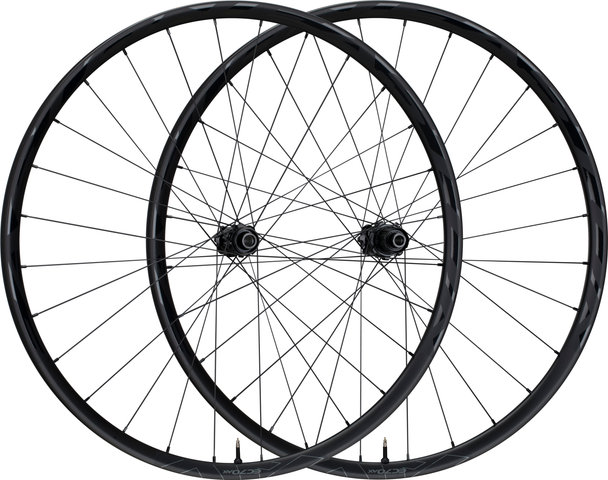

Easton EC70 AX Disc Center Lock Carbon 28" Wheelset

The Easton EC70 AX Disc Center Lock Carbon wheelset has room for most 35 to 50 mm wide Gravel tyres. With the proven X5 hub and the stable carbon rims you can go full throttle on gravel.

Specifications:

Application:

Road, Gravel

Wheel Size:

28"

Tyre Type:

clincher tyre

Number of Spokes:

28

Brake Type:

Center Lock Disc

Tubeless System:

Tubeless Ready

Technical Information - Rim:

Dimensions (ETRTO):

24-622

Inner Width:

24 mm

Outer Width:

28 mm

Depth:

21 mm

Valve Hole Diameter:

SV/Presta (6.5 mm)

Rim Material:

Carbon

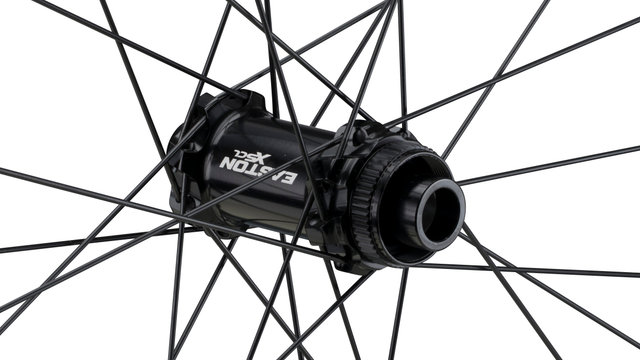

Technical Information - Front Hub:

Over Locknut Dimension:

12 x 100 mm thru-axle, 15 x 100 mm thru-axle

Bearings:

sealed cartridge bearings

Body Material:

aluminium

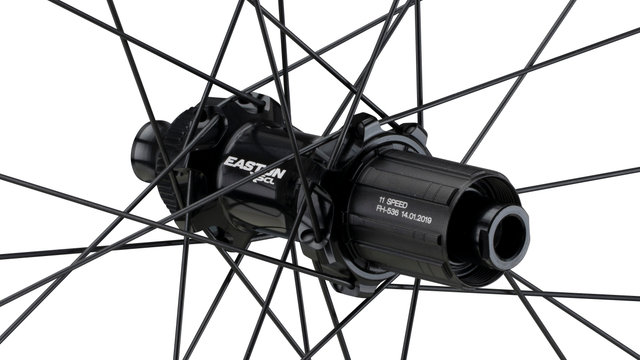

Technical Information - Rear Hub:

Over Locknut Dimension:

12 x 142 mm thru-axle

Bearings:

sealed cartridge bearings

Body Material:

aluminium

Freehub Body:

3 pawls

Technical Information - Lacing:

Front Lacing Pattern:

3-cross

Rear Lacing Pattern:

3-cross

Spoke Type:

Sapim / straight pull / straight / double butted

Spoke Material:

stainless steel

Nipple Type:

DT External

Nipple Material:

aluminium

Colour Index:

gloss carbon:

• Rims: shiny black with matte decals
• Hubs: black
• Spokes: black
• Nipples: black

Models:

28" set (front 12x100 + rear 12x142) Shimano:

Freehub:

Shimano Road

Gearing:

8-/9-/10-/11-/12-speed

Note:

Assembly of 8-/9-/10-speed cassettes on Shimano Road freehub bodies requires a 1.85 mm spacer.

28" set (front 12x100 + rear 12x142) SRAM XDR:

Freehub:

SRAM XDR

Gearing:

11-/12-speed

Note:

A 1.8 mm spacer is required to mount XD cassettes on an XDR freehub.

28" set (front 15x100 + rear 12x142) Shimano:

Freehub:

Shimano Road

Gearing:

8-/9-/10-/11-/12-speed

Note:

Assembly of 8-/9-/10-speed cassettes on Shimano Road freehub bodies requires a 1.85 mm spacer.

28" set (front 15x100 + rear 12x142) SRAM XDR:

Freehub:

SRAM XDR

Gearing:

11-/12-speed

Note:

A 1.8 mm spacer is required to mount XD cassettes on an XDR freehub.

Contents:

• 1 x Easton EC70 AX Disc Center Lock wheelset (front and rear)

• gloss carbon/28" set (front 12x100 + rear 12x142) Shimano: 1550 g
