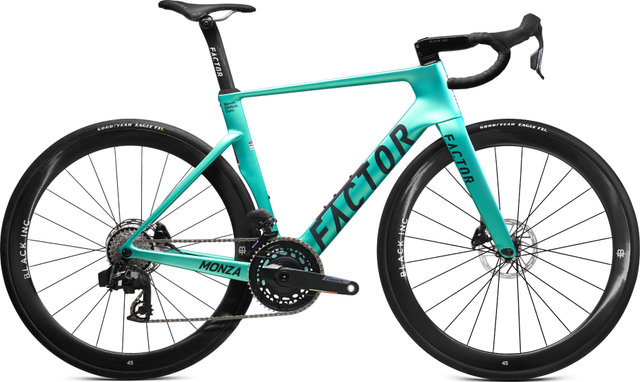

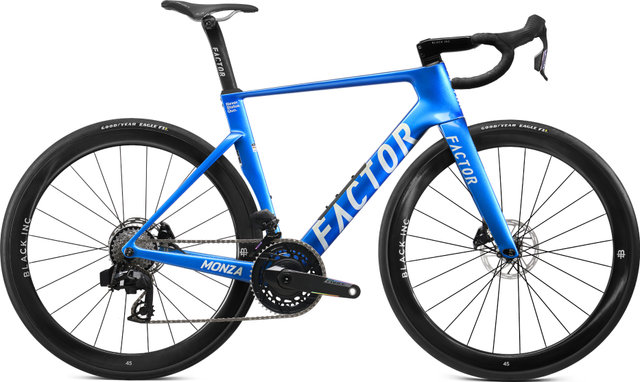

Factor MONZA Force PM Carbon Road Bike 28"

Unleash the power of precision and speed with the Factor MONZA Force PM carbon road bike, a marvel of engineering designed for both men and women who refuse to compromise on performance. At the heart of this machine lies a lightweight carbon frame and fork, meticulously crafted to offer unparalleled responsiveness and agility on the road. The SRAM Force eTap AXS 12-speed groupset, including a front derailleur for seamless 2-speed shifting and a power meter crankset for tracking your performance, redefines your riding experience with its wireless electronic shifting and hydraulic disc brakes for unmatched control and efficiency. The bike's aerodynamic form extends to the seatpost, complementing the sleek Selle Italia saddle for comfort and speed. With a CeramicSpeed T47a bottom bracket, every pedal stroke is optimized for minimal friction and maximum durability. The MONZA accommodates up to 700x34C tires, ensuring grip and comfort on varied surfaces, while the 160 mm max disc brake size on both front and rear offers powerful stopping capabilities. Note that pedals are not included, allowing you to customize this aspect to your preference. Whether you're pushing limits on long road rides or competing at the highest levels, the Factor MONZA is your ticket to excellence.

steel green/28"/XS:

Wheel size:

28"

steel green/28"/S:

Wheel size:

28"

steel green/28"/M:

Wheel size:

28"

steel green/28"/L:

Wheel size:

28"

steel green/28"/XL:

Wheel size:

28"

steel green/28"/XXL:

Wheel size:

28"

white-purple/43 mm/28"/L:

Wheel size:

28"

white-purple/43 mm/28"/XXL:

Wheel size:

28"

white-purple/48 mm/28"/S:

Wheel size:

28"

white-purple/53 mm/28"/XS:

Wheel size:

28"

solar blue/28"/XS:

Wheel size:

28"

solar blue/28"/S:

Wheel size:

28"

solar blue/28"/M:

Wheel size:

28"

solar blue/28"/L:

Wheel size:

28"

solar blue/28"/XL:

Wheel size:

28"

solar blue/28"/XXL:

Wheel size:

28"

white-purple/43 mm/28"/L:

Fork Offset:

43 mm

white-purple/43 mm/28"/XXL:

Fork Offset:

43 mm

white-purple/48 mm/28"/S:

Fork Offset:

48 mm

white-purple/53 mm/28"/XS:

Fork Offset:

53 mm

• High-performance road bike featuring SRAM Force eTap AXS 12-speed groupset for precise and wireless shifting.
• Equipped with a lightweight and stiff carbon frame and fork from Factor MONZA, optimized for agility and speed.
• Advanced braking power with SRAM Force hydraulic disc brakes, accommodating up to 160 mm rotors for consistent stopping.
• Aero form seatpost and Selle Italia saddle provide an aerodynamic and comfortable riding position.
• CeramicSpeed T47a bottom bracket and SRAM Force AXS Power Meter crankset (35-48 T) for efficient power transfer and performance monitoring.
• Supports a maximum tire size of 34-622 (700 x 34C) front and rear, allowing for versatile road riding experiences.

steel green/28"/XS:

Head Tube Angle:

71.7

Stack:

514 mm

Standover Height:

742 mm

Wheelbase:

969 mm

Reach:

367 mm

Chainstay Length:

405 mm

Seat Tube Angle:

74.5

BB Drop:

72 mm

Frame Size:

49 cm

Seat Tube Length:

450 mm

steel green/28"/S:

Head Tube Angle:

72.5

Stack:

535 mm

Standover Height:

765 mm

Wheelbase:

971 mm

Reach:

373 mm

Chainstay Length:

405 mm

Seat Tube Angle:

74

BB Drop:

72 mm

Frame Size:

52 cm

Seat Tube Length:

474 mm

steel green/28"/M:

Head Tube Angle:

72.5

Stack:

552 mm

Standover Height:

786 mm

Wheelbase:

985 mm

Reach:

381 mm

Chainstay Length:

405 mm

Seat Tube Angle:

74

BB Drop:

70 mm

Seat Tube Length:

498 mm

Frame Size:

54 cm

steel green/28"/L:

Head Tube Angle:

73.3

Stack:

574 mm

Standover Height:

803 mm

Wheelbase:

987 mm

Reach:

389 mm

Chainstay Length:

405 mm

Seat Tube Angle:

73.5

BB Drop:

70 mm

Frame Size:

56 cm

Seat Tube Length:

519 mm

steel green/28"/XL:

Head Tube Angle:

73.3

Stack:

597 mm

Standover Height:

830 mm

Wheelbase:

1006 mm

Reach:

401 mm

Chainstay Length:

408 mm

Seat Tube Angle:

73.5

BB Drop:

70 mm

Frame Size:

58 cm

Seat Tube Length:

541 mm

steel green/28"/XXL:

Head Tube Angle:

73.3

Stack:

611 mm

Standover Height:

842 mm

Wheelbase:

1022 mm

Reach:

410 mm

Chainstay Length:

410 mm

Seat Tube Angle:

73.5

BB Drop:

70 mm

Frame Size:

61 cm

Seat Tube Length:

553 mm

white-purple/43 mm/28"/L:

Frame Size:

56 cm

Head Tube Angle:

73.3

Stack:

574 mm

Standover Height:

803 mm

Wheelbase:

987 mm

Reach:

389 mm

Chainstay Length:

405 mm

Seat Tube Angle:

73.5

BB Drop:

70 mm

Seat Tube Length:

519 mm

white-purple/43 mm/28"/XXL:

Frame Size:

61 cm

Chainstay Length:

410 mm

Standover Height:

842 mm

BB Drop:

70 mm

Seat Tube Angle:

73.5

Wheelbase:

1022 mm

Head Tube Angle:

73.3

Stack:

611 mm

Reach:

410 mm

Seat Tube Length:

553 mm

white-purple/48 mm/28"/S:

Frame Size:

52 cm

Head Tube Angle:

72.5

Stack:

535 mm

Standover Height:

765 mm

Wheelbase:

971 mm

Reach:

373 mm

Chainstay Length:

405 mm

BB Drop:

72 mm

Seat Tube Angle:

74

Seat Tube Length:

474 mm

white-purple/53 mm/28"/XS:

Frame Size:

49 cm

Head Tube Angle:

71.7

Stack:

514 mm

Standover Height:

742 mm

Wheelbase:

969 mm

Reach:

367 mm

Chainstay Length:

405 mm

Seat Tube Angle:

74.5

BB Drop:

72 mm

Seat Tube Length:

450 mm

solar blue/28"/XS:

Head Tube Angle:

71.7

Stack:

514 mm

Standover Height:

742 mm

Wheelbase:

969 mm

Reach:

367 mm

Chainstay Length:

405 mm

Seat Tube Angle:

74.5

BB Drop:

72 mm

Frame Size:

49 cm

Seat Tube Length:

450 mm

solar blue/28"/S:

Head Tube Angle:

72.5

Stack:

535 mm

Standover Height:

765 mm

Wheelbase:

971 mm

Reach:

373 mm

Chainstay Length:

405 mm

Seat Tube Angle:

74

BB Drop:

72 mm

Frame Size:

52 cm

Seat Tube Length:

474 mm

solar blue/28"/M:

Head Tube Angle:

72.5

Stack:

552 mm

Standover Height:

786 mm

Wheelbase:

985 mm

Reach:

381 mm

Chainstay Length:

405 mm

Seat Tube Angle:

74

BB Drop:

70 mm

Frame Size:

54 cm

Seat Tube Length:

498 mm

solar blue/28"/L:

Head Tube Angle:

73.3

Stack:

574 mm

Standover Height:

803 mm

Wheelbase:

987 mm

Reach:

389 mm

Chainstay Length:

405 mm

Seat Tube Angle:

73.5

BB Drop:

70 mm

Frame Size:

56 cm

Seat Tube Length:

519 mm

solar blue/28"/XL:

Head Tube Angle:

73.3

Stack:

597 mm

Standover Height:

830 mm

Wheelbase:

1006 mm

Reach:

401 mm

Chainstay Length:

408 mm

Seat Tube Angle:

73.5

BB Drop:

70 mm

Frame Size:

58 cm

Seat Tube Length:

541 mm

solar blue/28"/XXL:

Head Tube Angle:

73.3

Stack:

611 mm

Standover Height:

842 mm

Wheelbase:

1022 mm

Reach:

410 mm

Chainstay Length:

410 mm

Seat Tube Angle:

73.5

BB Drop:

70 mm

Frame Size:

61 cm

Seat Tube Length:

553 mm

• XXS: CB-B145MP003608CF30003PB-45E
• XS: CB-B149MP003809CF30003PB-45E
• S: CB-B152MP003810CF30006PB-45E
• M: CB-B154MP004011CF30006PB-45E
• L: CB-B156MP004011CF30006PB-45E
• XL: CB-B158MP004012CF30009PB-45E
• XXL: CB-B161MP004012CF30009PB-45E
• steel green/28"/XS: CB-B149SE003809CF3003PB-45E
• steel green/28"/S: CB-B152SE003810CF3006PB-45E
• steel green/28"/M: CB-B154SE004011CF3006PB-45E
• steel green/28"/L: CB-B156SE004011CF3006PB-45E
• steel green/28"/XL: CB-B158SE004012CF3009PB-45E
• steel green/28"/XXL: CB-B161SE004012CF3009PB-45E
• white-purple/43 mm/28"/L: CB-B156WP004011CF3006PB-45E
• white-purple/43 mm/28"/XXL: CB-B161WP004012CF3009PB-45E
• white-purple/48 mm/28"/S: CB-B152WP003810CF3006PB-45E
• white-purple/53 mm/28"/XS: CB-B149WP003809CF3003PB-45E
• solar blue/28"/XS: CB-B149SB003809CF3003PB-45E
• solar blue/28"/S: CB-B152SB003810CF3006PB-45E
• solar blue/28"/M: CB-B154SB004011CF3006PB-45E
• solar blue/28"/L: CB-B156SB004011CF3006PB-45E
• solar blue/28"/XL: CB-B158SB004012CF3009PB-45E
• solar blue/28"/XXL: CB-B161SB004012CF3009PB-45E

- 1 x Road bike Factor MONZA Force PM Carbon 28"
