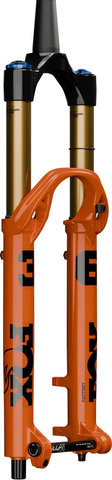

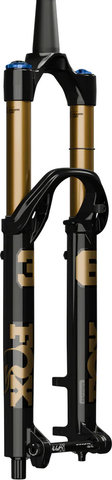

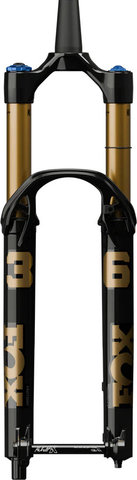

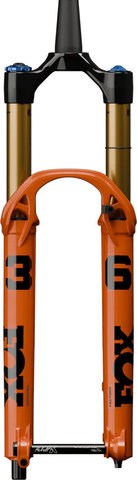

Fox Racing Shox 36 Float 29" GRIP X Factory Boost suspension fork
Product Description
36 Float 29" GRIP X Factory Boost Suspension Fork by Fox Racing Shox for All Mountain Riding
The 36 Float 29" GRIP X Factory Boost Suspension Fork from Fox Racing Shox is designed for all mountain MTB adventures. Built with an aluminum steerer tube and crown, this fork offers a sturdy yet lightweight setup. Its 36 mm aluminum stanchions and magnesium lower legs provide a solid balance of strength and performance. You’ll appreciate the thru axle system (15 x 110 mm Boost) that enhances wheel stiffness and control. The fork features adjustable high-speed and low-speed compression damping, as well as low-speed rebound damping, allowing you to fine-tune your ride to match the terrain. With a maximum disc brake diameter of 230 mm and a direct mount brake mount, it’s ready for powerful stopping power. The air spring lets you easily adjust the spring rate to your preference. This suspension fork is tailored for 29" wheels, offering confident handling on rough trails.
Product Specifications:
- Application:
- All Mountain, MTB
- Wheel size:
- 29"
black | 150 mm | 44 mm | 110 mm | 29" | 1 1/8" - 1,5" tapered | 15 mm Thru Axle:
- Travel:
- 150 mm
- Wheel size:
- 29"
black | 160 mm | 44 mm | 110 mm | 29" | 1 1/8" - 1,5" tapered | 15 mm Thru Axle:
- Travel:
- 160 mm
- Wheel size:
- 29"
orange | 150 mm | 44 mm | 110 mm | 29" | 1 1/8" - 1,5" tapered | 15 mm Thru Axle:
- Travel:
- 150 mm
- Wheel size:
- 29"
orange | 160 mm | 44 mm | 110 mm | 29" | 1 1/8" - 1,5" tapered | 15 mm Thru Axle:
- Travel:
- 160 mm
- Wheel size:
- 29"
Technical Information:
- Steerer Tube Length:
- 244 mm
- Steerer Tube Material:
- Aluminum
- Spring Rate:
- Via Air Pressure
- Travel Adjustment:
- No
- Steerer Tube Diameter (Crown Race):
- 40 mm
- Brake Mount:
- Disc PM8 (Direct Mount 203 mm)
- Stanchion Tube Diameter:
- 36 mm
- Compression Damping:
- High-Speed and Low-Speed
- Stanchion Material:
- Aluminium
- Wheel Standard:
- 15 x 110 mm (Boost)
- Axle System:
- Thru Axle (15 x 110 mm)
- Rebound Damping:
- Yes, Low-Speed
- Crown Material:
- Aluminum
- Remote:
- No
- Lower Leg Material:
- Magnesium
black | 150 mm | 44 mm | 110 mm | 29" | 1 1/8" - 1,5" tapered | 15 mm Thru Axle:
- Fork Offset:
- 44 mm
- Installation Width:
- 110 mm
- Steerer Tube:
- 1 1/8" - 1,5" tapered
- Axle Standard:
- 15 mm Thru Axle
black | 160 mm | 44 mm | 110 mm | 29" | 1 1/8" - 1,5" tapered | 15 mm Thru Axle:
- Fork Offset:
- 44 mm
- Installation Width:
- 110 mm
- Steerer Tube:
- 1 1/8" - 1,5" tapered
- Axle Standard:
- 15 mm Thru Axle
orange | 150 mm | 44 mm | 110 mm | 29" | 1 1/8" - 1,5" tapered | 15 mm Thru Axle:
- Fork Offset:
- 44 mm
- Installation Width:
- 110 mm
- Steerer Tube:
- 1 1/8" - 1,5" tapered
- Axle Standard:
- 15 mm Thru Axle
orange | 160 mm | 44 mm | 110 mm | 29" | 1 1/8" - 1,5" tapered | 15 mm Thru Axle:
- Fork Offset:
- 44 mm
- Installation Width:
- 110 mm
- Steerer Tube:
- 1 1/8" - 1,5" tapered
- Axle Standard:
- 15 mm Thru Axle
Approved For:
- Max. disc brake diameter:
- 230 mm
Product Features:
- High-performance 36 Float 29" GRIP X Factory Boost suspension fork designed for all-mountain MTB riding
- Lightweight and durable aluminum steerer tube and crown combined with magnesium lower legs for optimal strength and weight balance
- Advanced dual compression damping with both high-speed and low-speed settings for precise control on varied terrain
- Boost 15 x 110 mm thru axle system and 36 mm stanchion tubes ensure enhanced stiffness and improved handling
- Compatible with 29" wheels and up to 230 mm disc brake rotors for powerful stopping performance and versatile trail use
Manufacturer Number:
- black | 150 mm | 44 mm | 110 mm | 29" | 1 1/8" - 1,5" tapered | 15 mm Thru Axle: 910-21-436
- black | 160 mm | 44 mm | 110 mm | 29" | 1 1/8" - 1,5" tapered | 15 mm Thru Axle: 910-21-433
- orange | 150 mm | 44 mm | 110 mm | 29" | 1 1/8" - 1,5" tapered | 15 mm Thru Axle: 910-21-435
- orange | 160 mm | 44 mm | 110 mm | 29" | 1 1/8" - 1,5" tapered | 15 mm Thru Axle: 910-21-431
Contents:
- 1 x Fox Racing Shox 36 Float 29" GRIP X Factory suspension fork
