Fox Racing Shox Transfer Internal Factory 200 mm Dropper Post - 2021 Model

The Transfer Factory seatpost from Fox Racing Shox offers 200 mm travel and internal cable routing with Genuine Kashima Coat coating. It delivers reliable performance and is easy to maintain.

Specifications:

Application:

Cross Country, All Mountain, Enduro

Travel:

200 mm

Diameter:

30.9 mm, 31.6 mm

Length:

530.7 mm

Setback:

0 mm

Technical Information:

Actuation:

mechanical handlebar remote

Cable Routing:

internal

Clamp:

2-bolt clamp

Compatible Saddle Rails:

7 x 7 mm (standard), 7 x 9 mm (oval)

Material:

Aluminium

Approved For:

Insertion Depth (max.):

320 mm

Insertion Depth (min.):

150 mm

Features:

• reliable performance

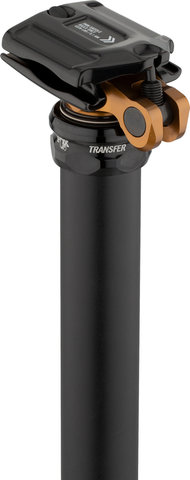

• low profile saddle clamp design
• maintenance-friendly
• Factory Series model with Genuine Kashima Coat

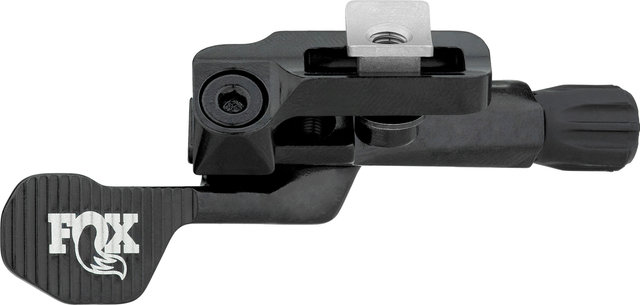

• remote lever 1x: to mount on the left underneath the handlebars instead of a shift lever
• remote lever 2x/3x: to mount left or right above the handlebars

Models:

30.9 mm / 530.7 mm / SB 0 mm / w/o Remote:

Diameter:

30.9 mm

Length:

530.7 mm

Setback:

0 mm

Manufacturer Number:

925-01-164

30.9 mm / 530.7 mm / SB 0 mm / 1x remote:

Diameter:

30.9 mm

Length:

530.7 mm

Setback:

0 mm

Remote Mount:

Clamp (split), Matchmaker, I-Spec EV

Manufacturer Numbers:

925-01-164 + 925-06-004

30.9 mm / 530.7 mm / SB 0 mm / 2x/3x Remote:

Diameter:

30.9 mm

Length:

530.7 mm

Setback:

0 mm

Remote Mount:

clamp (closed)

Manufacturer Numbers:

925-01-164 + 925-06-002

31.6 mm / 530.7 mm / SB 0 mm / w/o Remote:

Diameter:

31.6 mm

Length:

530.7 mm

Setback:

0 mm

Manufacturer Number:

925-01-165

31.6 mm / 530.7 mm / SB 0 mm / 1x Remote:

Diameter:

31.6 mm

Length:

530.7 mm

Setback:

0 mm

Remote Mount:

Clamp (split), Matchmaker, I-Spec EV

Manufacturer Numbers:

925-01-165 + 925-06-004

31.6 mm / 530.7 mm / SB 0 mm / 2x/3x Remote:

Diameter:

31.6 mm

Length:

530.7 mm

Setback:

0 mm

Remote Mount:

clamp (closed)

Manufacturer Numbers:

925-01-165 + 925-06-002

Contents:

without remote:

• 1 x Fox Racing Shox Transfer Internal Factory dropper post

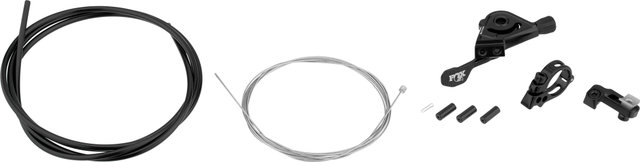

1x Remote:

• 1 x Fox Racing Shox Transfer Internal Factory dropper post
• 1 x Fox Racing Shox Transfer remote lever
• 1 x Fox Racing Shox clamp
• 1 x Fox Racing Shox Adapter for Matchmaker / I-Spec EV
• 1 x cable
• 1 x cable housing
• 3 x open end caps
• 1 x ferrules

2x/3x Remote:

• 1 x Fox Racing Shox Transfer Internal Factory dropper post
• 1 x Fox Racing Shox Transfer remote lever
• 1 x cable pull
• 1 x cable
• 1 x cable housing
• 3 x open end caps
• 1 x ferrules
