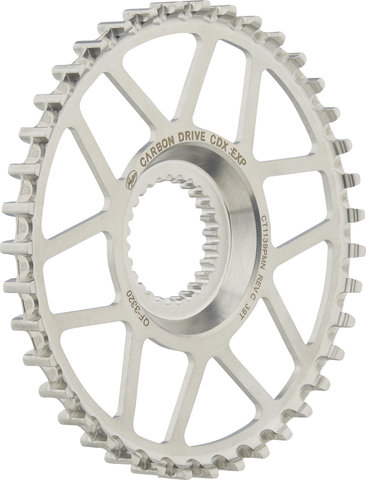

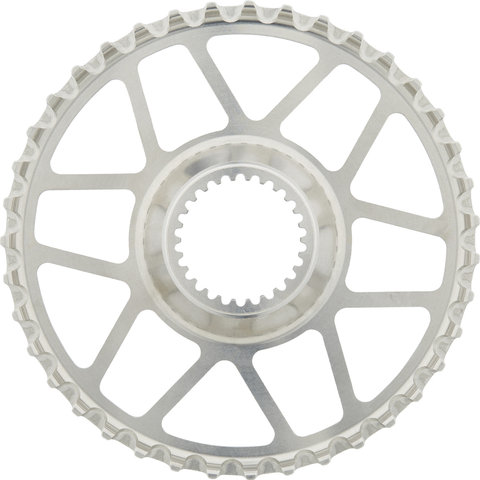

Gates CDX:EXP Pinion Front Belt Drive Sprocket

This front belt drive sprocket from Gates' CDX:EXP Expedition series is designed for touring and off-road use on bikes with Pinion drives and features an increased wear surface. The sprocket is made of robust stainless steel.

Specifications:

Application:

City & Touring, Cross Country

Teeth:

39 t

Mount:

Direct mounting on Pinion gear box

Technical Information:

Width of the teeth:

17 mm

Tooth division:

11 mm

Mounting web thickness:

5.5 mm

Offset:

11.5 mm (assembly surface), 8.75 mm (centre line)

Outer Diameter:

134.8 mm

Material:

stainless steel

Features:

• CDX:EXP level: high-end version for high loads and best performance plus 25% additional wear surface
• suitable for mud, sand, snow and ice as well as all roads
• middle guide groove (CenterTrack)
• for low-maintenance journeys across extreme distances on almost any terrain

Technology:

Gates Carbon Drive System
The main advantages of the Gates Carbon Drive system are cleanliness, smoothness and robustness. Urban commuters as well as mountain bikers, E-bike users or leisure riders benefit from the high mileage. Oil-stained or rusty chains are a thing of the past.
Clean: No lubricant means no accumulation of grease and dirt.
Smooth and silent operation: no metal-to-metal contact of the chains.
Light: The whole system weighs less than a standard bicycle chain.
No elongation: Belt does not need to be re-tensioned or replaced.
Self-cleaning: CenterTrack and MudPort profiles are specially designed to repel mud, dirt, snow or other contaminants.
Consistent efficiency: The drive boasts a long service life compared to that of a conventional chain, where efficiency is significantly reduced by wear or dirt.
Installing a Gates Carbon Drive Belt Drive requires a specially-made frame, therefore we strongly advise against using one to modify a conventional framework.

Manufacturer Number:

CT1139PMN

Contents:

• 1 x Gates CDX:EXP Pinion Front Belt Drive Sprocket
