H&R Bike Performance Spring Steel Spring up to 65 mm Stroke - black/550 lbs

H&R Bike Performance Spring Steel Spring up to 65 mm Stroke

Item number: 94288
1
1

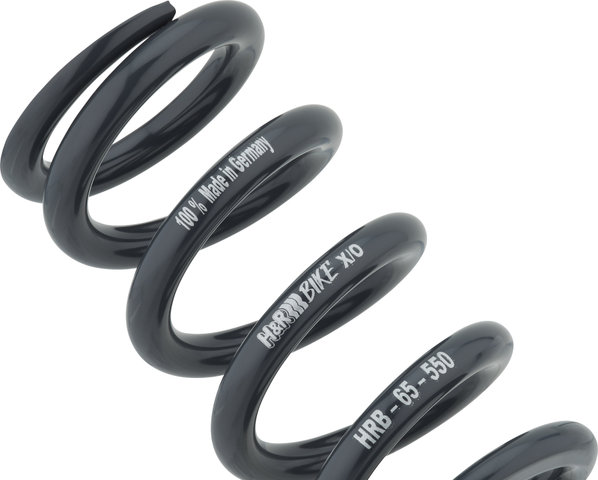

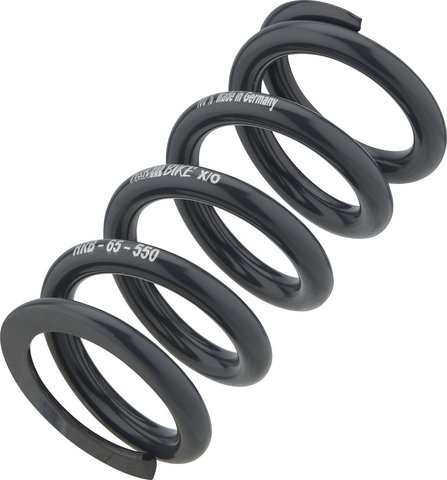

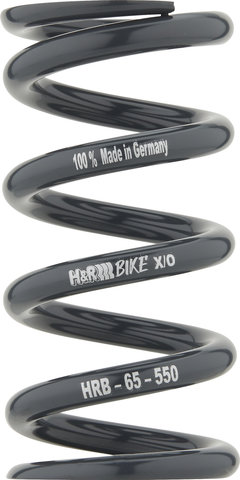

The H&R Bike Performance Spring steel spring for rear shocks up to 65 mm stroke


The Performance Spring steel spring from H&R Bike is suitable for steel coil shocks with a stroke of 50 to 65 mm. The spring is made of an extremely light, block-resistant and durable steel alloy for consistently high performance over a long period of time. In addition to the spring, you will also find a 7-piece set of POM spacers for the installation on shocks from RockShox, ÖHLINS, Fox Racing Shox and Cane Creek. The Performance Spring steel spring is manufactured in Germany.


Specifications:

Application:
Enduro
Rear Shock (Size x Travel):
165 - 230 x 50 - 65 mm
Stroke:
65 mm
Inner Diameter:
38.5 mm

Compatibility:

  • steel coil shocks with 50 - 65 mm stroke and 165 - 230 mm size

Note:

When selecting the spring, also consider the coil length, as the installation space between the spring plates is not sufficient for some shocks.

Features:

  • steel springs for shocks with up to 65 mm stroke
  • lightweight
  • block-resistant and robust
  • includes POM spacer set for maximum compatibility
  • made in Germany


Models:

350 lbs:
Coil Length:
105 mm
Spring Rate:
350 lbs/inch (61.3 N/mm)
Manufacturer Number:
65-350

375 lbs:
Coil Length:
107 mm
Spring Rate:
375 lbs/inch (65.7 N/mm)
Manufacturer Number:
65-375

400 lbs:
Coil Length:
110 mm
Spring Rate:
400 lbs/inch (70.1 N/mm)
Manufacturer Number:
65-400

425 lbs:
Coil Length:
108 mm
Spring Rate:
425 lbs/inch (74.4 N/mm)
Manufacturer Number:
65-425

450 lbs:
Coil Length:
106 mm
Spring Rate:
450 lbs/inch (78.8 N/mm)
Manufacturer Number:
65-450

475 lbs:
Coil Length:
110 mm
Spring Rate:
475 lbs/inch (83.2 N/mm)
Manufacturer Number:
65-475

500 lbs:
Coil Length:
108 mm
Spring Rate:
500 lbs/inch (87.6 N/mm)
Manufacturer Number:
65-500

525 lbs:
Coil Length:
112 mm
Spring Rate:
525 lbs/inch (91.9 N/mm)
Manufacturer Number:
65-525

550 lbs:
Coil Length:
110 mm
Spring Rate:
550 lbs/inch (96.3 N/mm)
Manufacturer Number:
65-550

575 lbs:
Coil Length:
114 mm
Spring Rate:
575 lbs/inch (100.7 N/mm)
Manufacturer Number:
65-575

600 lbs:
Coil Length:
112 mm
Spring Rate:
600 lbs/inch (105.1 N/mm)
Manufacturer Number:
65-600

625 lbs:
Coil Length:
116 mm
Spring Rate:
625 lbs/inch (109.5 N/mm)
Manufacturer Number:
65-625

650 lbs:
Coil Length:
114 mm
Spring Rate:
650 lbs/inch (113.8 N/mm)
Manufacturer Number:
65-650

675 lbs:
Coil Length:
118 mm
Spring Rate:
675 lbs/inch (118.2 N/mm)
Manufacturer Number:
65-675

700 lbs:
Coil Length:
117 mm
Spring Rate:
700 lbs/inch (122.6 N/mm)
Manufacturer Number:
65-700

750 lbs:
Coil Length:
119 mm
Spring Rate:
750 lbs/inch (131.3 N/mm)
Manufacturer Number:
65-750

800 lbs:
Coil Length:
123 mm
Spring Rate:
800 lbs/inch (140.1 N/mm)
Manufacturer Number:
65-800

Contents:

  • 1 x steel spring H&R Bike Performance Spring

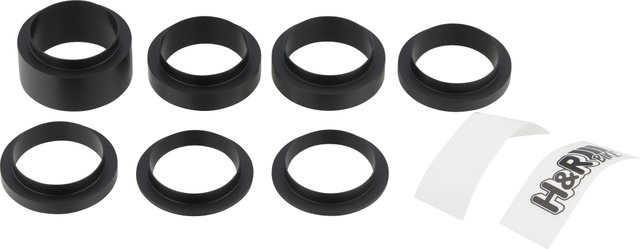

  • 1 x POM spacer set, 7-piece

Weight:

  • black/350 lbs: 223 g
  • black/375 lbs: 248 g
  • black/400 lbs: 277 g
  • black/425 lbs: 265 g
  • black/450 lbs: 253 g
  • black/475 lbs: 286 g
  • black/500 lbs: 274 g
  • black/525 lbs: 309 g
  • black/550 lbs: 297 g
  • black/575 lbs: 335 g
  • black/600 lbs: 323 g
  • black/625 lbs: 363 g
  • black/650 lbs: 352 g
  • black/675 lbs: 394 g
  • black/700 lbs: 383 g
  • black/750 lbs: 417 g
  • black/800 lbs: 453 g
  • 100 day return period
  • Online since 1998
  • Trusted Shop 4.85 / 5.00

Models:

  • black/350 lbs, in stock
    102.99€
  • black/375 lbs, in stock
    102.99€
  • black/400 lbs, sold out
    102.99€
  • black/425 lbs, sold out
    102.99€
  • black/450 lbs, in stock
    102.99€
  • black/475 lbs, in stock
    102.99€
  • black/500 lbs, in stock
    102.99€
  • black/525 lbs, in stock
    102.99€
  • black/550 lbs, in stock
    102.99€
  • black/575 lbs, in stock
    102.99€
  • black/600 lbs, in stock
    102.99€
  • black/625 lbs, in stock
    102.99€
  • black/650 lbs, in stock
    102.99€
  • black/675 lbs, in stock
    102.99€
  • black/700 lbs, in stock
    102.99€
  • black/750 lbs, in stock
    102.99€
  • black/800 lbs, in stock
    102.99€

Customer Reviews (1)

5

Customer Reviews (1)

5.0/5.0
5
1
4
0
3
0
2
0
1
0

Give us your opinion on this product.

by Gustavo C. on 20.05.2024
verified purchase
item: black/600 lbs
1 of 1 customers found this review helpful.

Fit my Rockshox SuperDeluxe Coil Ultimate 210x55 Perfectly. used the 2 supplied rockshox adapters only, did not need the extension piece. saved almost 200g compared to a stock spring
