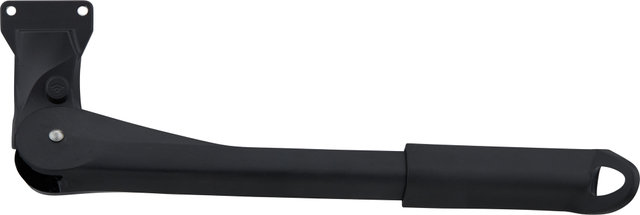

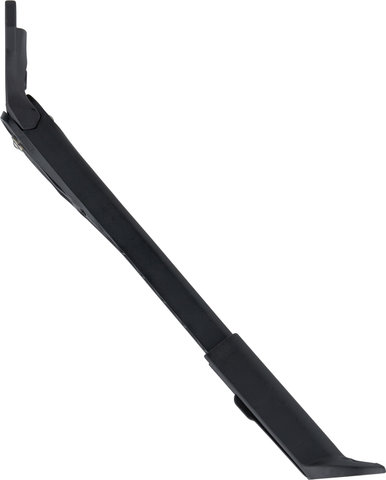

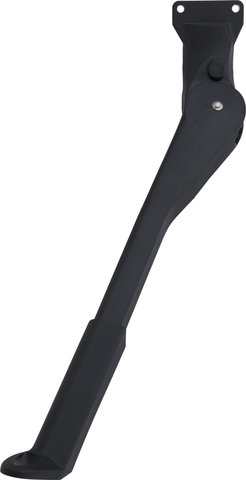

Hebie 667 Abstellheld 40 Rear Kickstand

The Hebie 667 Abstellheld 40 rear kickstand for direct mounting on chainstays with KSA-40 mount has a plastic leg and an aluminium head, and scores with an extra-large standing surface. This makes it also suitable for heavier pedelecs.

Guidelines for Replacing E-bike Components:

Before you replace components on your e-bike, please read the guidelines for component replacement for CE-marked e-bikes, pedelecs with pedal assistance.

Technical Information:

Application:

City, City & Touring

Mount:

KSA-40 device (= special mounting on the chainstay with 40 mm hole spacing)

Material:

Aluminium (head), plastic (leg)

Capacity:

25 kg

Compatibility:

26" - 28"

Features:

• special material mix and innovative optics
• internal spring, glass fibre reinforced plastic leg and light aluminium head
• weight optimised, yet super stable
• large standing surface
• even heavy pedelecs can be parked safely
• leg length adjustable without tools via the stand foot in 6 mm increments up to a maximum of 42 mm
• absolutely firm and stable connection with direct frame connection
• additionally supported under the chainstay
• universal for bikes with KSA-40 mounts

Manufacturer Number:

0667 E

Contents:

• 1 x Hebie 667 Abstellheld 40 rear kickstand

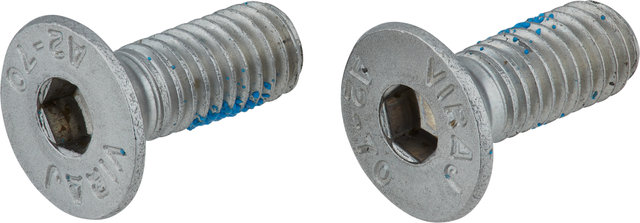

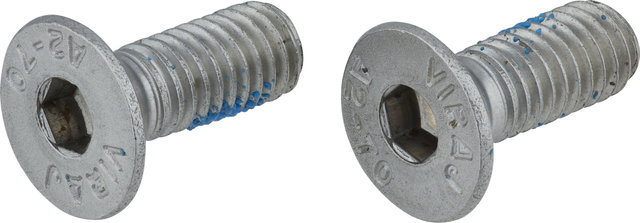

• 2 x stainless steel (Niro) bolts
