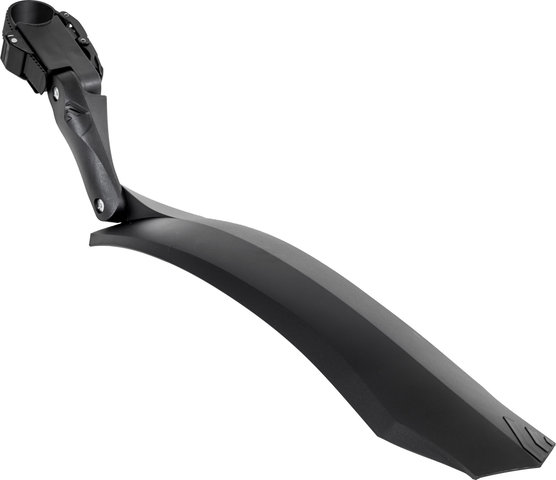

Hebie Viper X Mudguard

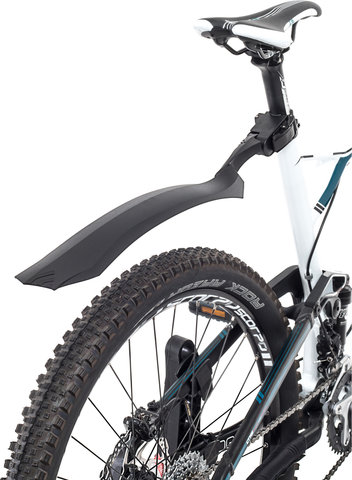

The Hebie Viper X mudguard offers a universal solution for Mountain bikes - it is simply mounted to the seatpost with a quick release fastener.

Specifications:

Application:

All Mountain

Wheel Size:

26" - 29"

Position:

seatpost

Mount:

plug-in

Width:

72 mm

Rear Fender Length:

61 cm

Material:

composite

Features:

• exclusive splash guard for the rear wheel
• suitable for frames with and without suspension
• special cross-design
• assembled in seconds
• robust quick-release fastener for all seatposts up to 42 mm tube diameter
• height and adjustment angle with two stable joints
• continuously and perfectly adjustable
• also available in a set with Viper X F front mudguard

Note from the manufacturer:

The distance between the mudguard and the tyre should not be less than 6 mm when the suspension is fully immersed. Brake cable and parts must not come into contact with the mudguard through full suspension travel. Before each ride check the mudguard for tightness and retighten if necessary. Clean the seatpost (free of grease) before initial assembly.

Manufacturer Number:

0726 E

Contents:

• 1 x Hebie Viper X mudguard
