Lezyne Micro Floor Drive HV Pump w/ Pressure Display

Lezyne Micro Floor Drive HVG Pump with air pressure display - Top functionality in a compact design

The Micro Floor Drive HVG bicycle pump by Lezyne has, unlike the Micro Floor Drive HV pump, an analogue air pressure display integrated in the tube. This is easy to read and informs you about the current pressure in the system. The pump offers floor pump performance in a compact design and is, as the name suggests, designed for high-volume MTB tyres. You can generate pressures of up to 6.2 bar. Thanks to the reversible ABS flip-thread chuck attachment with air release function, the model can be used for both Schrader and Presta valves. It combines a lightweight aluminium body with a practical T-handle, which is also made of aluminium. The fold-down stainless steel foot clamp provides stability when pumping. A suitable plastic frame holder for transporting the pump on the bike is included.

Specifications:

Type:

high volume

Pressure (max.):

6.2 bar (90 psi)

Valve Head:

Schrader, Presta

Technical Information:

Dimensions:

300 mm

Gauge:

integrated in hose, analogue

Handle:

Aluminium T-handle

Tube:

60 cm

Cylinder Material:

Aluminium

Base Material:

stainless steel

Features:

• versatile high-volume mini-pump
• HVG version: with analogue air pressure display, integrated in the hose

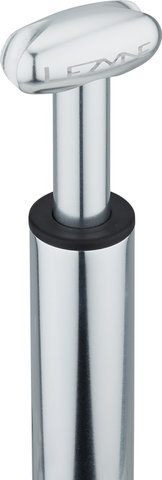

• cylinder, piston, base and T-handle made of lightweight, CNC-machined aluminium
• stainless steel foot clamp to fold down for stability when pumping
• Flip-Thread chuck valve top with ABS air bleed function (Air Bleed System), reversible for Schrader and Presta compatibility
• composite frame-mounted holder

Information - Valves:

AV / Schrader Valve:

• Synonyms: Auto Valve (AV), Schrader Valve
• Outer Diameter: 8.5 mm

SV / Presta Valve:

• Synonyms: Sclaverand Valve (SV), French Valve, Presta Valve
• Outer Diameter: 6.5 mm

Manufacturer Number:

1-MP-MFDR-V2HVG

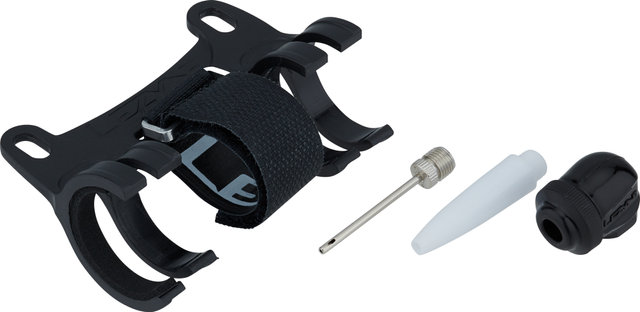

Contents:

• 1 x Lezyne Micro Floor Drive HV pump (with pressure display)
• 1 x Lezyne Composite Matrix frame mount
• 1 x Lezyne Flip-Thread Chuck valve

• silver: 225 g
