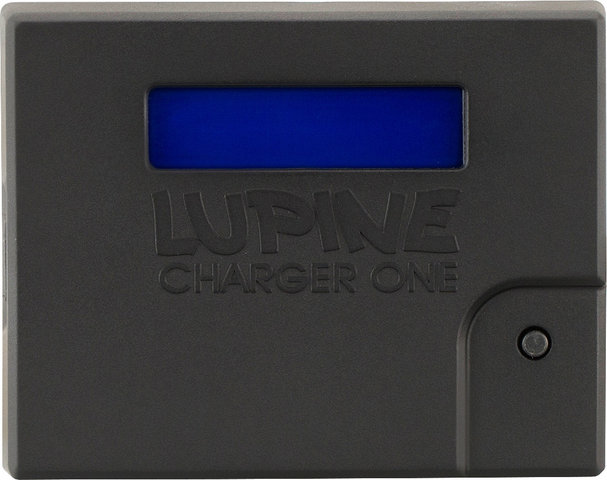

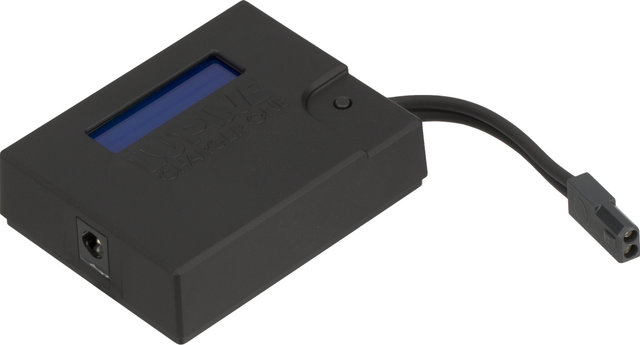

Lupine Charger One for Alpha 14.4V System

Power for the Alpha: the Charger One charger for the Alpha 14.4 system from Lupine

The Charger One puts the latest generation of charging technology at your fingertips. As a complete in-house development of Lupine, all charging functions have been perfectly synced to the battery of the Lupine Alpha. The specially developed software always ensures a full load with unsurpassed safety. The illuminated display provides updates on the charging status throughout the charging process, such as voltage and charged amps. The Alpha Charger One charger is designed exclusively for the Alpha battery.

Information regarding the return of batteries and electrical equipment:

Information on the return and disposal of used batteries and electrical equipment can be found here.

Technical Information - Charger:

Material:

polycarbonate, aluminium

Charge Current:

0.1 - 1.5 A

Discharge Current:

0.1 - 0.2 A

Output Voltage:

16.6 V

Suitable Batteries:

Lupine lithium-ion batteries, 14.4 V

Functions:

charging, discharging, discharge/charge, storage (50 %)

Current Supply:

power pack

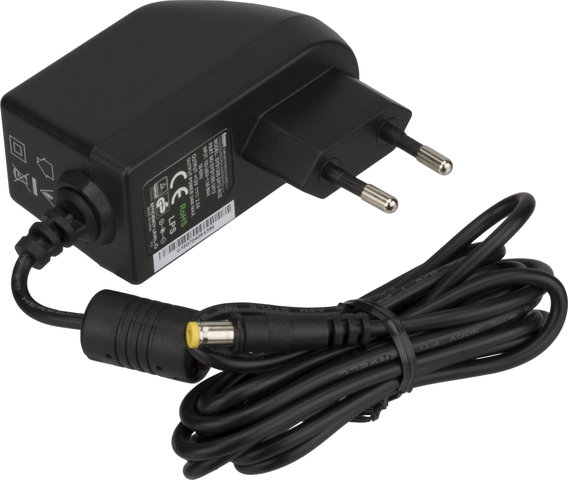

Technical Information - EU Power Pack:

Input Voltage:

100 - 240 V

Output Voltage:

24 V

Features:

Loading programme:

This programme is used to charge the battery. When the display shows " Full" , the battery is fully charged.

Unloading programme:

With the help of the " Discharge" program, you can completely discharge your battery. The removed capacity is then shown on the display. Warning: Do not store an empty battery!

Discharge and charging programme:

The battery is first completely discharged and then fully charged.

50 % Storage Programme:

The battery is charged to exactly 50% of its capacity. This is the perfect setting to store your battery as gently as possible.

Manufacturer Number:

d452

Contents:

• 1 x Lupine Charger One 14.4V System, Alpha
• 1 x Lupine 24 V power pack
