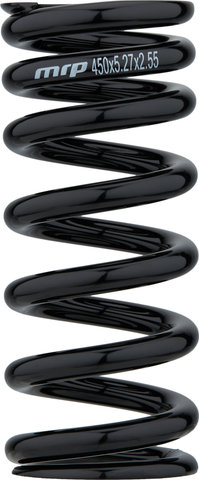

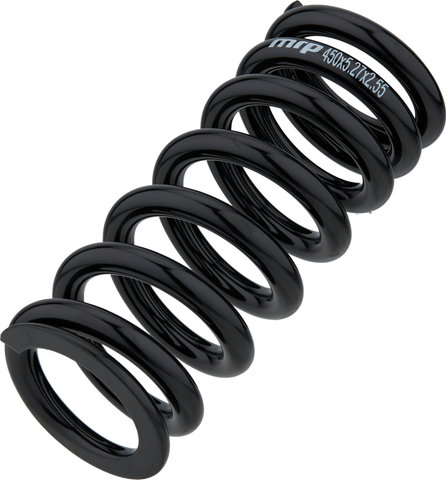

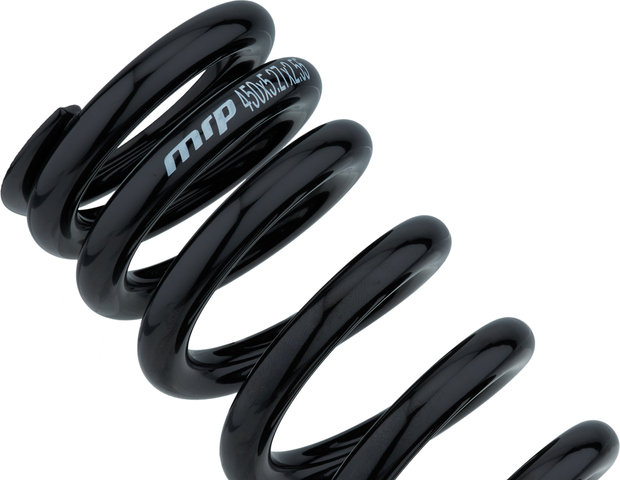

MRP Progressive Steel Coil up to 65 mm Stroke

The Progressive steel coil from MRP offers you a progressive spring characteristic, and thus enables optimised damping behaviour and the use of steel coil shocks in frames whose geometry is matched to air shocks. It is suitable for various rear shocks.

Specifications:

Application:

All Mountain, Enduro

Rear Shock (Size x Travel):

200 - 230 x 51 - 65 mm

Travel:

65 mm

Inner Diameter:

38 mm (1.5" )

Compatibility:

• MRP Hazzard shocks (matching spacers required when combining a 63 to 65 mm shock stroke with a spring rate up to 425 lbs/inch or a 57.5 to 60 mm shock stroke with a spring rate up to 375 lbs/inch)
• MRP Raze V1 with 200 - 222 x 51 - 63 mm (matching spacers required)
• RockShox Kage / Vivid / Super Deluxe Coil shocks 185 - 230 x 50 - 65 mm (for 185 mm installation length only up to 450+ lbs; for some combinations spacers are required)
• Fox Racing Shox DHX2 shock 205 - 230 mm x 50 - 65 mm (matching spacers required)
• Fox Racing Shox Van RC / RC4 shock 216 - 230 x 57.5 - 65 mm (matching spacers required)
• Cane Creek shock 205 - 230 mm x 50 - 65 mm (matching spacers required)

Models:

300+ lbs:

Coil Length:

126 mm

Spring Rate:

275 - 325 lbs/inch (at 51 - 57 mm stroke) / 300 - 400 lbs/inch (at 60 - 65 mm stroke)

Manufacturer Number:

WB-99-0200

350+ lbs:

Coil Length:

129 mm

Spring Rate:

350 - 375 lbs/inch (at 51 mm stroke) / 350 - 400 lbs/inch (at 55 - 65 mm stroke)

Manufacturer Number:

WB-99-0201

400+ lbs:

Coil Length:

129 mm (+/- 2.5 mm)

Spring Rate:

400 - 450 lbs/inch (at 51 - 60 mm stroke) / 400 - 475 lbs/inch (at 63 - 65 mm stroke)

Manufacturer Number:

WB-99-0202

450+ lbs:

Coil Length:

134 mm (+/- 2.5 mm)

Spring Rate:

425 - 500 lbs/inch (at 51 - 60 mm stroke) / 425 - 525 lbs/inch (at 63 - 65 mm stroke)

Manufacturer Number:

WB-99-0203

500+ lbs:

Coil Length:

137 mm (+/- 2.5 mm)

Spring Rate:

475 - 575 lbs/inch (at 51 - 57 mm stroke) / 475 - 600 lbs/inch (at 60 - 65 mm stroke)

Manufacturer Number:

WB-99-0204

550+ lbs:

Coil Length:

141 mm (+/- 2.5 mm)

Spring Rate:

525 - 650 lbs/inch (at 51 - 57 mm stroke) / 525 - 675 lbs/inch (at 60 mm stroke) / 550 - 675 lbs/inch (at 63 - 65 mm stroke)

Manufacturer Number:

WB-99-0205

600+ lbs:

Coil Length:

143.5 mm (+/- 2.5 mm)

Spring Rate:

550 - 675 lbs/inch (at 51 mm stroke) / 550 - 700 lbs/inch (at 55 - 60 mm stroke) / 575 - 725 lbs/inch (at 63 - 65 mm stroke)

Manufacturer Number:

WB-99-0206

Contents:

• 1 x MRP Progressive Steel Coil
