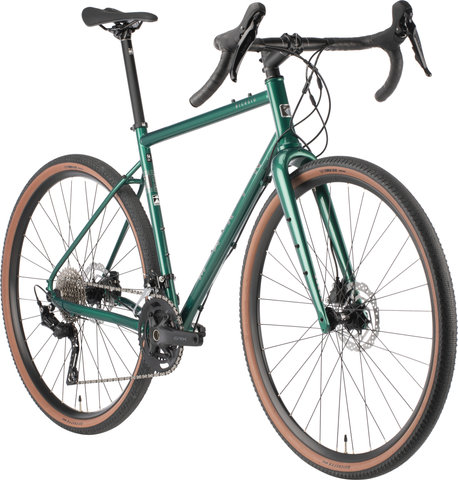

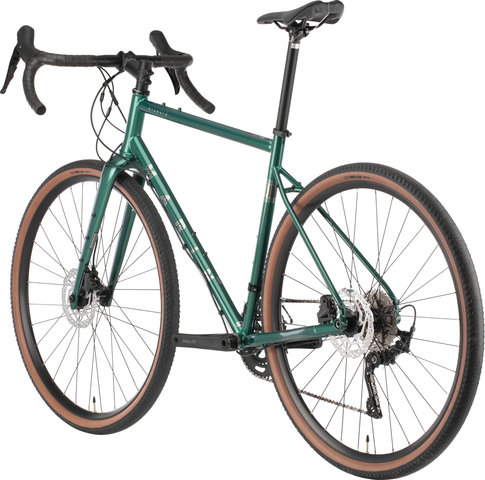

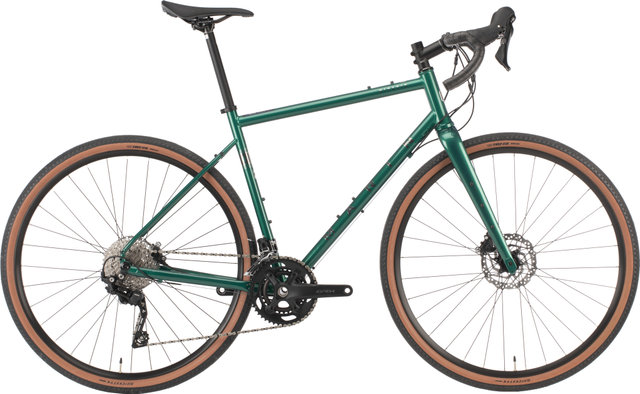

Marin Bikes Nicasio 2 28" gravel bike

Explore New Paths with the Marin Bikes Nicasio 2 28" Gravel Bike

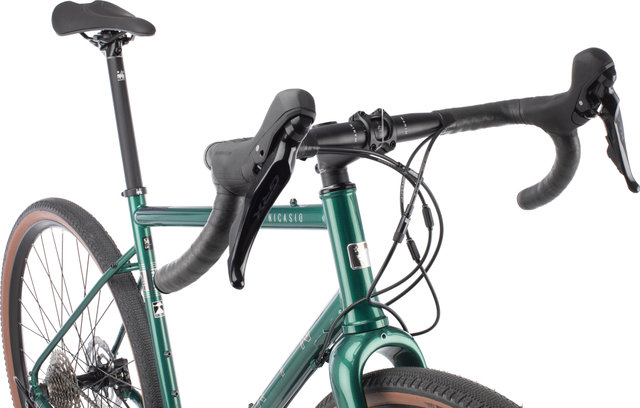

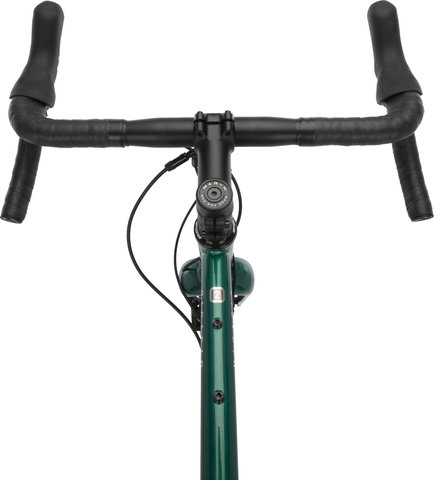

Dive into the world of gravel riding with the Marin Bikes Nicasio 2 28" Gravel Bike, designed for both women and men who seek adventure beyond the pavement. This bike is built around a robust and responsive Marin Nicasio CrMo disc frame, offering the perfect blend of durability and comfort for long days on mixed terrain. The carbon fork not only reduces the overall weight but also improves vibration damping, making your ride smoother on rough paths. Equipped with the Shimano GRX RX400 groupset, including a GRX ST-RX400 shift/brake lever and GRX RX400 hydraulic brakes, the Nicasio 2 ensures precise shifting and reliable stopping power in all conditions. The bike's gearing range, provided by a Shimano HG-5010 cassette with an 11-36T, 10-speed setup, and a Shimano GRX RX600 crankset with 30-46 teeth, is tailored for the unpredictable nature of gravel riding, giving you the confidence to tackle steep climbs and fast descents alike. Rolling on VEE Tire Co. Quickstyx 700 x 45C folding tires that are tubeless compatible, you'll enjoy reduced rolling resistance, enhanced grip, and the ability to ride with lower tire pressure for increased comfort. The Marin Beyond Road Concept saddle, mounted on a 27.2 mm Marin Aluminum seatpost, offers enduring comfort for long rides, while the 27.2 mm seatpost diameter ensures easy adjustability and additional compliance. Whether you're exploring gravel roads, embarking on your next bikepacking adventure, or simply enjoying the freedom of off-road riding, the Marin Bikes Nicasio 2 28" gravel bike is your gateway to uncharted territory.

green | 50 mm | 170,0 mm | 28" | XS:

Crank Arm Length:

170,0 mm

Wheel size:

28"

green | 50 mm | 170,0 mm | 28" | S:

Wheel size:

28"

Crank Arm Length:

170,0 mm

green | 50 mm | 175,0 mm | 28" | M:

Crank Arm Length:

175,0 mm

Wheel size:

28"

green | 50 mm | 175,0 mm | 28" | L:

Crank Arm Length:

175,0 mm

Wheel size:

28"

green | 50 mm | 175,0 mm | 28" | XL:

Crank Arm Length:

175,0 mm

Wheel size:

28"

green | 50 mm | 175,0 mm | 28" | XXL:

Crank Arm Length:

175,0 mm

Wheel size:

28"

green | 50 mm | 170,0 mm | 28" | XS:

Fork Offset:

50 mm

green | 50 mm | 170,0 mm | 28" | S:

Fork Offset:

50 mm

green | 50 mm | 175,0 mm | 28" | M:

Fork Offset:

50 mm

green | 50 mm | 175,0 mm | 28" | L:

Fork Offset:

50 mm

green | 50 mm | 175,0 mm | 28" | XL:

Fork Offset:

50 mm

green | 50 mm | 175,0 mm | 28" | XXL:

Fork Offset:

50 mm

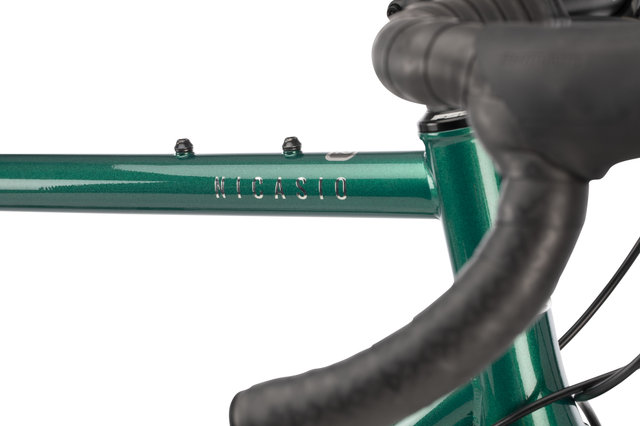

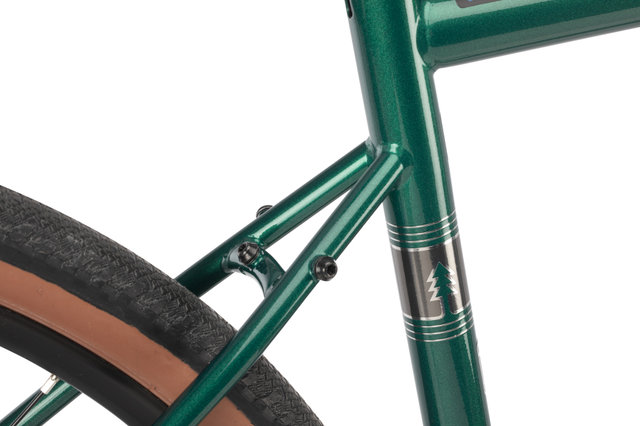

• Gravel bike with Marin Nicasio CrMo Disc steel frame and carbon fork for gravel and road

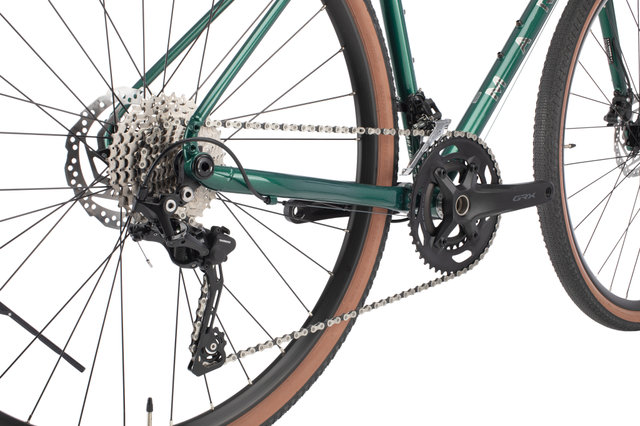

• Shimano GRX RX600 crankset (30–46T) with Shimano HG-5010 cassette, 10-speed

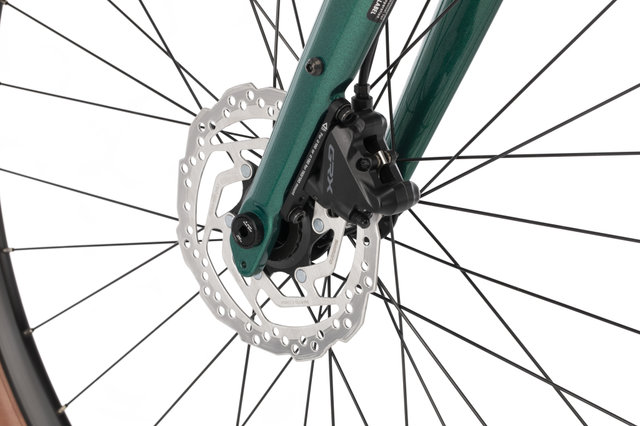

• Shimano GRX RX400 hydraulic disc brakes for controlled braking performance
• VEE Tire Co. Quickstyx 700 x 45C folding tires tubeless ready front and rear
• Wide gear range for climbs and fast sections
• Marin aluminum seatpost and Beyond Road Concept saddle for long-distance comfort

green | 50 mm | 170,0 mm | 28" | XS:

Head Tube Angle:

70.5

Stack:

550 mm

Standover Height:

720 mm

Wheelbase:

1016 mm

Reach:

372 mm

Chainstay Length:

430 mm

Seat Tube Angle:

74.5

BB Drop:

76 mm

Frame Size:

50 cm

Drop Bar Width:

40 cm

Seat Tube Length:

460 mm

Head Tube Length:

120 mm

Bottom Bracket Height:

274 mm

Stem Length:

75 mm

Effective Top Tube Length:

524 mm

green | 50 mm | 170,0 mm | 28" | S:

Head Tube Angle:

71.5

Stack:

568 mm

Standover Height:

739 mm

Wheelbase:

1015 mm

Reach:

375 mm

Chainstay Length:

430 mm

Seat Tube Angle:

74

BB Drop:

76 mm

Frame Size:

52 cm

Drop Bar Width:

40 cm

Seat Tube Length:

480 mm

Head Tube Length:

135 mm

Bottom Bracket Height:

274 mm

Stem Length:

75 mm

Effective Top Tube Length:

537 mm

green | 50 mm | 175,0 mm | 28" | M:

Head Tube Angle:

71.5

Stack:

582 mm

Standover Height:

758 mm

Wheelbase:

1024 mm

Reach:

380 mm

Chainstay Length:

430 mm

Seat Tube Angle:

74

BB Drop:

76 mm

Frame Size:

54 cm

Drop Bar Width:

42 cm

Seat Tube Length:

500 mm

Bottom Bracket Height:

274 mm

Stem Length:

90 mm

Head Tube Length:

150 mm

Effective Top Tube Length:

547 mm

green | 50 mm | 175,0 mm | 28" | L:

Head Tube Angle:

71.5

Stack:

596 mm

Standover Height:

776 mm

Wheelbase:

1040 mm

Reach:

390 mm

Chainstay Length:

430 mm

Seat Tube Angle:

74

BB Drop:

76 mm

Seat Tube Length:

520 mm

Head Tube Length:

165 mm

Bottom Bracket Height:

274 mm

Frame Size:

56 cm

Stem Length:

90 mm

Drop Bar Width:

42 cm

Effective Top Tube Length:

561 mm

green | 50 mm | 175,0 mm | 28" | XL:

Head Tube Angle:

71.5

Stack:

610 mm

Standover Height:

794 mm

Wheelbase:

1056 mm

Reach:

402 mm

Chainstay Length:

430 mm

Seat Tube Angle:

74

BB Drop:

76 mm

Frame Size:

58 cm

Drop Bar Width:

44 cm

Seat Tube Length:

540 mm

Head Tube Length:

180 mm

Bottom Bracket Height:

274 mm

Stem Length:

90 mm

Effective Top Tube Length:

577 mm

green | 50 mm | 175,0 mm | 28" | XXL:

Head Tube Angle:

71.5

Stack:

625 mm

Standover Height:

812 mm

Wheelbase:

1074 mm

Reach:

415 mm

Chainstay Length:

430 mm

Seat Tube Angle:

73.5

BB Drop:

76 mm

Frame Size:

60 cm

Drop Bar Width:

44 cm

Seat Tube Length:

560 mm

Head Tube Length:

195 mm

Bottom Bracket Height:

274 mm

Stem Length:

90 mm

Effective Top Tube Length:

600 mm

• green | 50 mm | 170,0 mm | 28" | XS: 740851001
• green | 50 mm | 170,0 mm | 28" | S: 740851002
• green | 50 mm | 175,0 mm | 28" | M: 740851003
• green | 50 mm | 175,0 mm | 28" | L: 740851004
• green | 50 mm | 175,0 mm | 28" | XL: 740851005
• green | 50 mm | 175,0 mm | 28" | XXL: 740851006

•


  1 × Marin Bikes Nicasio 2 28" gravel bike
