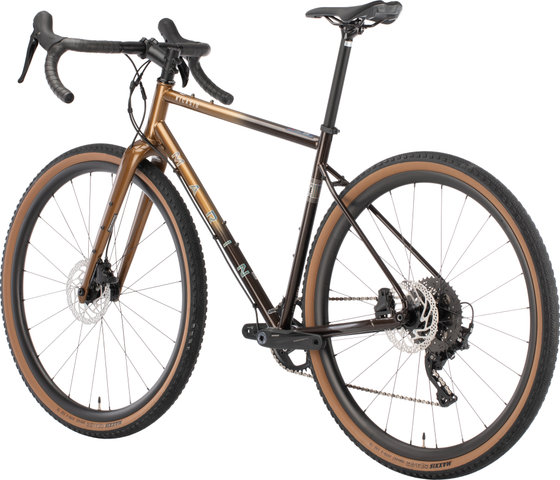

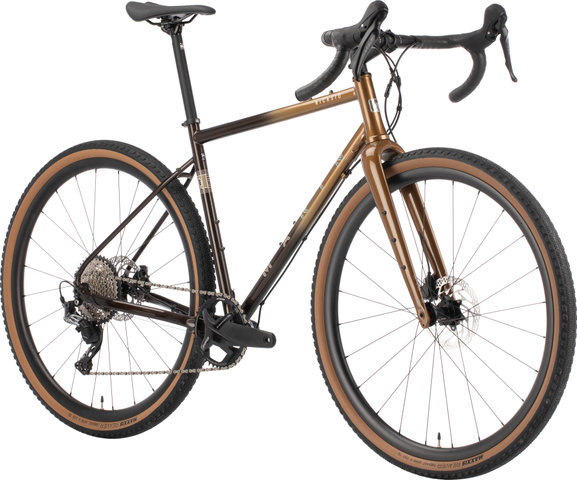

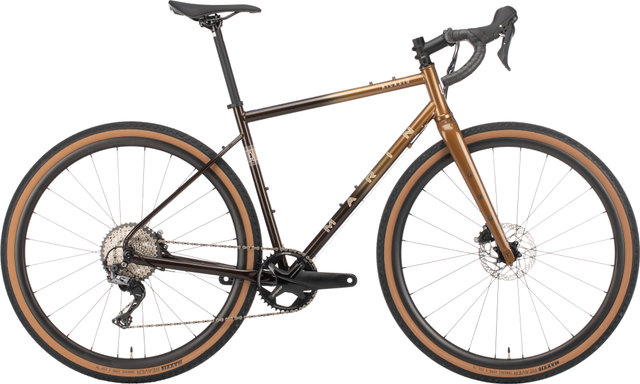

Marin Bikes Nicasio 3 28" Gravel Bike

Discover the Nicasio 3 28" gravel bike by Marin Bikes – your versatile companion for any terrain

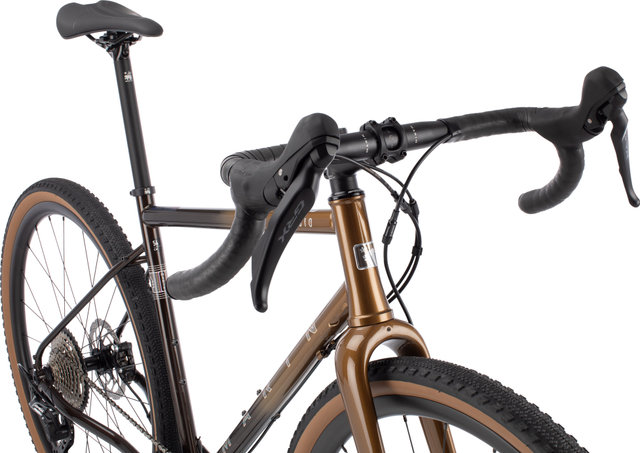

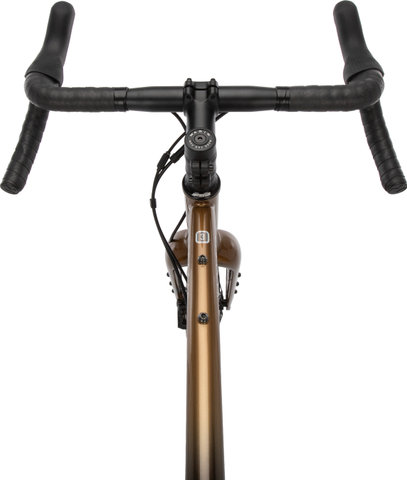

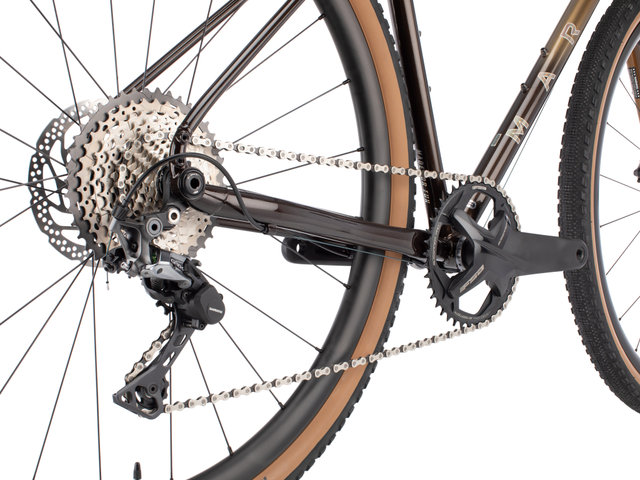

The Marin Bikes Nicasio 3 28" gravel bike is the perfect partner for your adventures beyond paved roads. With its robust CrMo steel frame and lightweight carbon fork, it offers an optimal balance of comfort and reliability on gravel tours. The Shimano GRX drivetrain with 11 speeds and the Shimano XT CS-M8000 cassette (11–42T) ensure precise shifting in any terrain, while the hydraulic Shimano GRX brakes guarantee secure control in every situation. The FSA Gossamer Pro crankset with 42 teeth is ideal for fast progress on gravel roads. The Maxxis Reaver Exo TLR tires in 700 x 45C front and rear provide excellent grip and puncture protection, making your rides more worry-free. The Marin aluminum seatpost with 27.2 mm diameter and the Marin Beyond Road Concept saddle support a comfortable riding position over long distances. With the Nicasio 3 by Marin Bikes, you are perfectly equipped to explore new routes and fully embrace your passion for gravel biking.

gold brown | XS | 28" | 170,0 mm | 50 mm:

Wheel size:

28"

Crank Arm Length:

170,0 mm

gold brown | S | 28" | 170,0 mm | 50 mm:

Wheel size:

28"

Crank Arm Length:

170,0 mm

gold brown | M | 28" | 175,0 mm | 50 mm:

Wheel size:

28"

Crank Arm Length:

175,0 mm

gold brown | L | 28" | 175,0 mm | 50 mm:

Wheel size:

28"

Crank Arm Length:

175,0 mm

gold brown | XL | 28" | 175,0 mm | 50 mm:

Crank Arm Length:

175,0 mm

Wheel size:

28"

gold brown | XXL | 28" | 175,0 mm | 50 mm:

Crank Arm Length:

175,0 mm

Wheel size:

28"

gold brown | XS | 28" | 170,0 mm | 50 mm:

Fork Offset:

50 mm

gold brown | S | 28" | 170,0 mm | 50 mm:

Fork Offset:

50 mm

gold brown | M | 28" | 175,0 mm | 50 mm:

Fork Offset:

50 mm

gold brown | L | 28" | 175,0 mm | 50 mm:

Fork Offset:

50 mm

gold brown | XL | 28" | 175,0 mm | 50 mm:

Fork Offset:

50 mm

gold brown | XXL | 28" | 175,0 mm | 50 mm:

Fork Offset:

50 mm

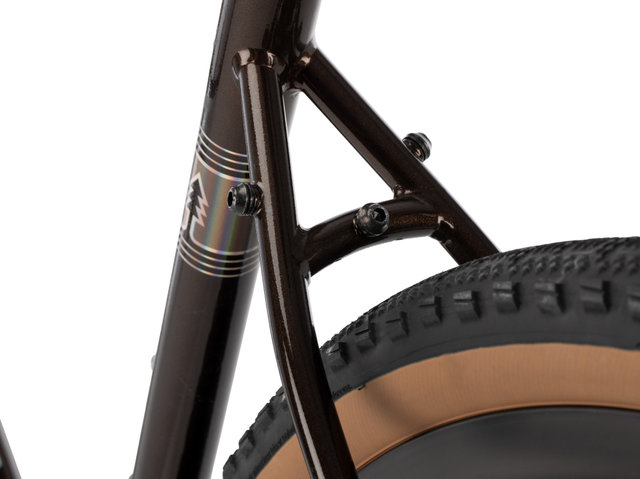

• Gravel bike with CrMo steel frame and carbon fork for gravel and touring

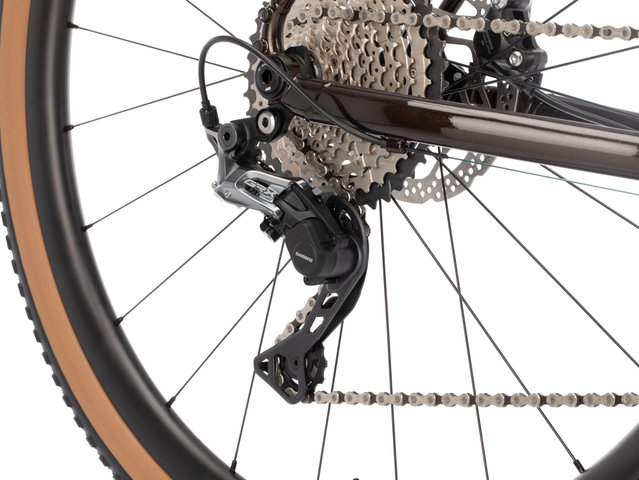

• Shimano GRX 11-speed drivetrain with Shimano XT cassette 11-42T
• Maxxis Reaver Exo TLR tires 700 x 45C tubeless ready front and rear

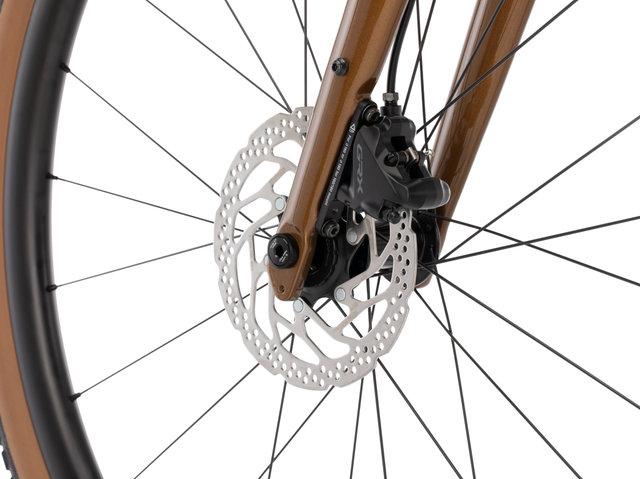

• Shimano GRX hydraulic disc brakes for controlled braking performance
• FSA Gossamer Pro crankset with 42 teeth for efficient power transfer
• Marin aluminum seatpost and Beyond Road Concept saddle for long-distance comfort

gold brown | XS | 28" | 170,0 mm | 50 mm:

Head Tube Angle:

70.5

Stack:

550 mm

Standover Height:

720 mm

Wheelbase:

1017 mm

Reach:

372 mm

Chainstay Length:

430 mm

Seat Tube Angle:

74.5

BB Drop:

76 mm

Frame Size:

50 cm

Drop Bar Width:

40 cm

Seat Tube Length:

460 mm

Head Tube Length:

120 mm

Stem Length:

75 mm

Bottom Bracket Height:

274 mm

Effective Top Tube Length:

525 mm

gold brown | S | 28" | 170,0 mm | 50 mm:

Head Tube Angle:

71.5

Stack:

568 mm

Standover Height:

739 mm

Wheelbase:

1015 mm

Reach:

372 mm

Chainstay Length:

430 mm

Seat Tube Angle:

74

BB Drop:

76 mm

Frame Size:

52 cm

Drop Bar Width:

42 cm

Seat Tube Length:

480 mm

Head Tube Length:

135 mm

Bottom Bracket Height:

274 mm

Stem Length:

70 mm

Effective Top Tube Length:

538 mm

gold brown | M | 28" | 175,0 mm | 50 mm:

Head Tube Angle:

71.5

Stack:

582 mm

Standover Height:

758 mm

Wheelbase:

1024 mm

Reach:

380 mm

Chainstay Length:

430 mm

Seat Tube Angle:

73.5

BB Drop:

76 mm

Frame Size:

54 cm

Drop Bar Width:

42 cm

Seat Tube Length:

500 mm

Head Tube Length:

150 mm

Stem Length:

90 mm

Bottom Bracket Height:

276 mm

Effective Top Tube Length:

550 mm

gold brown | L | 28" | 175,0 mm | 50 mm:

Head Tube Angle:

71.5

Stack:

596 mm

Standover Height:

776 mm

Wheelbase:

1040 mm

Reach:

390 mm

Chainstay Length:

430 mm

Seat Tube Angle:

74

BB Drop:

76 mm

Frame Size:

56 cm

Drop Bar Width:

42 cm

Seat Tube Length:

520 mm

Head Tube Length:

165 mm

Stem Length:

90 mm

Bottom Bracket Height:

274 mm

Effective Top Tube Length:

561 mm

gold brown | XL | 28" | 175,0 mm | 50 mm:

Head Tube Angle:

71.5

Stack:

610 mm

Standover Height:

794 mm

Wheelbase:

1056 mm

Reach:

402 mm

Chainstay Length:

430 mm

Seat Tube Angle:

74

BB Drop:

76 mm

Bottom Bracket Height:

274 mm

Drop Bar Width:

44 cm

Seat Tube Length:

540 mm

Head Tube Length:

190 mm

Frame Size:

58 cm

Stem Length:

90 mm

Effective Top Tube Length:

577 mm

gold brown | XXL | 28" | 175,0 mm | 50 mm:

Head Tube Angle:

71.5

Stack:

625 mm

Standover Height:

812 mm

Wheelbase:

1074 mm

Reach:

415 mm

Chainstay Length:

430 mm

Seat Tube Angle:

73.5

BB Drop:

76 mm

Drop Bar Width:

44 cm

Seat Tube Length:

560 mm

Head Tube Length:

195 mm

Bottom Bracket Height:

274 mm

Frame Size:

60 cm

Stem Length:

90 mm

Effective Top Tube Length:

600 mm

• gold brown | XS | 28" | 170,0 mm | 50 mm: 741157001
• gold brown | S | 28" | 170,0 mm | 50 mm: 741157002
• gold brown | M | 28" | 175,0 mm | 50 mm: 741157003
• gold brown | L | 28" | 175,0 mm | 50 mm: 741157004
• gold brown | XL | 28" | 175,0 mm | 50 mm: 741157005
• gold brown | XXL | 28" | 175,0 mm | 50 mm: 741157006

•

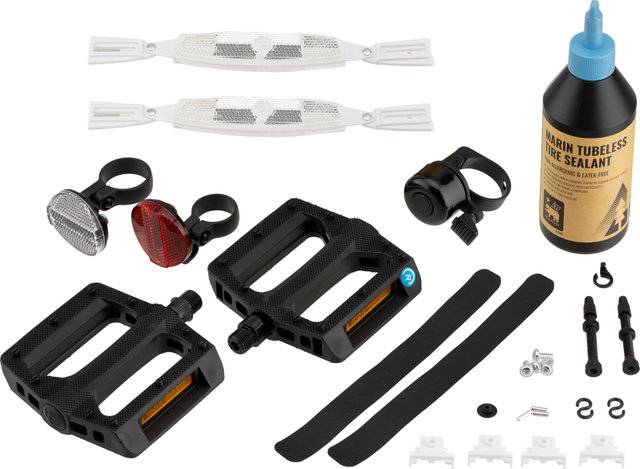

  1 × Marin Bikes Nicasio 28" gravel bike
