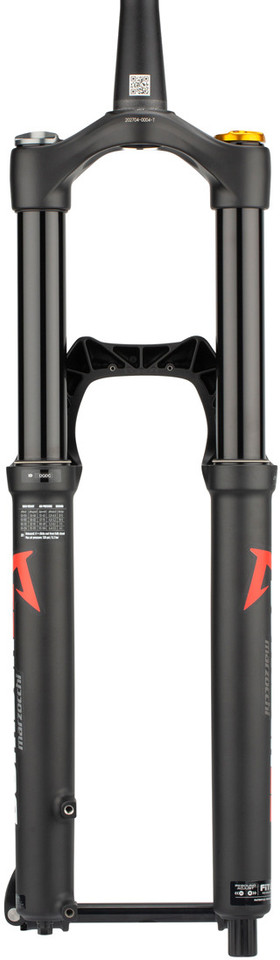

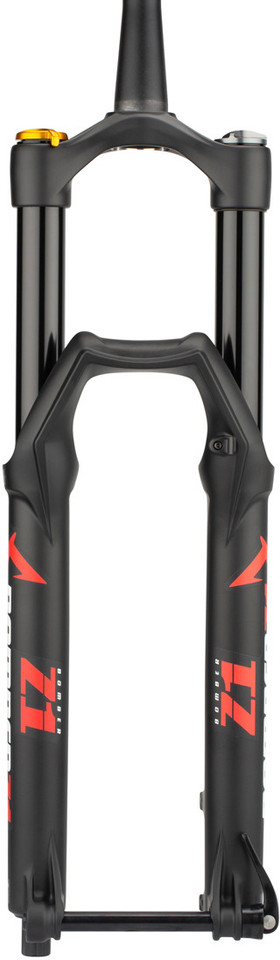

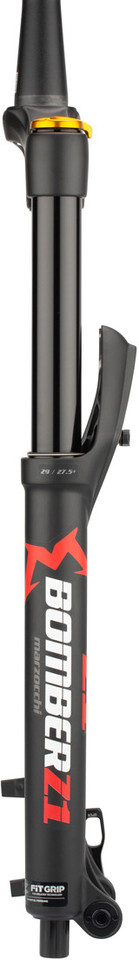

Marzocchi Bomber Z1 29" Boost Suspension Fork

With the Bomber Z1 29" Boost suspension fork by Marzocchi, a legend returns

The Marzocchi Bomber Z1 29" Boost suspension fork returns with black 36 mm thick stanchions and a travel from 140 mm to 170 mm. When it comes to suspension, Marzocchi relies on the EVOL air spring with increased air chamber volume and the volume spacer click system to adjust the progression of the double crown fork, with its typical M fork crown. The Grip Sweep damping system is used on the damper side, with externally adjustable low-speed compression and rebound. Adjust the Bomber Z1 suspension fork to suit your needs.

Specifications:

Application:

All Mountain, Enduro

Wheel Size:

29"

Suspension Type:

air

Travel:

140 mm, 150 mm, 160 mm, 170 mm

Steerer Tube:

1 1/8" - 1.5" tapered

Axle Type:

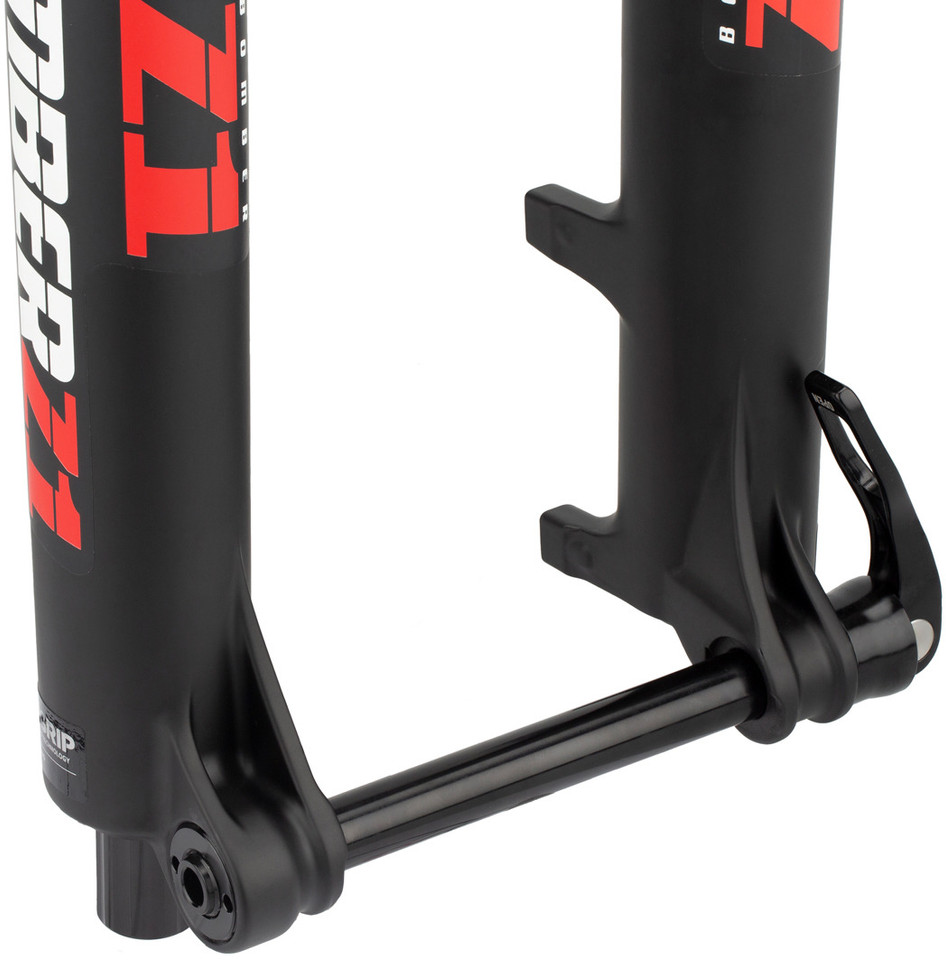

thru-axle with quick release lever (15 x 110 mm)

Brake Mount:

disc PM 7" (direct mount 180 mm)

Technical Information:

Offset:

44 mm, 51 mm

Steerer Tube Length:

263 mm

Steerer Tube Diameter (Stem):

28.6 mm

Steerer Tube Diameter (Crown Race):

40 mm

Axle to Crown:

547.1 mm (at 140 mm), 557.1 mm (at 150 mm), 567.1 mm (at 160 mm), 577.1 mm (at 170 mm)

Over Locknut Dimension:

110 mm

Stanchion Tube Diameter:

36 mm

Steerer Tube Material:

aluminium

Crown Material:

aluminium

Stanchion Tube Material:

aluminium

Lower Tube Material:

magnesium

Dropout Material:

aluminium

Adjustment Options:

Compression:

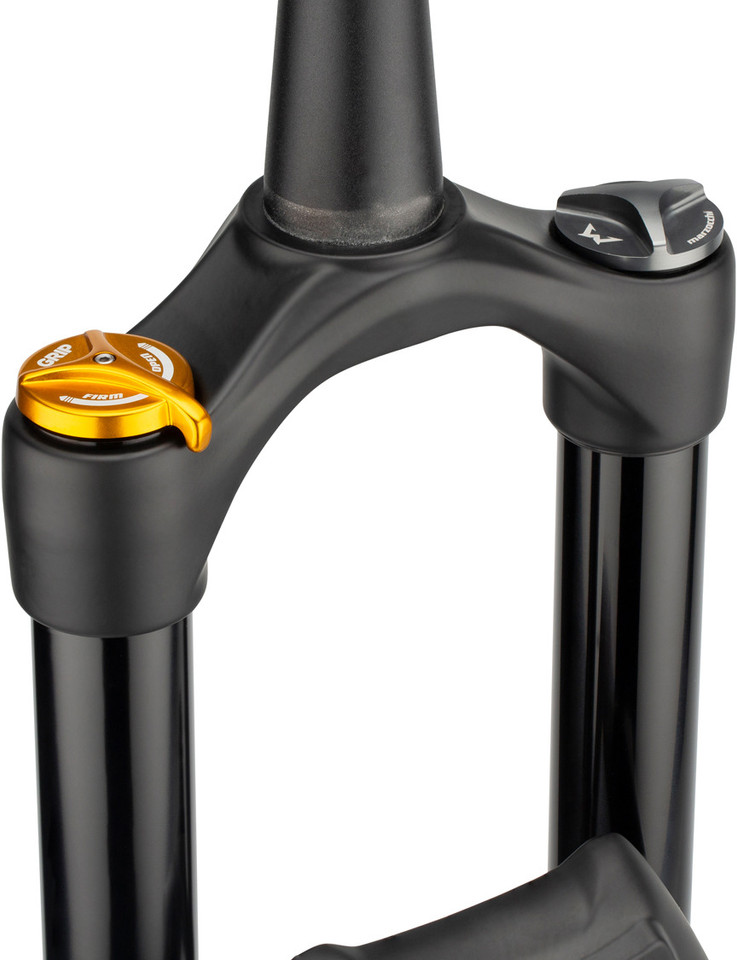

2-position Sweep Adjust (Open, Firm)

Rebound:

yes

Suspension Stiffness:

air pressure adjust

Remote:

no

Travel Adjustment:

no

Approved For:

Tyre Size (max.):

29 x 2.5" , 27.5 x 3.0"

Note:

From a tyre size of 29 x 2.5" or 27.5 x 3.0" the tyre clearance must be checked with the fork fully compressed. It should be at least 8 mm measured from the fork crown.

Rotor Size (max.):

203 mm

Features:

• Grip Sweep damping with adjustable rebound and infinitely adjustable low-speed compression stage
• Float EVOL air spring with increased air chamber volume for smooth response
• black anodised stanchion tubes

Technology:

Grip:
Inspired by motocross technology, the Grip damper cartridge works with a spring-loaded, independently operating floating piston. Grip technology allows excess damping oil to flow through ports at the top of the damper, ensuring even damping and increasing durability.

Float Air Spring:
Patented air transfer port system: The float air suspension system reduces the breakaway torque and thus offers a highly sensitive fork and full comfort even with small impacts. And that for every type of rider and at the most varied air pressure. Similar to the Float suspension rear shocks, the Float suspension system is characterised by a positive and a negative air chamber, which automatically balance each other out when riding.

Air Volume Spacers:
The Float air suspension of the forks can be finely adjusted by using volume spacers to adjust the suspension elements more progressively or less progressively. This allows the rider to fine-tune the suspension exactly to their needs.

Models:

matte black / 140 mm / 1.5" tapered / 15 x 110 mm / 44 mm:

• Suspension Travel: 140 mm
• Steerer Tube: 1 1/8" - 1.5" tapered
• Flow: 44 mm
• Brake Mount: Disc PM 7" (direct mount 180 mm)
• Axle Type: thru-axle with quick release lever (15 x 110 mm)
• Manufacturer Number: 912-01-044

matte black / 140 mm / 1.5" tapered / 15 x 110 mm / 51 mm:

• Suspension Travel: 140 mm
• Steerer Tube: 1 1/8" - 1.5" tapered
• Flow: 51 mm
• Brake Mount: Disc PM 7" (direct mount 180 mm)
• Axle Type: thru-axle with quick release lever (15 x 110 mm)
• Manufacturer Number: 912-01-045

matte black / 150 mm / 1.5" tapered / 15 x 110 mm / 44 mm:

• Suspension Travel: 150 mm
• Steerer Tube: 1 1/8" - 1.5" tapered
• Flow: 44 mm
• Brake Mount: Disc PM 7" (direct mount 180 mm)
• Axle Type: thru-axle with quick release lever (15 x 110 mm)
• Manufacturer Number: 912-01-046

matte black / 150 mm / 1.5" tapered / 15 x 110 mm / 51 mm:

• Suspension Travel: 150 mm
• Steerer Tube: 1 1/8" - 1.5" tapered
• Flow: 51 mm
• Brake Mount: Disc PM 7" (direct mount 180 mm)
• Axle Type: thru-axle with quick release lever (15 x 110 mm)
• Manufacturer Number: 912-01-047

matte black / 160 mm / 1.5" tapered / 15 x 110 mm / 44 mm:

• Suspension Travel: 160 mm
• Steerer Tube: 1 1/8" - 1.5" tapered
• Flow: 44 mm
• Brake Mount: Disc PM 7" (direct mount 180 mm)
• Axle Type: thru-axle with quick release lever (15 x 110 mm)
• Manufacturer Number: 912-01-048

matte black / 160 mm / 1.5" tapered / 15 x 110 mm / 51 mm:

• Suspension Travel: 160 mm
• Steerer Tube: 1 1/8" - 1.5" tapered
• Flow: 51 mm
• Brake Mount: Disc PM 7" (direct mount 180 mm)
• Axle Type: thru-axle with quick release lever (15 x 110 mm)
• Manufacturer Number: 912-01-049

matte black / 170 mm / 1.5" tapered / 15 x 110 mm / 44 mm:

• Suspension Travel: 170 mm
• Steerer Tube: 1 1/8" - 1.5" tapered
• Flow: 44 mm
• Brake Mount: Disc PM 7" (direct mount 180 mm)
• Axle Type: thru-axle with quick release lever (15 x 110 mm)
• Manufacturer Number: 912-01-050

gloss red / 170 mm / 1.5" tapered / 15 x 110 mm / 44 mm:

• Suspension Travel: 170 mm
• Steerer Tube: 1 1/8" - 1.5" tapered
• Flow: 44 mm
• Brake Mount: Disc PM 7" (direct mount 180 mm)
• Axle Type: thru-axle with quick release lever (15 x 110 mm)
• Manufacturer Number: 912-01-040

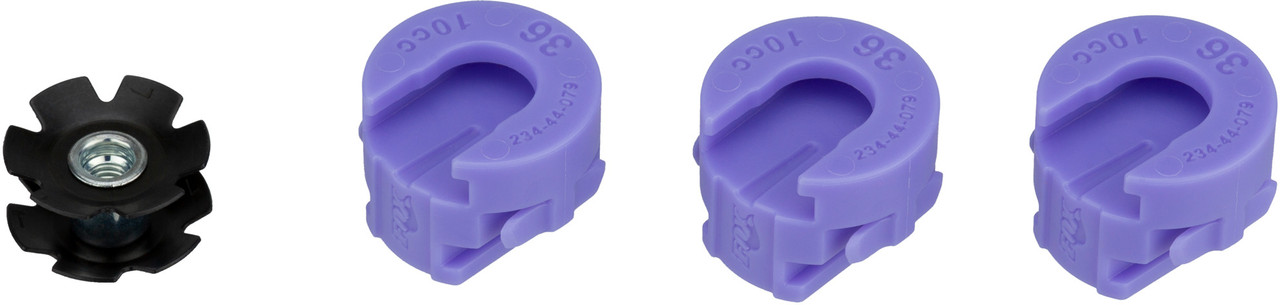

Contents:

• 1 x Marzocchi Bomber Z1 suspension fork
• 1 x Marzocchi 15 x 110 mm thru-axle
• 1 x star nut
• 3 x volume spacer
