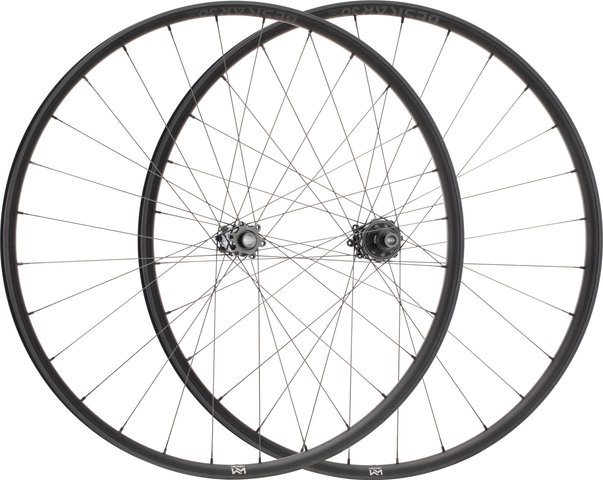

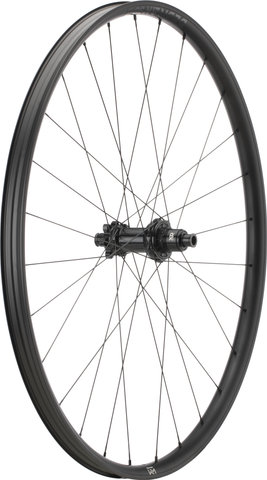

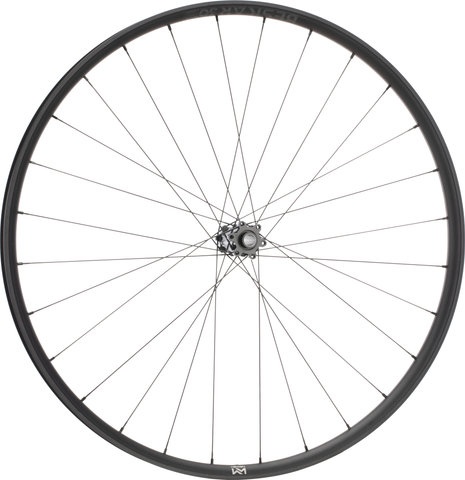

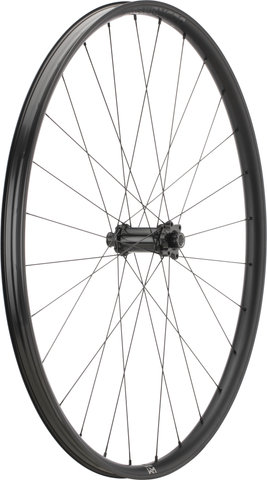

NEWMEN Beskar 30 XC 29" Wheelset
Product Description
Discover the Ultimate Ride with the Beskar 30 XC 29" Wheelset by NEWMEN for MTB Cross Country
Elevate your cross-country mountain biking experience with the Beskar 30 XC 29" Wheelset by NEWMEN, designed specifically for the rigors and thrills of MTB application. Crafted with precision, this wheelset features a robust aluminum rim construction, ensuring durability and performance on the most challenging terrains. The 3-cross spoke pattern on both front and rear wheels, combined with Sapim straightpull spokes, offers an optimal balance of strength and weight, making your climbs easier and descents more controlled. The NEWMEN FADE hubs, equipped with double-sealed deep groove ball bearings, provide a smooth and reliable rotation, reducing friction and enhancing your overall ride quality. With a tubeless-ready design, this wheelset allows for lower tire pressures, improving traction and comfort while reducing the risk of punctures. The disc 6-bolt brake system compatibility ensures powerful and consistent braking performance in all weather conditions. Ideal for e-bikes and pedelecs up to 25 km/h, this wheelset supports a wide range of cycling adventures. The 30mm inner rim width is perfect for clincher or folding tires, offering great versatility and the ability to tackle a variety of trails. Whether you're competing in races or exploring new trails, the Beskar 30 XC 29" Wheelset by NEWMEN is your companion for achieving peak performance and enjoying the great outdoors.
Guidelines for Replacing E-bike Components:
Product Specifications:
- Rim material:
- Aluminum
- Tubeless system:
- Tubeless Ready
- Brake system:
- Disc 6-bolt
- Rim flange:
- With hook
- Tire type:
- Clincher tire/folding tire
- Number of spokes:
- 28
- Valve hole (diameter):
- SV (6.5 mm)
- ERD (Effective Rim Diameter):
- 599 mm
- Inner rim width:
- 30 - 30 mm
- Application:
- Cross Country, MTB
black | Shimano Micro Spline | Boost | 110 mm | 29" | 148 mm | Boost:
- Rear Wheel Standard:
- Boost
- Wheel size:
- 29"
- Dimension (ETRTO):
- 30-622
- Front Wheel Standard:
- Boost
black | SRAM XD | Boost | 110 mm | 29" | 148 mm | Boost:
- Rear Wheel Standard:
- Boost
- Wheel size:
- 29"
- Dimension (ETRTO):
- 30-622
- Front Wheel Standard:
- Boost
black | Shimano MTB | Boost | 110 mm | 29" | 148 mm | Boost:
- Rear Wheel Standard:
- Boost
- Dimension (ETRTO):
- 30-622
- Wheel size:
- 29"
- Front Wheel Standard:
- Boost
Technical Information:
- Rear hub shell material:
- Aluminum
- Nipple size:
- 16 mm (length) / 2 mm (diameter)
- Spoke size:
- 306 mm
- Nipple type/construction:
- Sapim Polyax Double Square
- Rear hub bearings:
- 4 double-sealed deep groove ball bearings
- Front hub type:
- NEWMEN FADE
- Front hub bearings:
- 2 double-sealed deep groove ball bearings
- Front hub shell material:
- Aluminum

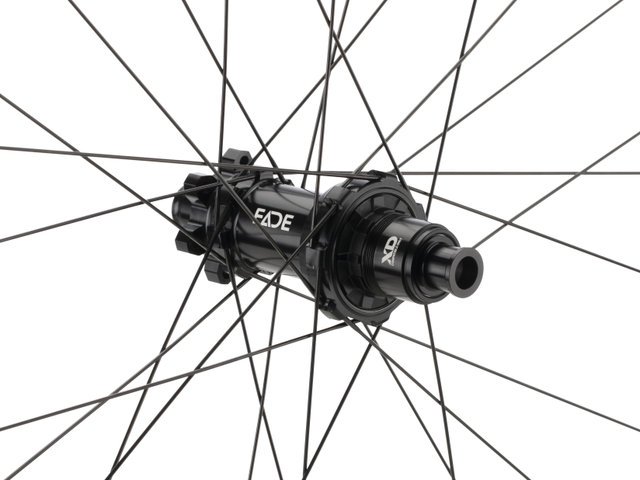

- Rear hub type:
- NEWMEN FADE
- Freehub type:
- 3 pawls, 36 engagement points
- Spoke material:
- Stainless steel
- Rear freehub body material:
- Aluminum
- Rear spoke pattern:
- 3-cross
- Front spoke pattern:
- 3-cross
- Spoke type/construction:
- Sapim / Straightpull (2.0-1.5-2.0)
- Rim type:
- Beskar 30 light
black | Shimano Micro Spline | Boost | 110 mm | 29" | 148 mm | Boost:
- Freehub:
- Shimano Micro Spline
- Gear steps:
- 12-speed
- Axle diameter rear:
- 12 mm
- Front installation width:
- 110 mm
- Rear installation width:
- 148 mm
- Axle diameter front:
- 15 mm
black | SRAM XD | Boost | 110 mm | 29" | 148 mm | Boost:
- Freehub:
- SRAM XD
- Gear steps:
- 11-/12-speed
- Front installation width:
- 110 mm
- Rear installation width:
- 148 mm
- Axle diameter rear:
- 12 mm
- Axle diameter front:
- 15 mm
black | Shimano MTB | Boost | 110 mm | 29" | 148 mm | Boost:
- Freehub:
- Shimano MTB
- Gear steps:
- 8-/9-/10-/11-speed
- Axle diameter rear:
- 12 mm
- Front installation width:
- 110 mm
- Rear installation width:
- 148 mm
- Axle diameter front:
- 15 mm
Product Features:
- A high-performance Beskar 30 XC 29" Wheelset designed for MTB and Cross Country, featuring robust aluminum rims and NEWMEN FADE hubs for superior durability and ride quality.
- Equipped with 3-cross spoke pattern on both front and rear for enhanced stability and strength during aggressive riding.
- Features Sapim Polyax Double Square nipples and straightpull spokes (2.0-1.5-2.0) for a reliable and efficient wheel build.
- Utilizes 4 double-sealed deep groove ball bearings in the rear hub and 2 in the front hub, ensuring smooth rotation and longevity.
- Compatible with E-Bikes & Pedelecs up to 25 km/h, making it a versatile choice for a variety of electric bikes.
- Tubeless Ready with a rim flange designed to hook clincher or folding tires securely, facilitating an easy and secure tubeless setup.
Contents:
- 1 x NEWMEN Beskar 30 XC 29" wheelset (front and rear wheel)
- including Tubeless kit
