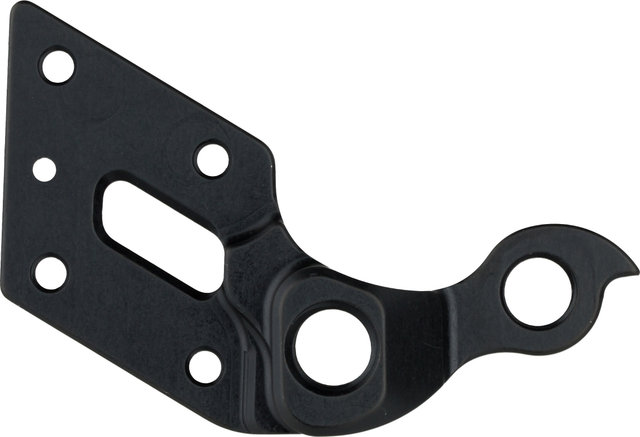

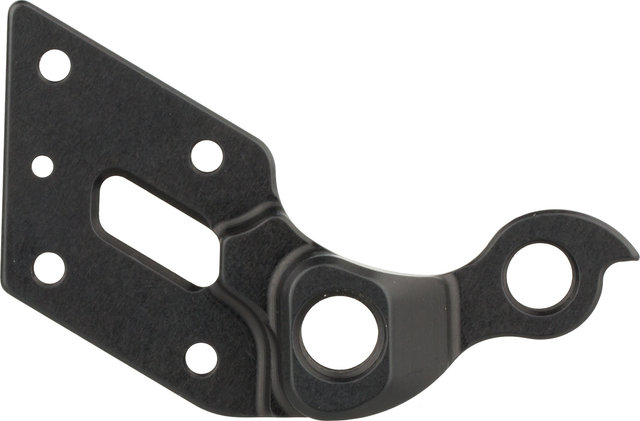

Nicolai Dropout for Argon AM

Right Aligning DropOut) is a form-locking, replaceable dropout for wheel alignment and camber setting. Due to the differently milled right-hand dropouts for adjusting the camber, the rear end only has to be adjusted minimally after assembly. This relieves the material. The respective camber height is milled into the RADO with the figures +2, +1, 0, -1 and -2. After the wheel and camber have been set, the RADO is fixed with a pin outside of the factory. This allows the original setting to easily be reproduced during replacement. Only this guarantees that Nicolai products can function precisely along the route.

Note:
You can find the required correction value for your bike on the inside of the currently built RADO dropout.

Specifications:

Over Locknut Dimension: 10 x 135 mm quick release / 12 x 142 mm thru-axle
Type: fixed / slide
Position: drive side / non-drive side
Mount: with rear derailleur mount / with disc PM 7" / without mount
Compatibility: Nicolai Argon AM
Material: aluminium (CNC machined)

Models:

Type 1:
- Over Locknut Dimension: 12 x 142 mm thru-axle
- Type: fixed
- Camber: 0
- Position: drive side
- Mount: with rear derailleur mount
- Factory Number: 52100301

Type 2:
- Over Locknut Dimension: 12 x 142 mm thru-axle
- Type: fixed
- Camber: +1
- Position: drive side
- Mount: with rear derailleur mount
- Factory Number: 52100311

Type 3:
- Over Locknut Dimension: 12 x 142 mm thru-axle
- Type: fixed
- Camber: -1
- Position: drive side
- Mount: with rear derailleur mount
- Factory Number: 52100331

Type 4:
- Over Locknut Dimension: 12 x 142 mm thru-axle
- Type: fixed
- Camber: -2
- Position: drive side
- Mount: with rear derailleur mount
- Factory Number: 52100341

Type 5:
- Over Locknut Dimension: 12 x 142 mm thru-axle
- Type: slide
- Camber: -
- Position: non drive side
- Mount: with PM 7" (direct mount 180 mm) brake mount
- Factory Number: 52100161

Type 6:
- Over Locknut Dimension: 12 x 142 mm thru-axle
- Type: slide
- Camber: 0
- Position: drive side
- Mount: with rear derailleur mount
- Factory Number: 52100171

Type 7:
- Over Locknut Dimension: 12 x 142 mm thru-axle
- Type: slide
- Camber: +1
- Position: drive side
- Mount: with rear derailleur mount
- Factory Number: 52100181

Type 8:
- Over Locknut Dimension: 12 x 142 mm thru-axle
- Type: slide
- Camber: -1
- Position: drive side
- Mount: with rear derailleur mount
- Factory Number: 52100201

Type 9:
- Over Locknut Dimension: 12 x 142 mm thru-axle
- Type: slide
- Camber: 0
- Position: drive side
- Mount: without rear derailleur mount
- Factory Number: 52100221

Type 10:
- Over Locknut Dimension: 12 x 142 mm thru-axle
- Type: slide
- Camber: +1
- Position: drive side
- Mount: without rear derailleur mount
- Factory Number: 52100231

Type 11:
- Over Locknut Dimension: 12 x 142 mm thru-axle
- Type: slide
- Camber: -1
- Position: drive side
- Mount: without rear derailleur mount
- Factory Number: 52100251

Type 12:
- Over Locknut Dimension: 10 x 135 mm quick release
- Type: slide
- Camber: 0
- Position: non drive side
- Mount: with international standard brake mount
- Factory Number: 52100001

Type 13:
- Over Locknut Dimension: 10 x 135 mm quick release
- Type: slide
- Camber: +1
- Position: non drive side
- Mount: with international standard brake mount
- Factory Number: 52100081

Type 14:
- Over Locknut Dimension: 10 x 135 mm quick release
- Type: slide
- Camber: +2
- Position: non drive side
- Mount: with international standard brake mount
- Factory Number: 52100091

Type 15:
- Over Locknut Dimension: 10 x 135 mm quick release
- Type: slide
- Camber: 0
- Position: non drive side
- Mount: without brake mount
- Factory Number: 52100101

Type 16:
- Over Locknut Dimension: 10 x 135 mm quick release
- Type: slide
- Camber: 0
- Position: drive side
- Mount: without rear derailleur mount
- Factory Number: 52100061

Type 17:
- Over Locknut Dimension: 10 x 135 mm quick release
- Type: slide
- Camber: +1
- Position: drive side
- Mount: without rear derailleur mount
- Factory Number: 52100071

Type 18:
- Over Locknut Dimension: 10 x 135 mm quick release
- Type: slide
- Camber: 0
- Position: drive side
- Mount: with rear derailleur mount
- Factory Number: 52100011

Type 19:
- Over Locknut Dimension: 10 x 135 mm quick release
- Type: slide
- Camber: +1
- Position: drive side
- Mount: with rear derailleur mount
- Factory Number: 52100021

Contents:

- 1 x Nicolai dropout
- not incl. bolts
