Nicolai Dropout for Argon GTB

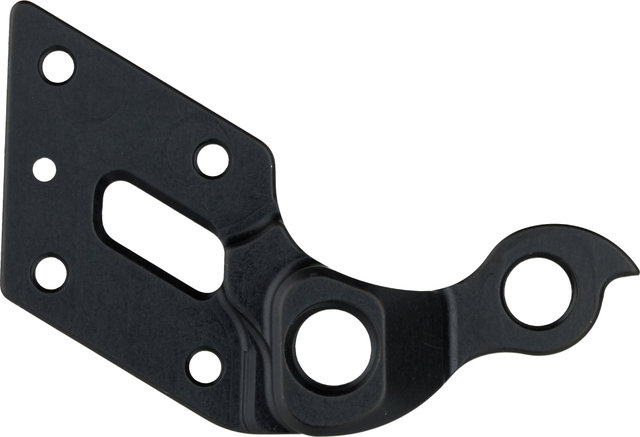

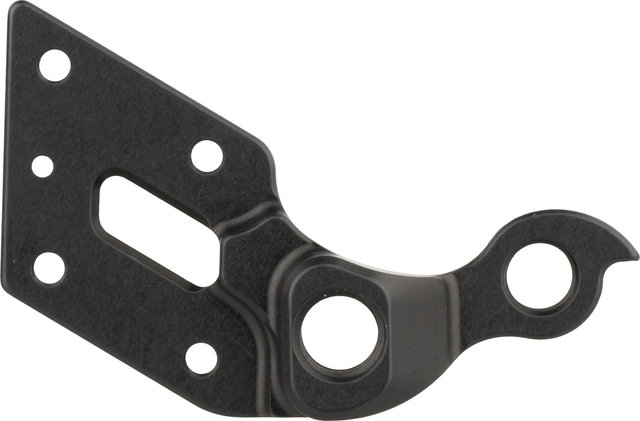

The Nicolai Argon RADO (Right Aligning DropOut) is a form-fit, interchangeable drop-out for toe and camber adjustment. Due to the distinctly-milled right dropouts for adjusting the camber, the rear only needs to be slightly readjusted after assembly, which relieves the strain on the material. The respective camber height is milled into the RADO with values +2, +1, 0 or -1 and -2. After the toe and camber have been adjusted, the RADO is fixed with a pin at the factory. This means that the original setting can be easily reproduced when replacing it. This is the only way the manufacturer can guarantee that Nicolai products function precisely on tracks.

Note:
You can find the required correction value for your bike on the inside of the currently built RADO dropout.

Specifications:

Over Locknut Dimension:

12 x 148 mm thru-axle

Type:

fixed / slide

Position:

drive side / non-drive side

Mount:

with rear derailleur mount / with disc PM 7" / without mount

Compatibility:

Nicolai Argon GTB

Material:

aluminium (CNC machined)

Models:

Type 1:

• Type: fixed
• Camber: 0
• Position: drive side
• Mount: with rear derailleur mount
• Manufacturer Number: 52100301

Type 2:

• Type: fixed
• Camber: +1
• Position: drive side
• Mount: with rear derailleur mount
• Manufacturer Number: 52100311

Type 3:

• Type: fixed
• Camber: -1
• Position: drive side
• Mount: with rear derailleur mount
• Manufacturer Number: 52100331

Type 4:

• Type: fixed
• Camber: -2
• Position: drive side
• Mount: with rear derailleur mount
• Manufacturer Number: 52100341

Type 5:

• Type: slide
• Camber: -
• Position: non-drivetrain side
• Mount: with PM 7" (direct mount 180 mm) brake mount
• Manufacturer Number: 52100161

Type 6:

• Type: slide
• Camber: 0
• Position: drive side
• Mount: with rear derailleur mount
• Manufacturer Number: 52100171

Type 7:

• Type: slide
• Camber: +1
• Position: drive side
• Mount: with rear derailleur mount
• Manufacturer Number: 52100181

Type 8:

• Type: slide
• Camber: -1
• Position: drive side
• Mount: with rear derailleur mount
• Manufacturer Number: 52100201

Type 9:

• Type: slide
• Camber: 0
• Position: drive side
• Mount: without rear derailleur mount
• Manufacturer Number: 52100221

Type 10:

• Type: slide
• Camber: +1
• Position: drive side
• Mount: without rear derailleur mount
• Manufacturer Number: 52100231

Type 11:

• Type: slide
• Camber: -1
• Position: drive side
• Mount: without rear derailleur mount
• Manufacturer Number: 52100251

Contents:

• 1 x Nicolai dropout
• not incl. bolts
