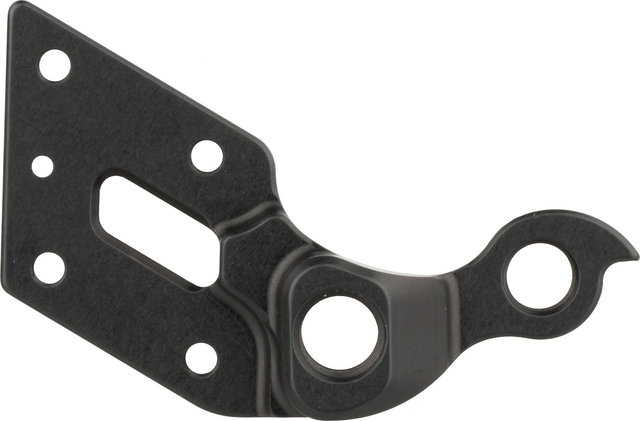

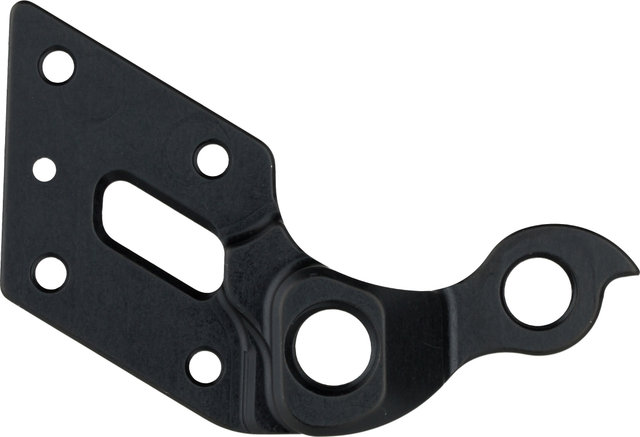

Nicolai Dropout for Argon TR

The Nicolai Argon RADO (Right Aligning DropOut) is a form-fit, interchangeable drop-out for toe and camber adjustment. Due to the distinctly-milled right dropouts for adjusting the camber, the rear only needs to be slightly readjusted after assembly, which relieves the strain on the material. The respective camber height is milled into the RADO with values +2, +1, 0 or -1 and -2. After the toe and camber have been adjusted, the RADO is fixed with a pin at the factory. This means that the original setting can be easily reproduced when replacing it. This is the only way the manufacturer can guarantee that Nicolai products function precisely on tracks.

Note:
You can find the required correction value for your bike on the inside of the currently built RADO dropout.

Specifications:

Over Locknut Dimension:

10 x 135 mm quick release / 12 x 142 mm thru-axle

Type:

fixed / slide

Position:

drive side / non-drive side

Mount:

with rear derailleur mount / with disc PM 7" / without mount

Compatibility:

Nicolai Argon AM

Material:

aluminium (CNC machined)

Models:

Type 1:

• Over Locknut Dimension: 12 x 142 mm thru-axle
• Type: fixed
• Camber: 0
• Position: drive side
• Mount: with rear derailleur mount
• Manufacturer Number: 52100301

Type 2:

• Over Locknut Dimension: 12 x 142 mm thru-axle
• Type: fixed
• Camber: +1
• Position: drive side
• Mount: with rear derailleur mount
• Manufacturer Number: 52100311

Type 3:

• Over Locknut Dimension: 12 x 142 mm thru-axle
• Type: fixed
• Camber: -1
• Position: drive side
• Mount: with rear derailleur mount
• Manufacturer Number: 52100331

Type 4:

• Over Locknut Dimension: 12 x 142 mm thru-axle
• Type: fixed
• Camber: -2
• Position: drive side
• Mount: with rear derailleur mount
• Manufacturer Number: 52100341

Type 5:

• Over Locknut Dimension: 12 x 142 mm thru-axle
• Type: slide
• Camber: -
• Position: non-drivetrain side
• Mount: with PM 7" (direct mount 180 mm) brake mount
• Manufacturer Number: 52100161

Type 6:

• Over Locknut Dimension: 12 x 142 mm thru-axle
• Type: slide
• Camber: 0
• Position: drive side
• Mount: with rear derailleur mount
• Manufacturer Number: 52100171

Type 7:

• Over Locknut Dimension: 12 x 142 mm thru-axle
• Type: slide
• Camber: +1
• Position: drive side
• Mount: with rear derailleur mount
• Manufacturer Number: 52100181

Type 8:

• Over Locknut Dimension: 12 x 142 mm thru-axle
• Type: slide
• Camber: -1
• Position: drive side
• Mount: with rear derailleur mount
• Manufacturer Number: 52100201

Type 9:

• Over Locknut Dimension: 12 x 142 mm thru-axle
• Type: slide
• Camber: 0
• Position: drive side
• Mount: without rear derailleur mount
• Manufacturer Number: 52100221

Type 10:

• Over Locknut Dimension: 12 x 142 mm thru-axle
• Type: slide
• Camber: +1
• Position: drive side
• Mount: without rear derailleur mount
• Manufacturer Number: 52100231

Type 11:

• Over Locknut Dimension: 12 x 142 mm thru-axle
• Type: slide
• Camber: -1
• Position: drive side
• Mount: without rear derailleur mount
• Manufacturer Number: 52100251

Type 12:

• Over Locknut Dimension: 10 x 135 mm quick release
• Type: slide
• Camber: 0
• Position: non-drivetrain side
• Mount: with international standard brake mount
• Manufacturer Number: 52100001

Type 13:

• Over Locknut Dimension: 10 x 135 mm quick release
• Type: slide
• Camber: +1
• Position: non-drivetrain side
• Mount: with international standard brake mount
• Manufacturer Number: 52100081

Type 14:

• Over Locknut Dimension: 10 x 135 mm quick release
• Type: slide
• Camber: +2
• Position: non-drivetrain side
• Mount: with international standard brake mount
• Manufacturer Number: 52100091

Type 15:

• Over Locknut Dimension: 10 x 135 mm quick release
• Type: slide
• Camber: 0
• Position: non-drivetrain side
• Mount: without brake mount
• Manufacturer Number: 52100101

Type 16:

• Over Locknut Dimension: 10 x 135 mm quick release
• Type: slide
• Camber: 0
• Position: drive side
• Mount: without rear derailleur mount
• Manufacturer Number: 52100061

Type 17:

• Over Locknut Dimension: 10 x 135 mm quick release
• Type: slide
• Camber: +1
• Position: drive side
• Mount: without rear derailleur mount
• Manufacturer Number: 52100071

Type 18:

• Over Locknut Dimension: 10 x 135 mm quick release
• Type: slide
• Camber: 0
• Position: drive side
• Mount: with rear derailleur mount
• Manufacturer Number: 52100011

Type 19:

• Over Locknut Dimension: 10 x 135 mm quick release
• Type: slide
• Camber: +1
• Position: drive side
• Mount: with rear derailleur mount
• Manufacturer Number: 52100021

Contents:

• 1 x Nicolai dropout
• not incl. bolts
