OPEN U-turn Rigid fork

The very first flat mount fork without adapter: the U-turn Fork by OPEN

The U-turn fork is extremely light (370 g for black matt without paint) and designed for flat mount brakes without the need for an adapter. The design of this fork is also something special with the visible, clearly exposed bolt heads.

Specifications:

Application:

Gravel

Wheel Size:

28"

Steerer Tube:

1 1/8" - 1.5" tapered

Axle Type:

12 x 100 mm thru-axle

Brake Mount:

Flat

Technical Information:

Offset:

50 mm

Axle to Crown:

395 mm

Over Locknut Dimension:

100 mm

Crown Race Diameter:

40 mm

Steerer Tube Material:

Carbon

Blade Material:

Carbon

Approved For:

Tyre Size (max.):

27.5 x 2.1" , 40-622 (700x40c)

Rotor Size (max.):

160 mm (for Shimano/SRAM: use brake caliper without adapter with 30 mm bolts, for Campagnolo: use 140 mm brake caliper with 30 mm bolts)

Features:

• for flat mount without adapter
• ultra-light (coloured versions weigh 20 g more due to lacquer coating)
• axle milled from one piece of aluminium (7075) and multiple butted
• flexible tyre size

Manufacturer Numbers:

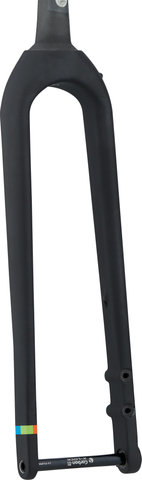

black matt:

OPENFOUTURNA

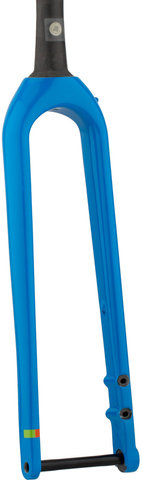

blue:

OPFOUTURNBLUE

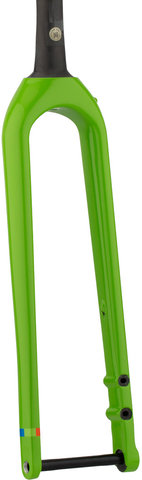

green:

OPFOUTURNG

Contents:

• 1 x OPEN U-turn rigid fork

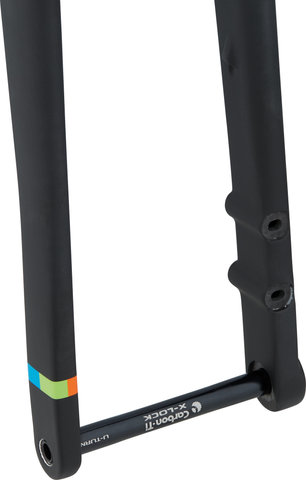

• 1 x Carbon-Ti 12 x 100 mm thru-axle

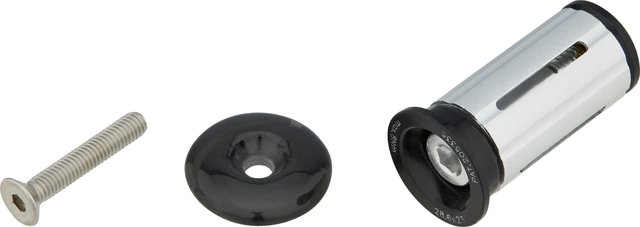

• 1 x headset expander

• black matte/27.5" (650B)/1 1/8" - 1,5" tapered/12 mm Thru Axle/100 mm/50 mm: 370 g
• blue/27.5" (650B)/1 1/8" - 1,5" tapered/12 mm Thru Axle/100 mm/50 mm: 390 g
