OneUp Components Dropper Post 27.2 V2 120 mm Seatpost V3 Remote Lever I-Spec II

OneUp Components Dropper Post V2 27.2 120 mm Seatpost - Includes V3 remote lever for I-Spec II

The OneUp Components Dropper Post V2 with 27.2 mm diameter comes here in a bundle with the V3 handlebar remote including remote clamp for mounting on a Shimano I-Spec-II. This is how you equip your cross-country, flat-bar gravel or flat-bar road bike with a mechanical dropper seatpost. The Dropper Post offers you a generous adjustment range of 120 mm with a remarkably low body height and overall length. It is lightweight and easy to install and maintain, especially as the sealed cartridge eliminates the need for a shock pump. In the enduro and all-mountain sector, this seatpost has proven its worth for years. The included V3 Remote impresses with its easy operability, a replaceable thumb pad and a convenient cable port. The force you have to exert to operate the lever has been reduced by almost 30% compared to the predecessor, the V2. This makes using your Dropper Post feel even better. In addition, there is the non-slip rubber pad on the lever, which you can get as a spare part in different colours. The handlebar remote has an integrated cable clamp with markings for shortening the cable. This facilitates installation and ensures a clean look.

Specifications:

Application:

Cross Country, Gravel, Road

Stroke:

120 mm

Diameter:

27.2 mm

Length:

395 mm

Setback:

0 mm

Technical Information:

Actuation:

mechanical handlebar remote

Remote Mount:

I-Spec II

Cable Routing:

internal

Clamp:

2-bolt clamp

Compatible Saddle Rails:

7 x 7 mm (standard), 7 x 9 mm (oval)

Material:

aluminium

Approved For:

Insertion Depth (max.):

242 mm (257 mm with actuator)

Insertion Depth (min.):

90 mm

Features:

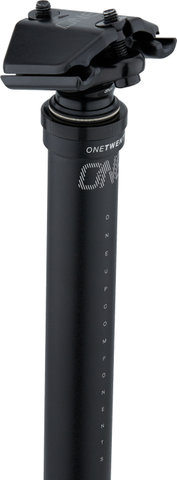

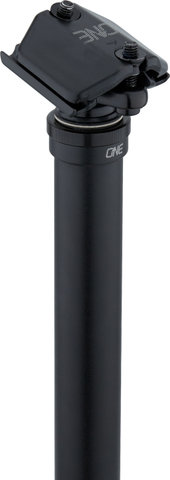

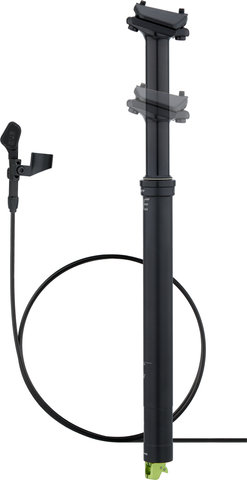

Dropper Post:

• 120 mm travel with 153 mm overall height and 395 mm effective length (without actuator = 15 mm)
• 306 mm maximum extension length
• lightweight
• proven functionality and reliability
• easy to install and maintain, even in an at-home workshop

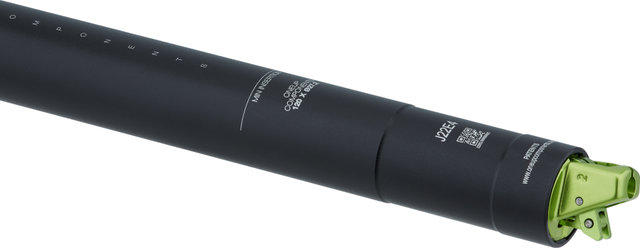

• Actuator V2.1 compatible with Santa Cruz Lower Link VPP

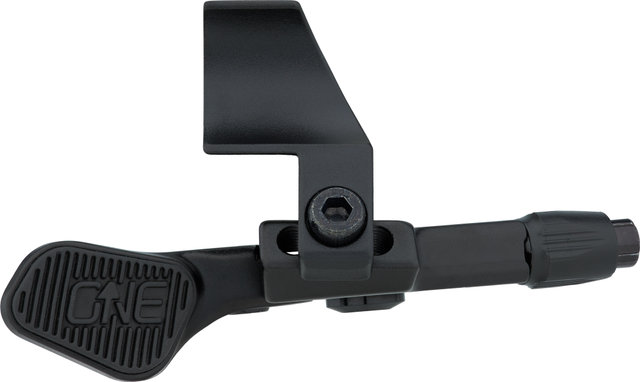

V3 Remote:

• Light Action: 27% less thumb control force required compared to V2
• non-slip thumb pad, replaceable
• easy assembly thanks to integrated cable clamp with markings for shortening
• clean look thanks to neatly clamped cable ends
• can also be used with other mechanically-actuated seatposts
• I-Spec II version: compatible with Shimano XTR M9000, XT M8000, SLX M7000 11-speed

Note from the manufacturer:

The travel of the 27.2 mm Dropper Post cannot be changed by metal pins or by any other means. The 27.2 mm dropper post is not infinitely adjustable. It has a sealed cartridge and does not need to be inflated with a shock pump.

Models:

27.2 mm / 395 mm / SB 0 mm:

Diameter:

27.2 mm

Length:

395 mm

Internal Actuation Length:

15 mm

Setback:

0 mm

Manufacturer Number:

1C0763 + 1C0838 + SP1C0057

Contents:

• 1 x OneUp Components Dropper Post V2 27.2 120 mm
• 1 x OneUp Components Dropper Post V3 handlebar remote
• 1 x I-Spec II remote clamp
• 1 x cable with cable housings
• 1 x grease
• 1 x cable clamp sleeve

Order Together:

Optional accessories:

• Dropper Post V3 Handlebar Remote Rubber Pad

• black | 0 mm | 395 mm | 27,2 mm | I-Spec II | V3: 475 g
