OneUp Components Dropper Post V2 180 mm Seatpost w/ V3 Remote Lever Clamp - black/31.6 mm / 465 mm / SB 0 mm

OneUp Components Dropper Post V2 180 mm Seatpost w/ V3 Remote Lever Clamp

Item number: 89255

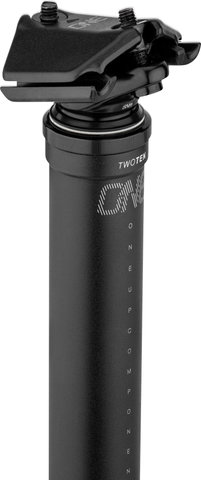

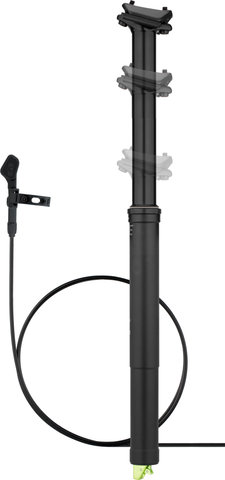

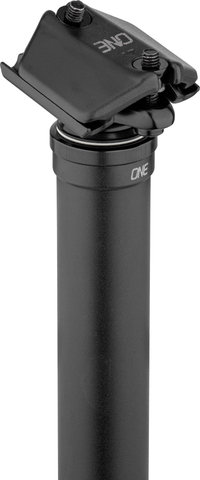

OneUp Components Dropper Post V2 180 mm Seatpost - Includes V3 remote lever with clamp


The Dropper Post V2 seatpost from OneUp Components comes here in a bundle with the V3 handlebar remote including remote clamp. The travel - maximum 180 mm for this version - can be shortened by 10 mm or by 20 mm. The seatpost scores with its very low height and overall length, which affords you a very low saddle position. It has a reliable, sealed cartridge and comes with metal pins for personalised travel adjustment. Unlike previous versions, you can even install them in Santa Cruz bikes with Lower Link VPP linkages. The included V3 Remote impresses with its easy operability, a replaceable thumb pad and a convenient cable port. The force you have to exert to operate the lever has been reduced by almost 30% compared to the predecessor, the V2. This makes using your Dropper Post feel even better. In addition, there is the non-slip rubber pad on the lever, which you can get as a spare part in different colours. The handlebar remote has an integrated cable clamp with markings for shortening the cable. This facilitates installation and ensures a clean look.


Specifications:

Application:
All Mountain, Enduro
Stroke:
180 mm
Diameter:
30.9 mm, 31.6 mm, 34.9 mm
Length:
465 mm
Setback:
0 mm

Technical Information:

Actuation:
mechanical handlebar remote
Remote Mount:
clamp (split)
Cable Routing:
internal
Clamp:
2-bolt clamp
Compatible Saddle Rails:
7 x 7 mm (standard), 7 x 9 mm (oval)
Material:
aluminium

Approved For:

Weight Limit:
125 kg
Insertion Depth (max.):
252 mm (267 mm with actuator)
Insertion Depth (min.):
120 mm

Features:

Dropper Post:
  • tons of travel (max. 180 mm) with a 213 mm stack height and a 465 mm effective length (without actuator = 15 mm)
  • 345 mm maximum extension length
  • travel adjustable by 10 or 20 mm via metal pins inserted in guide track (3 for 10 mm, 2 x 3 for 20 mm)
  • cable actuated for easy installation
  • reliable, sealed cartridge
  • cartridge can be changed easily, DIY maintenance possible
  • compared to previous model, has a lower total length and stack, also less weight
  • revised upper DU bushing with enlarged overlay for even more durability

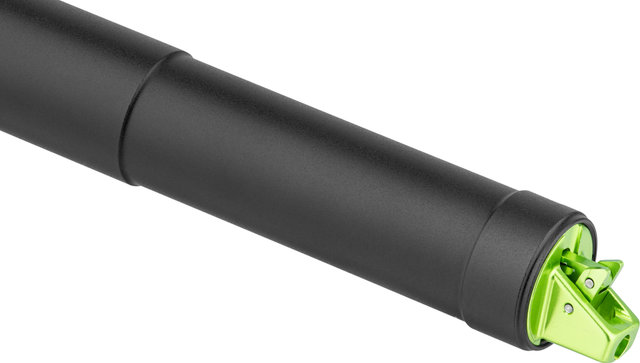

  • Actuator V2.1 compatible with Santa Cruz Lower Link VPP

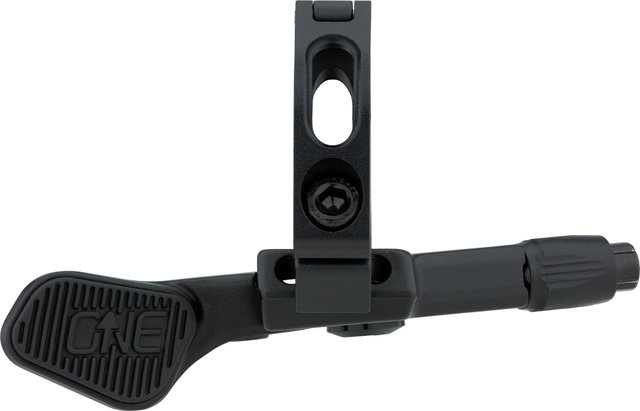

V3 Remote:
  • Light Action: 27% less thumb control force required compared to V2
  • non-slip thumb pad, replaceable
  • easy assembly thanks to integrated cable clamp with markings for shortening
  • clean look thanks to neatly clamped cable ends
  • can also be used with other mechanically-actuated seatposts
  • version with flat bar clamp: compatible with 22.2 mm handlebar clamp diameter

Models:

30.9 mm / 465 mm / SB 0 mm:
Diameter:
30.9 mm
Length:
465 mm
Internal Actuation Length:
15 mm
Setback:
0 mm
Manufacturer Number:
1C0575 + 1C0838 + SP1C0055

31.6 mm / 465 mm / SB 0 mm:
Diameter:
31.6 mm
Length:
465 mm
Internal Actuation Length:
15 mm
Setback:
0 mm
Manufacturer Number:
1C0576 + 1C0838 + SP1C0055

34.9 mm / 465 mm / SB 0 mm:
Diameter:
34.9 mm
Length:
465 mm
Internal Actuation Length:
15 mm
Setback:
0 mm
Manufacturer Number:
1C0661 + 1C0838 + SP1C0055

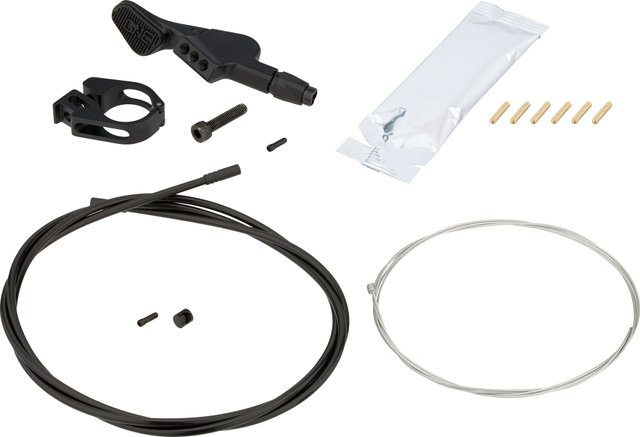

Contents:

  • 1 x OneUp Components Dropper Post V2, 180 mm
  • 6 x 10 mm metal pins
  • 1 x OneUp Components Dropper Post V3 handlebar remote
  • 1 x remote clamp
  • 1 x cable with cable housings
  • 1 x grease for tubes and seals
  • 1 x cable clamp sleeve

Order Together:

Optional accessories:


Weight:

  • black/30.9 mm / 465 mm / SB 0 mm: 570 g
