OneUp Components Switch Chainring Carrier System for Shimano - black/28 tooth

OneUp Components Switch Chainring Carrier System for Shimano

Item number: 77369

OneUp Components Switch Chainring Carrier System - Shimano chainring change in less than 60 seconds

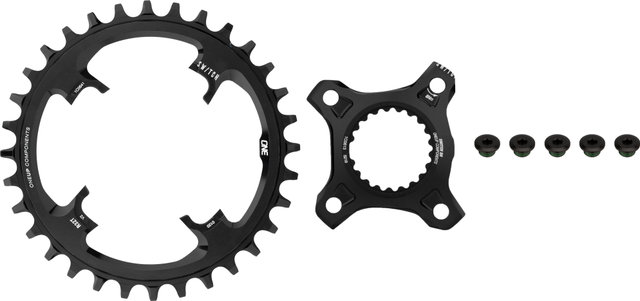

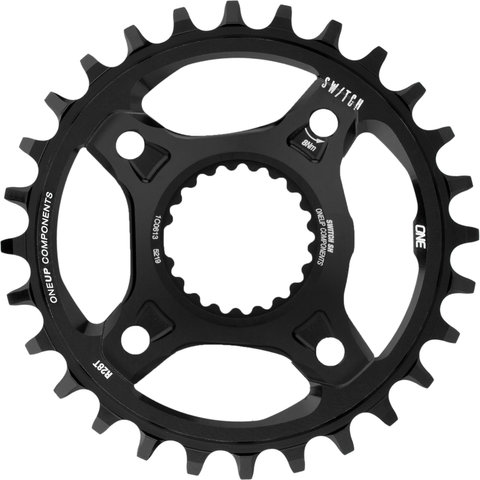

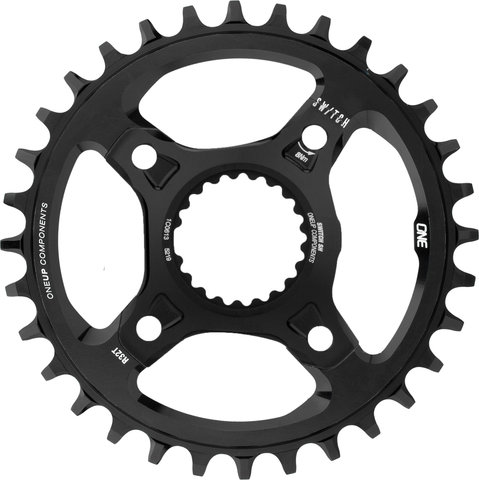

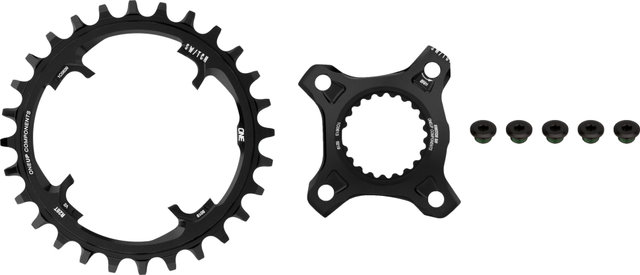

The OneUp Components Switch Chainring Carrier System for Shimano consists of a special spider for Shimano Direct Mount XTR, XT and SLX cranks and a round Switch V2 chainring. It is compatible with Shimano HG+ 12-speed, but also with other chains. OneUp Switch is a Direct Mount chainring system that makes changing chainrings much easier and faster. To complete the assembly in the shortest possible time, you only need a 4 mm Allen key. You do not have to remove the crank. So if there is a trail that is steeper than the terrain before, you can switch to a smaller chainring in the parking lot. And you'll save money too, because a Direct Mount chainring would cost you more than a OneUp Components Switch replacement chainring.

The OneUp Components Switch System is available for different crank standards, complete with oval or round chainrings. You can find the Switch Carrier Spider as well as the chainrings separately in our assortment.

Specifications:

Application:
Enduro, All Mountain
Mount:
Shimano Direct Mount
Teeth:
28 T, 30 T, 32 T, 34 T
Gearing:
1x12-speed

Technical Information:

Chainline:
depending on the crank
Material:
aluminium (7075-T6)

Compatibility:

  • Shimano Direct Mount cranks of the series XTR M9100, XT M8100, SLX M7100
  • all 8-/9-/10-/11-speed chains
  • SRAM Eagle 12-speed chains
  • Shimano Hyperglide+ (HG +) 12-speed chains

Features:

  • chainring swap in under a minute (manufacturer specification)
  • quick adaptation of the set-up to the conditions
  • less cost for spare chainrings
  • narrow-wide structure ensures the chain won't drop
  • requires only a 4 mm hex key, cranks don't need to be removed

Note:
Loosen bolts with two turns, loosen and remove chainring with a 20° rotation. To fit the new Switch chainring, proceed in the opposite direction (the small bulge on the inner edge must be in line with the crank arm), 8 Nm tightening torque.

Manufacturer Numbers:

28 tooth:
1C0687BLK + 1C0649BLK
30 tooth:
1C0687BLK + 1C0650BLK
32 tooth:
1C0687BLK + 1C0651BLK
34 tooth:
1C0687BLK + 1C0652BLK

Contents:

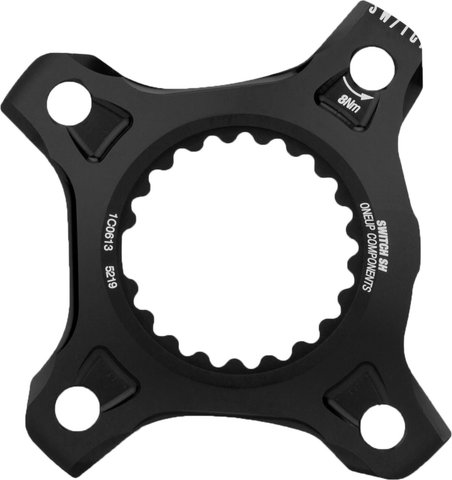

  • 1 x OneUp Components Switch Carrier Shimano spider

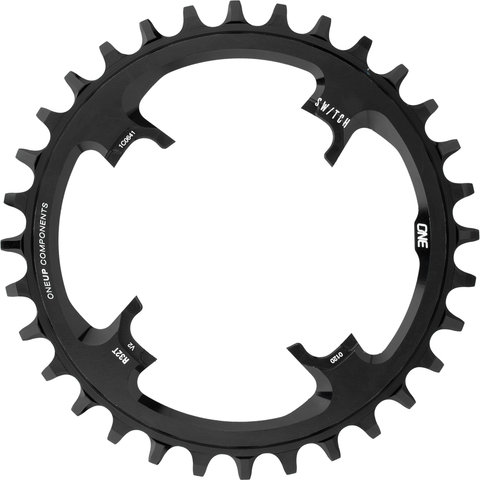

  • 1 x OneUp Components Switch V2 chainring
