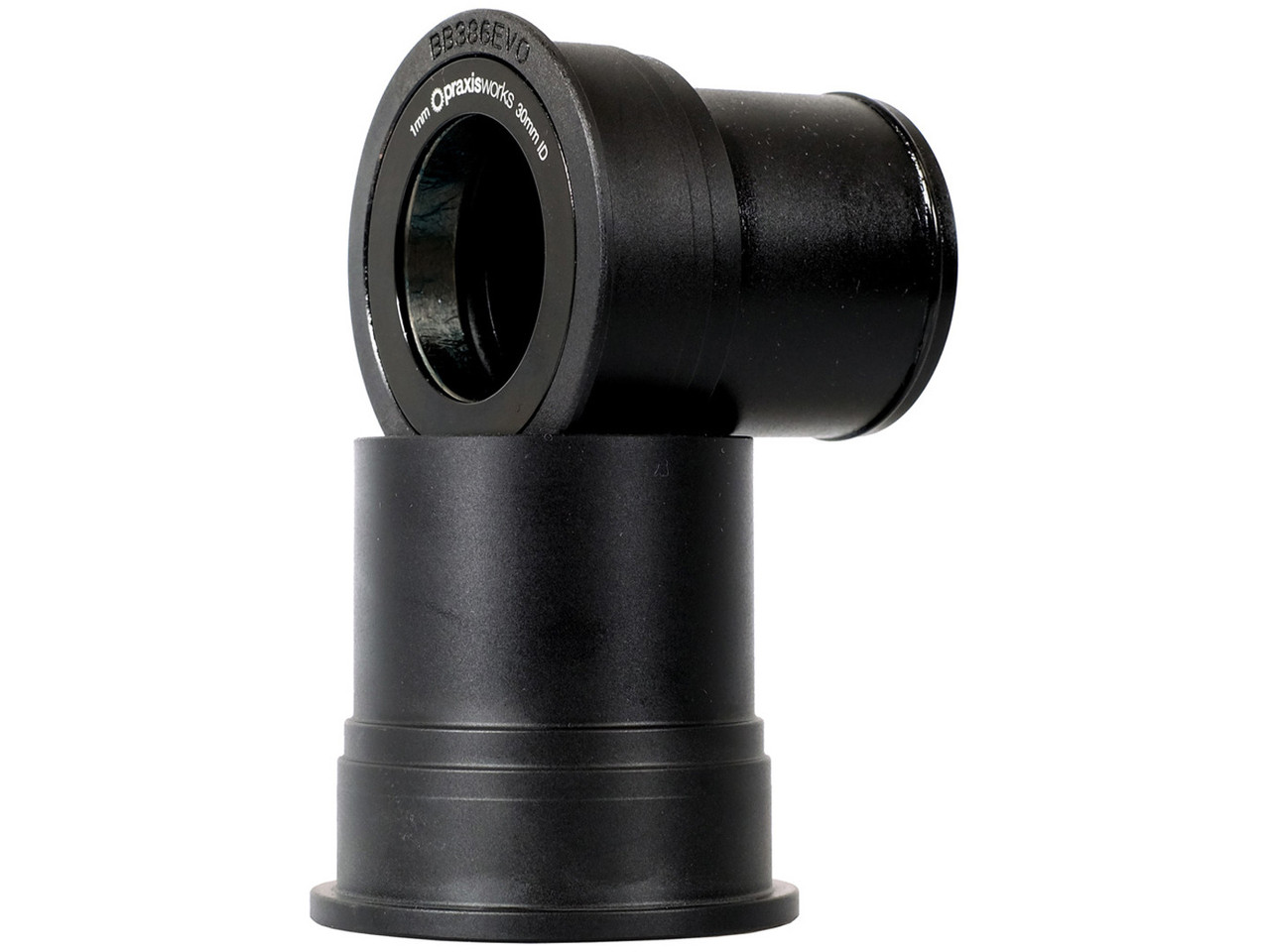

A special axle diameter: the M30 BB386EVO bottom bracket from Praxis Works

With the Praxis Works M30 386EVO bottom bracket, you can mount a Praxis Works Road crank with an M30 axle onto 386EVO road bike frames. These frames have a diameter of 46 mm and a 86.5 mm width. M30 technology uses a 30 mm bearing (drive side) and a 28 mm bearing (non-drive side).

Specifications:

Application:

Road

Series:

M30

Type:

BB386 Evo

Shell Diameter:

46 mm

Shell Width:

86.5 mm

Axle Diameter:

30 mm (Practice Works M30)

Technical Information:

Bearings:

steel

Bottom Bracket Cup Material:

composite material

Compatibility:

• for BB386EVO Road frames
• only compatible with Praxis Works w/ M30 axle, not for other cranks
• for braze-on and clamp front derailleurs
• not compatible with Infocrank M30

Features:

• 30 mm bearing on the drive side, 28 mm bearing on the non-drive side
• cartridge bearings, injection-moulded cups

Technology:

M30
Praxis Works M30 bottom brackets are only suitable for use with Praxis Works M30 cranks. The M30 axle corresponds to a kind of " oversize GXP" . It is 30 mm thick and reduced to 28 mm on the left end to fit the non-drive side bearings. A shaft washer is used at the drive side to provide preload and a 30 mm bearing, which is opposed by a 28 mm bearing at the non-drive side. M30 combines the advantages of wide bearings with the benefits of a sturdy 30 mm axle. This enables a secure fit and better power transmission.

Manufacturer Number:

86-6001

Contents:

• 1 x Praxis Works M30 BB386 bearing cup, incl. bearings, left
• 1 x Praxis Works M30 BB386 bearing cup, incl. bearings, right
• 1 x O-ring for drive side
• 1 x 30 mm x 1 mm dust cap for drive side
• 1 x 30 mm x 2 mm dust cap for drive side
• 1 x wave washer for drive side
• 1 x 28 mm x 2 mm dust cap for non-drive side
