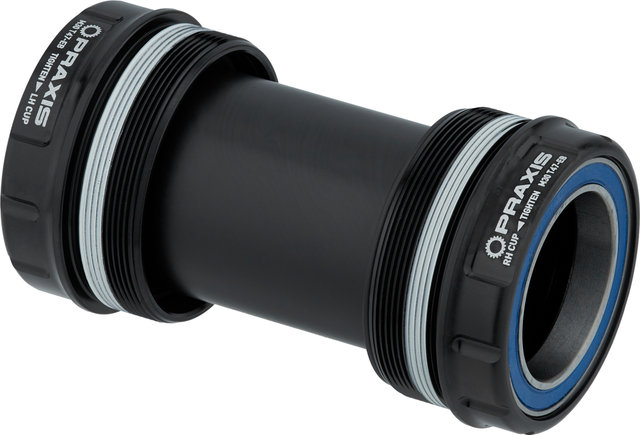

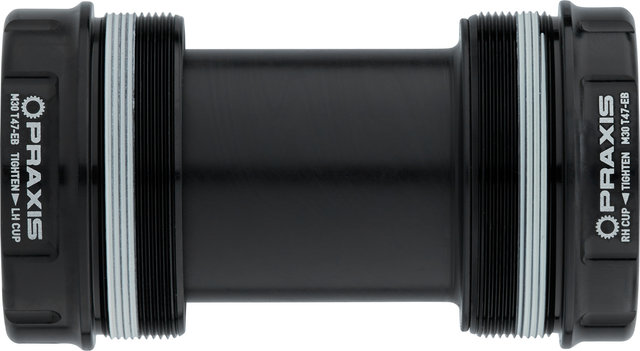

Praxis Works M30 T47 External Bearing Bottom Bracket

A special solution: the M30 T47 E. B. bottom bracket from Praxis Works

With the Praxis Works M30 T47 bottom bracket you can install a Praxis Works crank with M30 axle in a T47 frame with external bearings. It fits both 68 mm-wide road bike bottom bracket bearings and 73 mm-wide MTB bottom bracket bearings The M30 technology with a 30 mm bearing on the drive side and 28 mm bearing on the non-drive side ensures full power transmission.

Specifications:

Application:

Road, Cross Country

Series:

M30

Type:

T47

Shell Width:

68 mm, 73 mm

Axle Diameter:

30 mm (Practice Works M30)

Technical Information:

Bearings:

steel

Bottom Bracket Cup Material:

aluminium

Compatibility:

• for T47 68 mm Road frames and T47 73 mm MTB frames w/ external bearings (47 x 1.0 mm threaded)
• only compatible with Praxis Works w/ M30 axle, not for other cranks
• for braze-on, clamp and direct mount front derailleurs
• not compatible with 68 mm MTB frames

Features:

• 30 mm bearing on the drive side, 28 mm bearing on the non-drive side
• cups made of forged and machined heat-treated aluminium, cartridge bearings

Technology:

M30
Praxis Works M30 bottom brackets are only suitable for use with Praxis Works M30 cranks. The M30 axle corresponds to a kind of " oversize GXP" . It is 30 mm thick and reduced to 28 mm on the left end to fit the non-drive side bearings. A shaft washer is used at the drive side to provide preload and a 30 mm bearing, which is opposed by a 28 mm bearing at the non-drive side. M30 combines the advantages of wide bearings with the benefits of a sturdy 30 mm axle. This enables a secure fit and better power transmission.

Manufacturer Number:

47-0000

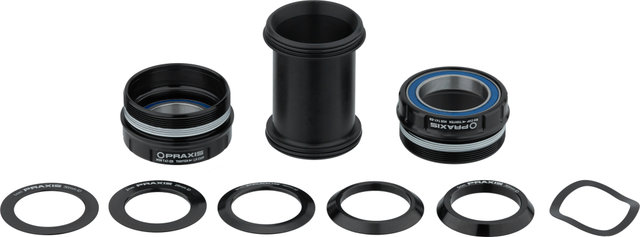

Contents:

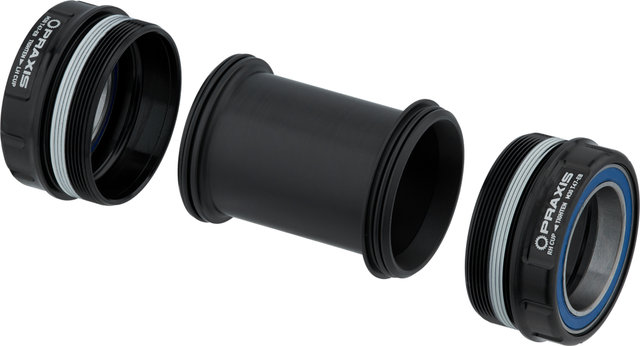

• 1 x Praxis Works M30 T47 left bearing cup, incl. bearings
• 1 x Praxis Works M30 T47 right bearing cup, incl. bearings
• 1 x Praxis Works bottom bracket centre tube
• 1 x 30 mm x 1 mm dust cap for drive side
• 1 x 30 mm x 2 mm dust cap for drive side
• 1 x 30 mm x 5 mm dust cap for drive side
• 1 x wave washer for drive side
• 1 x 28 mm x 2 mm dust cap for non-drive side
