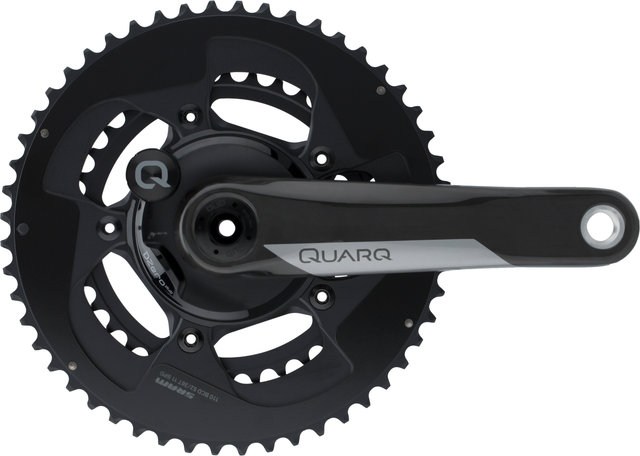

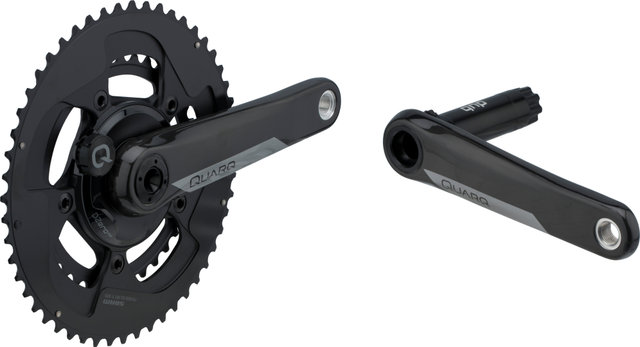

QUARQ DZero DUB Power Meter Compact Carbon Crankset

The QUARQ DZero DUB Power Meter Compact crankset is a carbon crankset with a DUB axle and a 110 mm DZero power meter spider for precise power measurement on both sides. Chainrings with 36 and 52 teeth are supplied.

Specifications:

Application:

Road, Triathlon & Time Trial

Type:

power meter crankset (dual-sided)

Compatibility:

2x11-speed

Chainring Mount:

110 mm bolt circle diameter, 5-arm

Technical Information:

Series:

DZero

Crank Arm Material:

Carbon

Chainring Material:

Aluminium

Axle Material:

Aluminium

Gradation:

36-52

Crank Arm Length:

170.0 mm, 172.5 mm, 175.0 mm

Chainline:

45.5 mm

Axle Diameter:

28.99 mm

Recommended Bottom Bracket:

all SRAM Road DUB

Tolerance:

+/- 1.5%

Point of Measurement:

spider

Power Source:

CR2032 lithium battery

Battery Life:

approx. 200 hours

Data Collected:

power (dual-sided), cadence, torque, pedal stroke uniformity

Waterproof:

IPX7

Data Transfer:

ANT+, Bluetooth

Features:

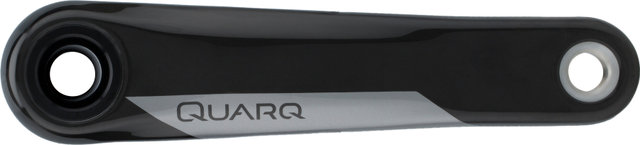

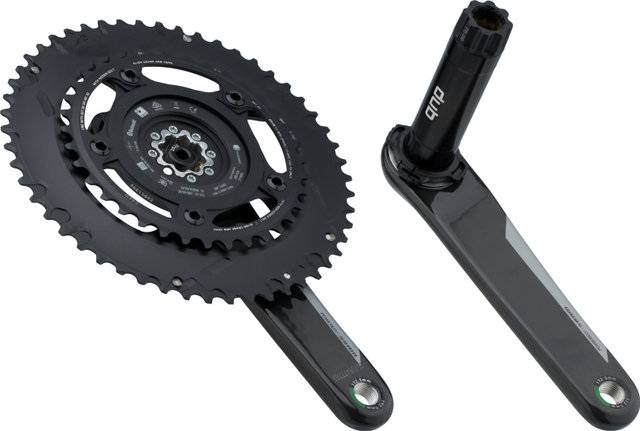

• Carbon crank arms with DUB axle and 8-bolt interface, power meter spider, chainrings
• tool-free battery replacement
• 10K temperature compensation
• no cadence magnet required thanks to AxCad (multi-axis acceleration sensor)
• automatic recalibration while riding
• easy chainring change without recalibration
• natural carbon finish
• SRAM AXS app for zeroing, battery status, diagnostics and firmware updates

Technology:

QUARQ Operating Principle
The crankset forms the heart of your bike. Their only task is to convert the force of both legs into forward motion - the perfect place to measure performance.
Power meters calculate power by measuring torque (pedal force) and angular velocity (cadence). Power = torque x cadence. When you pedal, all parts of the bicycle drivetrain shift (bend) slightly under the load. Power meters are designed using FE analysis so that these displacements take place in a very controlled manner and at specific locations in relation to the applied load. Strain gauges are used to measure this displacement and calculate the applied torque. Reed switches are used to calculate the cadence.

DZero
DZero is QUARQ's next generation power meter, named after the DZero Experiment, one of the most accurate and innovative scientific projects to discover subatomic particles. With a revised measurement loop, optimised strain gauge design, increased accuracy and the features of the Qualvin and SRAM AXS app, DZero represents the state of the art in power meter technology. You can choose between Bluetooth LE and ANT+ technology for data transfer.

OmniCal™
The power measurement depends on the choice of the right chainring. Change from a Road to a Time Trial chainring without sacrificing accuracy. No recalibration necessary.

MagicZero™
Calibration takes place automatically during the ride. You don't need to pedal backwards or perform a manual calibration from your computer.

Manufacturer Numbers:

170.0 mm 36-52:

00.3018.291.170

172.5 mm 36-52:

00.3018.291.172

175.0 mm 36-52:

00.3018.291.175

Contents:

• 1 x QUARQ DZero DUB power meter crankset (36-52 tooth)
• 1 x CR2032 batteries
